Rittal 2500713 SZ socket box for system light LED, CH (type J, S

Your rating:
Average rating
product review for Rittal 2500713 SZ socket box for system light LED, CH (type J, S
( 0 / 5 ) 0 ratings
Rittal 2500713
This image may differ from the desired article.
Rittal 2500713Rittal 2500713Rittal 2500713Rittal 2500713Rittal 2500713Rittal 2500713
-10% 43,70 EUR 48,75 EUR
( 52,00 EUR incl. VAT )
≈ £36.58  |  ≈ $48.03
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 2500713 SZ socket box for system light LED, CH (type J, S
Datasheet:file_download Download
Lieske Part No.:593576
Mfg Part No: 2500713
UPC/EAN: 4028177956858
Weight:0.267 kg
Type:SZ 2500713

Product information for Rittal 2500713:

The Rittal SZ 2500713 is a socket box for use with the LED system light, specifically designed for use in enclosures and industrial installations. The device features a socket in the Swiss standard CH (Type J, SEV 1011) and is made of plastic in the colour RAL 7016. It serves as a supplementary component in the modular system of the LED system light, enabling flexible and ergonomic power supply within the enclosure.

Applications
The socket box is intended for use in industrial enclosures, particularly in installations requiring power supply for mobile devices, tools or measuring instruments indoors. The integrated CH socket (Type J, SEV 1011) makes it especially suitable for applications in Switzerland or regions where this socket standard is used. The flexible mounting at various locations within the enclosure, including on the door frame, allows for optimal placement at workstations or near control elements.

Functions and Equipment in Detail
The box is equipped with a socket in the Swiss standard, designed for a rated operating voltage of 195 V to 250 V at 50 Hz or 60 Hz. Connection options include both 3-pole feed-in and 3-pole pass-through wiring, enabling either direct power supply or onward connection to subsequent components depending on the application. Mounting is done using included fastening materials, which are part of the delivery scope.

Technology Explained Simply
The socket box is designed to be directly integrated into the power circuit of the LED system light. This eliminates additional wiring effort, as power supply is routed through the existing lighting cable. Cascading with the LED system light enables modular system expansion, allowing multiple socket boxes to be arranged in a chain. The operating temperature range of -20 °C to 55 °C ensures reliable performance in typical industrial environments.

Compatibility and Accessories
The socket box is specifically developed for use with the Rittal LED system light. The same connection accessories as used with the light can be employed, ensuring uniform wiring and installation. Suitable accessories include various connection cables, such as 3-pole cables for feed-in and pass-through wiring in lengths of 1000 mm and 3000 mm, partially in orange. These cables enable flexible and secure connections between the socket box and the system light or other components.

Mounting and Installation

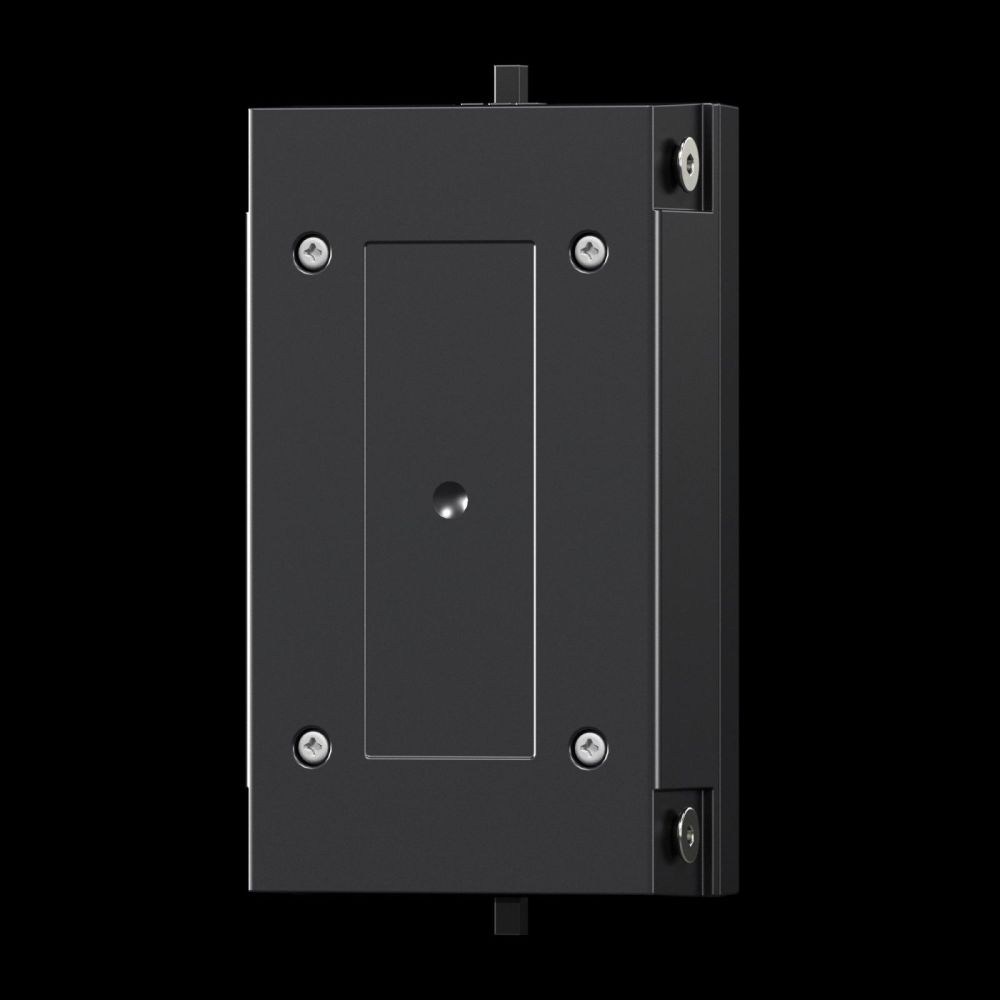

Mounting can be done at any location within the enclosure, including on the door frame, allowing ergonomic positioning at work surfaces. The included fastening materials enable secure and stable mounting. The simple connection technique requires no additional wiring work, as the socket box is directly integrated into the power circuit of the LED system light.

Operational Advantages
By integrating into the LED system light system, the socket box becomes a flexible component that can be installed without additional effort. The modular design enables scalable expansion of the power supply system within the enclosure. The use of the Swiss socket standard CH (Type J, SEV 1011) ensures compatible and safe power supply for devices requiring this connection. The robust plastic construction in RAL 7016 ensures good fit in industrial environments and long service life under operating conditions.

General
MaterialPlastic
ColourRAL 7016

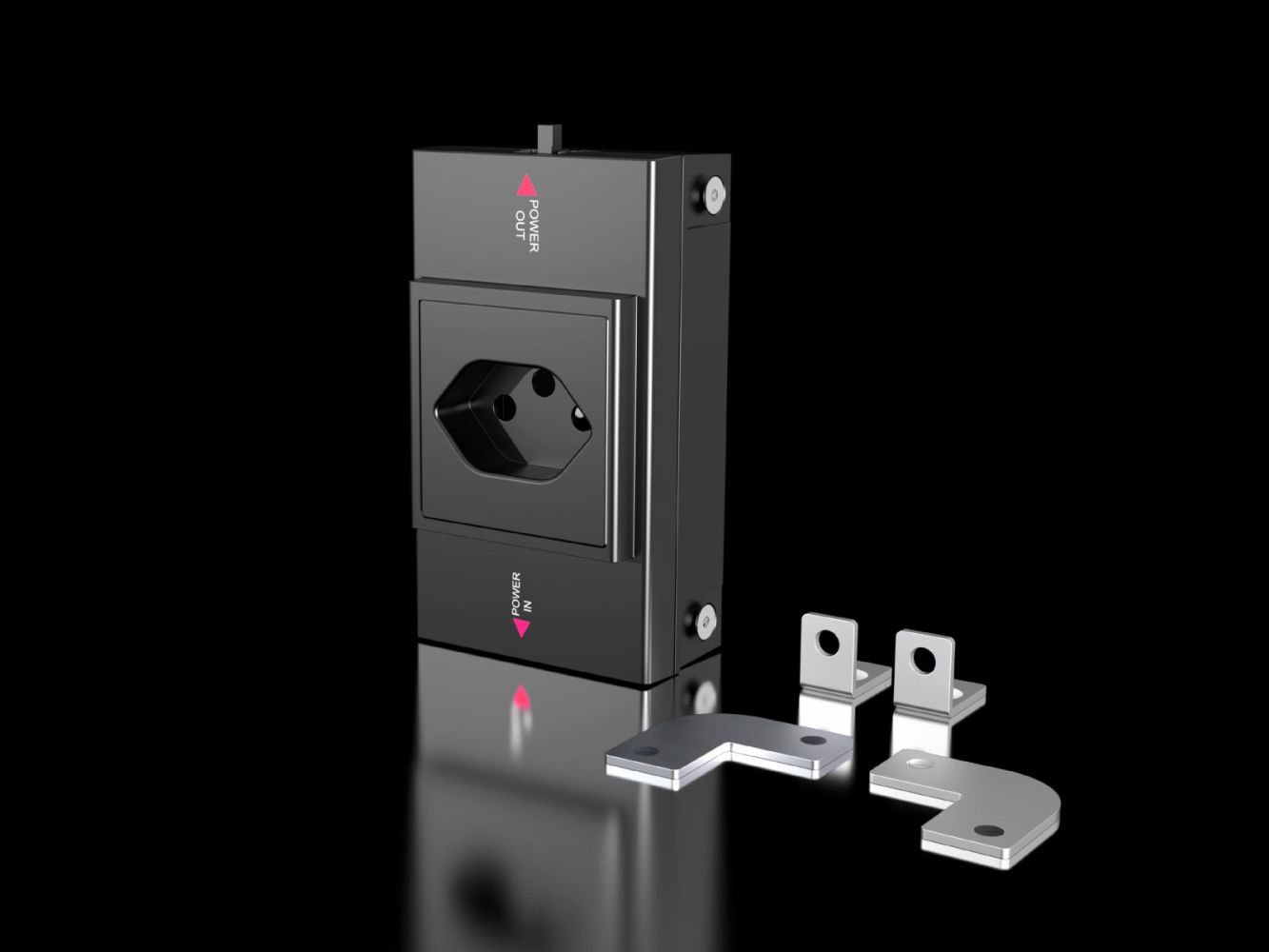

Scope of deliveryIncluding mounting hardware
Connection optionsSupply, 3-pole, through wiring, 3-pole
NoteDepending on application, either through wiring or 3-phase supply is required
Width163 mm
Height68 mm
Depth43,5 mm
Operating temperature range-20 °C...55 °C
Socket outletsCH (Type J, SEV 1011)
Rated operating voltage195 V - 250 V, 50 Hz/60 Hz
PCF/VE (Cradle-to-Gate)1,6


Product data sheet
Datasheet for Rittal 2500713, EAN: 4028177956858
