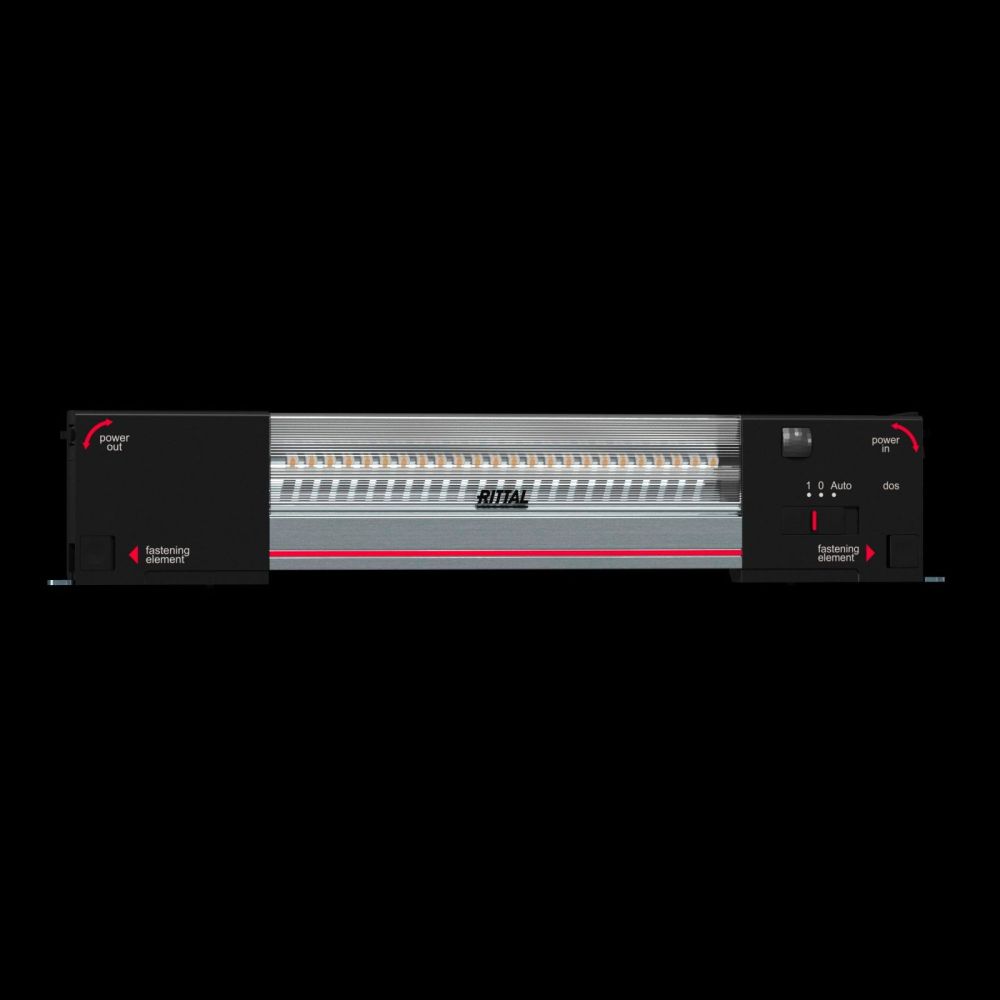

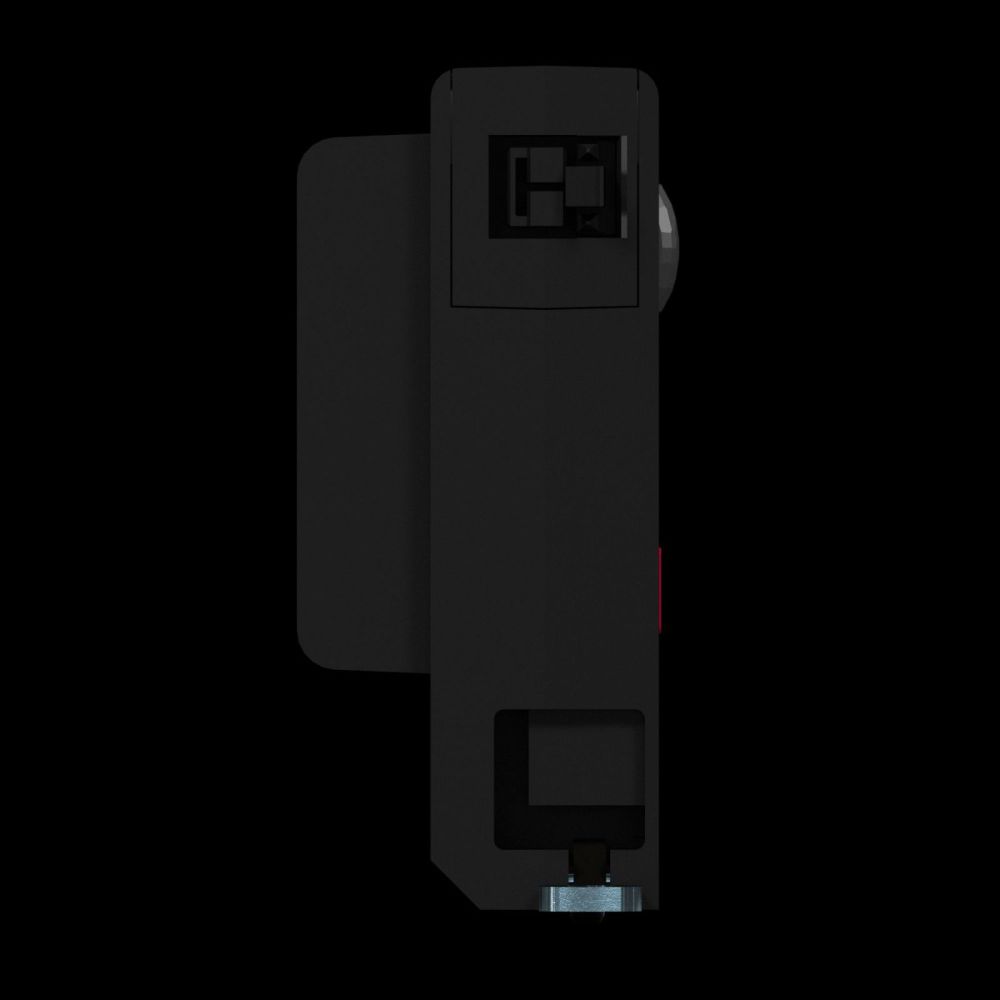

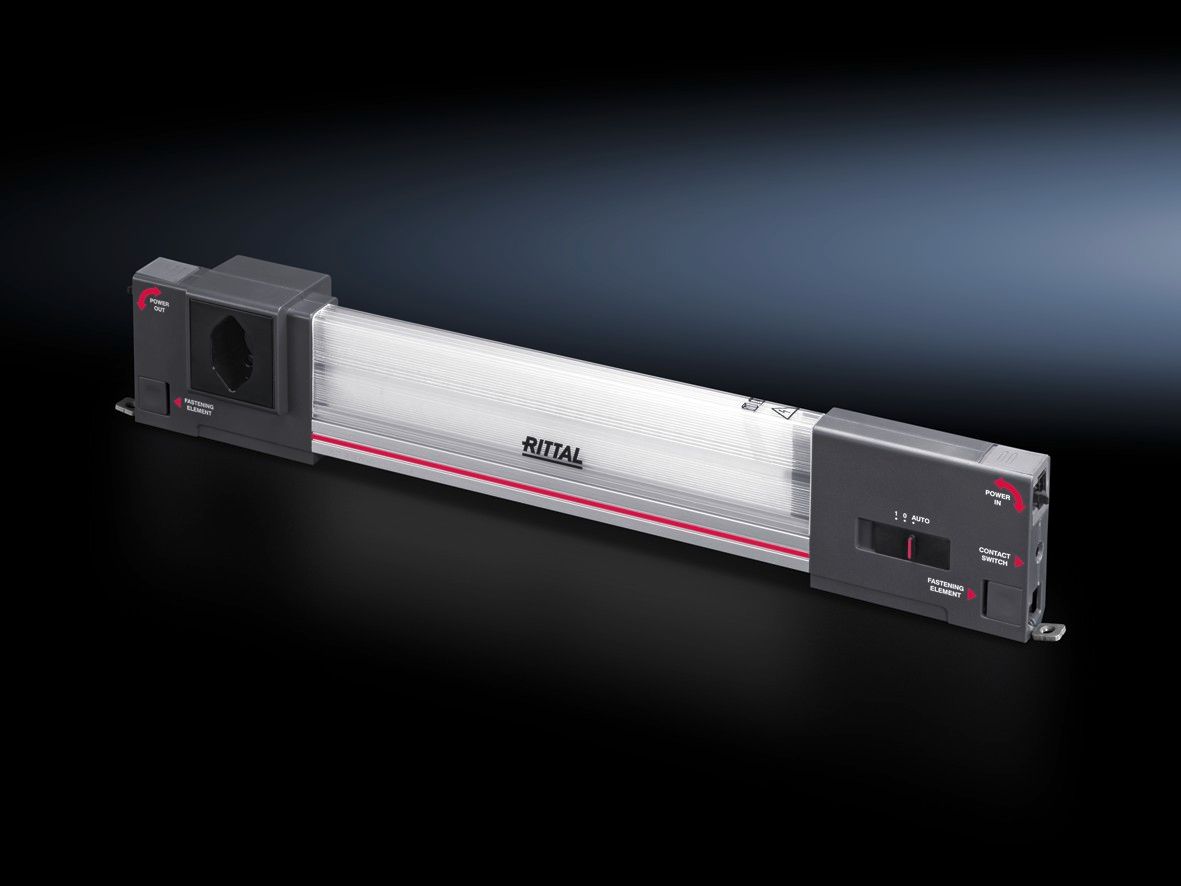

Rittal 2500213 System light LED 900, 100-240 V, L: 437 mm, with plug

Your rating:
Average rating
product review for Rittal 2500213 System light LED 900, 100-240 V, L: 437 mm, with plug
( 5 / 5 ) 4 ratings
Rittal 2500213
This image may differ from the desired article.
Rittal 2500213Rittal 2500213Rittal 2500213Rittal 2500213Rittal 2500213
119,95 EUR
( 142,74 EUR incl. VAT )
≈ £100.40  |  ≈ $131.83
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2500213 System light LED 900, 100-240 V, L: 437 mm, with plug
Datasheet:file_download Download
Lieske Part No.:1054585
Mfg Part No: 2500213
UPC/EAN: 4028177811331
Weight:0.62 kg
Type:SZ 2500213

Product information for Rittal 2500213:

The Rittal SZ 2500213 is an LED system light, specifically designed for use in enclosures. It provides even and sufficient illumination of the entire enclosure interior and is equipped with a socket for Switzerland (Type J, SEV 1011). The device is supplied with mounting screws and can be directly mounted on the enclosure profile with a 25 mm grid. The light is designed for an operating voltage of 100 V to 230 V, 1~, 50 Hz/60 Hz and has a rated power of 11 W. The luminous flux is 900 lm at a light colour of 4000 K (neutral white), ensuring clear and pleasant lighting. The protection rating IP 20 according to IEC 60 529 protects against contact with fingers and against solid foreign objects, but not against water or dust. The operating temperature ranges from -20 °C to +55 °C.

Applications

The light is intended for use in industrial enclosures where reliable and even lighting is required for maintenance and installation work. The integrated socket allows devices or tools to be powered directly within the enclosure, simplifying operational workflows. The socket version is specifically designed for the Swiss market, complying with SEV 1011 standards.

Functions and Equipment in Detail

The SZ 2500213 features multiple connection options: power input (3-pole), pass-through wiring (3-pole), and a door position switch. These functions enable flexible integration into existing enclosure installations. Mounting can be done either by screwing or via a clip fastening, ensuring quick and secure installation. The light ends are made of PC-ABS, the light cover of polycarbonate, and the housing of extruded aluminium, resulting in a robust and durable construction. The housing colour is RAL 7016.

Technology Explained Simply

The light uses LED technology, known for high luminous efficacy and low energy consumption. The rated insulation voltage is 300 V AC, and the rated impulse voltage withstand between phase and earth is 2500 V AC, ensuring safe operation. Protection Class II (double insulated) means no protective earth connection is required, as the insulation is sufficient to prevent electrical hazards. The light is designed for operation in a temperature range of -20 °C to +55 °C, enabling broad application in various industrial environments.

Compatibility and Accessories

Various accessories are available to complement the light, including connection cables in different lengths (e.g. 1000 mm, 3000 mm), connection cables for power input and pass-through wiring, door position switches with connection cable, mounting brackets, as well as plugs and sockets for pass-through wiring. These components allow individual adaptation to the specific requirements of the enclosure.

Mounting and Installation

Mounting is done directly onto the enclosure profile with a 25 mm grid. Fastening is either by screwing or via clip fastening, using the supplied screws.

Operational Advantages

The light offers high luminous efficacy of 900 lm at low energy consumption of 11 W. The integrated socket enables direct power supply to tools within the enclosure, making maintenance work more efficient. The robust construction from aluminium, polycarbonate, and PC-ABS ensures long service life. Mounting is simple and quick, reducing installation time. The IP 20 protection rating ensures safe operation in enclosed enclosures.

General
ModelWith socket
MaterialLuminaire body: extruded aluminium, luminaire cover: polycarbonate, luminaire ends: PC-ABS
ColourHousing: RAL 7016
Scope of deliveryIncluding mounting screws
Nominal power11 W
Connection optionsPower supply, 3-pole, through wiring, 3-pole, door position switch
Overvoltage protection classII
Protection classII (double insulated)
Luminaires mounting typeScrewing, clip mounting
Rated impulse voltage withstand, phase to ground2500 V AC
Rated insulation voltage300 V AC
Mounting optionsDirect mounting on cabinet profile with 25 mm grid
Luminous flux900 lm
Colour of light4000 K (neutral white)
NoteConnection accessories to be ordered separately
Width437 mm
Height80 mm
Depth44 mm
Operating temperature range-20 °C...55 °C
Socket outletsCH (Type J, SEV 1011)
Rated operating voltage100 V - 230 V, 1~, 50 Hz/60 Hz
Socket configurationCH (Type J, SEV 1011)
Degree of protection IP according to IEC 60 529IP 20
PCF/VE (Cradle-to-Gate)13,6


Product data sheet
Datasheet for Rittal 2500213, EAN: 4028177811331
