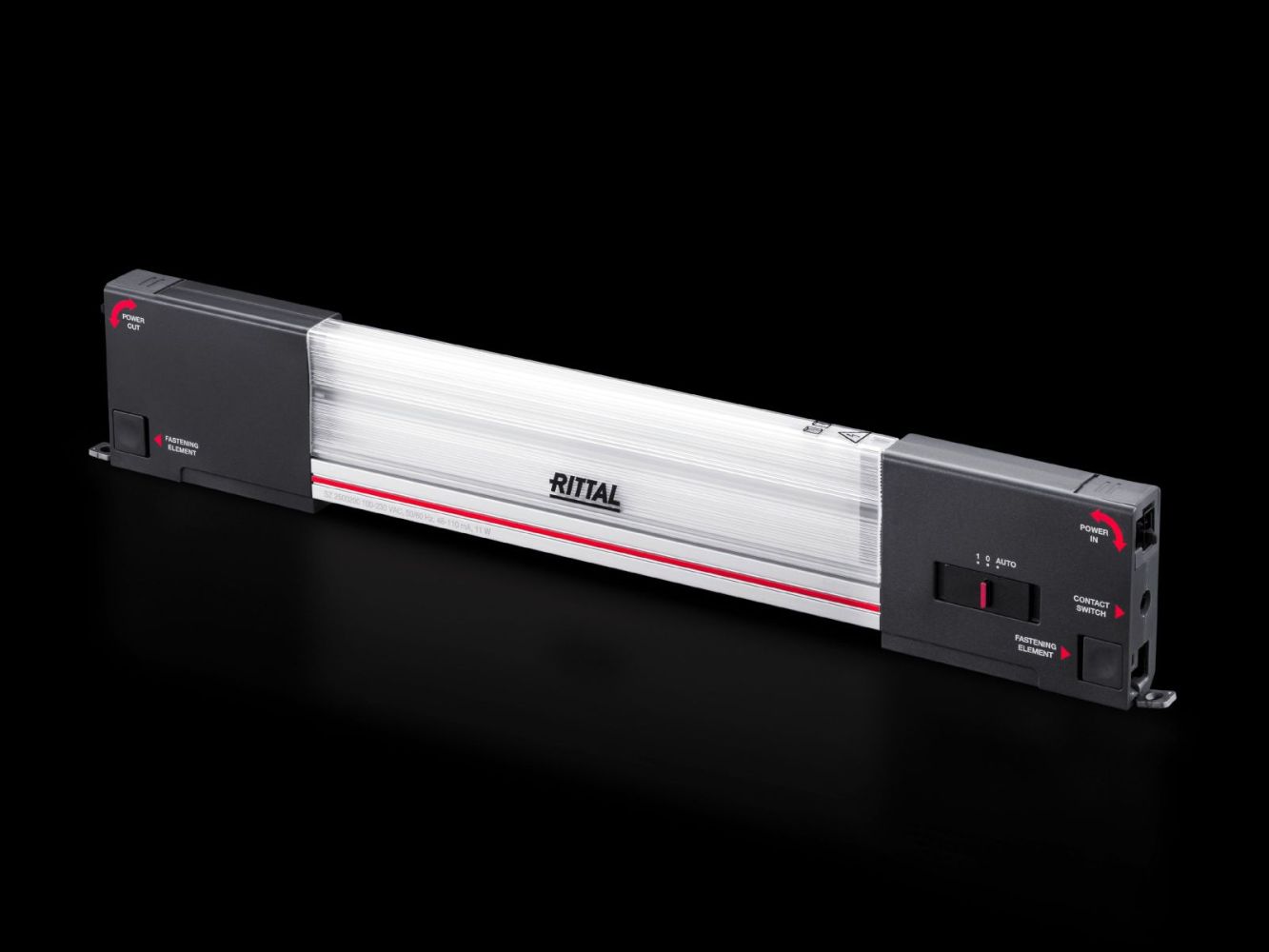

Rittal 2500220 System light LED 900, 24 V DC, L: 437 mm
|
118,35 EUR 118,36 EUR |
|
|
( 140,84 EUR incl. VAT ) ≈ £99.06 | ≈ $130.07 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1010594 |
| Mfg Part No: | 2500220 |
| UPC/EAN: | 4028177806979 |
| Weight: | 0.54 kg |
| Type: | SZ 2500220 |
Product information for Rittal 2500220:
Applications
The SZ 2500220 is intended for use in industrial enclosures where uniform and sufficient lighting is required for maintenance, inspection, and installation tasks. The light is particularly suitable for systems operated in controlled indoor environments, as it has protection rating IP 20, which protects against contact with fingers and solid foreign objects, but is not suitable for outdoor use or humid environments. The operating temperature range is between -20 °C and +55 °C, enabling use in typical industrial facilities.
Functions and Equipment in Detail
The light produces a luminous flux of 900 lumens at a colour temperature of 4000 K (neutral white), ensuring clear and natural perception of enclosure contents. The rated power is 11 W, and the nominal operating voltage is 24 V DC, enabling safe and energy-efficient power supply. Protection class III (SELV) ensures the light can be operated safely under voltage without requiring additional protective measures.
Technology Explained Simply

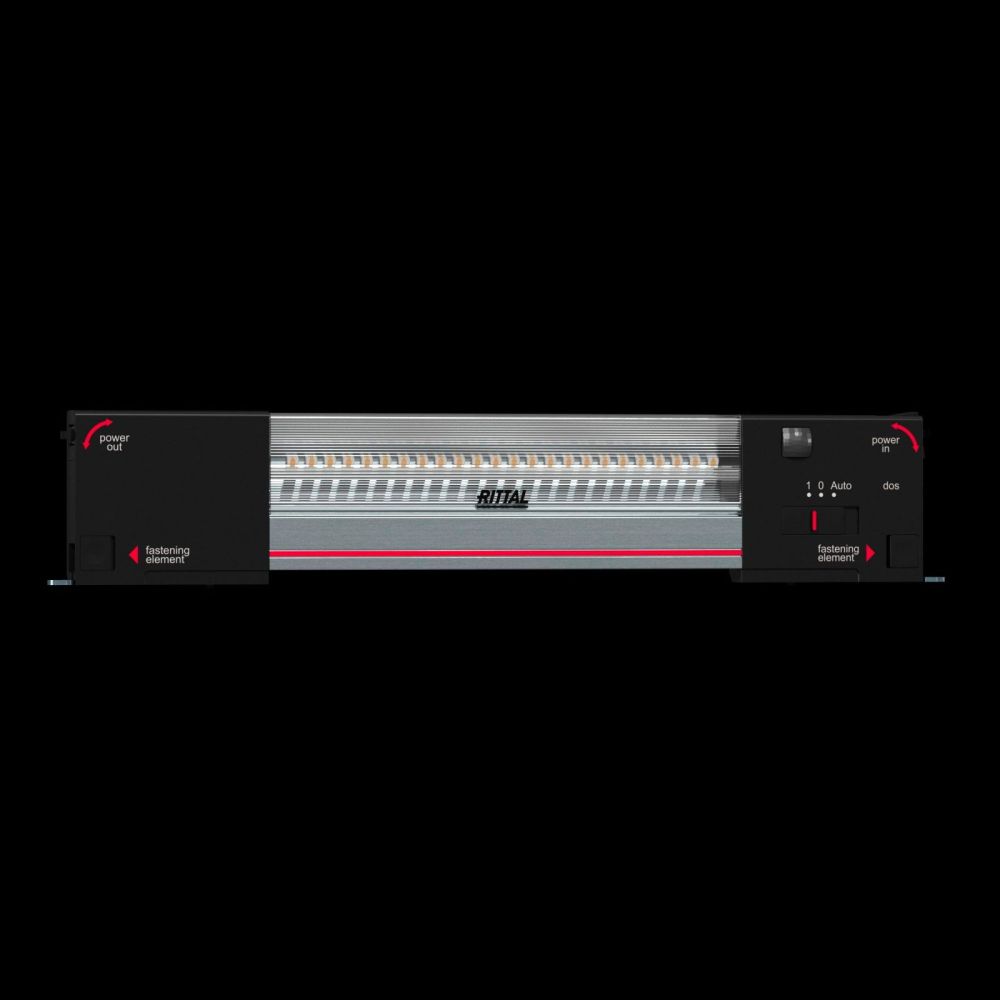

The light is equipped with 2-pole connection options suitable for both power input and through-wiring. This allows flexible integration into existing enclosure networks. Additionally, a door position switch can be connected to automatically activate the lighting when the enclosure door is opened. The light distribution is adjustable, enabling optimal illumination depending on the enclosure geometry. Mounting can be done either by screwing or using a clip fastening. For additional flexibility, magnetic mounting is available as optional accessory.
Compatibility and Accessories
Various accessories are available to extend functionality, including universal brackets, door position switch with connecting cable (800 mm, black), mounting brackets for internal installation, connecting cables for power input and through-wiring (2-pole, 24 V DC), SZ magnetic mounting kit, and plugs and sockets for wiring. These components allow individual adaptation of the light to specific requirements within the enclosure.
Mounting and Installation
Mounting is done directly onto the enclosure profile with 25 mm grid. The included mounting screws ensure secure and stable fastening. Alternatively, the light can be mounted using a clip or – when using optional accessories – with a magnet. The connection options are designed to ensure easy and safe wiring.
Advantages in Operation
The SZ 2500220 offers high luminous efficacy with low energy consumption, leading to efficient resource use. The adjustable light distribution and flexible mounting allow optimal adaptation to different enclosure configurations. The protection rating IP 20 and protection class III ensure safe operation in industrial environments. The light is designed for use in enclosures where reliable and maintenance-friendly lighting is required.
| General | |
| Model | without socket |
| Material | Luminaire body: extruded aluminium, luminaire cover: polycarbonate, luminaire ends: PC-ABS |
| Colour | Housing: RAL 7016 |
| Scope of delivery | Including mounting screws |
| Nominal power | 11 W |
| Connection options | Power supply, 2-pole, through wiring, 2-pole, door position switch |
| Protection class | III (SELV) |
| Luminaires mounting type | Screwing, clip mounting, magnetic mounting (accessory) |
| Mounting options | Direct mounting on cabinet profile with 25 mm grid |
| Luminous flux | 900 lm |
| Colour of light | 4000 K (neutral white) |
| Note | Connection accessories to be ordered separately |
| Width | 437 mm |
| Height | 75 mm |
| Depth | 23 mm |
| Operating temperature range | -20 °C...55 °C |
| Rated operating voltage | 24 V (DC) |
| Degree of protection IP according to IEC 60 529 | IP 20 |
