Rittal 2500610 Socket for feed-in and through-wiring, 2-

Your rating:
Average rating
product review for Rittal 2500610 Socket for feed-in and through-wiring, 2-
( 4.3 / 5 ) 4 ratings

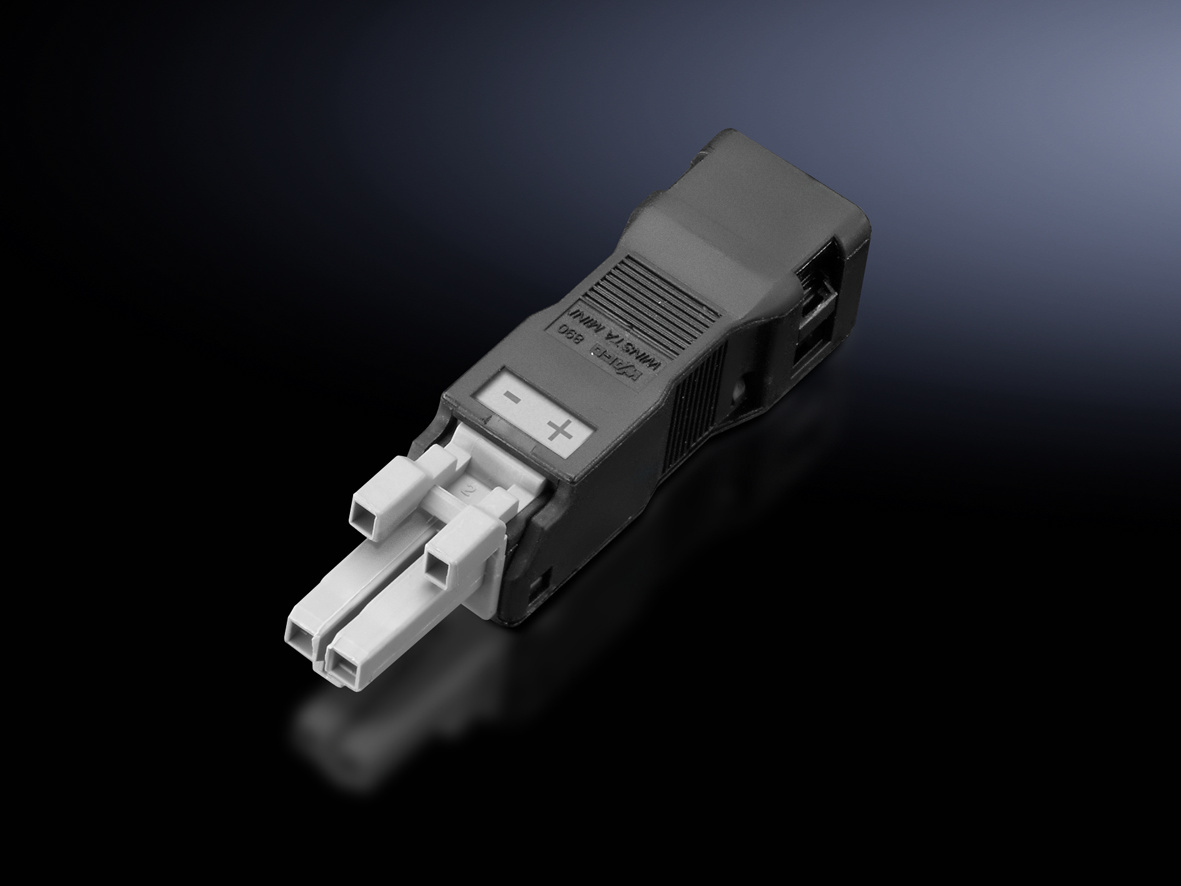

Rittal 2500610
This image may differ from the desired article.
Rittal 2500610Rittal 2500610
29,10 EUR
( 34,63 EUR incl. VAT )
≈ £24.36  |  ≈ $31.98
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2500610 Socket for feed-in and through-wiring, 2-
Datasheet:file_download Download
Lieske Part No.:1907663
Mfg Part No: 2500610
UPC/EAN: 4028177918740
Weight:0.073 kg
Type:SZ 2500610

Product information for Rittal 2500610:

The Rittal SZ 2500610 is a 2-pole socket as connection accessory for custom cable assembly, particularly for system lights with LED technology. It serves for power input and through-wiring in industrial installations and enables flexible, factory-unassembled cabling. The socket is designed for operating voltages of 24 V DC and is suitable for use in enclosures and control systems where individual cable connections are required.

Applications
The socket is primarily used in the field of industrial electrical installation, where modular and adaptable cabling is necessary. It is suitable for connecting cables in control and lighting systems, especially in enclosures where through-wiring or power input is required. The construction allows for a secure and durable connection that meets the requirements of industrial environments.

Functions and Equipment in Detail
The SZ 2500610 is designed as a socket, 2-pole and enables the connection of round conductors with a nominal cross-section of 1.5 mm². For single-strand conductors, a cross-section range of 0.25 to 1.5 mm² is specified, corresponding to AWG 16 to AWG 22. For multi-strand conductors, the permissible cross-section is 0.25 to 1 mm², corresponding to AWG 18 to AWG 22. These specifications ensure a secure and reliable connection, taking into account mechanical and electrical loads in industrial practice.

Technology Explained Simply
The socket is designed for custom assembly, meaning it is not pre-assembled but must be connected by the user with the required cables. This allows for customized cabling that can be adapted to the specific requirements of each installation. The dimensions are 15.6 mm (width), 13.2 mm (height), and 61.6 mm (depth), allowing for compact mounting in enclosures. The connection is made via mechanical clamp technology, ensuring a firm and durable connection.

Compatibility and Accessories
The accessory is supplemented by cable ties L150 mm, suitable for securing and organizing the connected cables. These cable ties support proper cabling and prevent loose or uncontrolled cable runs within the enclosure. The socket is specifically designed for use with system lights, with exact mounting and cabling varying depending on the application.

Mounting and Installation
Mounting is done by direct installation into the designated mounting openings in the enclosure or control unit. The socket is connected to the appropriate cables, ensuring the specified cross-sections are observed to guarantee a secure and reliable connection. Cabling is done via clamp technology, enabling a mechanically stable connection. The use of cable ties supports proper fixation of the cables.

Advantages in Operation
The socket enables the creation of individual cabling that can be adapted to the specific requirements of each installation. The use of 24 V DC is common in many industrial control systems and ensures safe and reliable power supply. The compact design and clear dimensions allow for efficient space utilization in the enclosure. The use of cable ties ensures orderly and secure cabling, facilitating maintenance and inspection.

General
ModelSocket, 2-pole
Nominal cross-section1,5 mm²
Width15,6 mm
Height13,2 mm
Depth61,6 mm
Connection of stranded wires, solid0,25 ‐ 1,5 mm²
Connection of round conductors, solid AWGAWG 16 ‐ AWG 22
Connection of stranded wires, stranded0,25 ‐ 1 mm²


Product data sheet
Datasheet for Rittal 2500610, EAN: 4028177918740

Questions & answers

What is the delivery time of Rittal 2500610 Socket for feed-in and through-wiring, 2-?

The article Rittal 2500610 Socket for feed-in and through-wiring, 2- is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2500610 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2500610 Socket for feed-in and through-wiring, 2- always at the best possible price. We can give you a discount of 2% on Rittal 2500610 Socket for feed-in and through-wiring, 2- if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
