Rittal 2500320 System light LED 1200, 24 V DC, L: 437 mm

Your rating:
Average rating
product review for Rittal 2500320 System light LED 1200, 24 V DC, L: 437 mm
( 4.7 / 5 ) 3 ratings
Rittal 2500320
This image may differ from the desired article.
Rittal 2500320Rittal 2500320Rittal 2500320Rittal 2500320Rittal 2500320
187,11 EUR 193,17 EUR
( 222,66 EUR incl. VAT )
≈ £156.61  |  ≈ $205.63
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 2500320 System light LED 1200, 24 V DC, L: 437 mm
Datasheet:file_download Download
Lieske Part No.:1599180
Mfg Part No: 2500320
UPC/EAN: 4028177918818
Weight:0.65 kg
Type:SZ 2500320

Product information for Rittal 2500320:

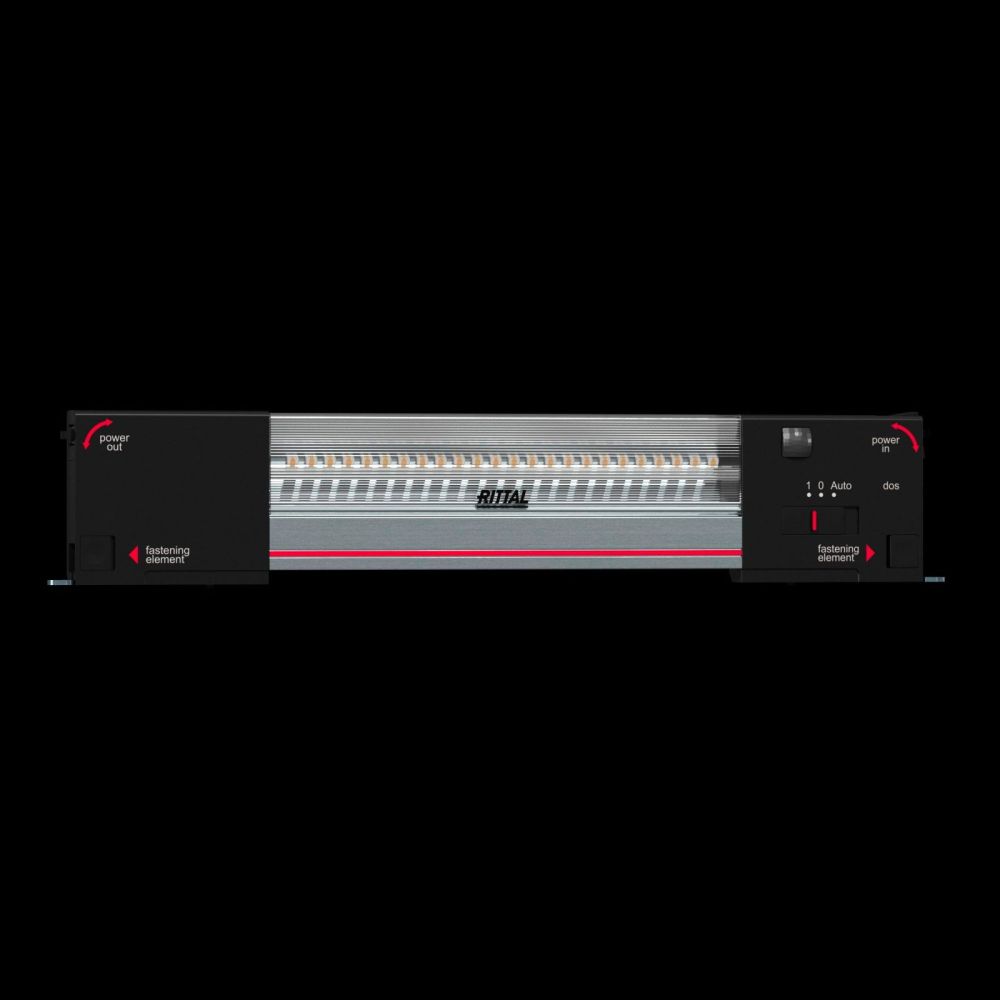

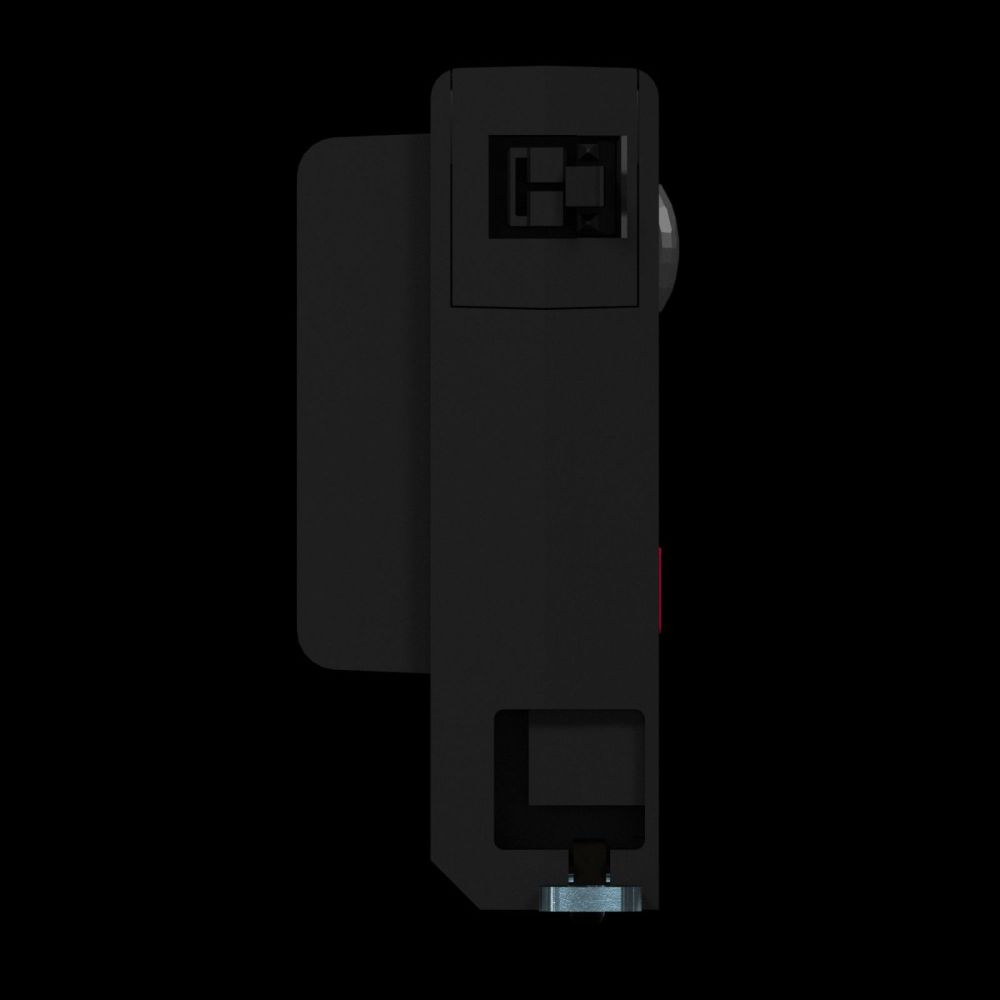

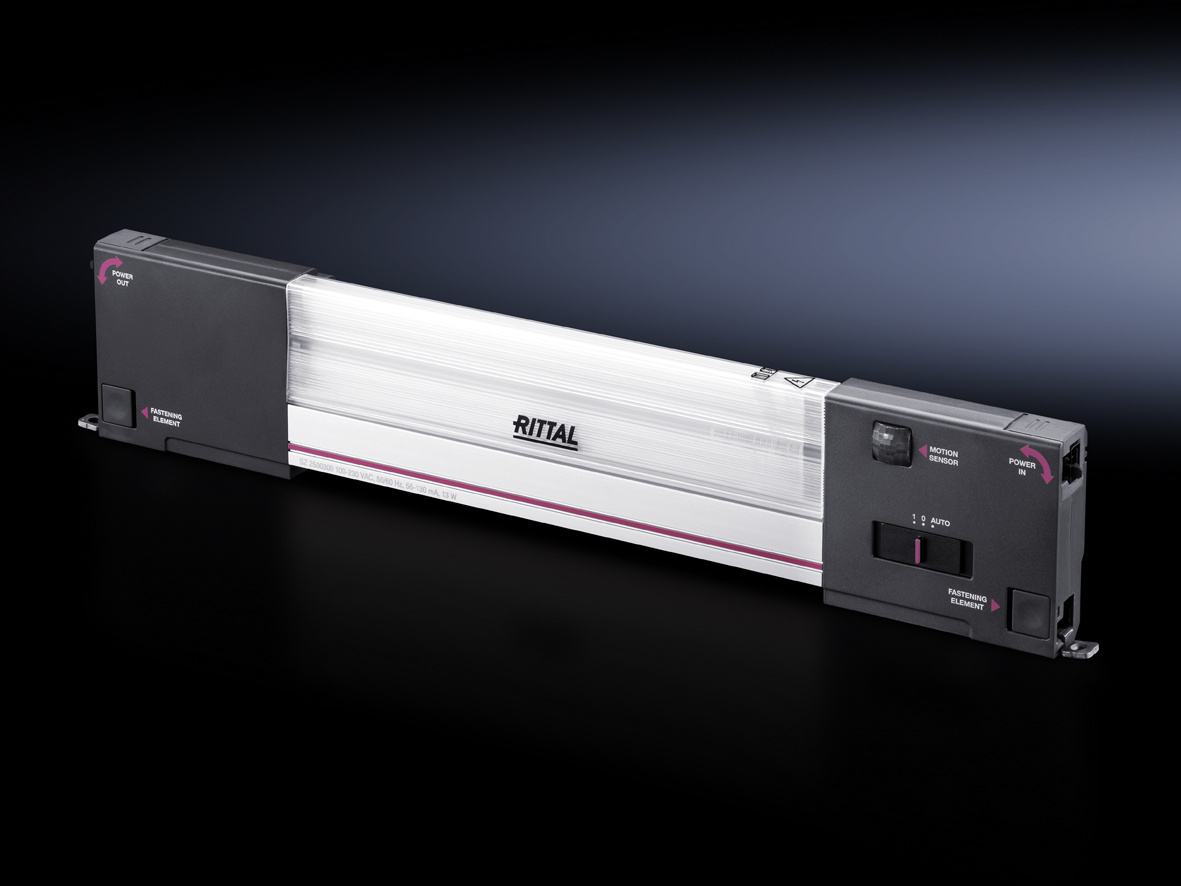

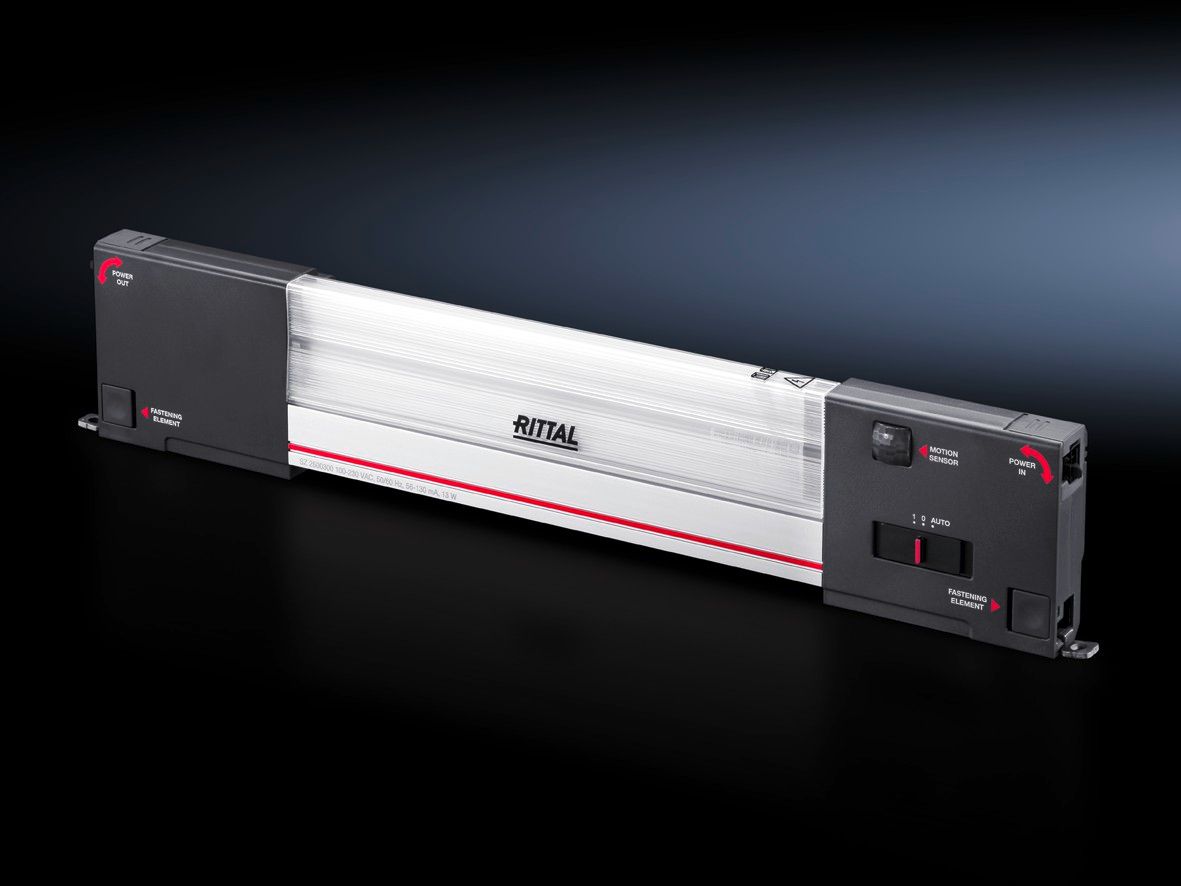

The Rittal SZ 2500320 is a system light LED specifically developed for use in enclosures. It provides optimal illumination of the entire interior space and is equipped with a motion sensor that automatically activates the lighting upon detection of movement. The light operates with a rated power of 13 W and produces a luminous flux of 1,200 lumens at a colour temperature of 4000 K (neutral white), ensuring clear and even lighting. The rated operating voltage ranges from 24 V to 56 V (DC), allowing flexible integration into existing 24 V DC networks. The operating temperature range extends from -20 °C to 55 °C, ensuring reliable performance in industrial environments.

Applications

The light is primarily designed for use in industrial enclosures, where safe and even lighting is required for maintenance and installation work. The integrated motion detection ensures that lighting is activated only when people are present in the enclosure area, saving energy and extending the light’s lifespan. The protection rating IP 20 according to IEC 60 529 protects against contact with fingers and solid foreign objects, but is not suitable for outdoor use or in damp environments.

Functions and Equipment in Detail

The light features a extruded aluminium housing, which is robust and thermally conductive, as well as a polycarbonate cover for high light transmittance and mechanical stability. The light ends are made of PC-ABS, a durable plastic blend. The housing colour is RAL 7016, a dark grey standard tone that integrates well visually in industrial environments. The mounting method includes screwing, clip mounting, and the option for magnetic mounting (available as accessory), allowing flexible installation at various positions within the enclosure. The installation options are directly on the enclosure profile with a 25 mm grid spacing, enabling standardised mounting.

Technology Explained Simply

The protection class III (SELV) means the light operates at a voltage below 60 V DC, which does not pose a life-threatening electrical hazard. This increases safety during direct contact. The connection options include power supply (2-pole) and through-wiring (2-pole), allowing easy integration into existing wiring systems. The light mounting method enables quick and secure installation, with clip mounting allowing tool-free installation and magnetic mounting available as optional accessory.

Compatibility and Accessories

To extend mounting options and wiring, various accessories are available. These include universal brackets, mounting brackets for internal installation, connection cables for power supply and through-wiring (2-pole), and an SZ magnetic mounting kit. These components allow flexible adaptation to different enclosure configurations and wiring requirements. The connection cables are specifically designed for use with 24 V DC and support through-wiring.

Mounting and Installation

Mounting is done directly on the enclosure profile with a 25 mm grid spacing, securing the light using mounting screws (included in delivery) or alternatively with clip or magnetic mounting (accessories). The mounting screws are included in the delivery, simplifying installation. Installation can be done without special tools when using clip mounting.

Operational Advantages

The automatic activation via motion detection ensures energy-efficient use, as lighting is only switched on when needed. The high luminous output of 1,200 lumens ensures sufficient brightness for precise work inside the enclosure. The longevity of LED technology reduces maintenance effort, and protection class III increases safety during handling. The flexible mounting via various attachment methods allows adaptation to different enclosure configurations.

Note: Batteries are not included in the delivery scope.

General
Modelwith motion sensor
MaterialLuminaire body: extruded aluminium, luminaire cover: polycarbonate, luminaire ends: PC-ABS
ColourHousing: RAL 7016
Scope of deliveryIncluding mounting screws
Nominal power13 W
Connection optionsSupply, 2-pole, through wiring, 2-pole
Protection classIII (SELV)
Luminaires mounting typeScrewing, clip mounting, magnetic mounting (accessory)
Mounting optionsDirect mounting on cabinet profile with 25 mm grid
Luminous flux1.200 lm
Colour of light4000 K (neutral white)
NoteConnection accessories to be ordered separately
Width437 mm
Height85 mm
Depth37 mm
Operating temperature range-20 °C...55 °C
Rated operating voltage24 V - 56 V (DC)
Degree of protection IP according to IEC 60 529IP 20
Motion sensorJa


Product data sheet
Datasheet for Rittal 2500320, EAN: 4028177918818
