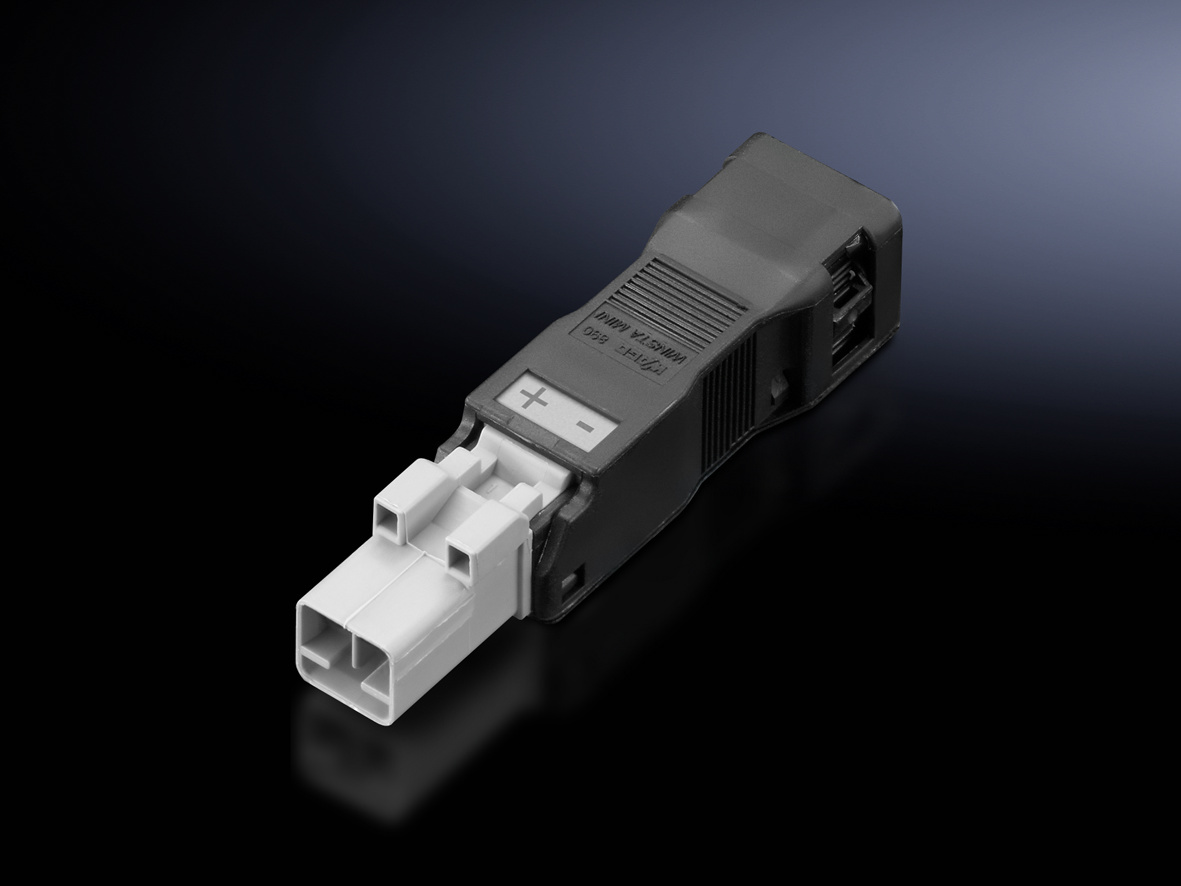

Rittal 2500640 Plug for through wiring, 2-pole, 24 V DC

Your rating:
Average rating
product review for Rittal 2500640 Plug for through wiring, 2-pole, 24 V DC
( 4.7 / 5 ) 3 ratings
Rittal 2500640
This image may differ from the desired article.
Rittal 2500640Rittal 2500640
31,51 EUR
( 37,50 EUR incl. VAT )
≈ £26.37  |  ≈ $34.63
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 2500640 Plug for through wiring, 2-pole, 24 V DC
Datasheet:file_download Download
Lieske Part No.:1907664
Mfg Part No: 2500640
UPC/EAN: 4028177918771
Weight:0.064 kg
Type:SZ 2500640

Product information for Rittal 2500640:

The article SZ 2500640 from Rittal is a 2-pole plug for individual termination of connection cables, particularly for through-wiring in enclosures and electrical systems. It serves as connection accessory for custom termination, where the wiring is performed by the user. The plug is designed for an operating voltage of 24 V DC and is suitable for connecting cables in industrial and technical installations, for example, during the installation of system lights or other devices requiring flexible cabling.

Applications

The plug is primarily used in industrial electrical engineering, where modular and adaptable cabling is required. It is suitable for applications where cables are routed continuously without requiring a permanent connection at a specific point. It is frequently used in enclosures, where cables are routed through the plug and connected at other points. The design enables a secure and reliable connection that meets the requirements of industrial electrical installation.

Functions and Equipment in Detail

The plug is designed for connecting round conductors, with cross-section specifications varying depending on the cable type. For single-strand round conductors, the permissible cross-section is 0.25 to 1.5 mm², corresponding to AWG 16 to AWG 22. For multi-strand round conductors, the permissible cross-section is 0.25 to 1 mm², corresponding to AWG 18 to AWG 22. These specifications ensure a secure connection without overload or contact loss. The rated cross-section of the plug is 1.5 mm², indicating the maximum cable size that can be safely connected.

Technology Explained Simply

The plug is designed as a 2-pole component, meaning two separate electrical connections can be made. The dimensions are 15.6 mm (width), 13.2 mm (height), and 61.6 mm (depth), enabling a compact design that fits into standard enclosure systems. The construction is designed for through-wiring, where cables are routed through the plug without requiring a permanent connection at a specific point. The connection is made via a mechanical clamp connection, ensuring a secure and durable electrical connection.

Compatibility and Accessories

The plug is specifically developed for use with Rittal systems, particularly for custom termination of connection cables. Compatible accessories available in the range include cable ties with a length of 150 mm, which can be used to secure and organize cables. These cable ties support structured cabling and prevent loose or tangled cables in the enclosure.

Mounting and Installation

Installation is performed by the user as part of custom termination. The cables are inserted into the respective terminals of the plug and mechanically secured. Wiring typically takes place within the enclosure or at other connection points, with through-wiring enabling a flexible and modular arrangement. Installation does not require special tools, except for a suitable tool to secure the cables in the terminals.

Advantages in Operation

Using this plug enables flexible and adaptable cabling that can be tailored to the specific requirements of each installation. Through-wiring reduces the number of required connection points and simplifies maintenance and servicing. The mechanical clamp connection ensures a reliable electrical connection that remains stable even under industrial conditions. The use of standardized plugs such as the SZ 2500640 facilitates interchangeability and maintenance during operation.

General
ModelPlug, 2-pole
Nominal cross-section1,5 mm²
Width15,6 mm
Height13,2 mm
Depth61,6 mm
Connection of stranded wires, solid0,25 ‐ 1,5 mm²
Connection of round conductors, solid AWGAWG 16 ‐ AWG 22
Connection of stranded wires, stranded0,25 ‐ 1 mm²


Product data sheet
