Rittal 2252605 EL base 3-piece 12 U x 373 mm 12 U x 373 mm

Your rating:
Average rating
product review for Rittal 2252605 EL base 3-piece 12 U x 373 mm 12 U x 373 mm
( 4.6 / 5 ) 49 ratings
Rittal 2252605
This image may differ from the desired article.
Rittal 2252605Rittal 2252605
515,48 EUR 536,80 EUR
( 613,42 EUR incl. VAT )
≈ £431.46  |  ≈ $566.51
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 2252605 EL base 3-piece 12 U x 373 mm 12 U x 373 mm
Datasheet:file_download Download
Lieske Part No.:356930
Mfg Part No: 2252605
UPC/EAN: 4028177324336
Weight:36 kg
Type:EL 2252605

Product information for Rittal 2252605:

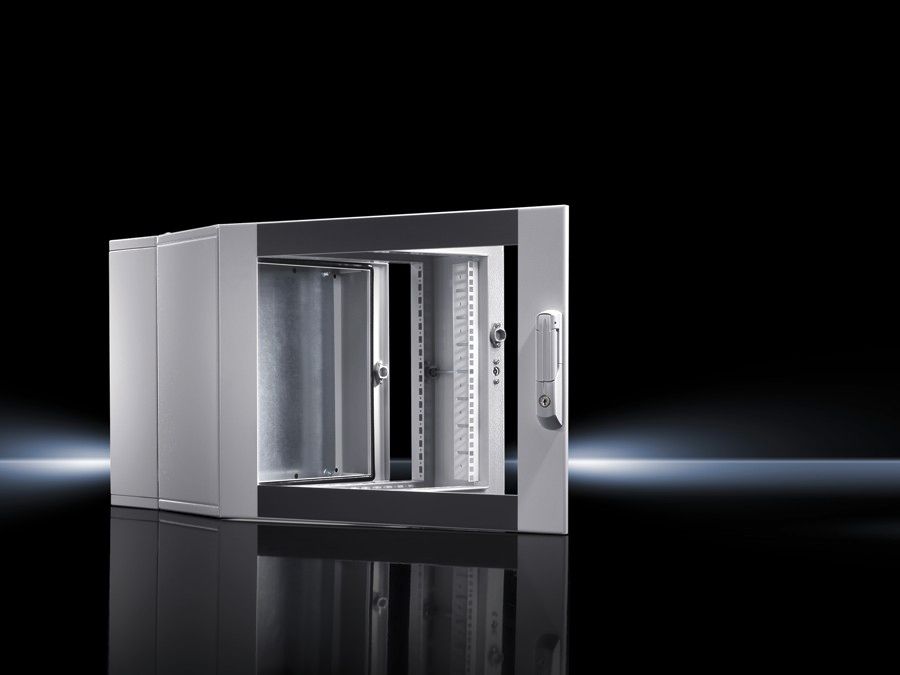

Wall-mounted enclosure with optimum accessibility due to hinged part.
Material: Wall and hinged part: Sheet steel, 1.5 mm
Viewing window: Single-pane safety glass, 3 mm
Surface finish: Powder-coated
Colour: Wall and hinged part: RAL 7035
Glazed door: RAL 7035/7015 (slate grey)
Protection category IP to IEC 60 529: IP 55
Supply includes: Wall section
Hinged part with 25 mm pitch pattern of holes in the front and rear frame
Designer glazed door
Wall section: Gland plate, solid, top and bottom
Wall section: Mounting plate (supplied loose)
Hinged part with two 482.6 mm (48,3 cm ( 19 inch )) mounting angles
Mini-comfort handle
Security lock 3524 E
Packs of: 1 pc(s).
EAN: 4028177324336
Customs tariff number: 94032080
eCl@ss 5.1: 27180204
eCl@ss 7.0: 27180208
ETIM 6.0: EC002500

Design: with mounting plate and mounting angles, static installation
Dimensions: Width: 600 mm
Height: 612 mm
Units: 12 U
Depth: 373 mm
Depth hinged part: 216 mm
Installation depth: 320 mm
Clearances: Clearance width: 502 mm
Clearance height: 549 mm
Mounting plate: Width: 485 mm
Height: 565 mm
Wall section: Depth: 135 mm
Load capacity: Hinged part, static (max.): 60 kg
Weight/pack: 39.7 kg

General
ModelWall-mounted enclosure IT, with mounting plate and profile rails, fixed installation
MaterialWall and swivel part: Sheet steel, 1.5 mm, viewing panel: Single-pane safety glass, 3 mm
Surface protectionPowder-coated
Basic colourRAL 7035
Colourwall and swivel part: RAL 7035, vision door: RAL 7035/7015 (slate grey)
Scope of deliveryWall section with flange plate closed, top and bottom, and mounting plate (included), swing section with 25 mm hole pattern in front and rear frame and two 19" profile rails, front, fixed installation, design vision door, 1 control cabinet key double bar No. 5, mini comfort handle for locking inserts, safety lock 3524 E
Height units12 HE
Width600 mm
Height612 mm
Depth373 mm
Built-in depth320 mm
Light dimensionsClear width: 502 mm, clear height: 549 mm
Depth of swivel part216 mm
Mounting plate dimensions (W x H)485 mm x 565 mm
Depth of wall part135 mm
IK codeIK08
Load capacity of swivel part (static)600 N
Base materialsteel sheet
Degree of protection IP according to EN 60 529IP 55


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 2252605, EAN: 4028177324336
