Rittal 5302052 cable duct 42 U for concealed cable entry VX IT

Your rating:
Average rating
product review for Rittal 5302052 cable duct 42 U for concealed cable entry VX IT
( 4.8 / 5 ) 4 ratings
Rittal 5302052
This image may differ from the desired article.
Rittal 5302052Rittal 5302052Rittal 5302052
-9% 127,65 EUR 140,08 EUR
( 151,90 EUR incl. VAT )
≈ £106.84  |  ≈ $140.29
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 5302052 cable duct 42 U for concealed cable entry VX IT
Datasheet:file_download Download
Lieske Part No.:1864880
Mfg Part No: 5302052
UPC/EAN: 4028177958586
Weight:9.54 kg
Type:DK 5302052

Product information for Rittal 5302052:

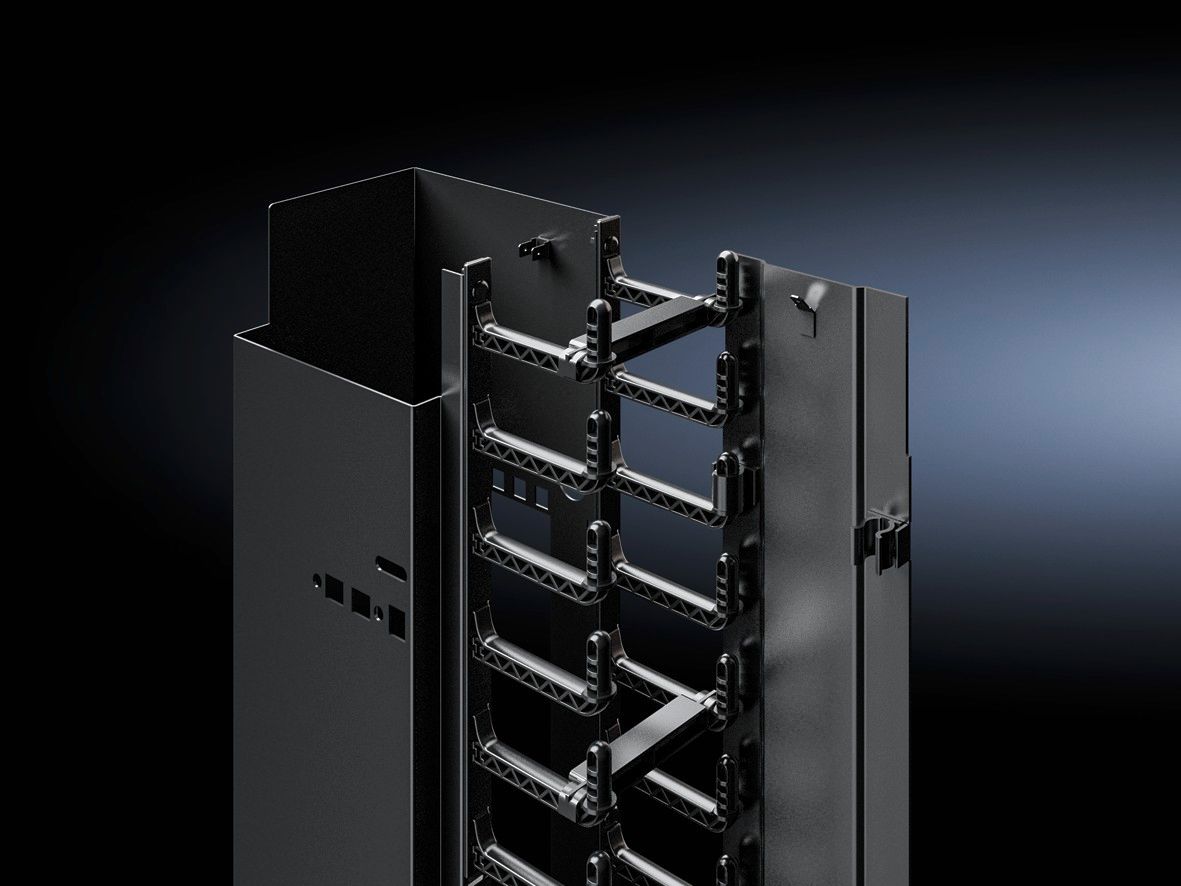

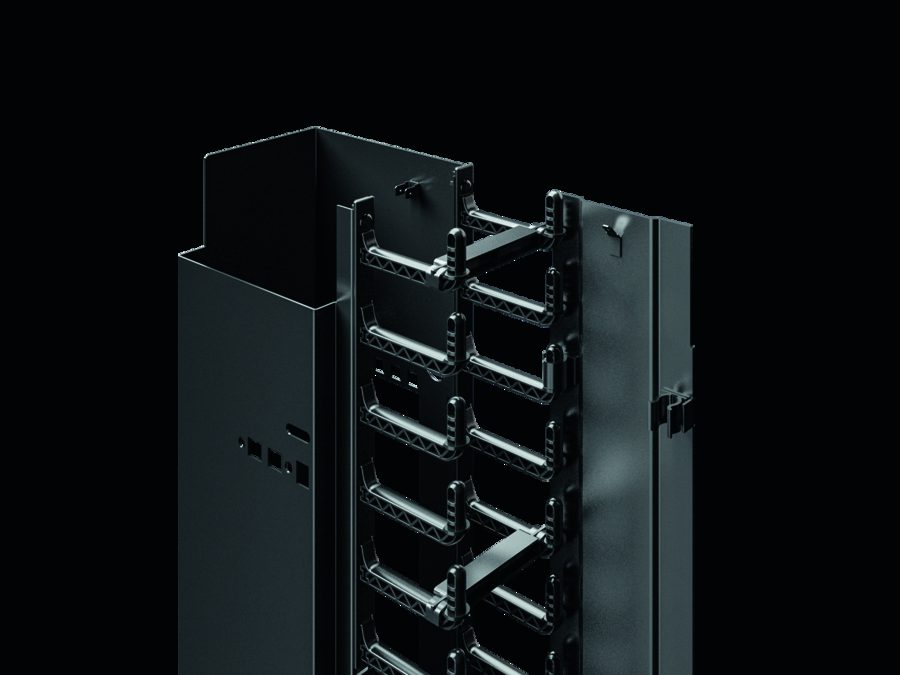

The Rittal cable duct DK 5302052 is a 42 U module for concealed cable routing, specifically designed for enclosures of type VX IT, TX CableNet and Data Rack. It enables structured and accessible cable routing within enclosures and allows convenient, always possible access to the cabling via hinged, removable covers. The construction from sheet steel and plastic according to UL 94-HB ensures a robust and flame-retardant design suitable for industrial applications. The RAL 9005 colour ensures a uniform visual appearance within the enclosure interior.

Applications

The cable duct is designed for enclosure widths of 800 mm and adapts to enclosure heights of 2000 mm or 2122 mm. It is used in IT and electrical installations where ordered and concealed cable routing is required. Particularly in cold aisle containment, it can be used as a partition element to prevent air short-circuits within cooling flows. The back-to-back arrangement enables flexible integration into modular enclosure configurations.

Functions and equipment in detail

The duct features integrated 48,3 cm ( 19 inch ) mounting cutouts (1 U), six in total, enabling flexible mounting of components in standard U format. The cable entries are closable and can be equipped with expansion components in the 1 U mounting standard. The included cable retention clips can be variably adjusted in depth on the cable fingers of the duct to ensure orderly and secure cable routing. Installation is tool-free via quick fastening, which speeds up and simplifies the process.

Technology explained simply

The hinged covers allow easy access to the cables without having to fully disassemble the duct. Cable entries on the inner side and through the rear wall of the duct offer flexible entry and exit options. The material combination of sheet steel and UL 94-HB plastic ensures mechanical stability and limited flammability, which is important in electrical installations. Dimensions are 109.5 mm width, 314.5 mm depth and 1872 mm length, ensuring optimal fit for 800 mm enclosures.

Compatibility and accessories

The cable duct is not combinable with 48,3 cm ( 19 inch ) profile rails dynamic in the symmetric interior configuration of the VX IT enclosure type. In asymmetric configurations, one-sided mounting is possible. It is compatible with the VX IT brush kit, which enables optimized airflow within the enclosure interior. As accessories, blind panels 1 U RAL 9005 (2 pieces), blind panels 48,3 cm ( 19 inch ) with tool-free fastening (5 pieces), and the cable entry panel IT 48,3 cm ( 19 inch ) 1 U 5302202 are available, enabling additional sealing and structuring of cable openings.

Installation and mounting

Mounting is tool-free via quick fastening, allowing fast installation without additional tools. Alternatively, screwed mounting is possible. The integrated cable fingers and cable retention clips facilitate cable positioning and routing. The delivery includes the cable duct, two covers, 14 cable fingers, six U mounting cutouts, ten cable retention clips, and the required fastening material.

Operational advantages

The cable duct offers high packing density through U-based cable routing, reducing space requirements within the enclosure. Concealed cable routing ensures a neat and professional arrangement of cabling. Tool-free mounting and depth-adjustable cable holders simplify maintenance and adaptation of the installation. Use as a partition element in cold aisles supports cooling efficiency in data centres and similar environments.

General
Technical dataIntegrated 19" mounting cutouts (1 U): 6 pieces
MaterialSheet steel, plastic according to UL 94-HB
ColourRAL 9005
Scope of deliveryCable channel, 2 covers, 14 cable fingers, 6 U, 10 cable retention clips, Including mounting hardware
Height units42 HE
Suitable forNot compatible with 19“ profile rails dynamic, for VX IT
NoteNot combinable with 19“ profile rails dynamic in symmetrical internal construction of VX IT enclosure type; one-sided mounting possible in asymmetrical internal construction.
Width109,5 mm
Depth314,5 mm
Length1.872 mm
Suitable for width= 800 mm
PCF/VE (Cradle-to-Gate)32.6 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302052, EAN: 4028177958586

Questions & answers

What is the delivery time of Rittal 5302052 cable duct 42 U for concealed cable entry VX IT?

The article Rittal 5302052 cable duct 42 U for concealed cable entry VX IT is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5302052 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5302052 cable duct 42 U for concealed cable entry VX IT always at the best possible price. We can give you a discount of 2% on Rittal 5302052 cable duct 42 U for concealed cable entry VX IT if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
