Rittal 5302036 VX IT brush kit, for cable duct VX IT up to 47 U

Your rating:
Average rating
product review for Rittal 5302036 VX IT brush kit, for cable duct VX IT up to 47 U
( 4.3 / 5 ) 4 ratings
Rittal 5302036
This image may differ from the desired article.
Rittal 5302036Rittal 5302036Rittal 5302036
-10% 168,48 EUR 187,94 EUR
( 200,49 EUR incl. VAT )
≈ £141.02  |  ≈ $185.16
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 5302036 VX IT brush kit, for cable duct VX IT up to 47 U
Datasheet:file_download Download
Lieske Part No.:1775565
Mfg Part No: 5302036
UPC/EAN: 4028177952652
Weight:4.8 kg
Type:VX 5302036

Product information for Rittal 5302036:

The Brush Kit VX 5302036 from Rittal is a system accessory for enclosures of the VX IT system, specifically designed for circumferential sealing of the 48,3 cm ( 19 inch ) mounting plane and for targeted guidance of the cold air flow to installed devices. It serves air guidance and thermal optimization in enclosures with a width of 800 mm. The kit enables structured air guidance by sealing the ventilation channels between cable duct and enclosure wall, as well as in the roof and base areas. The brush strips provide a tight yet flexibly adaptable seal without hindering cable or device installation.

Applications

The brush kit is designed for use in combination with two vertical cable ducts on both sides of the 48,3 cm ( 19 inch ) mounting plane. It can also be combined with a single cable duct, serving as an alternative to air baffle plates. A partial installation variant allows simultaneous use of air baffle plates and cable ducts. The application is intended for enclosures with a maximum height of 47 U, where the kit can be individually cut to match the specific enclosure height.

Functions and Equipment in Detail

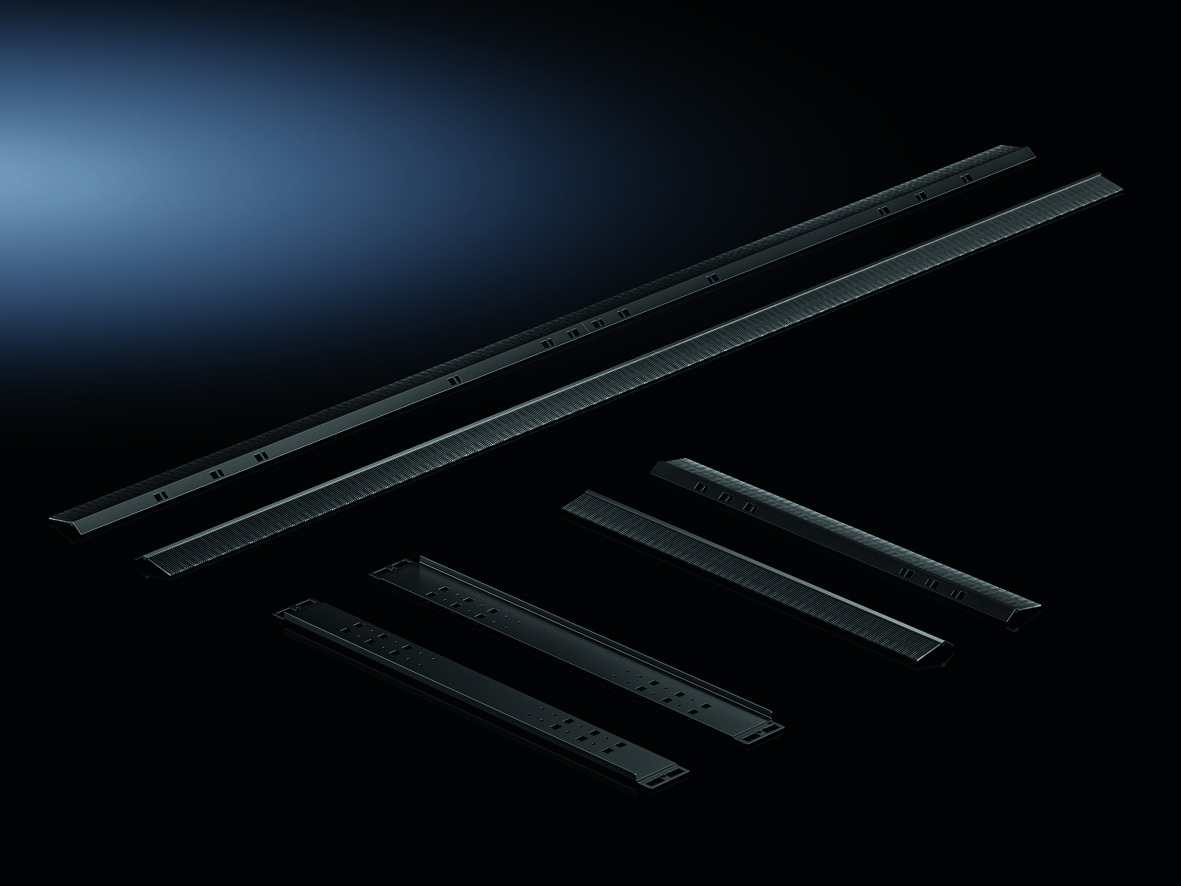

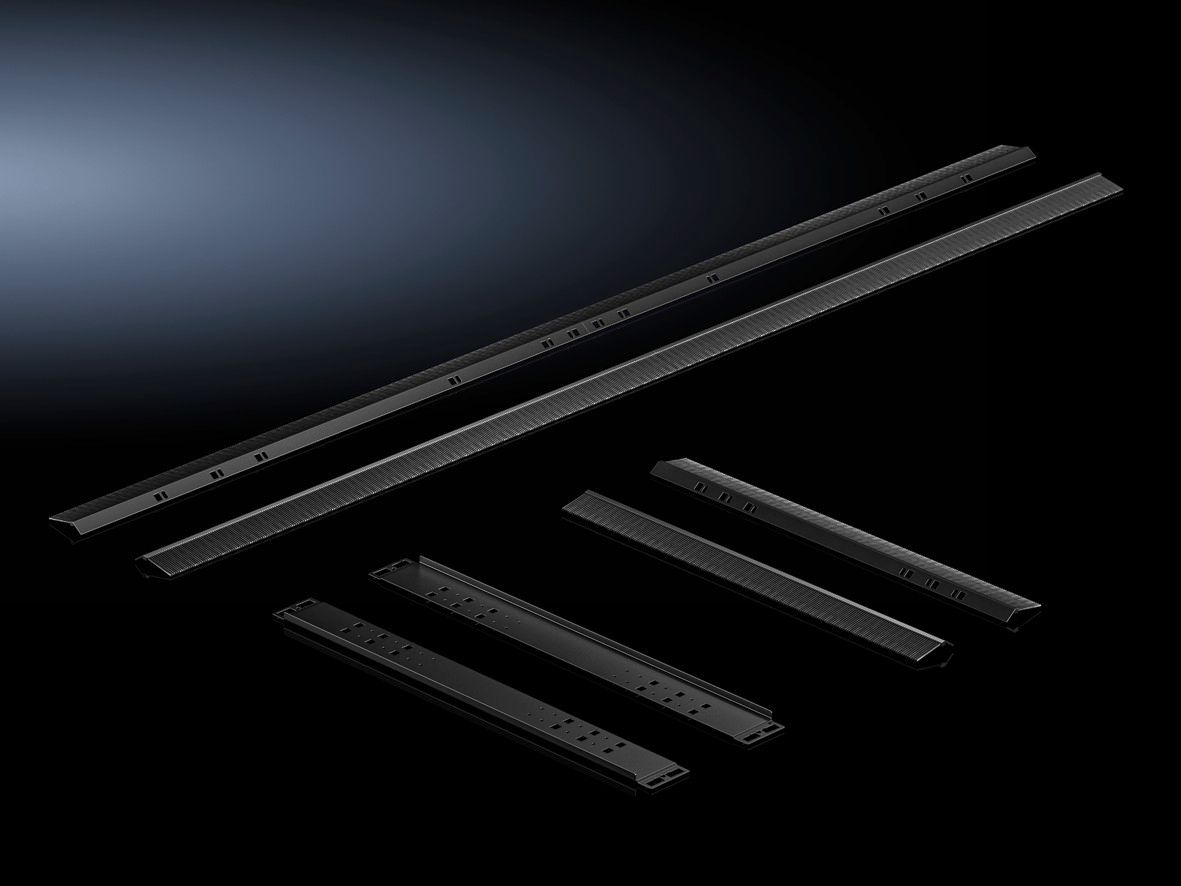

The kit consists of vertical brush strips sealing the area between cable duct and side wall, as well as horizontal air baffle plates with integrated brush strips for sealing in the roof and base areas at the 48,3 cm ( 19 inch ) mounting plane. Additionally, two horizontal brush strips are included for the area between the first 48,3 cm ( 19 inch ) mounting plane and the roof or base plate. Eight further brush strips are provided for sealing between cable duct and roof or base plate. The bristle length is 48 mm, ensuring effective sealing while allowing flexibility for cable entries. The brush strips are made of plastic, certified to UL 94-V0, with bristles made of plastic to UL 94-HB. The air baffle plates are made of painted steel sheet.

Technology Explained Simply

The brush strips are designed to be easily mounted onto the 48,3 cm ( 19 inch ) profile rails of the VX IT system by simple push-on installation. A tool-free quick fastening enables fast and secure installation. Alternatively, screw fastening is possible. The materials are suitable for industrial environments, with plastic components exhibiting flame-retardant properties. The RAL 9005 color ensures visual harmony with standard enclosure colors.

Compatibility and Accessories

The brush kit is specifically developed for use with cable ducts of the VX IT system. It is compatible with standard and dynamic 48,3 cm ( 19 inch ) profile rails in the VX IT system. To optimally utilize the cable duct as an air guidance element, the cable entry openings in the cable duct must be closed or covered with a cable entry panel featuring a brush strip. Suitable accessories include blind panels 48,3 cm ( 19 inch ) with tool-free fastening and cable entry panel IT 48,3 cm ( 19 inch ) 1 U (part number 5302202), which are suitable for optical and functional sealing of openings.

Installation and Mounting

Installation is carried out on the 48,3 cm ( 19 inch ) profile rails, where the brush strips are simply pushed on or screwed in place. Horizontal and vertical positioning is adjusted according to the enclosure configuration. The brush strips are designed for a maximum enclosure height of 47 U and can be individually cut to ensure precise fit. Mounting materials are included in the delivery scope.

Operational Advantages

The brush kit improves air guidance within the enclosure by directing the cold air flow specifically to installed devices and preventing unwanted air currents. The tool-free installation reduces installation time and effort. The materials are designed for industrial use and ensure long service life. The combination with cable ducts enables an integrated solution for cable management and air guidance, allowing for more efficient enclosure planning.

General
ApplicationsThe brush kit is designed for use with two vertical cable channels, on both sides, adjacent to the 19" mounting plane. When combined with a single cable channel, it can be used as an alternative to an air duct. Partial installation also allows combination with air duct and cable channel.
Function principleThe brush kit consists of vertical brush strips for the area between cable tray and side wall, as well as horizontal air guide plates with brush strips for partitioning in ceiling and floor areas at the 19" mounting level.
MaterialBrush bar: plastic, UL 94-V0, bristles: plastic, UL 94-HB, air guide plates: sheet steel, painted
ColourRAL 9005
Scope of delivery2 brush strips vertical, on both sides, 2 air guide plates horizontal, top and bottom, 2 brush strips horizontal, top and bottom between first 19" mounting plane and ceiling or floor sheet, 8 brush strips between cable channel and ceiling or floor sheet, including fastening material
Bristle length48 mm
Mounting options19"-profile rails standard in VX IT, 19"-profile rails dynamic in VX IT
Mounting noteTo use the cable channel in combination with the brush kit as an air guidance element, the cable passage openings in the cable channel must be sealed or concealed with a cable passage panel with brush strip.
Suitable forWidth: = 800 mm


Product data sheet
Datasheet for Rittal 5302036, EAN: 4028177952652

Questions & answers

What is the delivery time of Rittal 5302036 VX IT brush kit, for cable duct VX IT up to 47 U?

The article Rittal 5302036 VX IT brush kit, for cable duct VX IT up to 47 U is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5302036 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5302036 VX IT brush kit, for cable duct VX IT up to 47 U always at the best possible price. We can give you a discount of 2% on Rittal 5302036 VX IT brush kit, for cable duct VX IT up to 47 U if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
