Rittal 5302053 cable duct for VX IT vertical 47 U H: 2200 mm

Your rating:
Average rating
product review for Rittal 5302053 cable duct for VX IT vertical 47 U H: 2200 mm
( 5 / 5 ) 2 ratings
Rittal 5302053
This image may differ from the desired article.
Rittal 5302053Rittal 5302053Rittal 5302053
-12% 145,02 EUR 163,93 EUR
( 172,57 EUR incl. VAT )
≈ £121.38  |  ≈ $159.38
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 5302053 cable duct for VX IT vertical 47 U H: 2200 mm
Datasheet:file_download Download
Lieske Part No.:1910611
Mfg Part No: 5302053
UPC/EAN: 4028177958593
Weight:10.78 kg
Type:DK 5302053

Product information for Rittal 5302053:

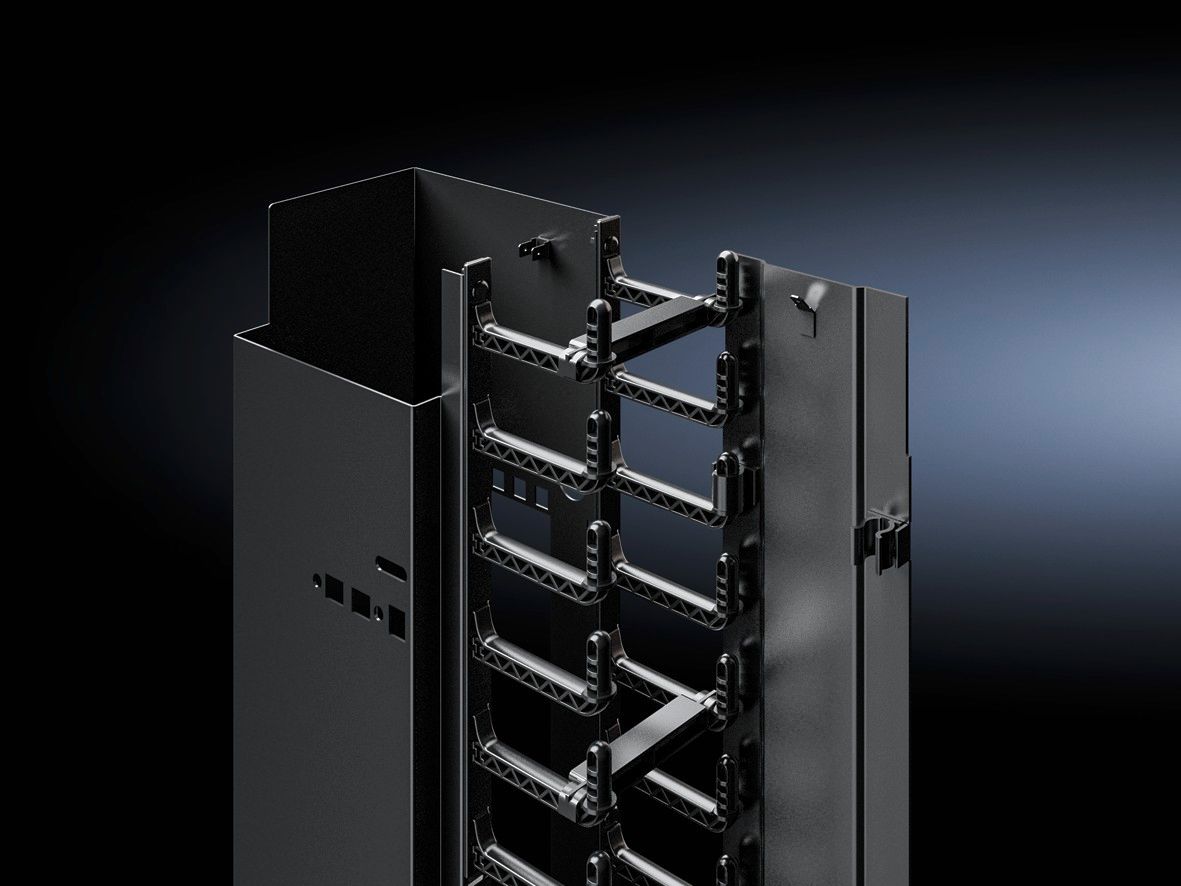

The Rittal cable duct DK 5302053 is a vertical, 47 U high duct for concealed cable routing, specifically designed for enclosures of type VX IT with a width of 800 mm and a height of 2200 mm. It serves for structured and accessible cable routing inside the enclosure, with the cabling always easily accessible via hinged, removable covers. The integrated mounting cutouts in the 48,3 cm ( 19 inch ) standard (1 U) allow the installation of components in standard U format, achieving high packing density. The duct is made of sheet steel and plastic to UL 94-HB standard and is available in the colour RAL 9005.

Applications

The cable duct is intended for use in industrial enclosures of type VX IT, TX CableNet and Data Rack. It is particularly suitable for applications requiring orderly and accessible cable routing, for example in IT infrastructures, automation systems or when housing cold aisles. Due to its construction, it can be used as a partition element to prevent air short-circuits within a cold aisle enclosure. The back-to-back arrangement enables flexible integration into modular enclosure configurations.

Functions and equipment in detail

The duct features cable entries to the interior of the enclosure as well as through the rear wall of the duct, enabling flexible cabling. The included cable retention brackets can be variably adjusted in depth onto the cable fingers of the duct and support structured cable routing. The covers are hinged on both sides and optionally removable, simplifying access to the cabling. Installation is tool-free via quick fastening, speeding up the installation process. Alternatively, screwed mounting is possible.

Technology explained simply

The integrated 48,3 cm ( 19 inch ) mounting cutouts (1 U) in a quantity of 6 pieces allow the installation of components in standard U format, ensuring high packing density and standardized mounting. The cable fingers and cable retention brackets ensure orderly cable routing and prevent tangling or shifting. The materials sheet steel and plastic to UL 94-HB standard provide sufficient mechanical stability and fire protection class. The colour RAL 9005 ensures visual harmony with other components in the enclosure.

Compatibility and accessories

The cable duct is specifically designed for enclosures of type VX IT with a width of 800 mm and a height of 2200 mm. It is not combinable with 48,3 cm ( 19 inch ) profile rails dynamic in the symmetrical interior build of the VX IT enclosure; in asymmetrical interior build, one-sided mounting is possible. For optimizing airflow, it can be combined with the brush kit for VX IT. As accessories, blank panels (1 U, RAL 9005), blank panels with tool-free fastening (48,3 cm ( 19 inch ), RAL 9005) as well as a cable entry panel IT 48,3 cm ( 19 inch ) 1U (5302202) are available, enabling the sealing of unused mounting openings.

Mounting and installation

Mounting is tool-free via quick fastening, which speeds up installation and reduces the need for tools. The fastening materials are included in the delivery. The duct is designed for vertical mounting and can be used in enclosure heights of 2200 mm. Dimensions are 109.5 mm (width), 314.5 mm (depth) and 2099 mm (length).

Advantages in operation

The cable duct provides structured and accessible cable routing, simplifying maintenance and inspection of the cabling. The tool-free mounting reduces installation effort. The possibility to use the duct as a partition element supports the efficiency of cold aisles in data centres. The integrated mounting cutouts enable high packing density and standardized mounting of components. The cable entries are closable and can be equipped with expansion components in the 1 U standard, increasing flexibility.

The delivery includes the cable duct, 2 covers, 14 cable fingers, 6 U, 10 cable retention brackets, and the required fastening materials.

General
Technical dataIntegrated 19" mounting cutouts (1 U): 6 pieces
MaterialSheet steel, plastic according to UL 94-HB
ColourRAL 9005
Scope of deliveryCable channel, 2 covers, 14 cable fingers, 6 U, 10 cable retention clips, Including mounting hardware
Height units47 HE
Suitable forNot compatible with 19“ profile rails dynamic, for VX IT
NoteNot combinable with 19“ profile rails dynamic in symmetrical internal construction of VX IT enclosure type; one-sided mounting possible in asymmetrical internal construction.
Width109,5 mm
Depth314,5 mm
Length2.099 mm
Suitable for width= 800 mm
PCF/VE (Cradle-to-Gate)39.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 5302053, EAN: 4028177958593
