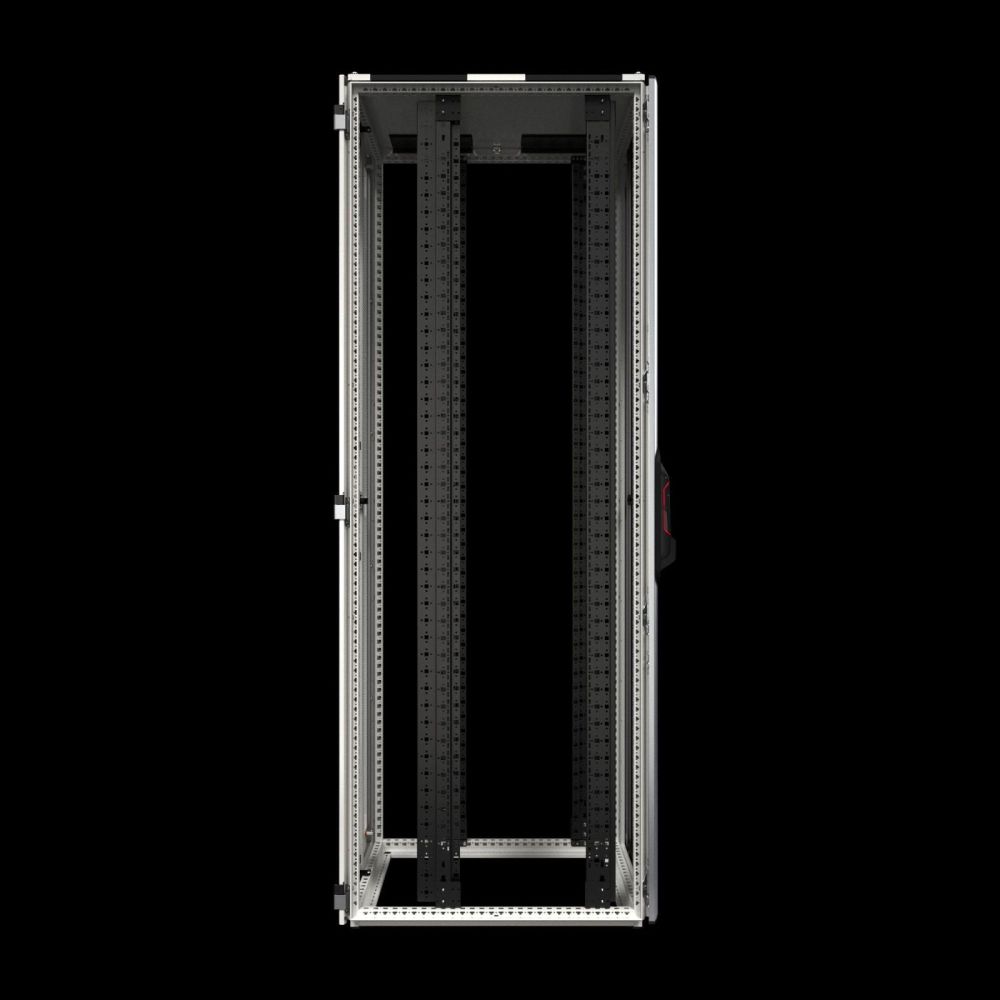

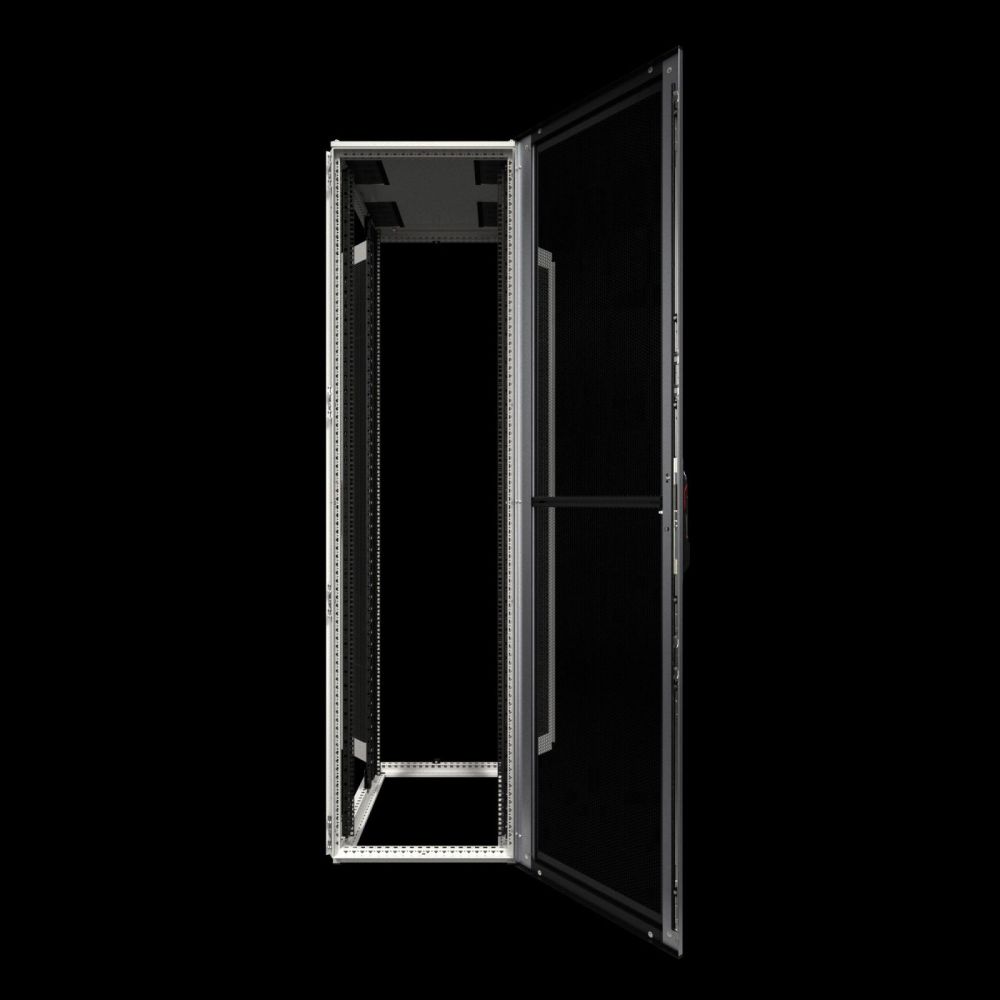

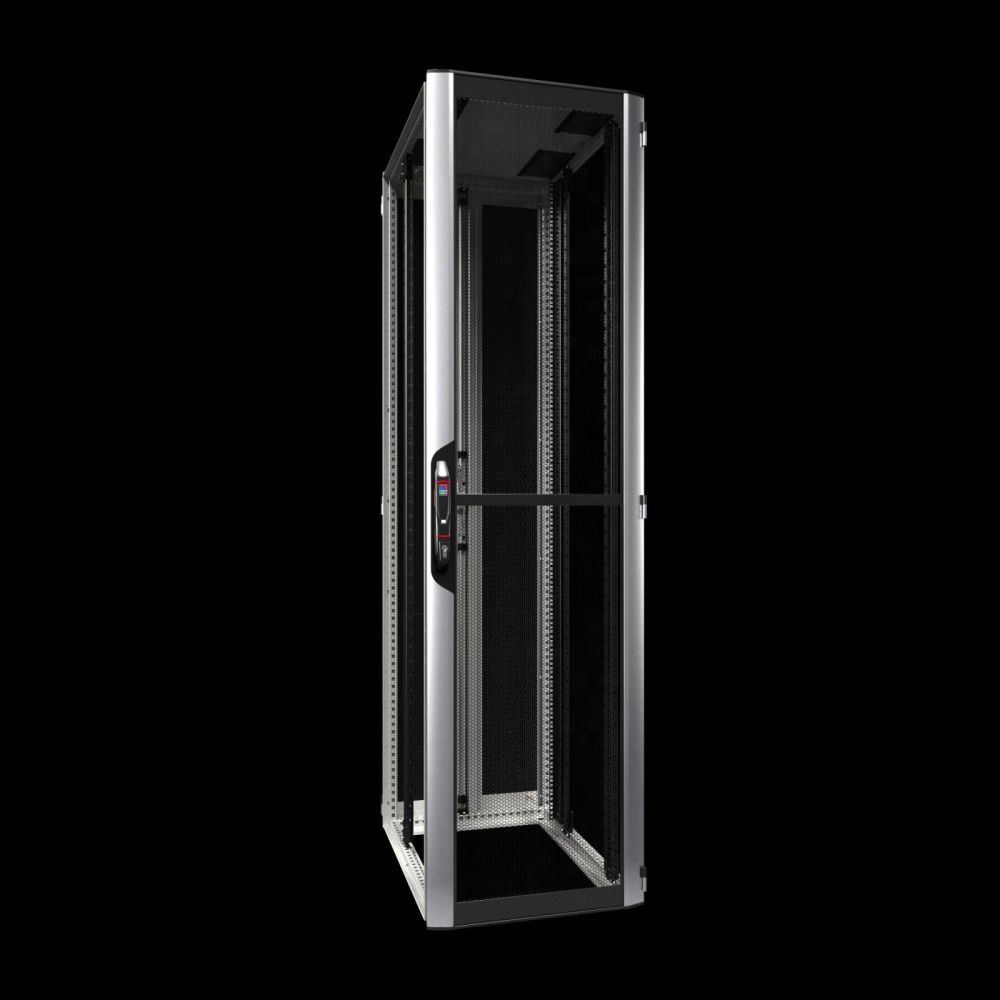

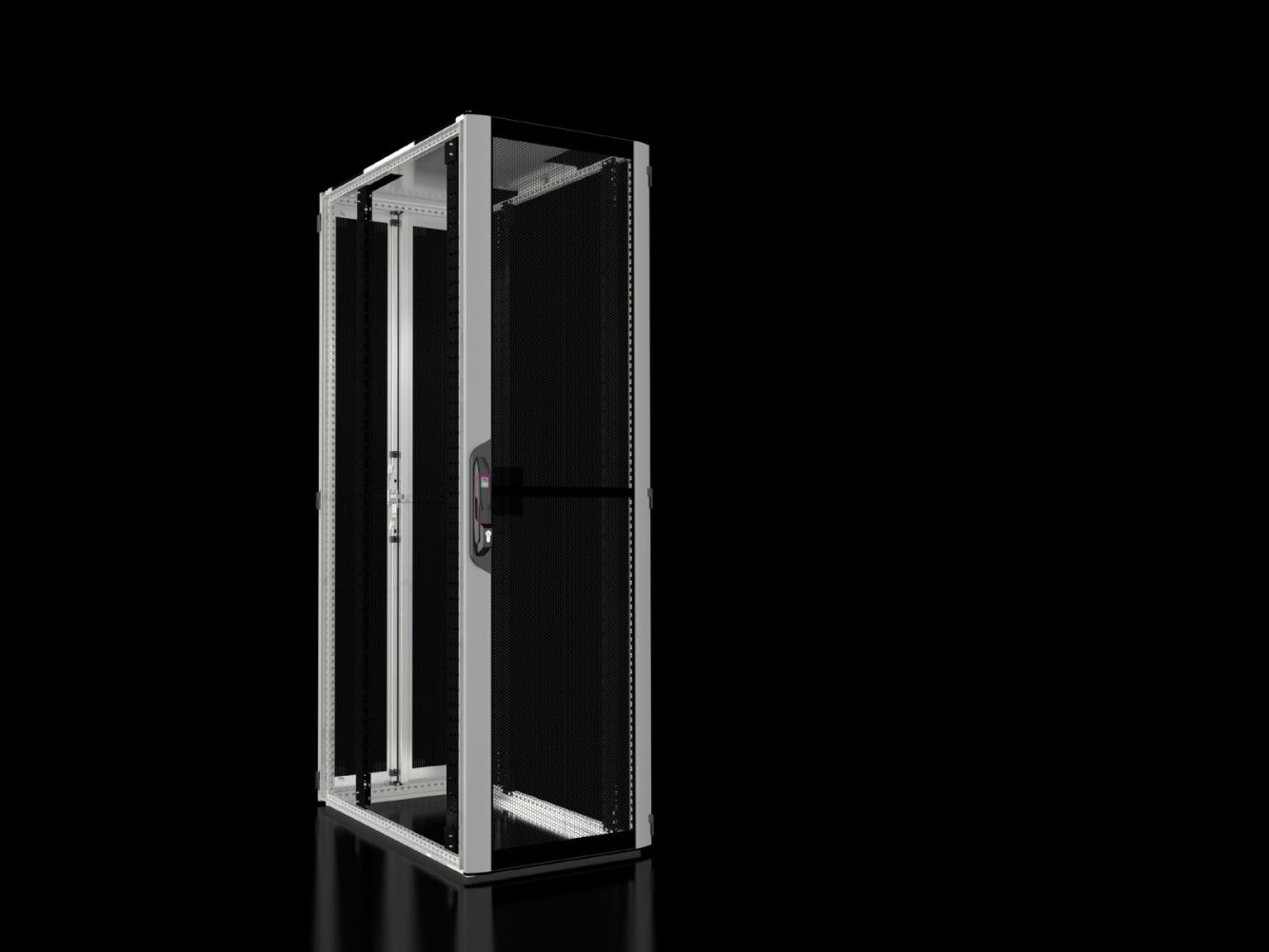

Rittal 5313113 Server rack VX IT ventilated 600x2200x1000 mm 47 U
|
1.485,80 EUR 1.545,23 EUR |
|
|
( 1.768,10 EUR incl. VAT ) ≈ £1,243.61 | ≈ $1,632.89 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775813 |
| Mfg Part No: | 5313113 |
| UPC/EAN: | 4028177945296 |
| Weight: | 84.6 kg |
| Type: | VX 5313113 |
Product information for Rittal 5313113:
Applications
The rack is designed for use in data centers, server rooms, and other IT infrastructures where continuous ventilation and cooling of installed devices are necessary. The ventilated doors ensure efficient air circulation, with the front door made of aluminum-steel sheet and the rear door made of steel sheet. Both doors are equipped with 180° hinges, allowing full opening. The front door is single-piece, while the rear door is vertically divided, improving accessibility and maintenance of the devices. The ventilation area covers approximately 85% of the perforated sheet metal portion, ensuring sufficient air permeability.
Functions and Equipment in Detail
The enclosure is made of steel sheet and aluminum, with the front door made of 1.25 mm thick aluminum and the rear door made of 1.5 mm thick steel sheet. The surface of the rack frame is dip-primed, the interior build is painted, while the rear door and roof are powder-coated. The front door is anodized/painted, providing high corrosion resistance and optical quality. The color scheme is RAL 7035 for the enclosure frame, rear door, and roof, while the front door features vertical silver-colored profiles and horizontal RAL 9005. The interior build and front ventilation grille are in RAL 9005, as are the handle and hinges. The roof is multi-part and features cable entries in the front and rear corner areas, enabling flexible cable routing.
Technology Explained Simply
The 48,3 cm ( 19 inch )-profile rails are depth-variable and screwed to mounting brackets at the top and bottom of the frame structure, ensuring stable fixation of devices. The load capacity of the rack is 15,000 N, with the maximum static load capacity according to UL 2416 per rack being 12,000 N. The open floor concept allows flexible installation of floor plates or other substructures. The 48,3 cm ( 19 inch )-mounting is achieved via mounting brackets attached to the top and bottom ends of the frame, ensuring secure device mounting. The plane spacing is set at 720 mm in the delivered state, enabling standard mounting.
Compatibility and Accessories
The rack is compatible with various accessories that extend its functionality. These include profile rails for the rear 48,3 cm ( 19 inch )-plane, drawers in various heights (2 U, 3 U) with insertion depth of 427 mm, blank panels in 48,3 cm ( 19 inch ) format, component shelves in various heights (0.5 U, 1 U, 1.5 U), and cable ducts. Additionally, slide rails and routing brackets are available, enabling flexible mounting and maintenance. The roof plates are multi-part and feature cable entries, facilitating installation of fans or other components in the roof area.
Mounting and Installation
Mounting is done via the designated mounting brackets at the top and bottom ends of the frame structure. The 48,3 cm ( 19 inch )-profile rails are already integrated into the rack and can be adjusted as needed. The doors open fully to 180°, ensuring easy access to installed devices. Ventilation is achieved through the perforated doors, with air circulation supported by room climate control. The cable entries in the roof allow structured cable routing, ensuring orderly installation and maintenance.
Operational Advantages
The rack offers a high load capacity of 15,000 N, making it suitable for use with heavy server and network equipment. The ventilated doors ensure efficient cooling of installed components, increasing operational reliability. The 180° hinges allow full door opening, simplifying maintenance and inspection of devices. The standardized 48,3 cm ( 19 inch )-mounting and depth-variable profile rails provide flexibility in mounting various devices. The cable entries in the roof support structured cable routing, simplifying system maintenance and expansion. The color design in RAL 7035 and RAL 9005 ensures a professional appearance, well-integrated in modern IT environments.
| General | |
| Model | Ventilated, standard, with 19" profile rails |
| Material | Sheet steel, aluminium, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Housing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior fitting, front ventilation grille: RAL 9005, handle and hinges: RAL 9005 |
| Width | 600 mm |
| Height | 2.200 mm |
| Depth | 1.000 mm |
| Height units | 47 HE |
| Mounting clearance to 19" plane, front/back | 87 mm / 193 mm |
| Mounting position 19" rack | Front and rear |
| Layer spacing (as delivered) | 720 mm |
| 19" mounting | with mounting bracket screwed to top and bottom of frame structure |
| Roof type | multi-part, with cable entry in corner areas front and rear |

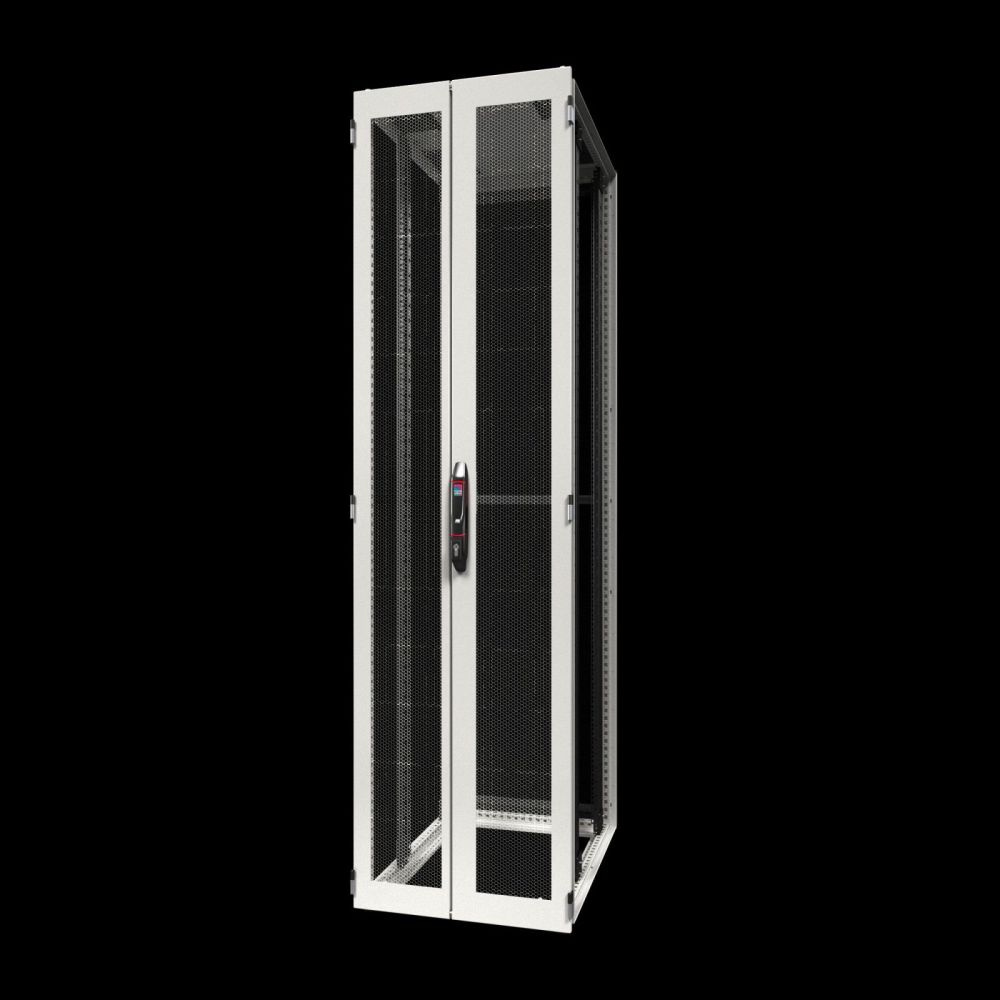

| Door configuration rear | Steel sheet door, ventilated, vertically divided, 180° hinges |
| Front door configuration | Aluminium-steel sheet door, ventilated, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | Open |
| 19" rack configuration | Front and rear |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 15.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 12.000 N |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 208.4 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 5313113 Server rack VX IT ventilated 600x2200x1000 mm 47 U?
The article Rittal 5313113 Server rack VX IT ventilated 600x2200x1000 mm 47 U is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5313113 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5313113 Server rack VX IT ventilated 600x2200x1000 mm 47 U always at the best possible price. We can give you a discount of 2% on Rittal 5313113 Server rack VX IT ventilated 600x2200x1000 mm 47 U if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
