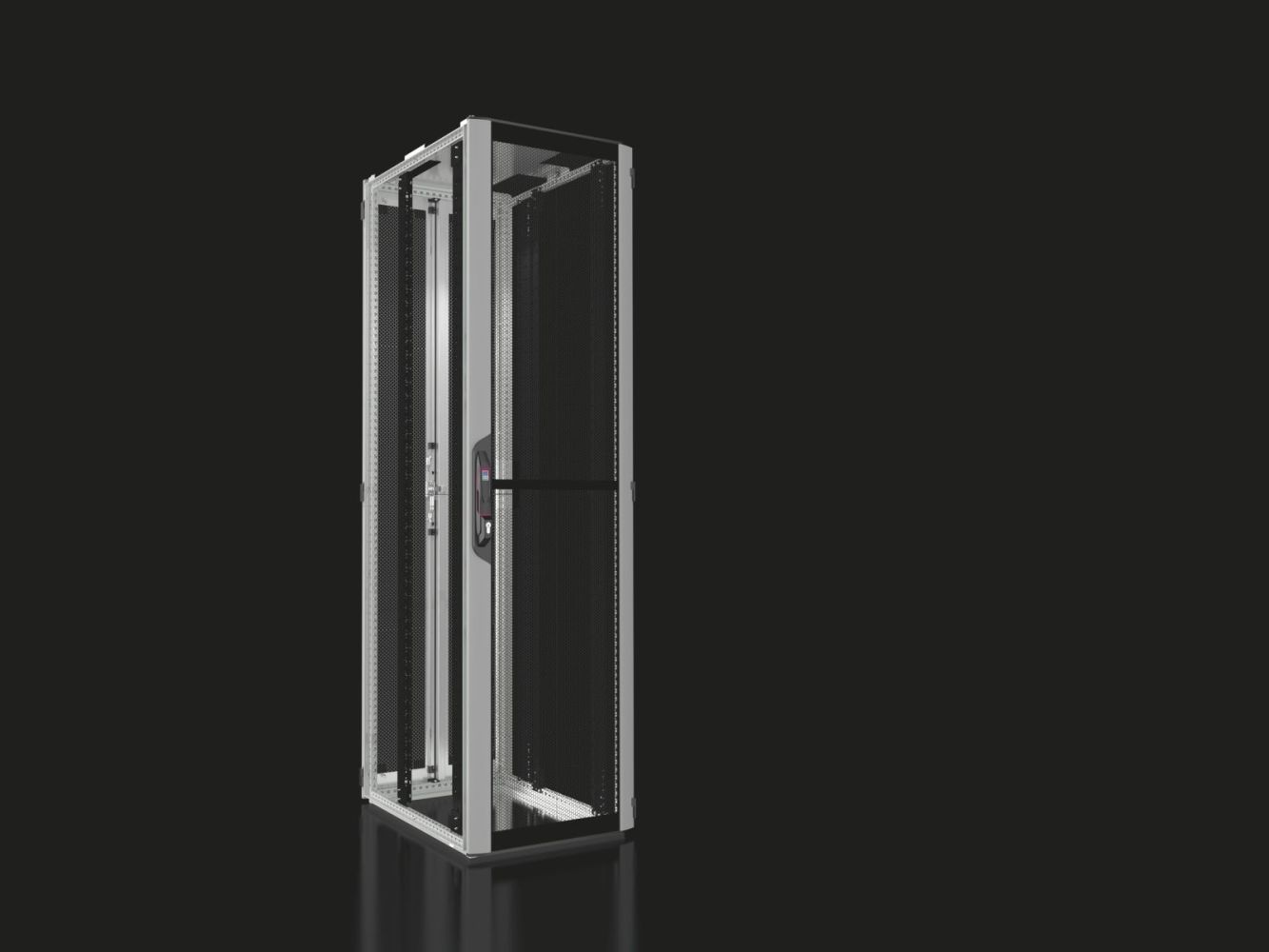

Rittal 5331113 Serverschrank VX IT ventilated 600x2200x800 mm 47 U
|
-8% 1.412,20 EUR 1.529,45 EUR |
|
|
( 1.680,52 EUR incl. VAT ) ≈ £1,182.01 | ≈ $1,552.01 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775731 |
| Mfg Part No: | 5331113 |
| UPC/EAN: | 4028177945593 |
| Weight: | 80 kg |
| Type: | VX 5331113 |
Product information for Rittal 5331113:
Applications
This rack is suitable for installing network and server systems requiring continuous cooling. The ventilated doors enable passive air circulation, supported by room climate systems. The configuration with 48,3 cm ( 19 inch ) profile rails at the front and rear provides flexibility for mounting devices of varying depths. The open floor construction supports air intake from below, which is important for optimal cooling of lower device levels.
Functions and Equipment in Detail
The front door is made of aluminum (1.25 mm) and sheet steel, ventilated and single-piece. The ventilation area covers approximately 85% of the perforated sheet metal portion, ensuring sufficient air permeability. The door opens 180° and is equipped with a comfort handle for half cylinder and a security lock 3524 E. The rear features a ventilated sheet steel door (1.5 mm), vertically divided, and also equipped with 180° hinges. The color scheme includes RAL 7035 for the enclosure frame, rear door, and roof, while the front door features vertical silver-colored profiles and horizontal RAL 9005. Handles and hinges are also finished in RAL 9005.
Technology Explained Simply
The rack is made of sheet steel, with the frame structure dip-primed. The interior construction is painted, while the rear door and roof are dip-primed and powder-coated. The front door is anodized/painted. The 48,3 cm ( 19 inch ) profile rails are standard in the VX IT and allow depth-variable mounting. Mounting is achieved via mounting brackets, which are screwed to the frame structure at the top and bottom. The spacing between mounting levels is 520 mm in the delivered state. The mounting clearances are 87 mm at the front and 193 mm at the rear, enabling flexible device placement. The roof is multi-part and features cable entries at the front and rear corners, simplifying cable routing.
Compatibility and Accessories
The rack is standard-equipped with 48,3 cm ( 19 inch ) profile rails suitable for mounting IT devices. Compatible accessories include profile rails for the rear 48,3 cm ( 19 inch ) mounting level, 48,3 cm ( 19 inch ) fasteners 1 U with electrical connection, component shelves in various heights (0.5 U, 1 U, 1.5 U), drawers in 2 U and 3 U, cable ducts, slide rails, blanking panels, and cable routing brackets. These components allow individual adaptation of the rack to specific requirements. The delivery also includes spacers (height 50 mm) for raising a roof plate above the fan outlet in the roof plate, as well as 12 pieces of 48,3 cm ( 19 inch ) fasteners 1 U and 25 conductive internal hexagon socket screws.
Mounting and Installation
Mounting is done via the integrated mounting brackets, which are screwed to the frame structure at the top and bottom. The 48,3 cm ( 19 inch ) mounting level is positioned at the front and rear, enabling symmetrical device mounting. The open floor construction supports air intake from below. The doors open 180°, with the opening angle varying depending on the installation location. The use of spacers enables passive ventilation, especially in variants with fan outlets in the roof plate.
Operational Advantages
The rack offers a high load capacity of 15,000 N and meets the static load capacity according to UL 2416 with 12,000 N per rack. The ventilated doors and open floor construction ensure efficient cooling of installed devices. The color scheme in RAL 7035 and RAL 9005 enables visual harmonization with existing infrastructures. The integrated blind rivet nuts M6 in the frame structure facilitate attachment of accessories. The delivery includes all necessary mounting components to ensure quick and secure installation. The PCF rating (Cradle-to-Gate) is 197.1 kg CO2 eq (Category B), indicating the environmental impact of the product.
The technical features are fully covered in the product description.
| General | |
| Model | Ventilated, standard, with 19" profile rails |
| Material | Sheet steel, aluminium, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Housing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior fitting, front ventilation grille: RAL 9005, handle and hinges: RAL 9005 |
| Width | 600 mm |
| Height | 2.200 mm |
| Depth | 800 mm |
| Height units | 47 HE |
| Mounting clearance to 19" plane, front/back | 87 mm / 193 mm |
| Mounting position 19" rack | Front and rear |
| Layer spacing (as delivered) | 520 mm |
| 19" mounting | with mounting bracket screwed to top and bottom of frame structure |
| Roof type | multi-part, with cable entry in corner areas front and rear |
| Door configuration rear | Steel sheet door, ventilated, vertically divided, 180° hinges |
| Front door configuration | Aluminium-steel sheet door, ventilated, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | Open |
| 19" rack configuration | Front and rear |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 15.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 12.000 N |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 197.1 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
