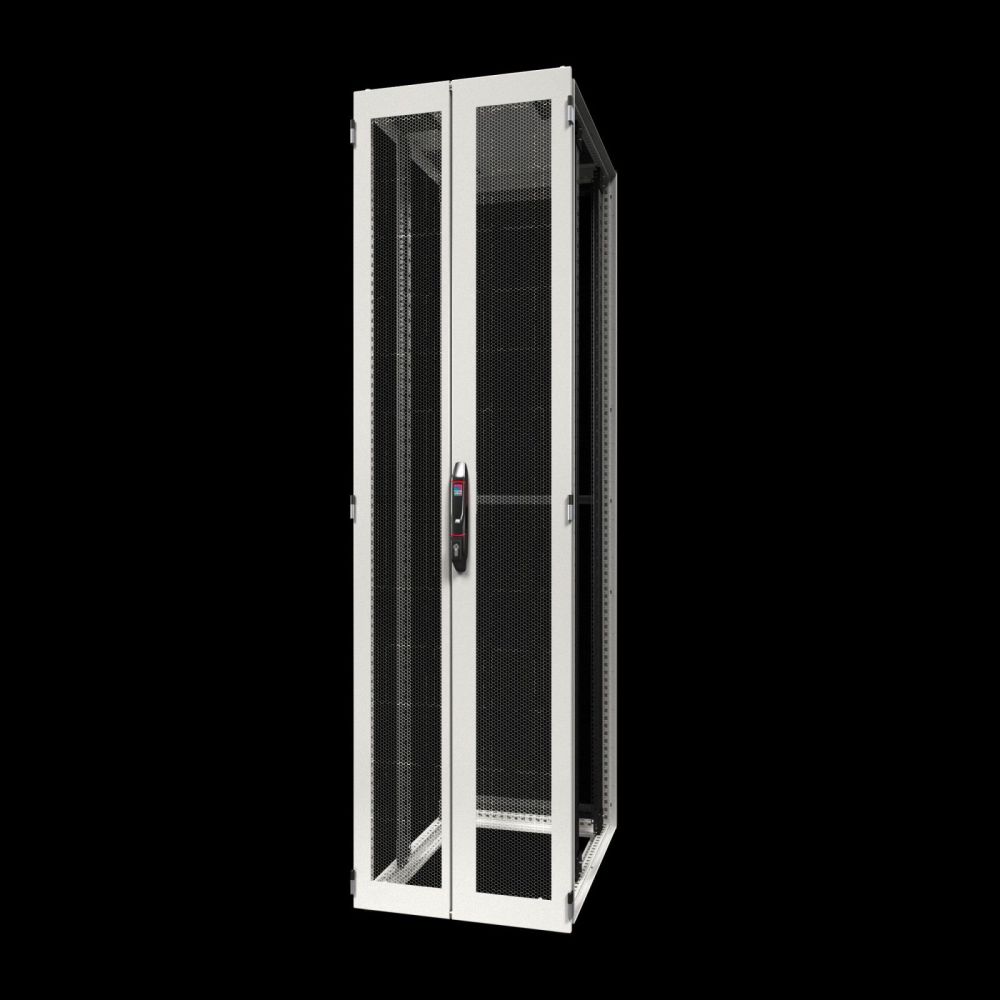

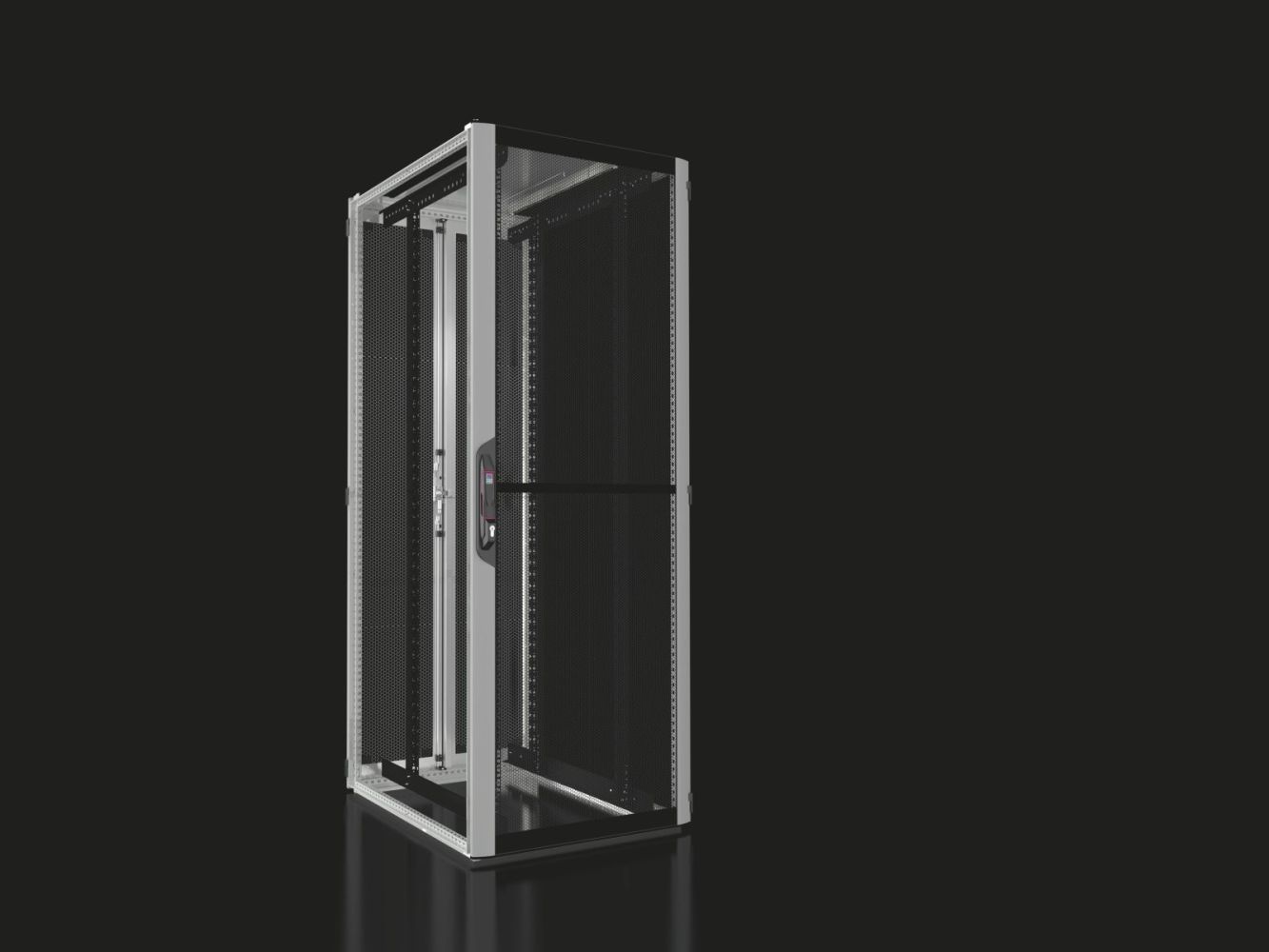

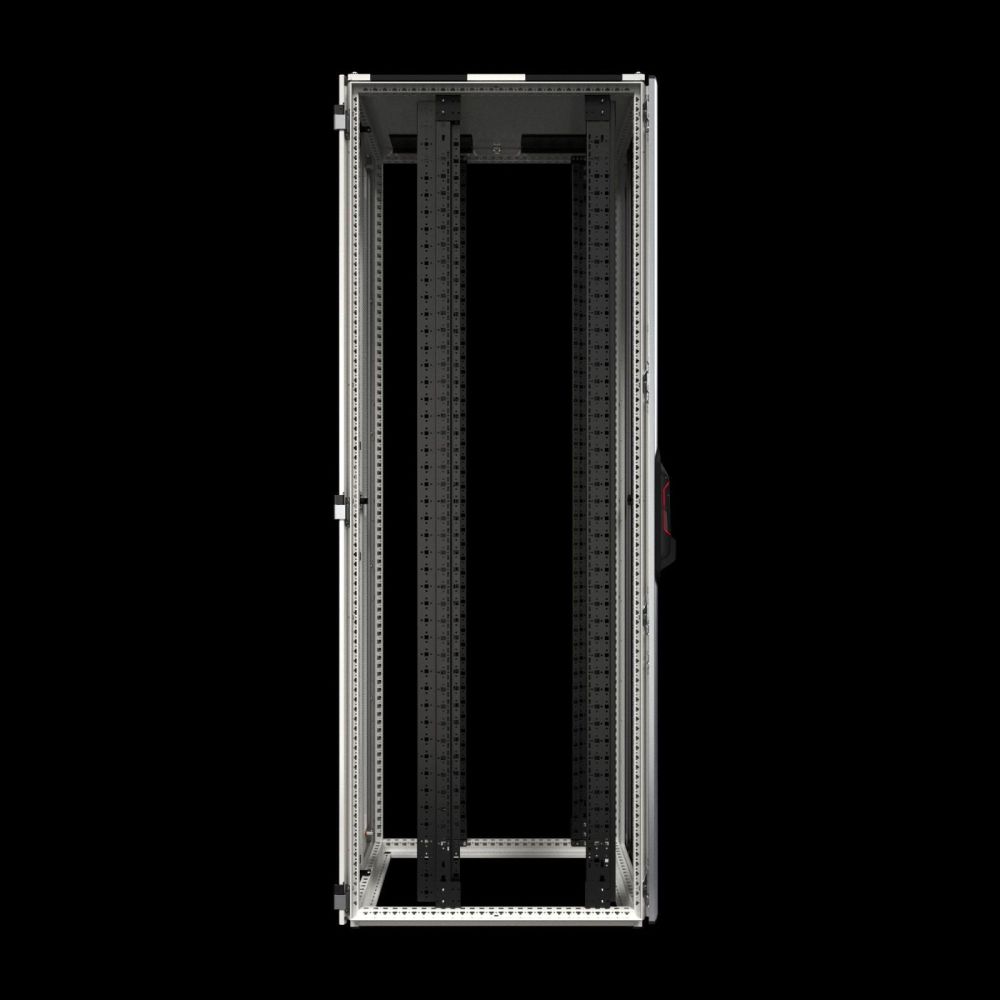

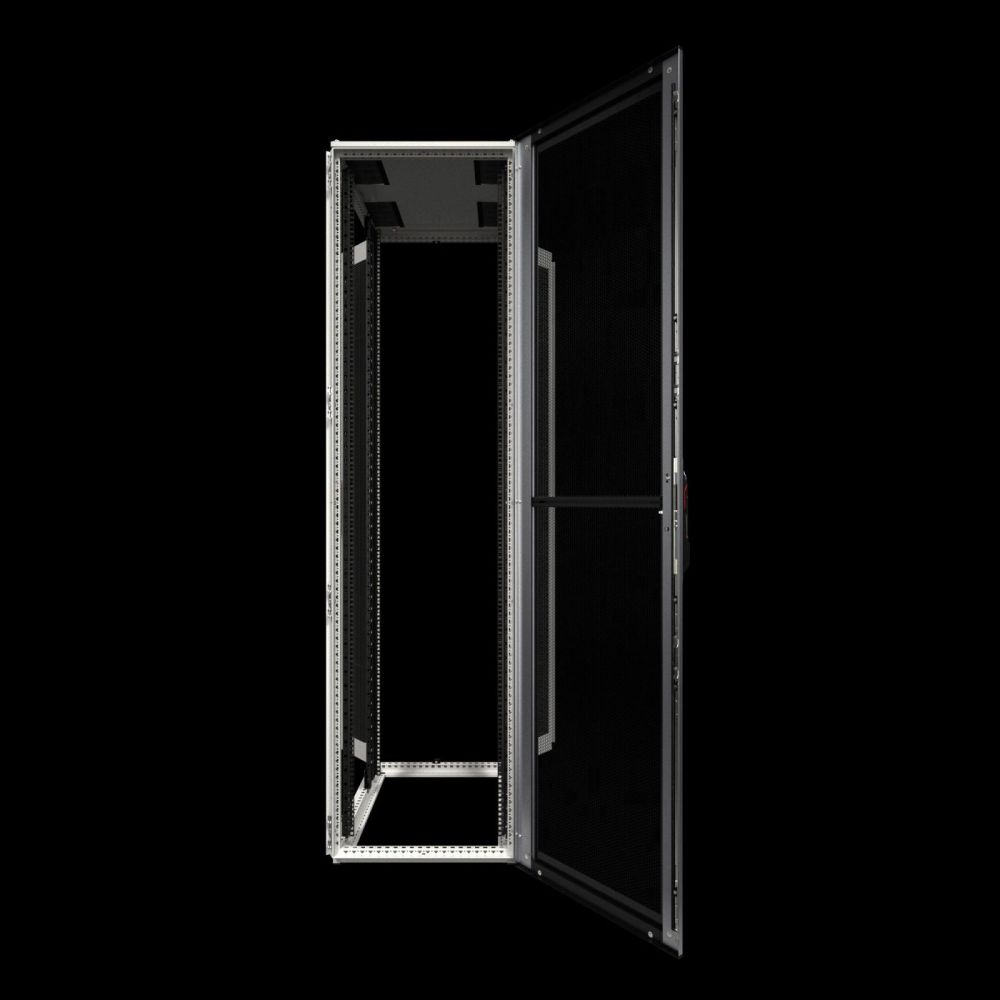

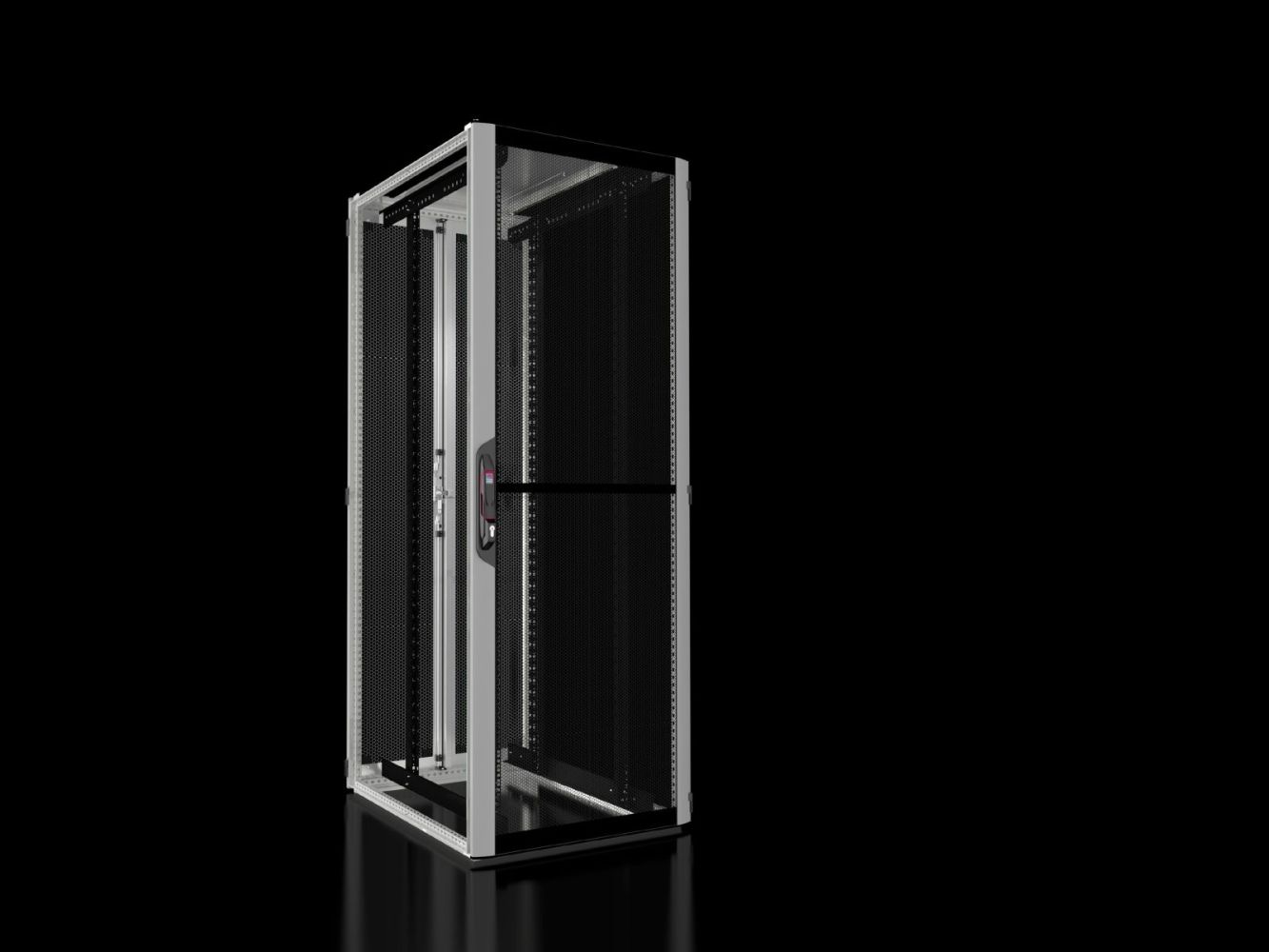

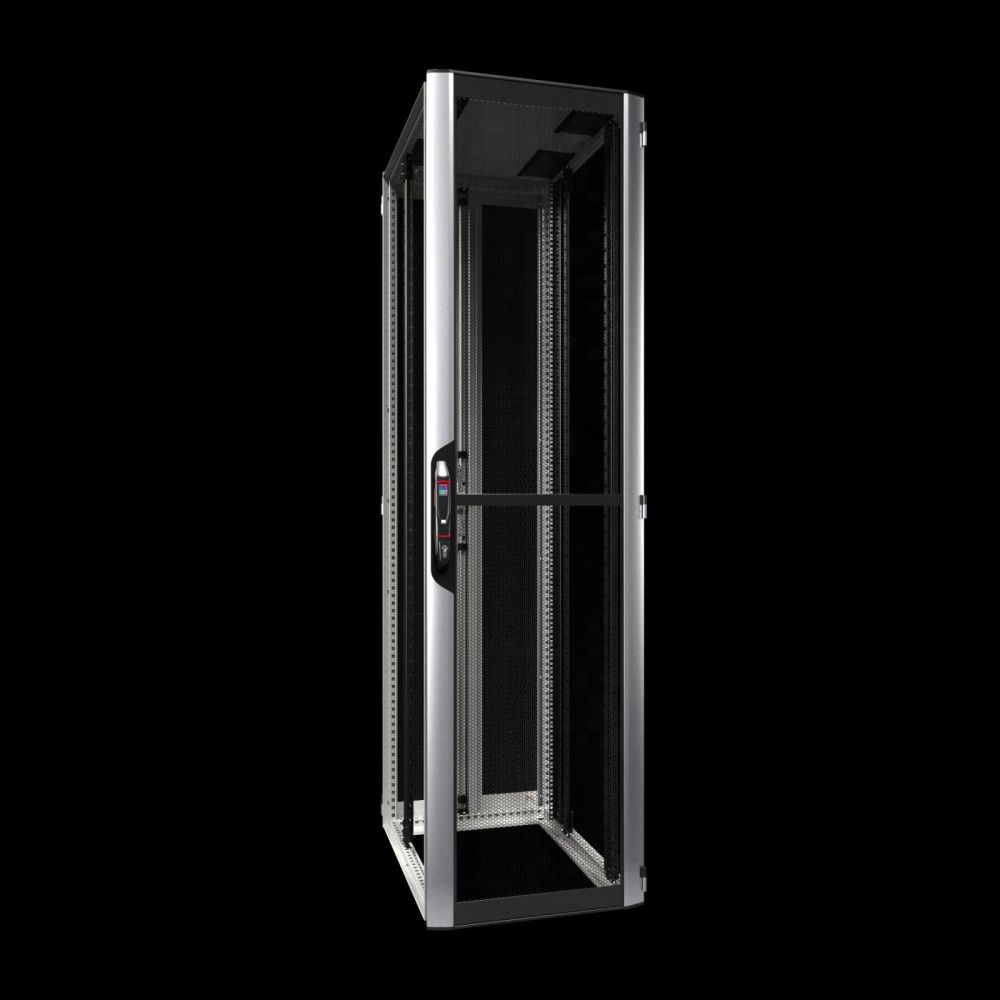

Rittal 5314116 Server rack VX IT ventilated 800x2200x1000 mm 47 U
|
1.515,70 EUR |
|
|
( 1.803,68 EUR incl. VAT ) ≈ £1,268.64 | ≈ $1,665.75 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775811 |
| Mfg Part No: | 5314116 |
| UPC/EAN: | 4028177945319 |
| Weight: | 101 kg |
| Type: | VX 5314116 |
Product information for Rittal 5314116:
Applications
The rack is designed for use in environments with room climate control, where ventilated doors enable efficient air circulation. It is particularly suitable for housing network and server equipment requiring continuous cooling. The open floor construction supports airflow and reduces thermal loads. The configuration with side cable entry in the roof plate enables structured and clear cabling, especially in installations with multiple cable bundles.
Functions and Equipment in Detail
The front door consists of aluminum (1.25 mm) and steel sheet, is ventilated and single-piece. The ventilation area accounts for approximately 85% of the perforated sheet portion, ensuring sufficient air permeability. The door opens via 180° hinges and is equipped with a comfort handle for half cylinder and a security locking mechanism 3524 E. The rear features a ventilated steel sheet door (1.5 mm), vertically divided, and also equipped with 180° hinges. The ventilation area here is also approximately 85%. The rack frame surface is dip-primed, the interior build is painted, while the rear door and roof are powder-coated. The front door is anodized/painted, with vertical profiles in silver and horizontal profiles in RAL 9005. The color of the enclosure frame, rear door, and roof is RAL 7035.
Technology Explained Simply
The 48,3 cm ( 19 inch )-profile rails allow mounting of standard IT equipment in 48,3 cm ( 19 inch ) format. The mounting clearance is 87 mm front and 193 mm rear, providing sufficient space for cabling and cooling. The rack load capacity is 15,000 N, with maximum static load capacity per rack according to UL 2416 being 12,000 N. The roof plate is multi-part and features side cable entry at both depths, enabling flexible cable routing. It is also prepared for mounting a fan plate, supporting integration of fans for additional cooling.
Compatibility and Accessories
Various accessories are available for this rack, extending its functionality. These include, for example, 48,3 cm ( 19 inch )-fasteners 1 HE (12 pieces), spacers for raising a deck plate above the fan outlet, and internal hexagon socket screws. Compatible accessories also include drawers in various heights (2 HE, 3 HE), component shelves in various configurations (e.g., 0.5 HE, 1.5 HE), blank panels, slide rails, cable ducts, and plinth corner pieces. These components enable individual adaptation of the rack to specific requirements.
Mounting and Installation
Mounting is done by bolting to the depth rails at top and bottom. The 48,3 cm ( 19 inch )-profile rails are standardly integrated in the VX IT. The open floor construction allows easy installation and maintenance. The side cable entry in the roof plate supports structured cabling. The door opening angles may vary depending on type and location of installation, which should be considered during planning.
Advantages in Operation
The rack offers high load capacity and is designed for use in industrial and IT environments. The ventilated doors ensure efficient cooling of installed devices. The integrated 48,3 cm ( 19 inch )-profile rails and flexible mounting options enable quick and secure installation. The robust construction from steel sheet and aluminum ensures long service life and high stability. The color design in RAL 7035 and RAL 9005 provides a professional appearance that integrates well into modern IT infrastructures. Delivery includes spacers, 12 x 48,3 cm ( 19 inch )-fasteners 1 HE, and 25 internal hexagon socket screws required for mounting. The packaging unit is 1 piece, net weight 86 kg, gross weight 101 kg. The PCF value (Cradle-to-Gate) is 248.8 kg CO2 eq (Category B), calculated approximately based on product weight and self-declared.
| General | |
| Model | Ventilated, standard, with 19" profile rails |
| Material | Sheet steel, aluminium, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Housing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior fitting, front ventilation grille: RAL 9005, handle and hinges: RAL 9005 |
| Width | 800 mm |
| Height | 2.200 mm |
| Depth | 1.000 mm |
| Height units | 47 HE |
| Mounting clearance to 19" plane, front/back | 87 mm / 193 mm |
| Mounting position 19" rack | Front and rear |
| Layer spacing (as delivered) | 720 mm |
| 19" mounting | Screwed to top and bottom depth brace |
| Roof type | Multi-part, with lateral cable entry in depth, on both sides, prepared for fan panel |
| Door configuration rear | Steel sheet door, ventilated, vertically divided, 180° hinges |
| Front door configuration | Aluminium-steel sheet door, ventilated, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | Open |
| 19" rack configuration | Front and rear |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 15.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 12.000 N |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 248.8 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
