Rittal 5302051 cable duct for VX IT, TE 38 U

Your rating:
Average rating
product review for Rittal 5302051 cable duct for VX IT, TE 38 U
( 4.7 / 5 ) 3 ratings
Rittal 5302051
This image may differ from the desired article.
Rittal 5302051Rittal 5302051Rittal 5302051
125,87 EUR
( 149,79 EUR incl. VAT )
≈ £105.35  |  ≈ $138.33
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 5302051 cable duct for VX IT, TE 38 U
Datasheet:file_download Download
Lieske Part No.:1910610
Mfg Part No: 5302051
UPC/EAN: 4028177958579
Weight:7.98 kg
Type:DK 5302051

Product information for Rittal 5302051:

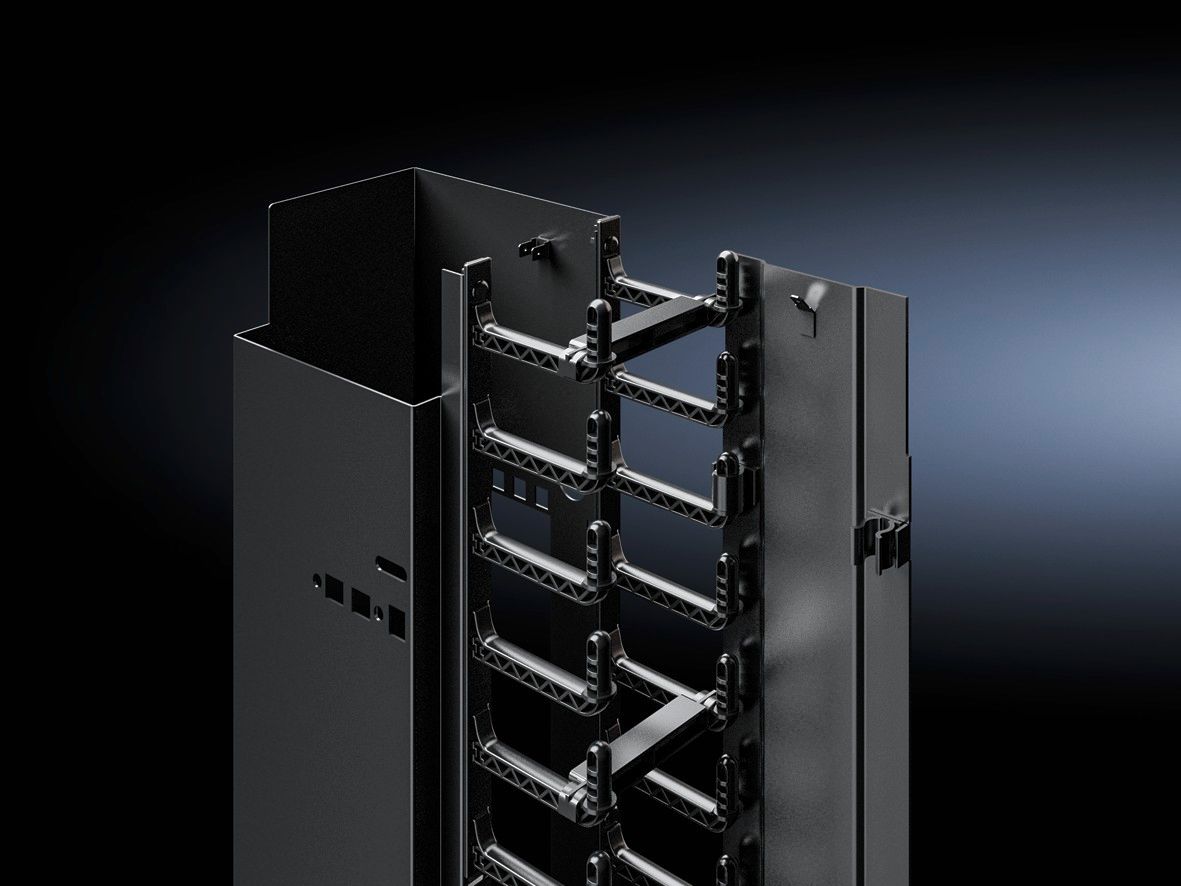

The Rittal cable duct DK 5302051 is a 38 U module for concealed cable routing in industrial enclosures. It is specifically designed for enclosure types such as VX IT, TE 8000, Data Rack and TX CableNet, which have a cabinet width of 800 mm. The unit serves structured and accessible cable routing within the enclosure, with cable routing enabled by integrated mounting cutouts in the 1 U standard. The cable duct is finished in RAL 9005, a dark grey standard colour that integrates well visually in industrial environments.

Applications

The cable duct is suitable for use in enclosures with a height of 1,800 mm, 1,900 mm or 2,000 mm. It is particularly used in systems requiring organised and accessible cable routing, such as data centres, automation systems or IT infrastructure housing. The back-to-back arrangement allows compact mounting of multiple units side by side, supporting use in row configurations. Additionally, the duct can be used as a partition element to prevent air short-circuits within a cold aisle enclosure.

Functions and equipment in detail

The cable duct features two hinged covers that are optionally removable, enabling convenient and immediate access to the cabling at any time. The integrated cable entries on the inner side and rear wall of the duct offer flexible options for cable connections. The included cable retention clips can be adjusted to various depths on the cable fingers of the duct to support cable routing and ensure proper securing. Installation is tool-free via a quick-fastening system, which speeds up and simplifies the installation process.

Technology explained simply

The cable duct is made of sheet steel and plastic, which complies with UL 94-HB standard, ensuring a certain level of flame retardancy. Dimensions are 109.5 mm width, 314.5 mm depth and 1,699 mm length. The integrated mounting cutouts in 1 U standard (4 pieces) allow mounting of components in standard 19-inch format. The cable fingers and retention clips ensure stable and structured cable routing. The tool-free mounting reduces installation effort and enables quick integration into existing systems.

Compatibility and accessories

The cable duct is designed for enclosures with a width of 800 mm and is compatible with enclosure types VX IT, TE 8000, Data Rack and TX CableNet. In symmetrical internal configuration of the VX IT enclosure, combination with 48,3 cm ( 19 inch ) profile rails dynamic is not possible; in asymmetrical configuration, one-sided mounting is permitted. Available accessories include blank panels (1 U, RAL 9005), a brush kit for optimised airflow, and a cable entry panel IT 48,3 cm ( 19 inch ) 1U (part number 5302202), which can extend functionality.

Mounting and installation

Mounting is tool-free via a quick-fastening system, allowing fast installation without additional tools. The fastening materials are included in the delivery. The unit is designed for back-to-back arrangement, enabling compact placement of multiple cable ducts. The hinged covers facilitate access to the cables without requiring full disassembly of the duct.

Operational advantages

The cable duct offers high packing density through U-based cable routing, optimising the use of available space in the enclosure. The closable cable entries enable secure and orderly cabling. Combination with the brush kit for VX IT supports optimised airflow, which is beneficial in climate control or cooling concepts. The tool-free mounting and modular design simplify maintenance and system expansion.

Delivery contents

Included in the delivery: cable duct, 2 covers, 14 cable fingers, 6 HE, 10 cable retention clips, and the required fastening materials.

General
Technical dataIntegrated 19" mounting cutouts (1 HE): 4 pieces
MaterialSheet steel, plastic according to UL 94-HB
ColourRAL 9005
Scope of deliveryCable channel, 2 covers, 14 cable fingers, 6 U, 10 cable retention clips, Including mounting hardware
Height units38 HE
NoteNot combinable with 19“ profile rails dynamic in symmetrical internal construction of VX IT enclosure type; one-sided mounting possible in asymmetrical internal construction.
Width109,5 mm
Depth314,5 mm
Length1.699 mm
Suitable forhousing type: VX IT, TE 8000, Data Rack, TX CableNet, width: = 800 mm, height: = 1,800 mm, = 1,900 mm, = 2,000 mm
Suitable for width= 800 mm
PCF/VE (Cradle-to-Gate)30.4 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302051, EAN: 4028177958579

Questions & answers

What is the delivery time of Rittal 5302051 cable duct for VX IT, TE 38 U?

The article Rittal 5302051 cable duct for VX IT, TE 38 U is currently in stock

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5302051 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5302051 cable duct for VX IT, TE 38 U always at the best possible price. We can give you a discount of 2% on Rittal 5302051 cable duct for VX IT, TE 38 U if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
