Rittal 7888731 TX CableNet network enclosure 800x2000x1000 mm 42 U disassemblable

Your rating:
Average rating
product review for Rittal 7888731 TX CableNet network enclosure 800x2000x1000 mm 42 U disassemblable
( 4 / 5 ) 1 ratings
Rittal 7888731
This image may differ from the desired article.
Rittal 7888731Rittal 7888731Rittal 7888731Rittal 7888731Rittal 7888731Rittal 7888731Rittal 7888731
-13% 814,06 EUR 937,70 EUR
( 968,73 EUR incl. VAT )
≈ £681.37  |  ≈ $894.65
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7888731 TX CableNet network enclosure 800x2000x1000 mm 42 U disassemblable
Datasheet:file_download Download
Lieske Part No.:1246968
Mfg Part No: 7888731
UPC/EAN: 4028177997592
Weight:127 kg
Type:TX 7888731

Product information for Rittal 7888731:

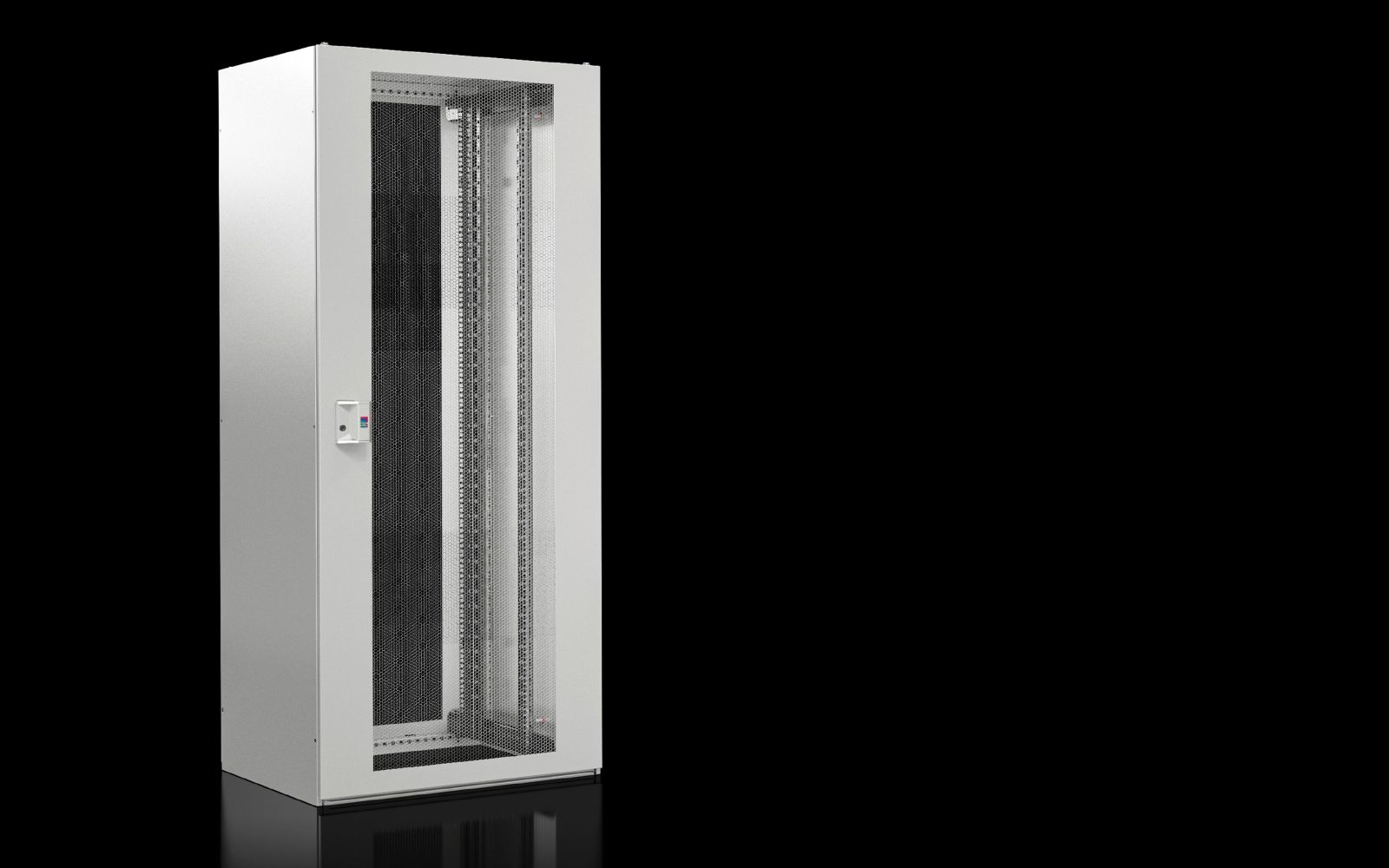

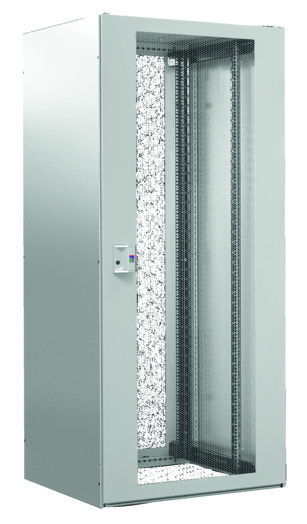

The Rittal TX 7888731 is a network enclosure of the TX CableNet series, designed for housing IT and electrical components in confined spaces, low ceiling heights, or hard-to-reach areas. The enclosure is manufactured in the 2nd generation, disassemblable and ventilated, with integrated side panels. It features an overall height of 2,000 mm, a width of 800 mm, and a depth of 1,000 mm, corresponding to an expansion length of 42 height units (HE). The spacing between levels in the delivered state is 645 mm. The construction is made of sheet steel, with the enclosure frame and roof plate each 1.5 mm thick, doors and side panels 1.2 mm, and 48,3 cm ( 19 inch ) profile rails 2 mm. The surface is dip-primed and powder-coated in the colour RAL 7035.

Applications
This enclosure is suitable for installing network and server components in data centres, server rooms, office buildings, or industrial environments. The disassemblable design enables flexible assembly and transportation, particularly in rooms with limited access. The ventilation of the doors, with a free area of approximately 78% in the perforated sheet metal section, ensures efficient air circulation, supporting cooling of installed devices. The construction is designed so that no unused height units remain when installing small electrical components, optimising space utilisation.

Functions and Equipment in Detail

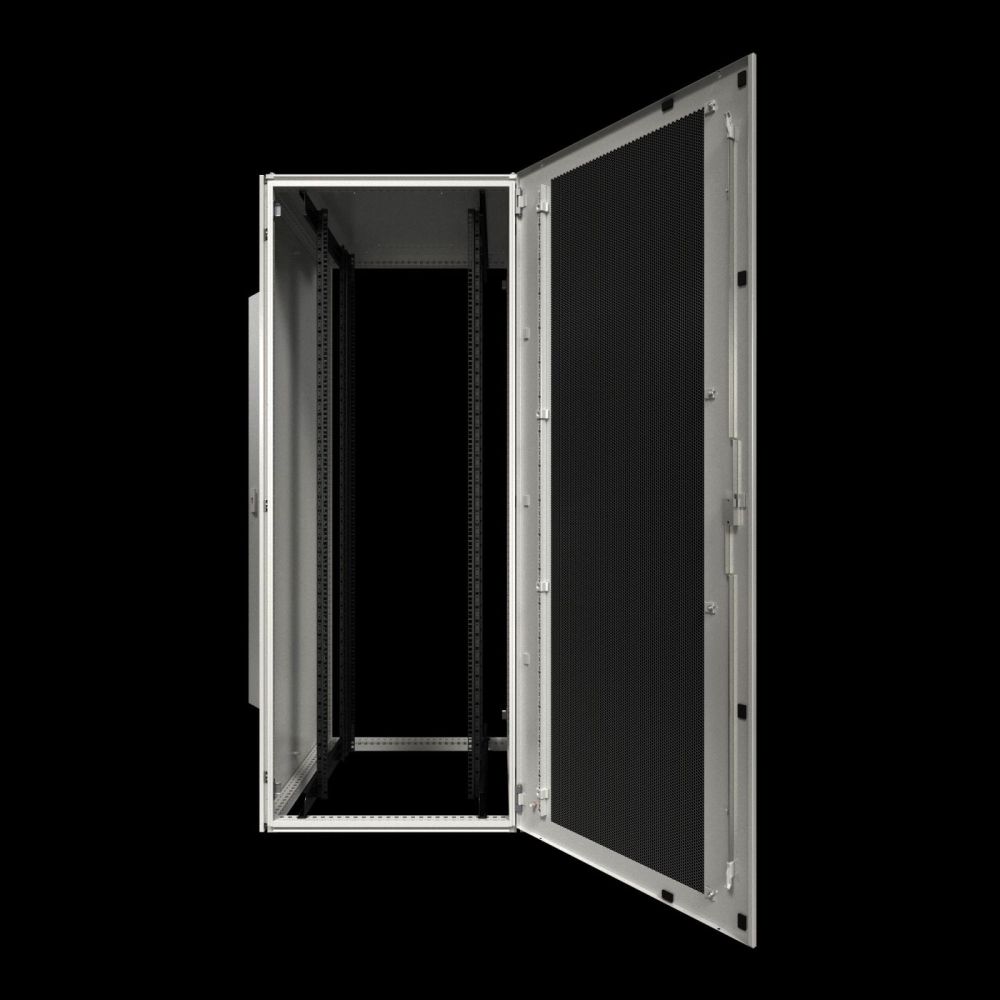

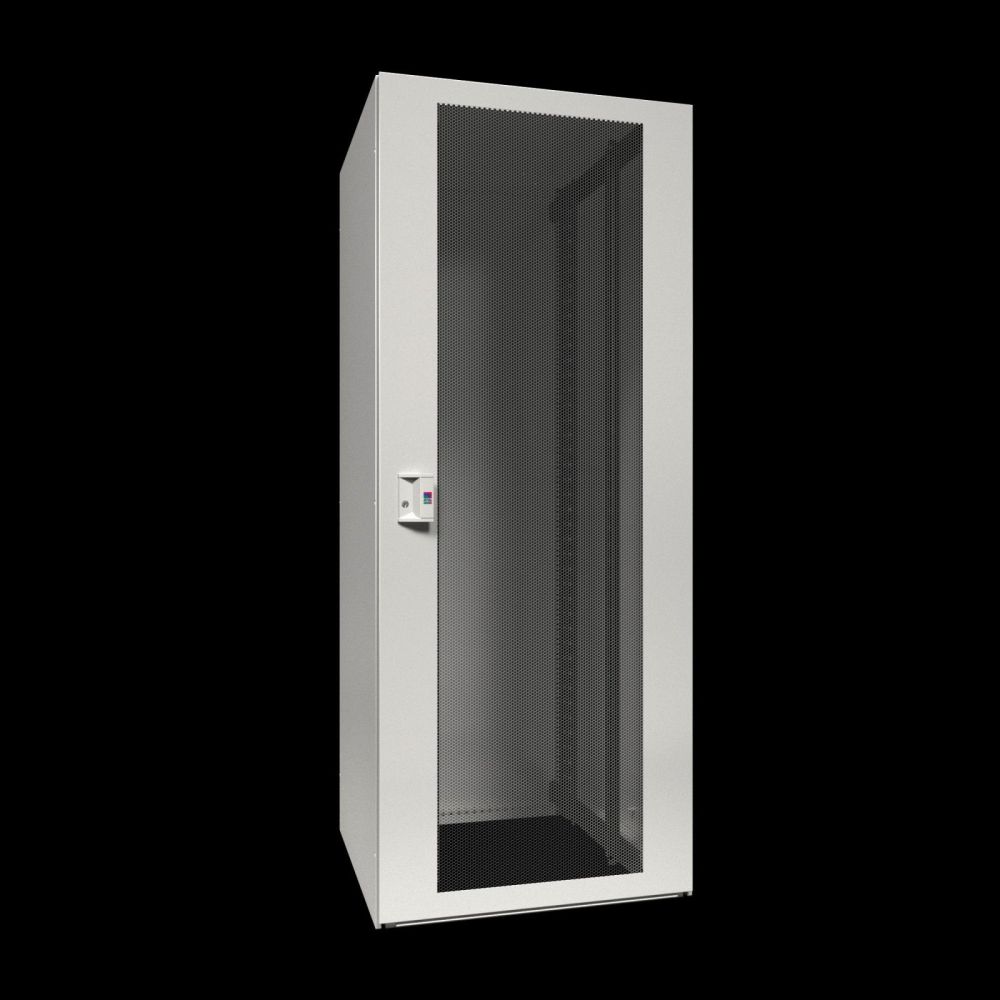

The enclosure is supplied with a ventilated sheet steel door at the front and a single-piece ventilated sheet steel door at the rear. Both doors are double-hinged, allowing quick access to the interior equipment. The 48,3 cm ( 19 inch ) profile rails are adjustable in width and depth, enabling an asymmetric interior layout. The enclosure frame is disassemblable, simplifying assembly and transportation. The side panels are screwed, allowing them to be quickly removed or installed. The screwed roof plate provides concealed cable entries on both sides across the full enclosure depth, as well as a central, concealed opening that enables integration of a fan module.

Technology Explained Simply
The materials used – sheet steel in various thicknesses – ensure high mechanical stability. The dip-primed and powder-coated surface provides corrosion protection and uniform colouring. The load capacity is 5000 N, equivalent to a static load of 500 kg. The 48,3 cm ( 19 inch ) profile rails are adjustable in width and depth, allowing devices of different dimensions to be securely mounted. The integrated system perforation in a 25 mm grid enables flexible component mounting. The vertical frame profiles feature two offset mounting planes, allowing individual adjustment of mounting points.

Compatibility and Accessories
The enclosure is compatible with a comprehensive accessory range, including various base plates, component shelves, plinth trim panels, slide rails, transport kits, and brush kits. These elements enable individual interior configuration and adaptation to specific requirements. The side panels and roof plate are screwed, supporting quick assembly and disassembly. The 48,3 cm ( 19 inch ) profile rails are designed for mounting standard IT devices.

Assembly and Installation

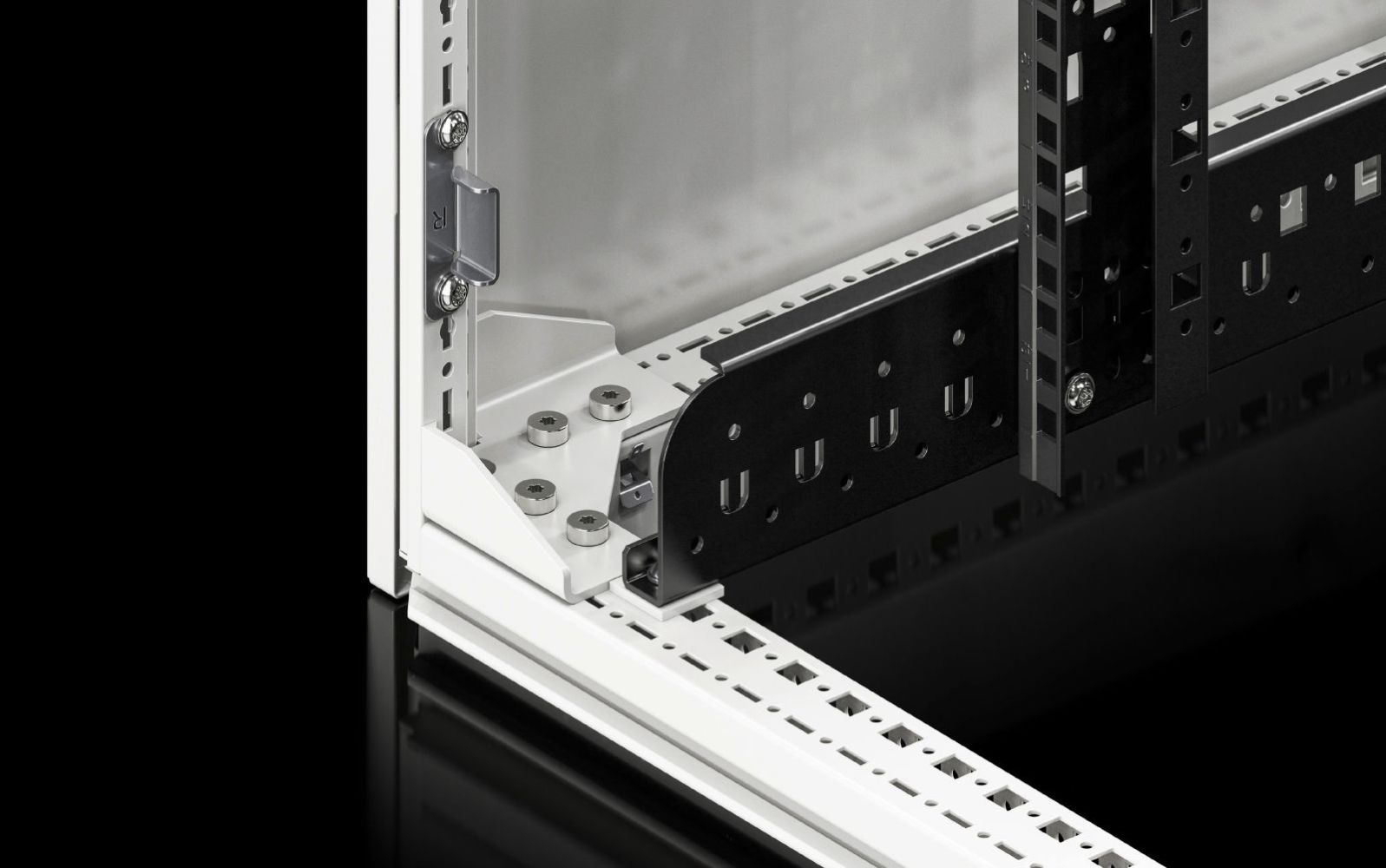

The disassemblable construction simplifies assembly, especially in rooms with limited access. The screwed side panels and roof plate can be quickly installed or removed. The 48,3 cm ( 19 inch ) profile rails are adjustable, allowing individual adjustment of device mounting positions. The enclosures can be bayed front, rear, and side. The base construction is open, allowing individual base modules from the accessory range to be used.

Operational Advantages
The ventilated doors with high air permeability ensure efficient cooling of installed devices. The disassemblable design reduces space requirements during transportation and enables flexible assembly. The adjustable 48,3 cm ( 19 inch ) profile rails and offset mounting planes offer flexibility in device arrangement. The integrated cable entry in the roof plate supports orderly cable routing and facilitates integration of fan modules. The robust sheet steel construction ensures long service life and high load capacity.

General
Model2nd generation, disassemblable, ventilated, with side walls
MaterialRoof: steel sheet, 1.5 mm, cabinet frame: steel sheet, 1.5 mm, door: steel sheet, 1.2 mm, 19“ profile rails: steel sheet, 2 mm, side wall: steel sheet, 1.2 mm
Surface protectionCabinet frame: dip-primed, flat parts: dip-primed, powder-coated
ColourRAL 7035
Scope of deliveryCabinet with ventilated front door and rear door, cabinet frame, disassembled, with 19" profile rails front and rear, side panels, bolted roof sheet with double-sided concealed cable entry over full cabinet depth and central concealed opening for easy integration of a fan module.
Width800 mm
Height2.000 mm
Depth1.000 mm
Height units42 HE
Layer spacing (as delivered)645 mm
19" mountingdisassemblable
Door configurationventilated
Door configuration rearSteel sheet door, single-piece ventilated
Front door configurationSteel sheet door, single-piece ventilated, free area in perforated sheet section approx. 78 %
Load capacity5000 N
Load capacity (static)500 kg
Base materialsteel sheet


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 7888731, EAN: 4028177997592
