Rittal 9674790 Pressure plug for roof plates IP 55, for pressure relief

Your rating:
Average rating
product review for Rittal 9674790 Pressure plug for roof plates IP 55, for pressure relief
( 4 / 5 ) 1 ratings
Rittal 9674790
This image may differ from the desired article.
35,31 EUR
( 42,02 EUR incl. VAT )
≈ £29.55  |  ≈ $38.81
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces

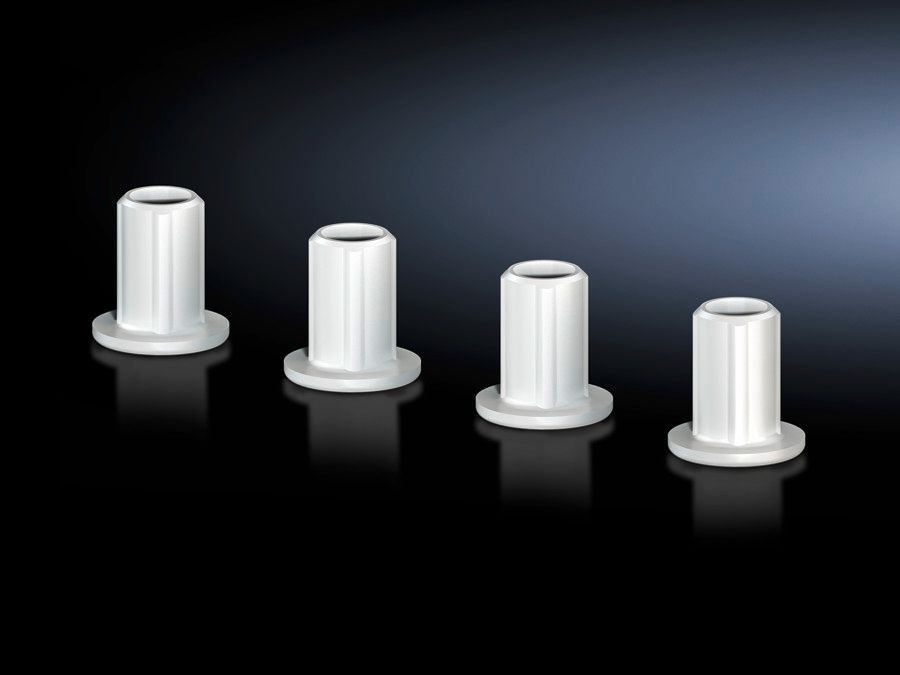

1x Rittal 9674790 Pressure plug for roof plates IP 55, for pressure relief
Datasheet:file_download Download
Lieske Part No.:581341
Mfg Part No: 9674790
UPC/EAN: 4028177709614
Weight:0.083 kg
Type:SV 9674790

Product information for Rittal 9674790:

The article SV 9674790 from Rittal is a pressure plug for roof plates with protection rating IP 55, specifically developed for retrofitting these roof plates to a version with pressure relief function. This function is required to meet the requirements for arc fault safety according to IEC/TR 61 641, which ensures personal protection in case of possible arc events in the enclosure. The pressure plugs are integrated into the roof plate to relieve the pressure generated during an arc event, thereby minimizing the risk to personnel in the vicinity. After installation of the pressure plugs, a protection rating of IP 55 is achieved, meaning the enclosure remains protected against dust and splashing water, but no longer against water jets or immersion conditions.

Pressure relief function for arc fault safety
The pressure relief function is a central component of safety concepts in industrial enclosures. During an arc inside the enclosure, high pressure is generated, which can damage or destroy the enclosure. The pressure plugs enable controlled release of this pressure to the outside, thereby reducing the risk of explosion or uncontrolled pressure burst. Compliance with the limits for arc fault safety depends on the used busbar system, meaning that the specific application and the required number of pressure plugs may vary depending on the system configuration.

Material and construction
The pressure plugs are made of polyamide, a robust and heat-resistant plastic suitable for industrial environments. Polyamide offers good mechanical strength as well as resistance to chemical influences and temperature fluctuations, ensuring the longevity and reliability of the product in demanding operating environments. The processing of the material allows for a precise fit in the roof plate, ensuring secure installation and stable seating.

Scope of delivery and installation
The scope of delivery includes 4 pressure plugs and 4 warning labels. For retrofitting a single roof plate, 2 pressure plugs and 1 warning label are required. The warning labels serve to identify the pressure relief function and are part of the safety communication within the enclosure. Installation is carried out by inserting the pressure plugs into pre-defined holes in the roof plate, where the exact positioning and quantity may vary depending on the enclosure configuration and busbar system.

Compatibility and application
The pressure plugs are specifically designed for roof plates with protection rating IP 55, used in industrial enclosures. They are part of a comprehensive safety concept ensuring compliance with standards such as IEC/TR 61 641. Compatibility with various busbar systems is provided, although the specific limits for arc fault safety depend on the respective system configuration. The pressure plugs are thus a modular element that can be integrated into existing enclosure constructions to meet safety requirements.

Operational benefits
The use of pressure plugs enables a safe retrofit of existing roof plates without having to replace the entire enclosure. This reduces costs and labor effort when modernizing or adapting enclosures. Achieving protection rating IP 55 after installation ensures that the basic protective functions against dust and splashing water are retained, while the additional pressure relief function enhances safety in case of an arc event. The clear identification via warning labels also supports maintenance and inspection of the enclosure, as the pressure relief function is immediately recognizable.

General
MaterialPolyamide
Scope of deliveryIncluding 4 warning stickers
NoteFor one sheet metal roof, 2 pressure plugs and 1 warning label are required. The limits for compliance with arc flash safety depend on the used busbar system.


Product data sheet
Datasheet for Rittal 9674790, EAN: 4028177709614
