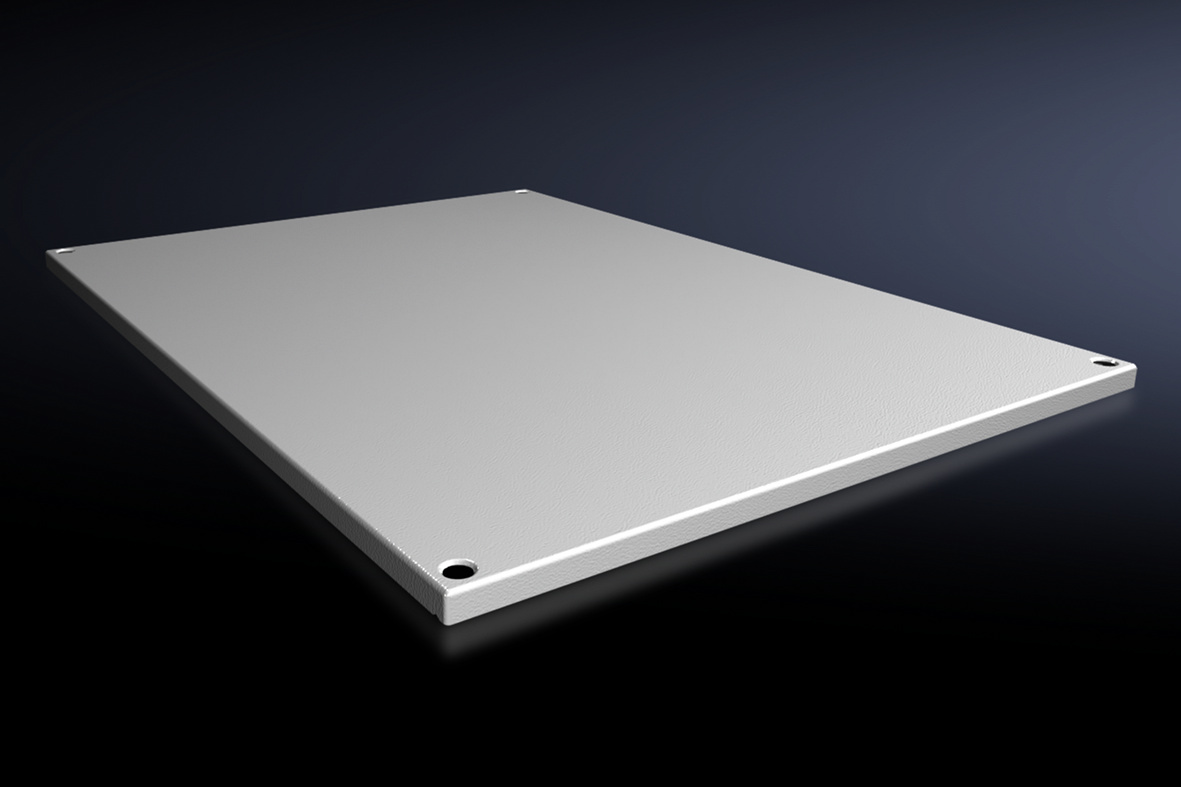

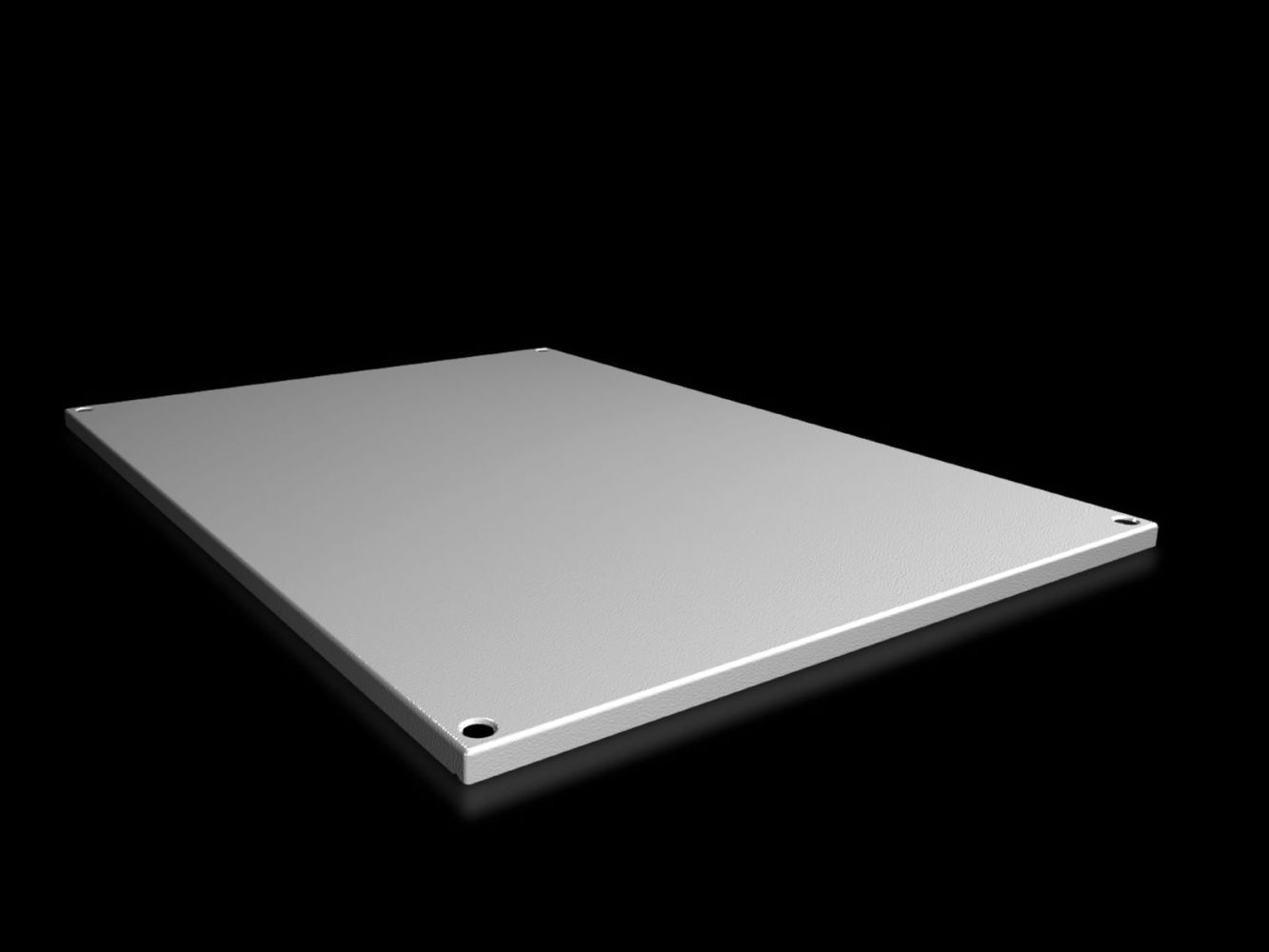

Rittal 9681668 SV roof plate for VX, width: 600x800 mm, IP 55

Your rating:
Average rating
product review for Rittal 9681668 SV roof plate for VX, width: 600x800 mm, IP 55
( 4.5 / 5 ) 4 ratings
Rittal 9681668
This image may differ from the desired article.
Rittal 9681668Rittal 9681668Rittal 9681668
67,85 EUR
( 80,74 EUR incl. VAT )
≈ £56.79  |  ≈ $74.57
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9681668 SV roof plate for VX, width: 600x800 mm, IP 55
Datasheet:file_download Download
Lieske Part No.:1903705
Mfg Part No: 9681668
UPC/EAN: 4028177926769
Weight:7.28 kg
Type:SV 9681668

Product information for Rittal 9681668:

The Rittal SV 9681668 is a roof plate for enclosures of the VX series, designed for an enclosure width of 600 mm and a depth of 800 mm. It serves as a replacement for the standard roof or as an addition for enclosures originally delivered without a roof plate. The product is specifically designed for use in industrial environments where a protection rating IP 55 is required to protect against dust and splashing water. The construction from steel sheet with a thickness of 1.5 mm ensures high mechanical stability and durability under industrial conditions.

Applications
The roof plate is primarily intended for enclosures of the VX series, particularly for models with dimensions width 600 mm and depth 800 mm. It can be used in both new installations and the modernization of existing enclosures to ensure protection rating IP 55. Its use is especially beneficial in areas where enclosures are installed outdoors or in humid indoor environments, where effective protection against environmental influences is necessary.

Functions and Equipment in Detail
The roof plate is supplied with mounting hardware, enabling attachment to the enclosure body. The surface is coated with a structured paint, providing a robust, abrasion-resistant, and uniform coating. The color corresponds to the standard RAL 7035, a gray tone commonly used in industrial electrical engineering. The structure of the coating also enhances mechanical durability and prevents the accumulation of dirt.

Technology Explained Simply
The protection rating IP 55 means that the roof plate is protected against dust (dust-tight) and against splashing water from any direction. This makes it suitable for use in environments with increased humidity or occasional water splashes, for example in production halls, outdoor installations, or areas with cleaning processes. The steel sheet material with 1.5 mm thickness provides sufficient strength to withstand mechanical loads such as wind pressure or light impacts.

Compatibility and Accessories
The roof plate is specifically designed for enclosures of the VX series with the specified dimensions. It is not suitable for other enclosure types or dimensions. Suitable accessories include transport eyes for VX, TS, SE (4 pieces) and pressure plugs for roof plates IP 55. The transport eyes facilitate the transport and installation of the enclosure, while the pressure plugs relieve pressure during roof plate installation and ensure a secure connection.

Installation and Mounting
Mounting is carried out using the included mounting hardware. Installation does not require special tools, but secure fastening to the enclosure body is necessary to ensure protection rating IP 55. Mounting should be performed considering static load and environmental conditions.

Operational Advantages
The roof plate provides reliable protection against environmental influences, extending the service life of the enclosure and increasing operational safety. The use of steel sheet with structured paint ensures high corrosion resistance and resistance to mechanical stress. Compatibility with the VX series and easy installation make it a practical replacement or addition for existing installations.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forWidth: = 600 mm, Depth: = 800 mm


Product data sheet
Datasheet for Rittal 9681668, EAN: 4028177926769

Questions & answers

What is the delivery time of Rittal 9681668 SV roof plate for VX, width: 600x800 mm, IP 55?

The article Rittal 9681668 SV roof plate for VX, width: 600x800 mm, IP 55 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9681668 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9681668 SV roof plate for VX, width: 600x800 mm, IP 55 always at the best possible price. We can give you a discount of 2% on Rittal 9681668 SV roof plate for VX, width: 600x800 mm, IP 55 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
