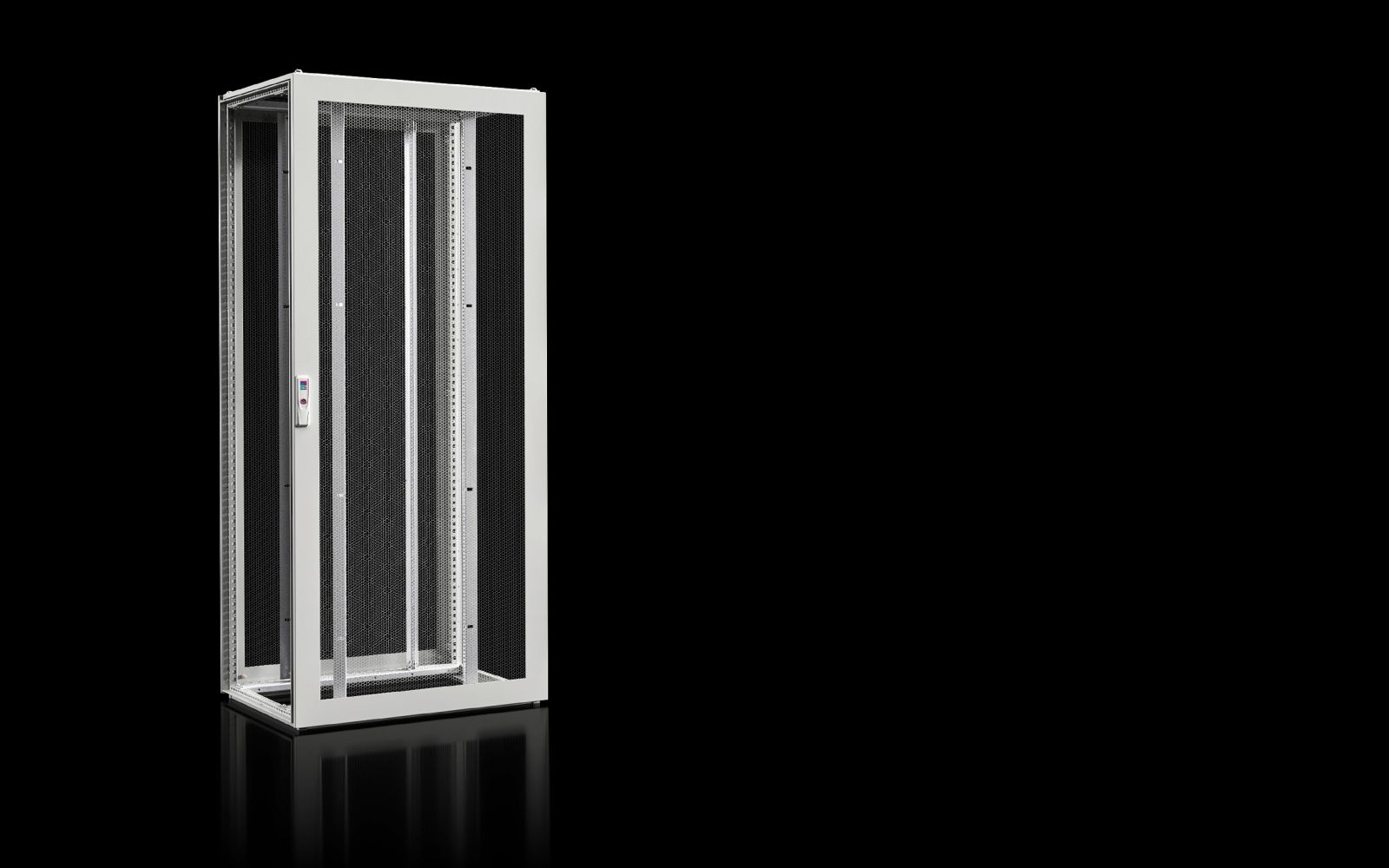

Rittal 9690041 SV VX ESS energy storage enclosure

Your rating:
Average rating
product review for Rittal 9690041 SV VX ESS energy storage enclosure
( 5 / 5 ) 1 ratings
Rittal 9690041
This image may differ from the desired article.
1.088,57 EUR 1.135,15 EUR
( 1.295,40 EUR incl. VAT )
≈ £911.13  |  ≈ $1,196.34
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9690041 SV VX ESS energy storage enclosure
Datasheet:file_download Download
Lieske Part No.:895326
Mfg Part No: 9690041
UPC/EAN: 4028177044296
Weight:72.1 kg
Type:SV 9690041

Product information for Rittal 9690041:

The Rittal SV 9690041 is an energy storage enclosure in the VX ESS system, designed for use in industrial and energy technology applications. It features dimensions of 600 mm width, 2,000 mm height, and 800 mm depth, and is designed with a flexible internal construction that enables modular and efficient installation of energy storage systems. The enclosure frame is made of steel sheet with a thickness of 1.5 mm and is dip-primed, while the door, roof, and rear panel are powder-coated with a textured finish in the color RAL 7035. The protection rating IP 20 according to EN 60 529 ensures protection against contact with fingers and against solid foreign objects, but not against water or dust. The enclosure is suitable for indoor use and provides a stable base for mounting energy storage modules.

Applications

The enclosure is specifically designed for use in energy storage systems, particularly for systems mounted on slide rails. The modular design allows for flexible adaptation to different requirements in the field of energy storage, for example in industrial plants, building energy supply systems, or in the integration of photovoltaic systems. The perforated door and rear panel with 85 % free ventilation area ensure sufficient air circulation to support cooling of installed components.

Functions and Equipment in Detail

The enclosure frame is constructed as a metric profile frame system, consisting of closed and profiled hollow profiles with a hole pattern on a 25 mm grid. The profiles are fitted with integrated blind rivet nuts M6 to securely fasten fittings. The edges of the profiles are rounded, and horizontal profiles feature an integrated groove above the PU foam seal. The door is perforated, fitted with a PU foam seal, and equipped with a four-point locking rod lock with double bar insert according to DIN 43668. The door opening angle is 130°, but can be retrofitted to 180°. The clearance from the floor is 17 mm. The rear panel is also perforated and fitted with a PU foam seal and a positioning aid. The roof and rear panel are electrically connected to the enclosure frame, enabling automatic equipotential bonding according to DIN 62208.

Technology Explained Simply

The surface treatment of the enclosure includes a triple protective layer: nanoceramic coating, electrophoretic dip priming, and powder-coated finish in RAL 7035. This treatment provides high corrosion resistance and is resistant to mineral oils, lubricants, machining emulsions, and solvents. The internal construction elements are made of galvanized steel sheet (cross brace 3 mm, mounting angle 3 mm, profile rail 2 mm), ensuring high mechanical stability. The load capacity of the enclosure frame is up to 15,000 N, and that of the internal construction up to 10,000 N.

Compatibility and Accessories

To build a complete energy storage system, various accessories are available, including side panels, base plates, slide rails, and plinths. Suitable earthing straps in various cross-sections (4 mm², 10 mm², 16 mm², 25 mm²) and lengths (170 mm, 300 mm), as well as baying connectors and brackets for connecting multiple enclosures, are available. Additionally, special roof plates for cable entry and with enhanced protection ratings IP 20, IP 2X) are offered. Installation is performed via the integrated hole grid, enabling flexible and quick assembly.

Mounting and Installation

The enclosure is bayable on all sides and offers a universal mounting base. The square hole pattern around the enclosure allows the use of cage nuts and metric screws up to M8. Internal construction elements are mounted via the integrated hole grid and designated mounting angles. The door and rear panel are removable, facilitating installation and maintenance of components. The PU foam seals ensure good sealing and prevent dust or moisture ingress.

Operational Advantages

The flexible internal construction allows for modular expansion and adaptation to future requirements. The high load capacity and robust construction ensure long service life and reliability. The integrated earthing and automatic equipotential bonding increase operational safety. The perforated surfaces ensure efficient cooling of installed components. The QR code on the door, roof, rear panel, and nameplate enables unique identification and easy access to relevant product information.

General
ModelWith flexible internal construction
Materialrack frame: sheet steel, 1.5 mm, roof sheet: sheet steel, 1.5 mm, door: sheet steel, 1.5 mm, rear panel: sheet steel, 1.5 mm
Surface protectionCabinet frame: dip primed, door, roof and rear panel: powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryCabinet frame, door and rear panel, perforated, roof sheet, lock: 3 mm double tongue
Degree of protection IP according to EN 60 529IP 20
Width600 mm
Height2.000 mm
Depth800 mm
PCF/VE (Cradle-to-Gate)216.29 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 9690041, EAN: 4028177044296

Questions & answers

What is the delivery time of Rittal 9690041 SV VX ESS energy storage enclosure?

The article Rittal 9690041 SV VX ESS energy storage enclosure is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9690041 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9690041 SV VX ESS energy storage enclosure always at the best possible price. We can give you a discount of 2% on Rittal 9690041 SV VX ESS energy storage enclosure if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 9690041 SV VX ESS energy storage enclosure

Rittal 2565000 Earthing straps M8-M8, cross-section 16 mm², length 170 mm Rittal LogoRittal 2565000 Earthing straps M8-M8, cross-section 16 mm², length 170 mm For configuring a reliable earthing connection with perfect contact.
Benefits: With ring terminals in M6 and M8 to match the earthing screws
Length-optimised and ready to install
Packs of: 5 pc(s).

Lieske Part No.: 209510
Mfg Part No: 2565000
Type: SZ 2565000
18,63 EUR 19,14 EUR
Rittal 2565000 plus VAT
≈ £15.59  |  ≈ $20.47
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 2559000 Mounting material for system punching with earthing straps Rittal LogoRittal 2559000 Mounting material for system punching with earthing straps For fastening the earth straps and earthing braids.
Note: Cage nuts or threaded blocks are required for mounting on the horizontal TS, SE enclosure section
Packs of: 10 pc(s).
EAN: 4028177027770 ...

Lieske Part No.: 217639
Mfg Part No: 2559000
Type: SZ 2559000
10,84 EUR
Rittal 2559000 plus VAT
≈ £9.07  |  ≈ $11.91
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 2564000 Earthing straps M8-M8, cross-section 4 mm², length 170 mm Rittal LogoRittal 2564000 Earthing straps M8-M8, cross-section 4 mm², length 170 mm For configuring a reliable earthing connection with perfect contact.
Benefits: With ring terminals in M6 and M8 to match the earthing screws
Length-optimised and ready to install
Packs of: 5 pc(s).

Lieske Part No.: 252381
Mfg Part No: 2564000
Type: SZ 2564000
8,83 EUR
Rittal 2564000 plus VAT
≈ £7.39  |  ≈ $9.70
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 2567000 Earthing straps M8-M8, cross-section 4 mm², length 300 mm Rittal LogoRittal 2567000 Earthing straps M8-M8, cross-section 4 mm², length 300 mm For configuring a reliable earthing connection with perfect contact.
Benefits: With ring terminals in M6 and M8 to match the earthing screws
Length-optimised and ready to install
Packs of: 5 pc(s).

Lieske Part No.: 385451
Mfg Part No: 2567000
Type: SZ 2567000
9,98 EUR
Rittal 2567000 plus VAT
≈ £8.35  |  ≈ $10.97
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 2565120 Earthing straps M8-M8, cross-section 10 mm², length 300 m Rittal LogoRittal 2565120 Earthing straps M8-M8, cross-section 10 mm², length 300 m For configuring a reliable earthing connection with perfect contact.
Benefits: With ring terminals in M6 and M8 to match the earthing screws
Length-optimised and ready to install
Packs of: 5 pc(s).

Lieske Part No.: 483836
Mfg Part No: 2565120
Type: SZ 2565120
19,78 EUR 20,33 EUR
Rittal 2565120 plus VAT
≈ £16.56  |  ≈ $21.74
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 2569000 Earthing straps M8-M8, cross-section 25 mm², length 300 mm Rittal LogoRittal 2569000 Earthing straps M8-M8, cross-section 25 mm², length 300 mm For configuring a reliable earthing connection with perfect contact.
Benefits: With ring terminals in M6 and M8 to match the earthing screws
Length-optimised and ready to install
Packs of: 5 pc(s).

Lieske Part No.: 487725
Mfg Part No: 2569000
Type: SZ 2569000
-8% 30,82 EUR 33,38 EUR
Rittal 2569000 plus VAT
≈ £25.80  |  ≈ $33.87
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2568000 Earthing straps M8-M8, cross-section 16 mm², length 300 mm Rittal LogoRittal 2568000 Earthing straps M8-M8, cross-section 16 mm², length 300 mm For configuring a reliable earthing connection with perfect contact.
Benefits: With ring terminals in M6 and M8 to match the earthing screws
Length-optimised and ready to install
Packs of: 5 pc(s).

Lieske Part No.: 528864
Mfg Part No: 2568000
Type: SZ 2568000
24,04 EUR 24,40 EUR
Rittal 2568000 plus VAT
≈ £20.12  |  ≈ $26.42
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 9681568 SV roof plate for VX, width: 600x800 mm, for cable entry Rittal LogoRittal 9681568 SV roof plate for VX, width: 600x800 mm, for cable entry The Rittal SV 9681568 is a roof plate for enclosures of the VX series, specifically designed for an enclosure width of 600 mm and a depth of 800 mm. It serves as a replacement roof for enclosures ...

Lieske Part No.: 591477
Mfg Part No: 9681568
Type: SV 9681568
-11% 72,34 EUR 81,70 EUR
Rittal 9681568 plus VAT
≈ £60.55  |  ≈ $79.50
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2566000 earthing straps M8-M8, cross-section 25 mm², length 170 mm Rittal LogoRittal 2566000 earthing straps M8-M8, cross-section 25 mm², length 170 mm For configuring a reliable earthing connection with perfect contact.
Benefits: With ring terminals in M6 and M8 to match the earthing screws
Length-optimised and ready to install
Packs of: 5 pc(s).

Lieske Part No.: 788990
Mfg Part No: 2566000
Type: SZ 2566000
23,58 EUR
Rittal 2566000 plus VAT
≈ £19.74  |  ≈ $25.91
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 8660002 plinth corner piece with plinth trim panel, VX, sheet metal, Rittal LogoRittal 8660002 plinth corner piece with plinth trim panel, VX, sheet metal, The Rittal VX 8660002 is a plinth corner piece with integrated plinth trim panels at the front and rear, specifically developed for enclosures and housings of the VX system with a width of 600 mm. It ...

Lieske Part No.: 1103899
Mfg Part No: 8660002
Type: VX 8660002
38,14 EUR 38,18 EUR
Rittal 8660002 plus VAT
≈ £31.92  |  ≈ $41.92
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 8660022 plinth corner piece front/rear VX 200 mm x 600 mm pack of 2 Rittal LogoRittal 8660022 plinth corner piece front/rear VX 200 mm x 600 mm pack of 2 The Rittal VX 8660022 is a plinth corner piece with integrated plinth trim panels at the front and rear, specifically developed for enclosures and housings of the VX system with a width of 600 mm. It ...

Lieske Part No.: 1103902
Mfg Part No: 8660022
Type: VX 8660022
61,49 EUR
Rittal 8660022 plus VAT
≈ £51.47  |  ≈ $67.58
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 8660034 plinth trim panel side 100 x 800 sheet metal Rittal LogoRittal 8660034 plinth trim panel side 100 x 800 sheet metal The VX plinth trim panel, side, type 8660034, from Rittal is a component for the VX plinth system, specifically designed for the lateral termination of plinth units. It serves for optical finishing, ...

Lieske Part No.: 1103908
Mfg Part No: 8660034
Type: VX 8660034
32,60 EUR
Rittal 8660034 plus VAT
≈ £27.29  |  ≈ $35.83
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
Rittal 8660044 plinth trim panel side VX 200 mm x 800 mm pack of 2 Rittal LogoRittal 8660044 plinth trim panel side VX 200 mm x 800 mm pack of 2 The VX plinth trim panel, side, type 8660044, from Rittal is a component for the plinth system VX, designed for finishing the side surfaces of plinth units. It is made of sheet steel and has a height ...

Lieske Part No.: 1103911
Mfg Part No: 8660044
Type: VX 8660044
47,49 EUR
Rittal 8660044 plus VAT
≈ £39.75  |  ≈ $52.19
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 8108245 VX side panel, screwable, for H x W: 2000x800 mm (freight shipping) Rittal LogoRittal 8108245 VX side panel, screwable, for H x W: 2000x800 mm (freight shipping) The Rittal VX 8108.245 is a screw-mounted side panel for enclosures of the VX system, designed for enclosures with a height of 2,000 mm and a depth of 800 mm. The product is made of sheet steel with a ...

Lieske Part No.: 1440659
Mfg Part No: 8108245
Type: VX 8108.245
174,28 EUR
Rittal 8108245 plus VAT
≈ £145.87  |  ≈ $191.53
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
Rittal 8617502 VX baying connector, external, sheet metal: 1200 mm Rittal LogoRittal 8617502 VX baying connector, external, sheet metal: 1200 mm The Rittal VX 8617.502 is a baying connector for outdoor use, specifically designed for mounting on vertical enclosure profiles of enclosures of type VX and VX IT. It is made of galvanised steel ...

Lieske Part No.: 1440884
Mfg Part No: 8617502
Type: VX 8617.502
23,38 EUR
Rittal 8617502 plus VAT
≈ £19.57  |  ≈ $25.69
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 8617500 baying strip VX inside 6 pcs Rittal LogoRittal 8617500 baying strip VX inside 6 pcs The Rittal VX 8617.500 is an internal baying bracket, specifically designed for mounting enclosures of type VX and VX IT. It serves as an internal fastening element for secure and quick connection of ...

Lieske Part No.: 1440886
Mfg Part No: 8617500
Type: VX 8617.500
25,23 EUR
Rittal 8617500 plus VAT
≈ £21.12  |  ≈ $27.73
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 8617501 baying block VX internal 6 pcs Rittal LogoRittal 8617501 baying block VX internal 6 pcs The Rittal VX 8617.501 is an internal baying block, specifically designed for mounting enclosures of type VX and VX IT. It enables secure and flush baying of multiple enclosures, with side mounting ...

Lieske Part No.: 1440901
Mfg Part No: 8617501
Type: VX 8617.501
25,17 EUR 25,18 EUR
Rittal 8617501 plus VAT
≈ £21.07  |  ≈ $27.66
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 9681668 SV roof plate for VX, width: 600x800 mm, IP 55 Rittal LogoRittal 9681668 SV roof plate for VX, width: 600x800 mm, IP 55 The Rittal SV 9681668 is a roof plate for enclosures of the VX series, designed for an enclosure width of 600 mm and a depth of 800 mm. It serves as a replacement for the standard roof or as an ...

Lieske Part No.: 1903705
Mfg Part No: 9681668
Type: SV 9681668
67,85 EUR
Rittal 9681668 plus VAT
≈ £56.79  |  ≈ $74.57
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 9681868 SV roof plate for VX, width: 600x800 mm, IP 2X Rittal LogoRittal 9681868 SV roof plate for VX, width: 600x800 mm, IP 2X The Rittal SV 9681868 is a roof plate for enclosures of the VX series, specifically designed for enclosures with a width of 600 mm and a depth of 800 mm. It serves as a replacement for the standard ...

Lieske Part No.: 1903713
Mfg Part No: 9681868
Type: SV 9681868
72,57 EUR
Rittal 9681868 plus VAT
≈ £60.74  |  ≈ $79.75
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 8001210 VX base plate, width: 600 mm, depth: 75 mm Rittal LogoRittal 8001210 VX base plate, width: 600 mm, depth: 75 mm The Rittal VX base plate, type 8001210, is a system accessory for individual expansion of the base area in enclosures and housings. It serves as a closure and mounting element for the base opening in ...

Lieske Part No.: 1909181
Mfg Part No: 8001210
Type: VX 8001210
7,48 EUR
Rittal 8001210 plus VAT
≈ £6.26  |  ≈ $8.22
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 8001214 VX base plate, width: 600 mm, depth: 175 mm Rittal LogoRittal 8001214 VX base plate, width: 600 mm, depth: 175 mm The Rittal VX base plate, type 8001214, is a system accessory for the individual expansion of the base area in enclosures and housings. It is used for compartmentalizing and structuring the lower ...

Lieske Part No.: 1909184
Mfg Part No: 8001214
Type: VX 8001214
9,66 EUR
Rittal 8001214 plus VAT
≈ £8.09  |  ≈ $10.62
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 8001218 VX base plate, width: 600 mm, depth: 237.5 mm Rittal LogoRittal 8001218 VX base plate, width: 600 mm, depth: 237.5 mm VX base plate, width x depth: 600x237.5 mm

Lieske Part No.: 1909188
Mfg Part No: 8001218
Type: VX 8001218
11,16 EUR
Rittal 8001218 plus VAT
≈ £9.34  |  ≈ $12.26
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 8001222 VX base plate, width: 600 mm, depth: 275 mm Rittal LogoRittal 8001222 VX base plate, width: 600 mm, depth: 275 mm The Rittal VX base plate, type 8001222, is a system accessory for the individual expansion of the base area in enclosures and housings. It serves as a fixed cover for base openings and enables ...

Lieske Part No.: 1909190
Mfg Part No: 8001222
Type: VX 8001222
13,34 EUR
Rittal 8001222 plus VAT
≈ £11.17  |  ≈ $14.66
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 8001239 VX sliding plate, W x D: 600x115 mm Rittal LogoRittal 8001239 VX sliding plate, W x D: 600x115 mm The Rittal VX sliding panel, type 8001239, is a system accessory for enclosures of the VX series, specifically designed for use in the base area. It serves as a variable compensation element and ...

Lieske Part No.: 1909193
Mfg Part No: 8001239
Type: VX 8001239
8,86 EUR
Rittal 8001239 plus VAT
≈ £7.42  |  ≈ $9.74
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 5301350 floor mounting bracket for VX, VX IT Rittal LogoRittal 5301350 floor mounting bracket for VX, VX IT The Rittal TS 5301350 is a floor mounting angle made of steel sheet, galvanised, specifically designed for the enclosure models VX and VX IT. It is used for the secure anchoring of the enclosure to ...

Lieske Part No.: 1910591
Mfg Part No: 5301350
Type: TS 5301350
-10% 12,88 EUR 14,24 EUR
Rittal 5301350 plus VAT
≈ £10.78  |  ≈ $14.16
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
