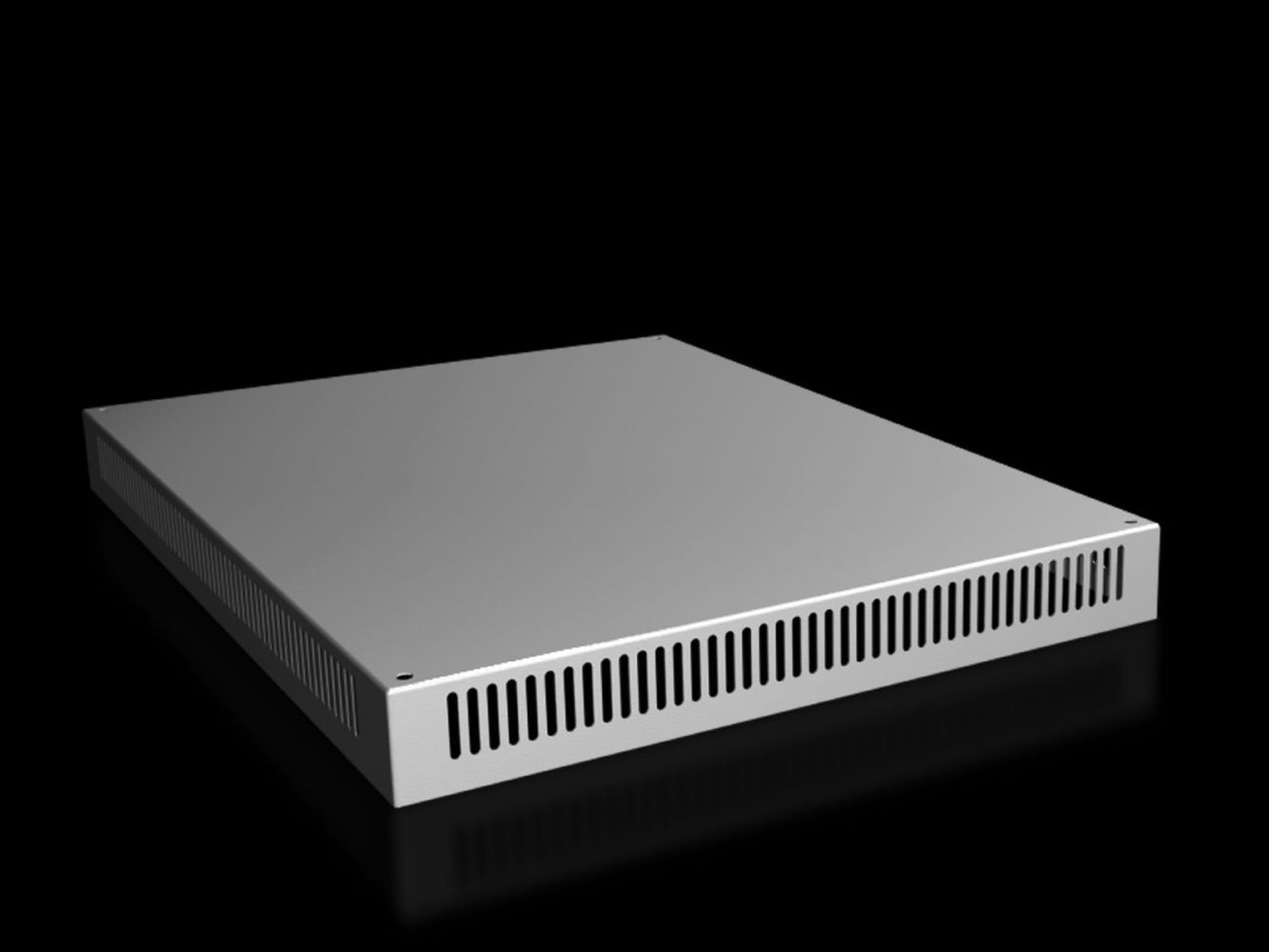

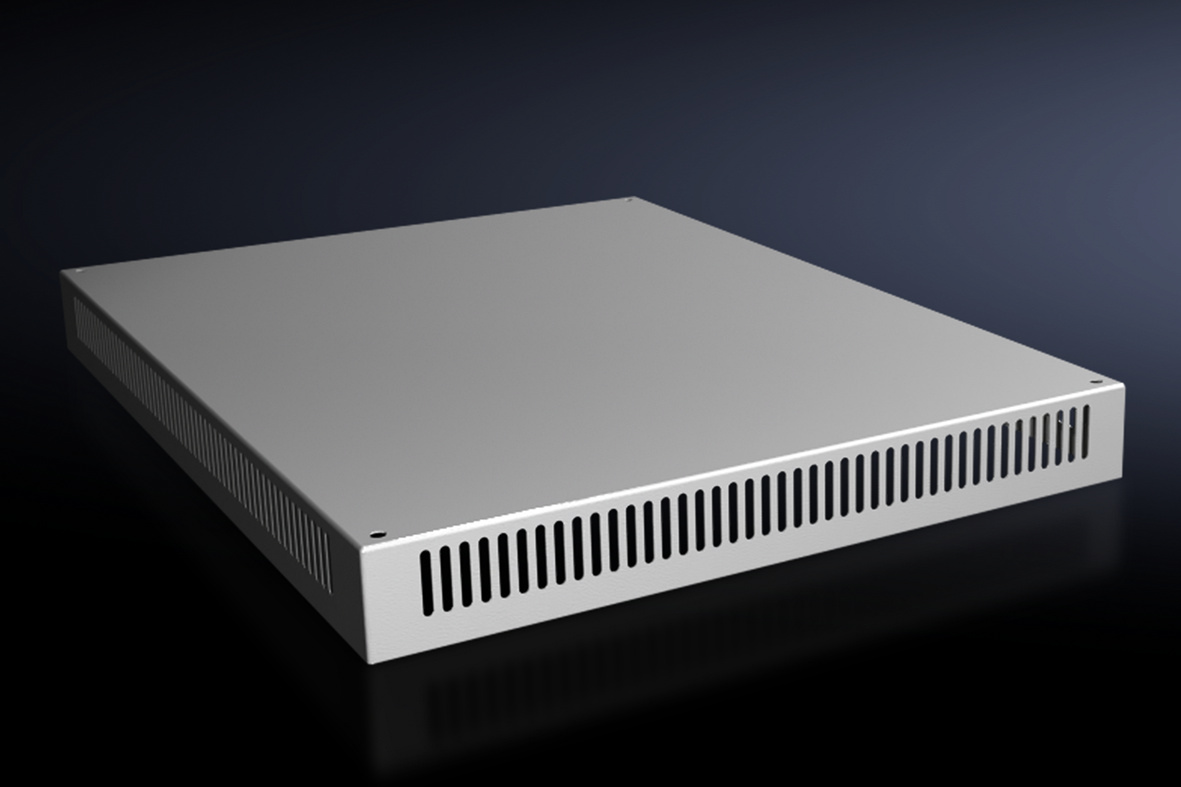

Rittal 9681868 SV roof plate for VX, width: 600x800 mm, IP 2X

Your rating:
Average rating
product review for Rittal 9681868 SV roof plate for VX, width: 600x800 mm, IP 2X
( 4.5 / 5 ) 2 ratings
Rittal 9681868
This image may differ from the desired article.
Rittal 9681868Rittal 9681868Rittal 9681868
72,57 EUR
( 86,36 EUR incl. VAT )
≈ £60.74  |  ≈ $79.75
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 9681868 SV roof plate for VX, width: 600x800 mm, IP 2X
Datasheet:file_download Download
Lieske Part No.:1903713
Mfg Part No: 9681868
UPC/EAN: 4028177926684
Weight:8.54 kg
Type:SV 9681868

Product information for Rittal 9681868:

The Rittal SV 9681868 is a roof plate for enclosures of the VX series, specifically designed for enclosures with a width of 600 mm and a depth of 800 mm. It serves as a replacement for the standard roof or as an addition for enclosures originally delivered without a roof plate. The product is made of steel sheet with a wall thickness of 1.5 mm and features a structured paint surface in the colour RAL 7035, ensuring a robust and uniform coating suitable for industrial environments. The construction height is 72 mm, allowing it to fit perfectly into the standard height construction of VX enclosures.

Applications
The roof plate is intended for use in industrial enclosures, particularly in systems requiring a mechanical protection class of IP 2X. This protection class ensures protection against contact with fingers or similar objects, but not against water or dust. It is therefore suitable for indoor applications where no high requirements for weather resistance exist. The integrated ventilation opening enables targeted air circulation within the enclosure, contributing to heat dissipation from electronic components and enhancing operational safety.

Functions and Equipment in Detail
The roof plate is supplied with fastening material, enabling installation on VX series enclosure bodies. The ventilation opening is strategically positioned to support efficient airflow without compromising the mechanical stability of the roof plate.

Technology Explained Simply
The steel sheet material with a thickness of 1.5 mm provides sufficient strength to withstand mechanical loads during operation without being excessively heavy. The structured paint finish in RAL 7035 ensures a uniform surface texture that is resistant to mechanical stress and corrosion. The protection class IP 2X means the roof plate protects against contact with fingers or similar objects, but not against water or dust. The ventilation opening is an integrated design feature that supports natural convection within the enclosure, improving cooling of electronic components.

Compatibility and Accessories
The roof plate is specifically designed for enclosures of the VX series with dimensions width 600 mm and depth 800 mm. It is not suitable for other enclosure types or dimensions, as the mounting holes and shape are tailored to the VX construction. It can be used as a replacement for the standard roof of other enclosures, provided the dimensions match.

Installation and Mounting
Installation is carried out by fastening to the designated mounting points on the enclosure body using the included fastening material. The ventilation opening requires no additional adjustment, as it is already integrated into the design.

Operational Advantages
The roof plate provides a mechanically stable cover for the enclosure, increasing the safety of installed components. The ventilation opening supports cooling, which can extend the service life of electronic components. The use of steel sheet and structured paint ensures long durability and resistance to mechanical stress. Compatibility with the VX series enables easy integration into existing systems.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Mounting height72 mm
Suitable forWidth: = 600 mm, Depth: = 800 mm


Product data sheet
Datasheet for Rittal 9681868, EAN: 4028177926684

Questions & answers

What is the delivery time of Rittal 9681868 SV roof plate for VX, width: 600x800 mm, IP 2X?

The article Rittal 9681868 SV roof plate for VX, width: 600x800 mm, IP 2X is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9681868 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9681868 SV roof plate for VX, width: 600x800 mm, IP 2X always at the best possible price. We can give you a discount of 2% on Rittal 9681868 SV roof plate for VX, width: 600x800 mm, IP 2X if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
