Rittal 9681682 roof plate IP 55, closed for VX, VX IT

Your rating:
Average rating
product review for Rittal 9681682 roof plate IP 55, closed for VX, VX IT
( 5 / 5 ) 3 ratings

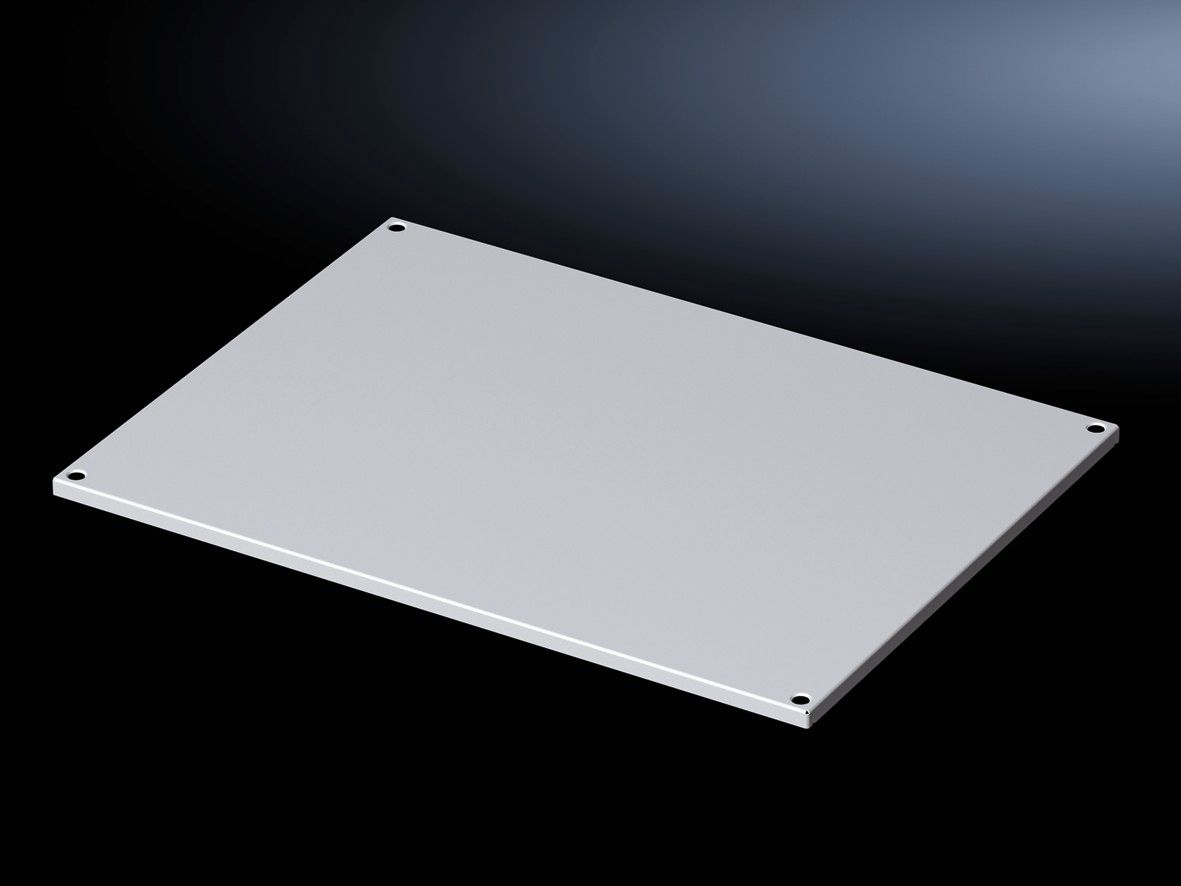

Rittal 9681682
This image may differ from the desired article.
Rittal 9681682Rittal 9681682
-12% 101,66 EUR 115,75 EUR
( 120,98 EUR incl. VAT )
≈ £85.09  |  ≈ $111.72
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 9681682 roof plate IP 55, closed for VX, VX IT
Datasheet:file_download Download
Lieske Part No.:1910682
Mfg Part No: 9681682
UPC/EAN: 4028177954045
Weight:13.36 kg
Type:SV 9681682

Product information for Rittal 9681682:

The Rittal SV 9681682 is a roof plate for enclosures of the VX and VX-IT series, designed for an enclosure width of 800 mm and a depth of 1,200 mm. It serves as a replacement for missing or exchanged standard roofs and provides a sealed closure for the upper section of the enclosure. The product is specifically designed for use in industrial environments where sufficient protection against dust and splashing water is required. The protection rating IP 55 ensures a high level of protection, suitable for many applications in outdoor areas or humid indoor spaces.

Applications

The roof plate is primarily intended for enclosures without pre-installed roof plates and can also be used as a replacement for existing standard roofs of other enclosures. It is particularly suitable for installations where a mechanical and weather-resistant cover for the upper enclosure section is required to protect the internal components from environmental influences. Use in combination with enclosures from the VX and VX-IT series is explicitly intended.

Features and Equipment in Detail

The roof plate is made of sheet steel with a thickness of 1.5 mm, ensuring sufficient mechanical stability and durability. The surface is coated with a textured paint, offering high resistance to mechanical stress and environmental influences. The color corresponds to the standard RAL 7035, a gray shade commonly used in industrial facilities.

Technology Explained Simply

The protection rating IP 55 means that the roof plate is dust-tight and protected against splashing water from any direction. This makes it suitable for use in outdoor areas or indoor spaces with increased humidity, such as production halls or machine installations. The material, 1.5 mm sheet steel, provides sufficient strength to withstand mechanical loads such as wind pressure or minor mechanical stress. The textured paint coating increases abrasion resistance and prevents rapid surface soiling.

Compatibility and Accessories

The roof plate is specifically designed for enclosures with a width of 800 mm and a depth of 1,200 mm. It is intended for the VX and VX-IT series. Suitable accessories include transport eyes for VX, TS, SE (4 pieces) and pressure plugs for roof plates IP 55 for pressure relief. These components can be ordered additionally if required to facilitate mounting or transportation.

Mounting and Installation

Installation is carried out using the mounting materials included in the delivery. It is important to ensure that the roof plate fits exactly to the specified dimensions of the enclosure to guarantee a secure and tight connection. The fastening is done at the designated mounting points of the enclosure.

Advantages in Operation

The roof plate provides reliable protection of the enclosure's internal components from environmental influences. The IP 55 protection rating ensures high operational safety, especially in humid or dusty environments. The use of 1.5 mm sheet steel ensures long service life and mechanical stability. The textured paint coating reduces soiling and facilitates cleaning. Compatibility with the VX and VX-IT series enables easy integration into existing installations.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forWidth: = 800 mm, Depth: = 1,200 mm


Product data sheet
Datasheet for Rittal 9681682, EAN: 4028177954045

Questions & answers

What is the delivery time of Rittal 9681682 roof plate IP 55, closed for VX, VX IT?

The article Rittal 9681682 roof plate IP 55, closed for VX, VX IT is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9681682 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9681682 roof plate IP 55, closed for VX, VX IT always at the best possible price. We can give you a discount of 2% on Rittal 9681682 roof plate IP 55, closed for VX, VX IT if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
