Rittal 9681648 SV roof plate for VX, width: 400x800 mm, IP 55

Your rating:
Average rating
product review for Rittal 9681648 SV roof plate for VX, width: 400x800 mm, IP 55
( 4 / 5 ) 2 ratings
Rittal 9681648
This image may differ from the desired article.
Rittal 9681648Rittal 9681648Rittal 9681648
49,57 EUR
( 58,99 EUR incl. VAT )
≈ £41.49  |  ≈ $54.48
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9681648 SV roof plate for VX, width: 400x800 mm, IP 55
Datasheet:file_download Download
Lieske Part No.:1903703
Mfg Part No: 9681648
UPC/EAN: 4028177926776
Weight:4.9 kg
Type:SV 9681648

Product information for Rittal 9681648:

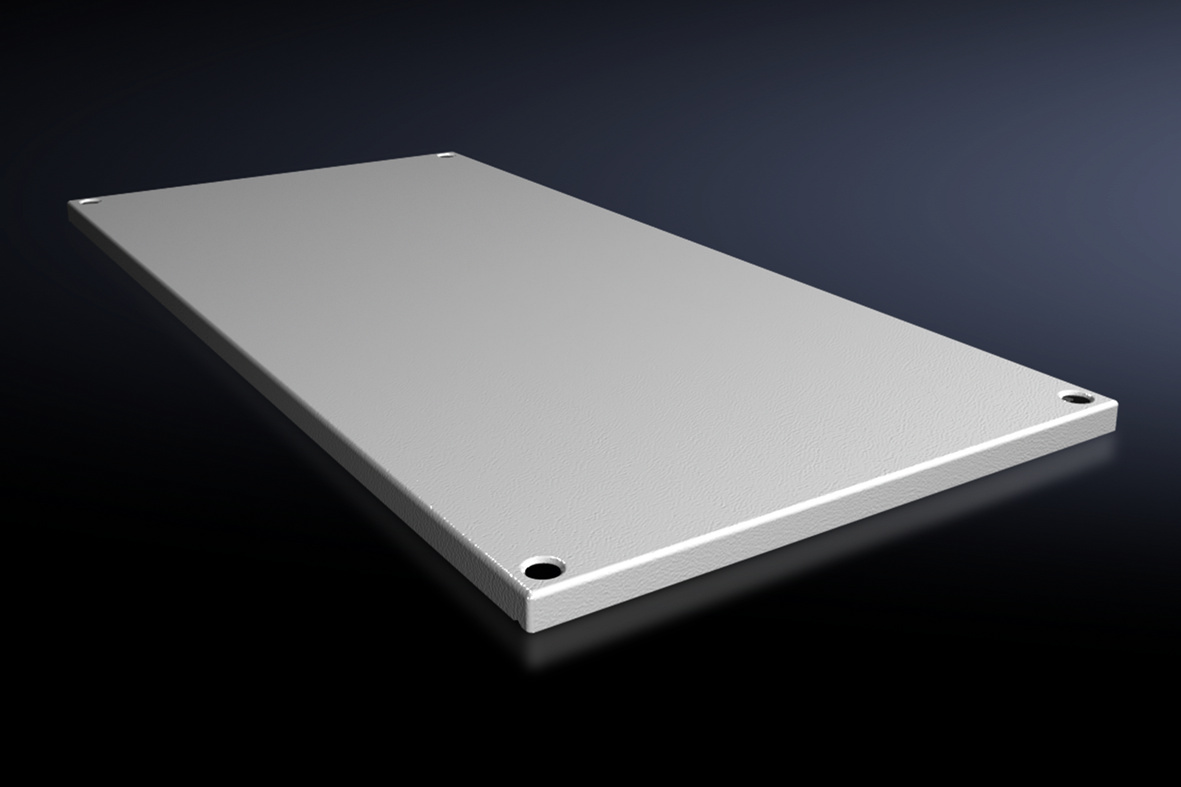

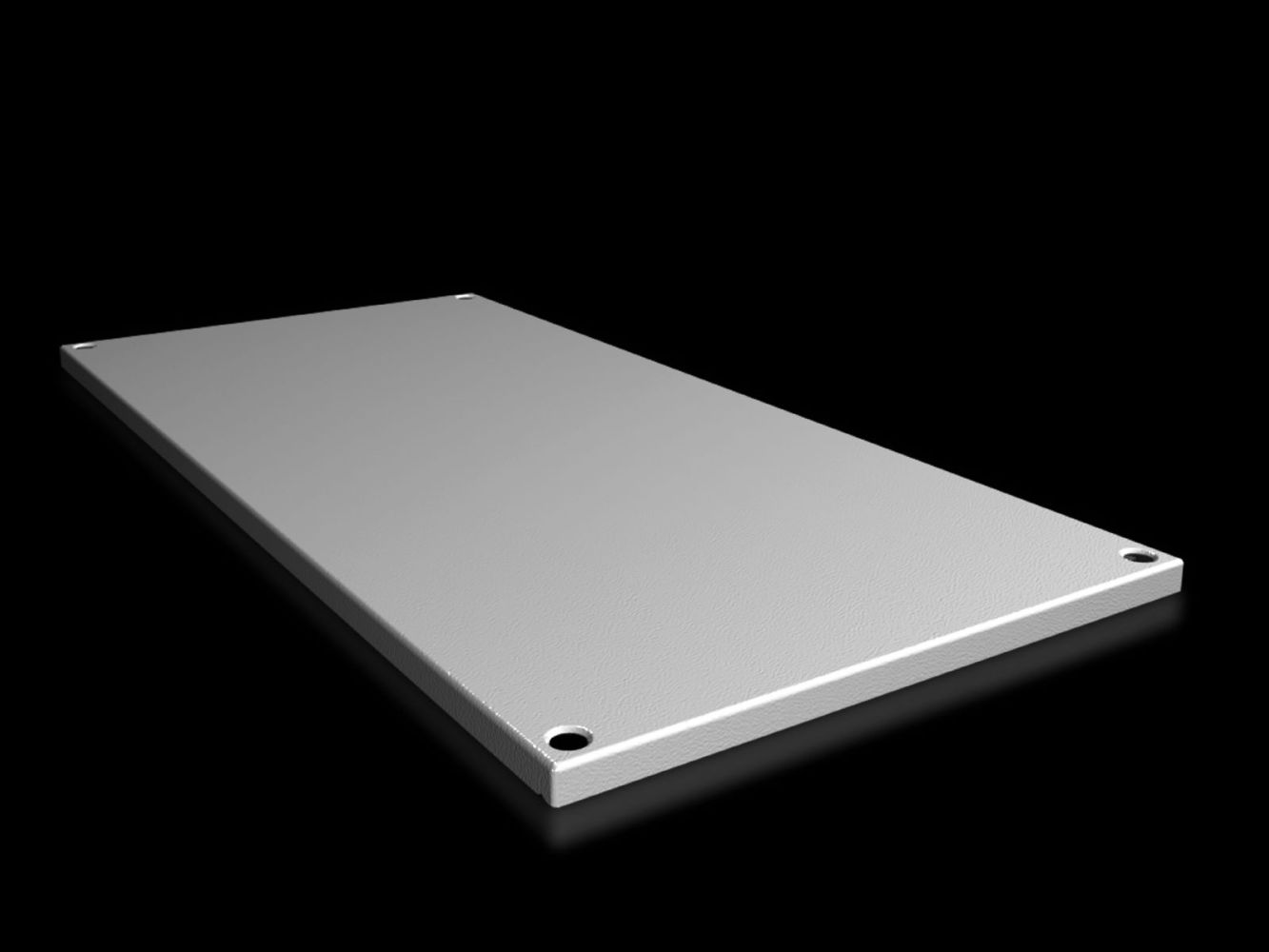

The Rittal SV 9681648 is a roof plate for enclosures of the VX series, designed for a width of 400 mm and a depth of 800 mm. It serves as a replacement roof for enclosures originally delivered without a roof plate, or as a substitute for the standard roof on other enclosure models. The product is specifically designed for use in industrial environments where a protection rating IP 55 is required, providing protection against dust and splashing water. The surface is coated with a structured paint, ensuring a robust and uniform coating, and the color corresponds to the standard RAL 7035, a gray shade commonly used in industrial applications.

Applications

The roof plate is suitable for use in industrial facilities, such as production halls, machine controls, or distribution enclosures. The protection rating IP 55 makes it suitable for areas where splashing water or dust exposure may occur, for example in manufacturing, packaging industries, or outdoor areas under protective roofs. It is not intended for fully waterproof or explosion-protected environments, but for protection against moderate environmental stresses.

Functions and Equipment in Detail

The roof plate is made of sheet steel with a thickness of 1.5 mm, ensuring sufficient mechanical stability and durability. The use of sheet steel provides high strength and resistance to mechanical stress. The surface is coated with structured paint, offering a uniform, scratch- and abrasion-resistant finish. The color RAL 7035 is a neutral gray tone that integrates well in industrial environments. The delivery includes mounting hardware required for installation on the enclosure. Installation is carried out at the designated mounting points of the enclosure, with the roof plate precisely matched to the specified dimensions of 400 mm width and 800 mm depth.

Technology Explained Simply

The protection rating IP 55 means that the roof plate is dust-tight (dust cannot enter the interior) and protected against splashing water from all directions. This makes it suitable for use in environments where occasional water splashes or dust exposure may occur. The material, sheet steel 1.5 mm thick, provides sufficient strength to protect the roof plate against mechanical impacts such as pressure or shock. The structured paint coating prevents corrosion and ensures a long service life, even under industrial conditions.

Compatibility and Accessories

The roof plate is specifically designed for enclosures of the VX series with dimensions of 400 mm width and 800 mm depth. It is compatible with enclosures originally delivered without a roof plate, as well as for replacing existing standard roofs. Suitable accessories include transport eyes for VX, TS, SE (4 pieces), which are helpful for freight shipping, and pressure plugs for roof plates IP 55, which can be used for pressure relief during installation.

Installation and Mounting

Installation is carried out using the mounting hardware included in the delivery, at the designated mounting points of the enclosure. It is important that the enclosure dimensions exactly match the specified values of 400 mm width and 800 mm depth to ensure a secure and tight connection. Mounting is done using screws or bolts included in the delivery.

Operational Advantages

The roof plate provides reliable protection against dust and splashing water, extending the service life of components installed in the enclosure. The use of 1.5 mm sheet steel ensures high mechanical stability, and the structured paint coating prevents corrosion. Compatibility with VX enclosures and the ability to replace existing standard roofs increases flexibility in planning and maintaining enclosures.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forWidth: = 400 mm, Depth: = 800 mm


Product data sheet
Datasheet for Rittal 9681648, EAN: 4028177926776

Questions & answers

What is the delivery time of Rittal 9681648 SV roof plate for VX, width: 400x800 mm, IP 55?

The article Rittal 9681648 SV roof plate for VX, width: 400x800 mm, IP 55 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9681648 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9681648 SV roof plate for VX, width: 400x800 mm, IP 55 always at the best possible price. We can give you a discount of 2% on Rittal 9681648 SV roof plate for VX, width: 400x800 mm, IP 55 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
