Rittal 9681680 roof plate IP 55, closed for VX, VX IT
|
100,17 EUR |
|
|
( 119,20 EUR incl. VAT ) ≈ £83.84 | ≈ $110.09 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910681 |
| Mfg Part No: | 9681680 |
| UPC/EAN: | 4028177954076 |
| Weight: | 11.28 kg |
| Type: | SV 9681680 |
Product information for Rittal 9681680:

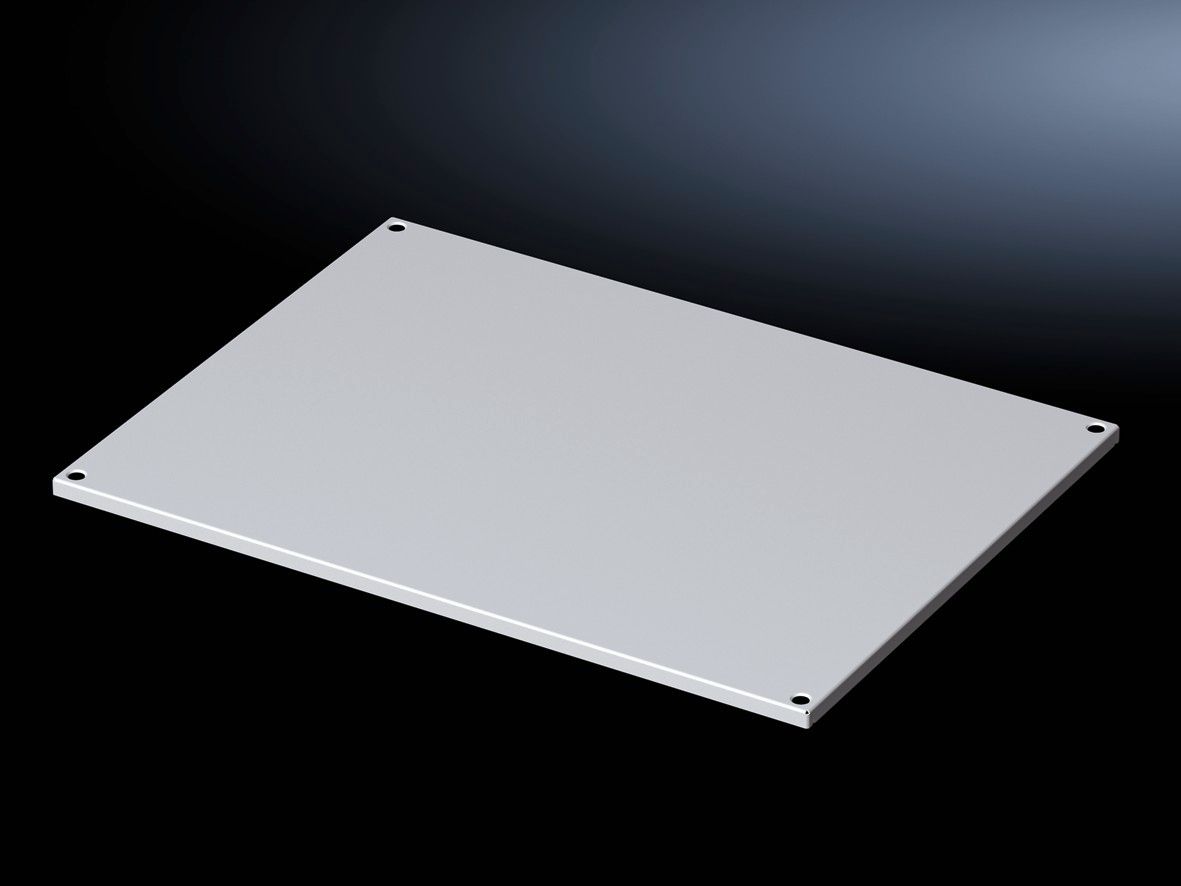

Roof plate for enclosures
The roof plate is made of sheet steel with a thickness of 1.5 mm, ensuring sufficient mechanical stability and durability. The surface is coated with a textured paint, forming a robust and abrasion-resistant layer. The color corresponds to RAL 7035, a gray tone commonly used in industry to enable a uniform visual design of enclosures. The use of textured paint also increases resistance to mechanical damage and contamination.
Applications
The roof plate is primarily intended for use in industrial plants, especially in environments where enclosures need to be protected against precipitation, splashing water, and dust. It is suitable for outdoor areas that are not constantly exposed to direct sunlight or extreme weather conditions. The IP 55 rating ensures protection against dust and splashing water from any direction, which is sufficient for many production and assembly environments. It is not intended for use in humid rooms with steam or splashing water from washing processes, where a higher protection rating would be required.
Features and equipment in detail
The roof plate is delivered including fastening materials, enabling installation without additional purchases. The fastening is done directly to the enclosure, with the designated mounting points and the precise shape of the roof plate ensuring a secure and tight connection. The fit is exactly matched to the dimensions of 800 mm width and 1000 mm depth to ensure perfect adaptation to the enclosure geometry. The closed design ensures uniform coverage and prevents ingress of foreign objects.
Technology explained simply
The IP 55 protection rating means the roof plate is dust-tight (dust cannot enter) and protected against splashing water from any direction. This is particularly important to protect the electrical components inside the enclosure from contamination and moisture. The sheet steel material with a thickness of 1.5 mm provides sufficient strength to withstand mechanical loads such as wind pressure or light impacts. The textured paint coating increases resistance to abrasion and contamination, improving maintenance friendliness.
Compatibility and accessories
The roof plate is specifically developed for enclosures of the VX and VX-IT series with a width of 800 mm and a depth of 1000 mm. It is not suitable for other enclosure sizes or series. Suitable accessories include transport eyes for VX, TS, SE (4 pieces) and pressure plugs for roof plates IP 55, which serve for pressure relief.
Installation and mounting
Installation is carried out using the fastening materials included in the delivery. The fastening is done at the designated mounting points of the enclosure, ensuring a secure and tight connection.
Operational advantages
The roof plate provides reliable coverage, protecting the electrical components inside the enclosure from external influences. The IP 55 rating ensures sufficient protection for many industrial applications. The use of sheet steel and textured paint ensures a long service life and low maintenance requirements. The precise fit and included fastening materials enable quick and secure installation, reducing installation time.
| General | |
| Material | Sheet steel, 1.5 mm |
| Surface protection | Structured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | Including mounting hardware |
| Suitable for | Width: = 800 mm, Depth: = 1.000 mm |
Questions & answers
What is the delivery time of Rittal 9681680 roof plate IP 55, closed for VX, VX IT?
The article Rittal 9681680 roof plate IP 55, closed for VX, VX IT is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9681680 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9681680 roof plate IP 55, closed for VX, VX IT always at the best possible price. We can give you a discount of 2% on Rittal 9681680 roof plate IP 55, closed for VX, VX IT if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
