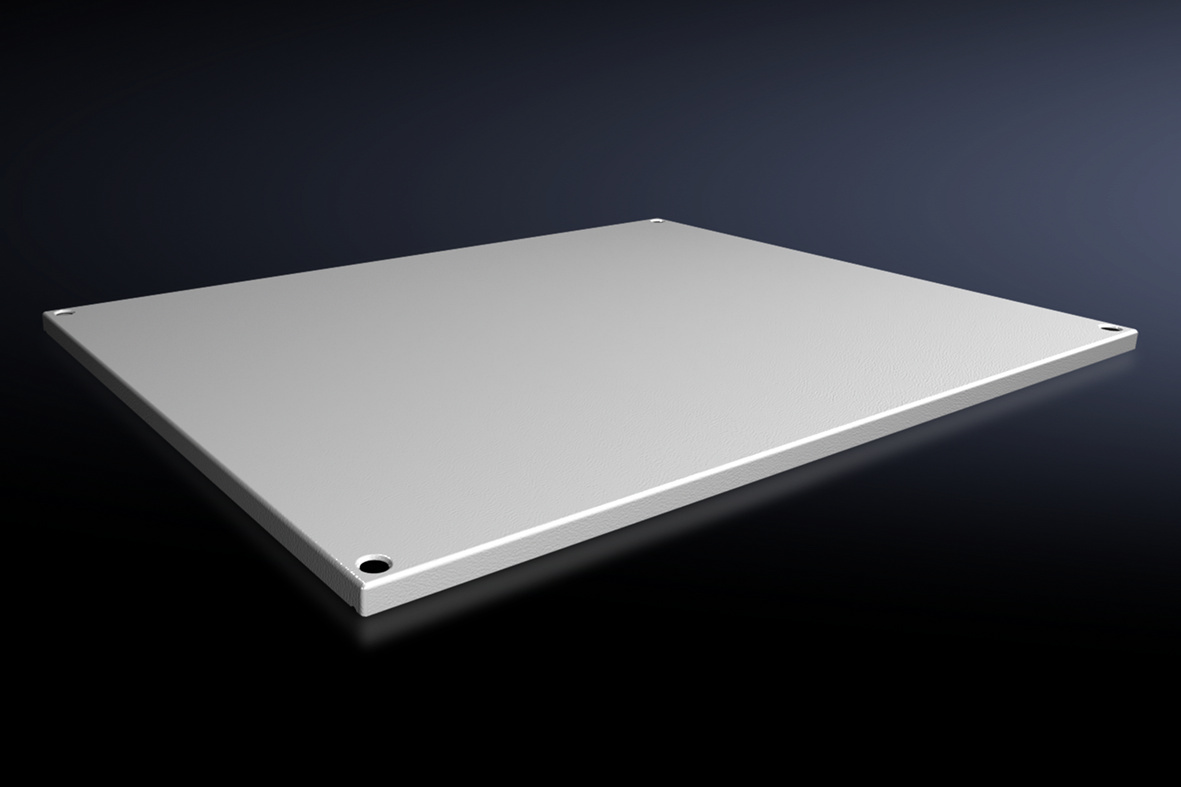

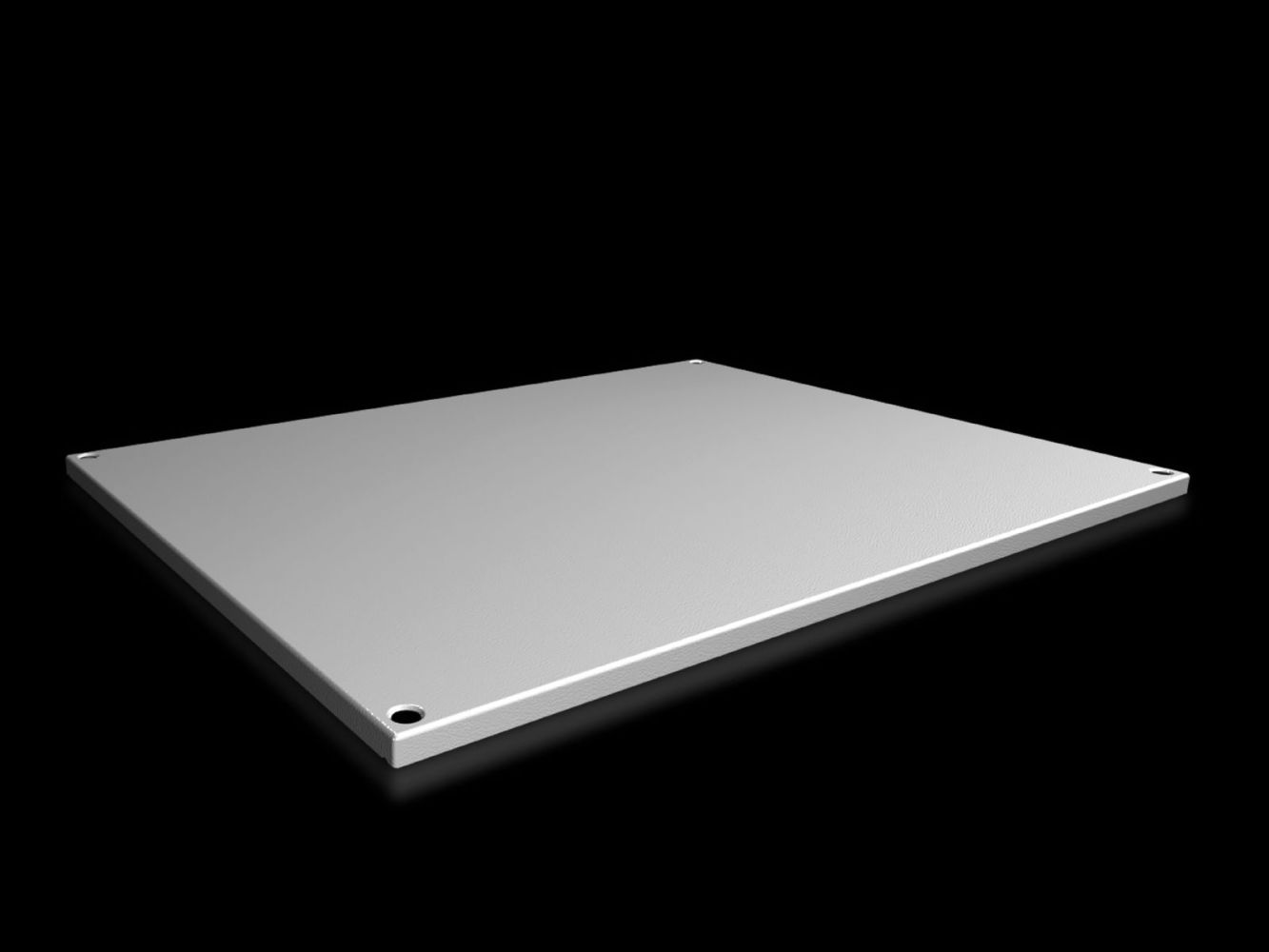

Rittal 9681686 SV roof plate for VX, width: 800 mm, depth: 600 mm, IP 55

Your rating:
Average rating
product review for Rittal 9681686 SV roof plate for VX, width: 800 mm, depth: 600 mm, IP 55
( 4.6 / 5 ) 7 ratings
Rittal 9681686
This image may differ from the desired article.
Rittal 9681686Rittal 9681686Rittal 9681686
66,59 EUR
( 79,24 EUR incl. VAT )
≈ £55.74  |  ≈ $73.18
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9681686 SV roof plate for VX, width: 800 mm, depth: 600 mm, IP 55
Datasheet:file_download Download
Lieske Part No.:1597386
Mfg Part No: 9681686
UPC/EAN: 4028177926806
Weight:7.5 kg
Type:SV 9681686

Product information for Rittal 9681686:

The Rittal SV 9681686 is a roof plate for enclosures of the VX series, designed for an enclosure width of 800 mm and a depth of 600 mm. It serves as a replacement for the standard roof or as an addition for enclosures originally delivered without a roof plate. The product is specifically designed for use in industrial environments where a protection rating IP 55 is required to protect against dust and splashing water. This protection rating makes the roof plate suitable for use outdoors or in rooms with increased humidity and mechanical stress.

Applications
The roof plate is used in industrial electrical engineering and mechanical engineering, where enclosures must be protected from external influences. It is particularly suitable for installations located in production halls, warehouses, or outdoors. The IP 55 protection rating ensures that the device is protected against dust and splashing water from any direction, which increases the reliability and service life of the components installed inside. The roof plate is intended for enclosures of the VX series with an exact width of 800 mm and a depth of 600 mm.

Functions and Equipment in Detail
The roof plate is made of sheet steel with a thickness of 1.5 mm, ensuring high mechanical stability and durability. The surface is coated with a structured paint, forming a robust, scratch- and abrasion-resistant layer. The color corresponds to the standard RAL 7035, a gray tone widely used in industry and well-integrated into technical environments. The delivery includes the roof plate and fastening material required for mounting on the enclosure. Installation is done directly onto the enclosure, with the designated fastening points and included material ensuring secure anchoring.

Technology Explained Simply
The IP 55 protection rating means that the roof plate is dust-tight and protected against splashing water from any direction. This is particularly important to protect the electrical components inside the enclosure from contamination and moisture. The 1.5 mm sheet steel material provides sufficient strength to withstand mechanical loads such as wind pressure or contact. The structured paint ensures a uniform surface that is resistant to wear and environmental influences. The precise fit for enclosures with dimensions of 800 mm width and 600 mm depth guarantees secure and clean installation without additional modifications.

Compatibility and Accessories
The roof plate is specifically designed for enclosures of the VX series with the specified dimensions. It is not suitable for other enclosure types or dimensions. As accessories, transport eyes for VX, TS, SE are available, which are helpful in shipping logistics, especially for freight shipping. Additionally, pressure plugs for roof plates IP 55 are available, which serve to relieve pressure and help reduce pressure forces inside the enclosure during installation or operation.

Installation and Mounting
Installation is carried out directly onto the enclosure. The included fastening material enables secure and easy installation. It is important that the enclosure has the exact dimensions of 800 mm width and 600 mm depth to ensure a precise fit. Fastening is done at the designated points, with the structure of the roof plate and the mounting points on the enclosure being specifically matched.

Operational Advantages
The roof plate provides reliable protection for the enclosure by shielding it from external influences such as dust, splashing water, and mechanical stress. The IP 55 protection rating increases operational safety and reduces maintenance frequency, as internal components are protected from contamination. The robust construction from 1.5 mm sheet steel ensures a long service life, even under industrial conditions. The uniform color in RAL 7035 supports visual harmonization in technical installations and facilitates identification of the enclosure type.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forWidth: = 800 mm, Depth: = 600 mm
