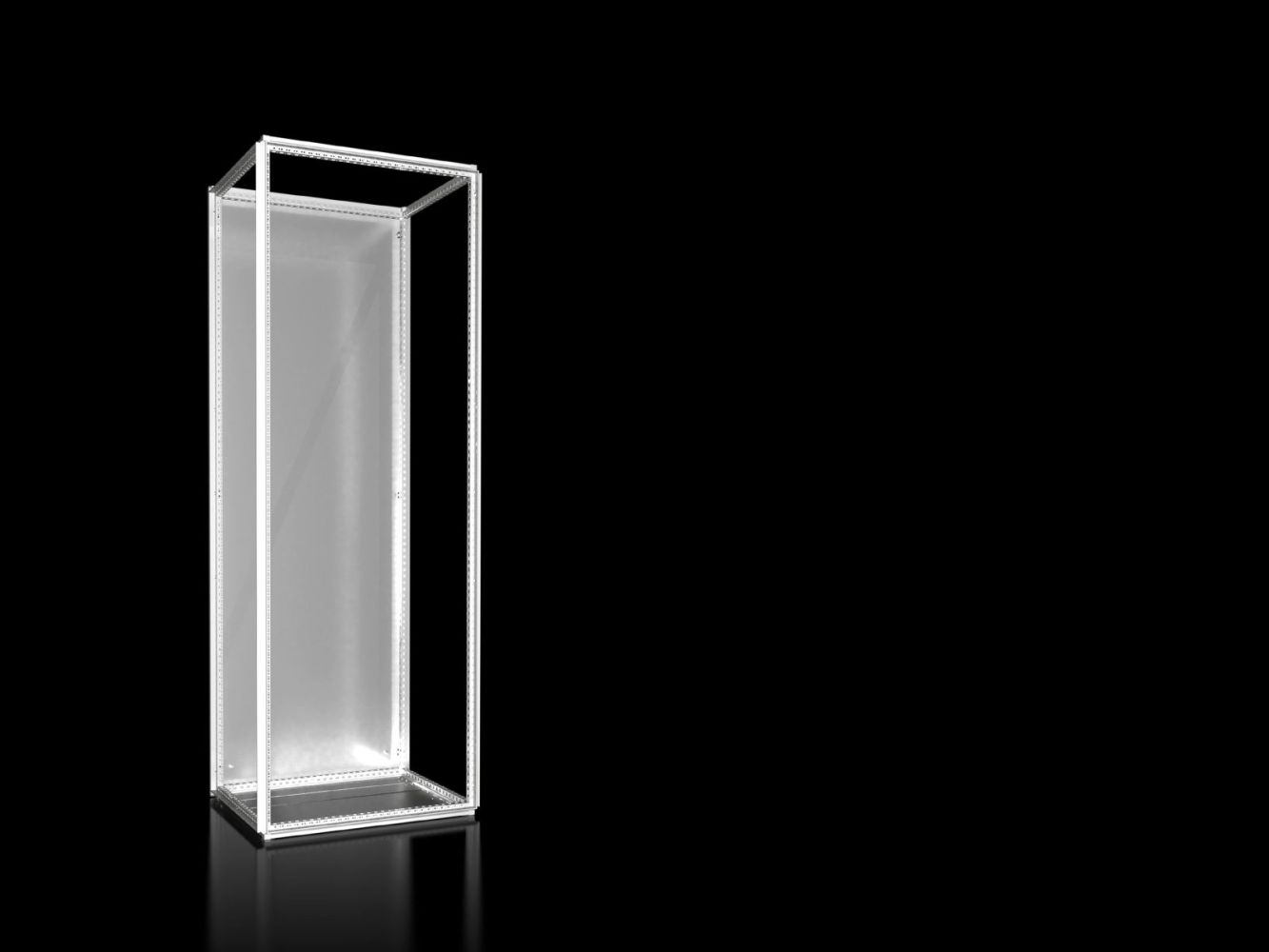

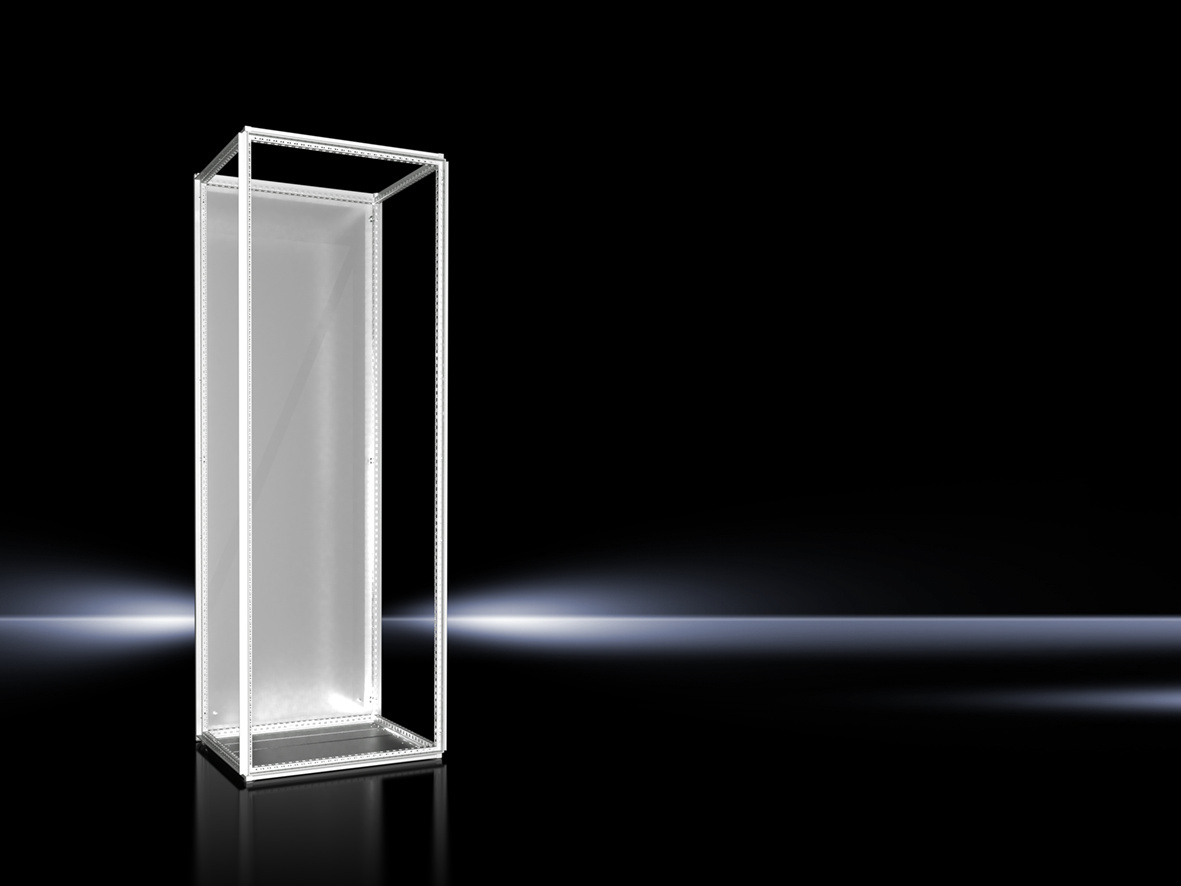

Rittal 9680826 VX modular enclosure, W x H x D: 800x2200x600 mm
|
411,70 EUR |
|
|
( 489,92 EUR incl. VAT ) ≈ £344.59 | ≈ $452.46 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441042 |
| Mfg Part No: | 9680826 |
| UPC/EAN: | 4028177929760 |
| Weight: | 58.2 kg |
| Type: | VX 9680.826 |
Product information for Rittal 9680826:
Applications
The VX 9680.826 is suitable for use in industrial electrical installations where a modular, flexible, and robust enclosure solution is required. It is commonly used in production plants, automation systems, or for the installation of control and distribution technology. The modular design allows for individual adaptation to specific requirements, such as integration of partial doors, front trim panels, or baying connectors. The IP 54 protection rating makes it suitable for environments with dust exposure or occasional splash water, for example in workshops or machine installations.
Functions and Equipment in Detail
The enclosure consists of the enclosure frame, rear panel, and base plates, all included in the delivery scope. The construction from 1.5 mm steel sheet ensures high mechanical stability. The surface treatment with dip priming and powder coating provides good corrosion protection. The galvanized base plates offer additional protection against moisture and corrosion in the lower area. The color RAL 7035 is a standardized gray used in many industrial environments. The IP 54 protection rating depends on the cladding, meaning the exact protection class is determined by the doors, front trim panels, or other components used.
Technology Explained Simply
The IP 54 protection rating means the enclosure is protected against dust and splashing water. This is particularly important in environments where devices are not fully protected from external influences but still require high reliability. The testing basis IEC 61 439-1/-2 refers to safety requirements for low-voltage switchgear and controlgear, while IEC 61 641 defines requirements for enclosures in industrial applications. The use of 1.5 mm thick steel sheet ensures sufficient strength to withstand mechanical loads and vibrations during operation. The powder coating with textured lacquer improves surface quality and resistance to mechanical damage.
Compatibility and Accessories
The VX 9680.826 is part of the VX25 baying system and can be extended with various accessories. These include, for example, SV partial doors in various heights (e.g., 150 mm, 200 mm, 1600 mm, 1800 mm) as well as front trim panels for the lower half of the enclosure in IP 54 or IP 2X. Plinth corner pieces with trim panels, side or front/rear plinth trim panels, as well as baying connectors and baying brackets enable connection to additional enclosures. Additionally, roof plates with IP 54 are available, providing an additional protective layer against weather influences. These components allow for individual design and adaptation to specific requirements of the installation.
Mounting and Installation
Mounting is done by screwing together the individual components. The enclosure frame is connected to the rear panel and base plates. The use of levelling feet (e.g., M12 with adjustment height 18–43 mm) allows for level positioning on uneven surfaces. The modular design simplifies installation, as individual modules can be mounted independently and then connected together.
Advantages in Operation
The enclosure offers high mechanical stability and good corrosion protection due to the surface treatment. The modular design allows flexible adaptation to different requirements, simplifying maintenance and expansion of the installation. The IP 54 protection rating ensures reliable operation in environments with increased contamination risk. The use of standardized components from the VX system simplifies planning and integration into existing installations. The PCF values (Cradle-to-Gate) amount to 146.3 kg CO2 eq per packaging unit, where class B indicates that the value is approximately calculated based on product weight and is self-declared. This value serves as a reference for the environmental balance of the product, without claiming to be a complete life cycle analysis.
| General | |
| Material | Sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, rear panel: dip-primed, externally powder-coated, textured lacquer, base plates: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Cabinet frame, rear panel, base plates |
| Degree of protection IP according to EN 60 529 | Up to IP 54 (depending on cladding) |
| Test basis | IEC 61 439-1/-2, IEC 61 641 |
| Width | 800 mm |
| Height | 2.200 mm |
| Depth | 600 mm |
| PCF/VE (Cradle-to-Gate) | 146.3 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 9680826 VX modular enclosure, W x H x D: 800x2200x600 mm?
The article Rittal 9680826 VX modular enclosure, W x H x D: 800x2200x600 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9680826 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9680826 VX modular enclosure, W x H x D: 800x2200x600 mm always at the best possible price. We can give you a discount of 2% on Rittal 9680826 VX modular enclosure, W x H x D: 800x2200x600 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
