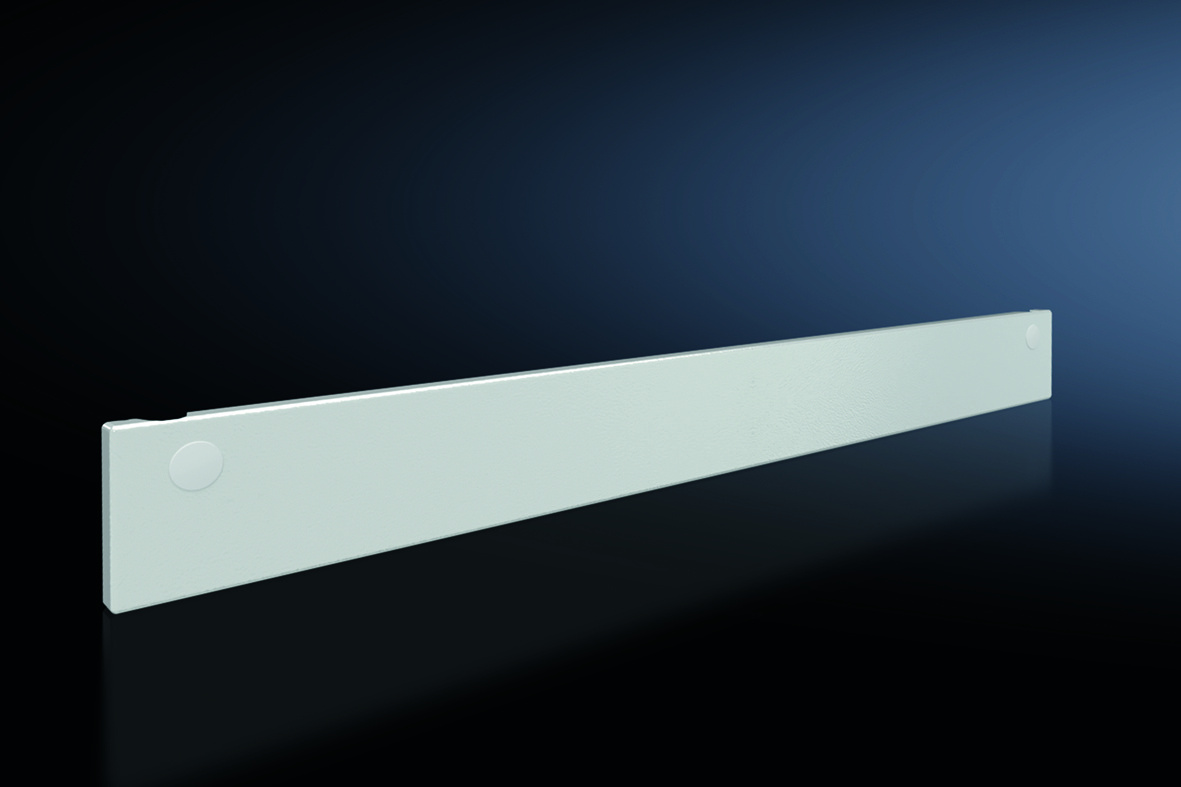

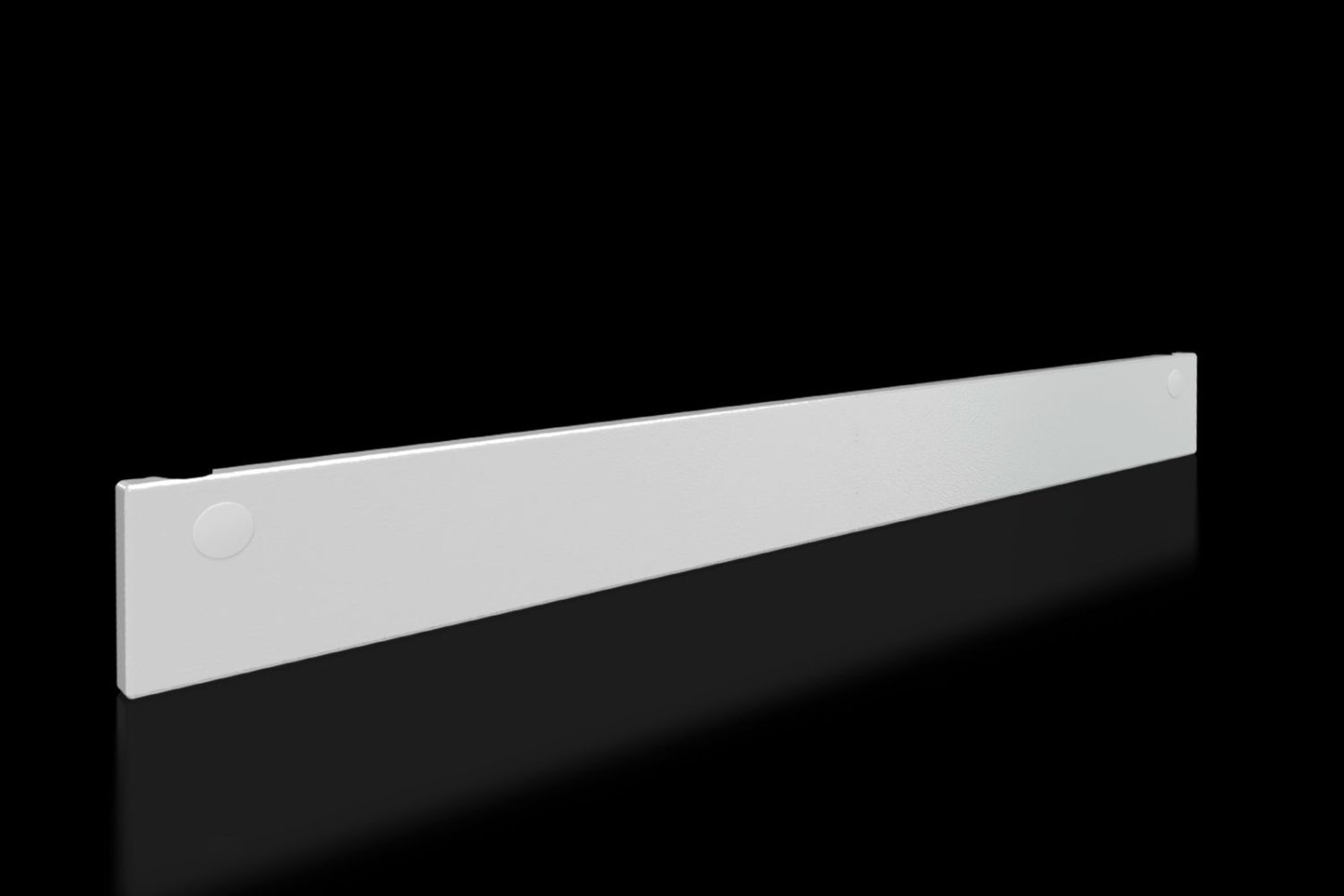

Rittal 9682338 SV front trim panel for VX, bottom, IP 54, W x H: 800x100 mm

Your rating:
Average rating
product review for Rittal 9682338 SV front trim panel for VX, bottom, IP 54, W x H: 800x100 mm
( 4.8 / 5 ) 4 ratings
Rittal 9682338
This image may differ from the desired article.
Rittal 9682338Rittal 9682338Rittal 9682338
52,10 EUR
( 62,00 EUR incl. VAT )
≈ £43.61  |  ≈ $57.26
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9682338 SV front trim panel for VX, bottom, IP 54, W x H: 800x100 mm
Datasheet:file_download Download
Lieske Part No.:1597394
Mfg Part No: 9682338
UPC/EAN: 4028177929906
Weight:2.56 kg
Type:SV 9682338

Product information for Rittal 9682338:

The Rittal SV 9682338 is a front trim panel for enclosures of the VX system, specifically designed as a lower closure when using partial doors. The product enables modular design of the front side of enclosures and provides a clean, uniform appearance. The front trim panel is made of sheet steel with a thickness of 1.5 mm and features a structured paint surface in the colour RAL 7035, ensuring a robust and even coating. The dimensions are a height of 100 mm and a width of 800 mm, making it specifically designed for enclosures with a width of 800 mm. The front trim panel is equipped with an IP 54 protection rating, meaning it is dust-tight and protected against splashing water, making it suitable for use in industrial environments with increased contamination or moisture exposure.

Applications
The front trim panel is primarily used in industrial electrical engineering and automation technology, where modular and aesthetically pleasing front design of enclosures is required. It is particularly suitable for installations where partial doors are used to allow access to specific areas while keeping the rest of the front closed. Typical applications include production plants, machine building, or process automation, where clear structuring of the front side improves clarity and maintenance.

Functions and Equipment in Detail
The front trim panel can be removed from the outside by loosening the screws, enabling easy maintenance and replaceability. The delivery includes the front trim panel itself, a partition strip, and the required mounting material. The partition strip ensures structural stability and provides a clean visual separation between individual modules. Mounting is done using screws included in the delivery, allowing direct installation on the enclosure front.

Technology Explained Simply
The sheet steel material with a thickness of 1.5 mm provides sufficient mechanical stability to protect the front trim panel against mechanical stress. The structured paint surface in RAL 7035 ensures an even, scratch- and abrasion-resistant coating that remains durable even after prolonged use in industrial applications. The IP 54 protection rating means the front trim panel is dust-tight and protected against splashing water, making it suitable for use in environments with increased humidity or contamination risk. The dimensions of 800 mm width and 100 mm height are precisely matched to the standard width of VX enclosures to ensure a perfect fit.

Compatibility and Accessories
The front trim panel is specifically designed for enclosures of the VX system with a width of 800 mm. It is intended as a lower closure when using partial doors and can therefore be used in combination with other front elements of the VX system to achieve a modular front design. Compatibility with other components of the VX system is ensured by standardized dimensions and mounting elements.

Mounting and Installation
Mounting is done by securing the front trim panel to the enclosure front using the screws included in the delivery. The front trim panel can be removed from the outside, enabling easy maintenance and replaceability. Mounting is done at the designated mounting points, with the partition strip providing additional stability.

Advantages in Operation
The front trim panel provides a clean, modular design of the enclosure front, improving clarity and ease of maintenance. The ability to remove the front trim panel from the outside facilitates inspection and maintenance of components behind it. The robust material construction and IP 54 protection rating ensure high reliability and longevity, even in demanding industrial environments. The standardized fit ensures easy integration into existing VX systems.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryFront panel, partition, including mounting hardware
Height100 mm
Suitable forWidth: = 800 mm
PCF/VE (Cradle-to-Gate)9.4 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682338, EAN: 4028177929906

Questions & answers

What is the delivery time of Rittal 9682338 SV front trim panel for VX, bottom, IP 54, W x H: 800x100 mm?

The article Rittal 9682338 SV front trim panel for VX, bottom, IP 54, W x H: 800x100 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682338 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682338 SV front trim panel for VX, bottom, IP 54, W x H: 800x100 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682338 SV front trim panel for VX, bottom, IP 54, W x H: 800x100 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
