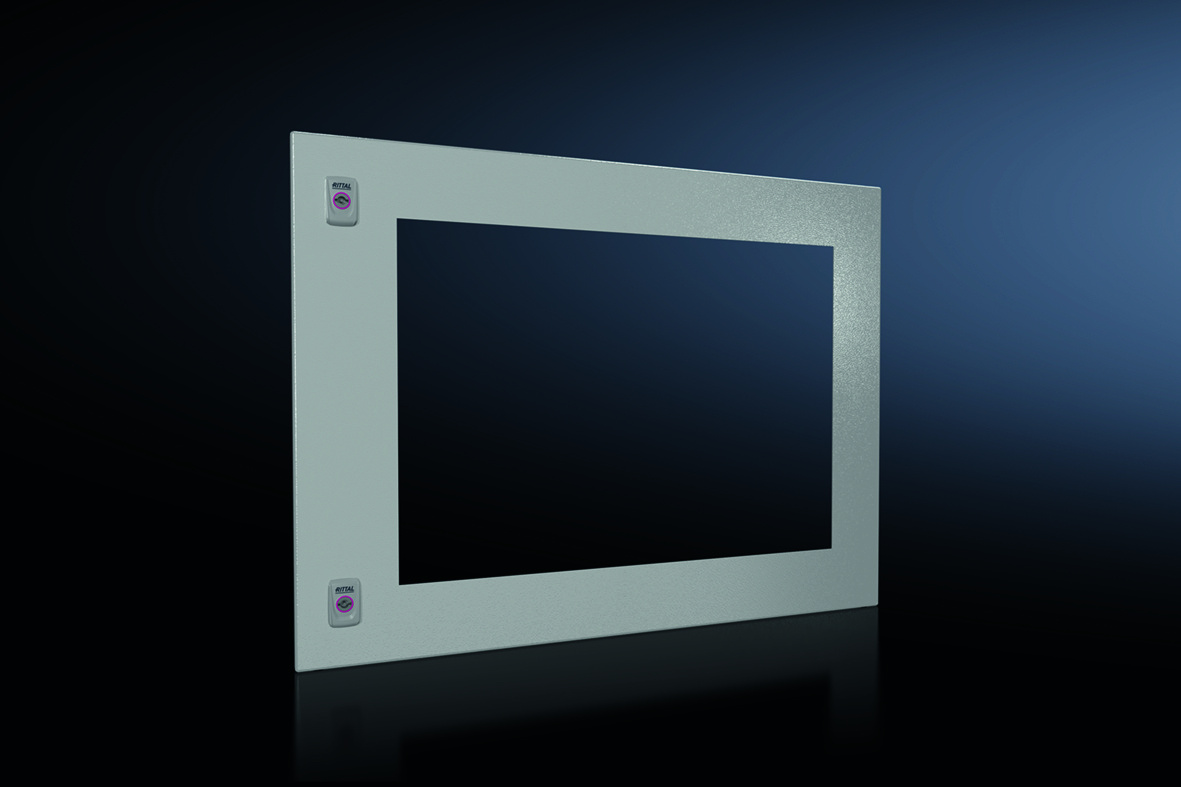

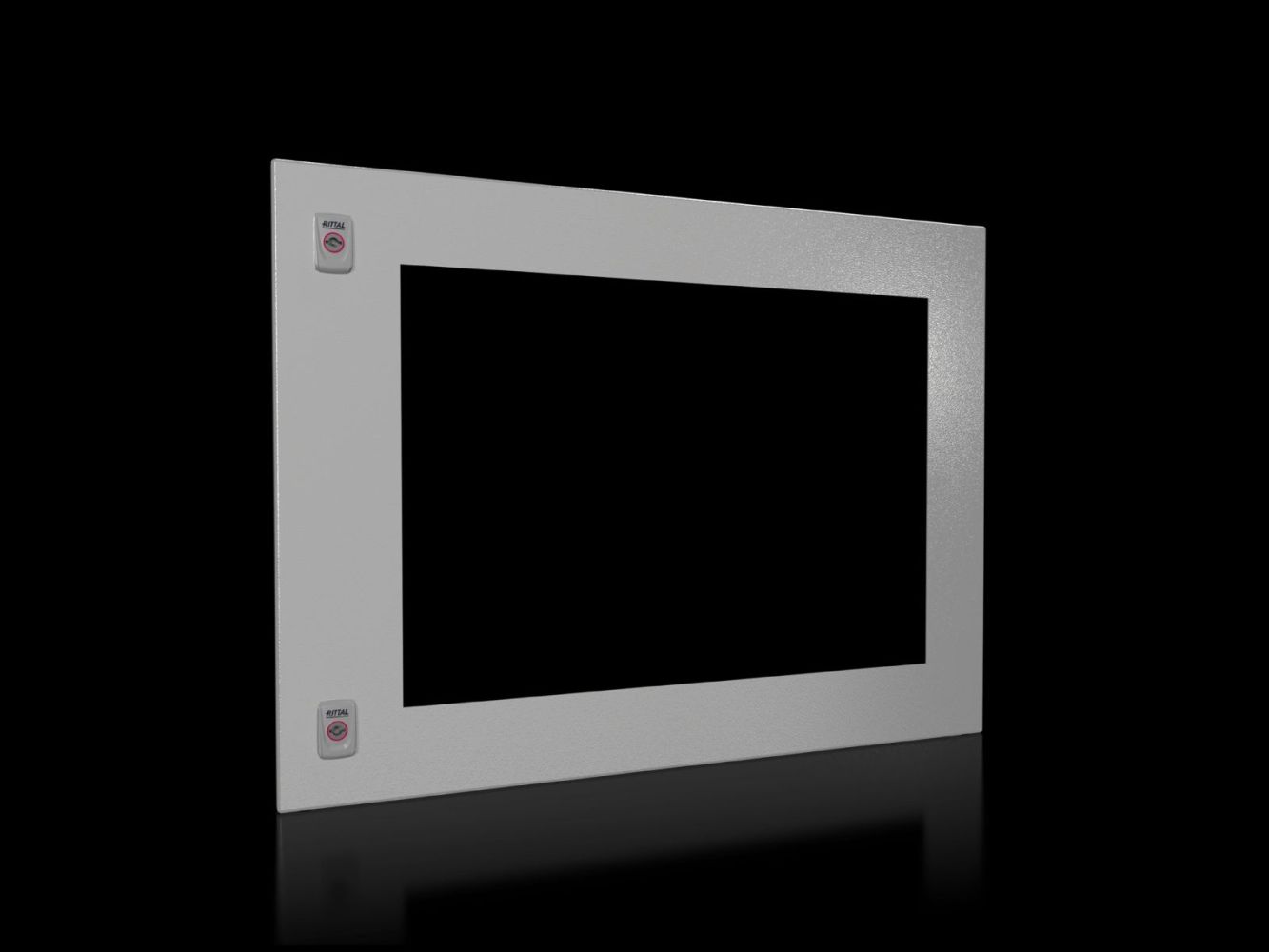

Rittal 9682187 SV partial door for VX, W x H: 800x600 mm, with viewing window

Your rating:
Average rating
product review for Rittal 9682187 SV partial door for VX, W x H: 800x600 mm, with viewing window
( 4.2 / 5 ) 5 ratings
Rittal 9682187
This image may differ from the desired article.
Rittal 9682187Rittal 9682187Rittal 9682187
-12% 192,17 EUR 218,78 EUR
( 228,68 EUR incl. VAT )
≈ £160.85  |  ≈ $211.19
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 9682187 SV partial door for VX, W x H: 800x600 mm, with viewing window
Datasheet:file_download Download
Lieske Part No.:1597397
Mfg Part No: 9682187
UPC/EAN: 4028177928756
Weight:10.04 kg
Type:VX 9682187

Product information for Rittal 9682187:

The SV partial door for VX, type 9682187, is a system accessory from Rittal, specifically developed for enclosures of the VX series. It serves as a replacement for a complete door or rear panel and enables a flexible, modular division of the enclosure interior. The partial door has a width of 800 mm and a height of 600 mm and is equipped with a viewing window, allowing visibility into the enclosure area. The design is intended for enclosures with an exact width of 800 mm. The door can be hinged on the right or left side, enabling flexible installation in various enclosure configurations.

Applications

The partial door is used in industrial and technical installations where partial separation of enclosure areas is required, for example, to separate different functional units or to improve clarity. It is particularly suitable for applications where visual inspection of the interior is necessary without fully opening the enclosure door. Its use in VX enclosure systems allows modular expansion and adaptation to specific requirements.

Functions and Equipment in Detail

The partial door is made of sheet steel with a thickness of 2 mm and features a viewing window made of single-pane safety glass with a thickness of 3 mm. The surface is coated with a textured paint, providing a robust and wear-resistant finish. The color corresponds to RAL 7035, a gray shade commonly used in industrial environments. The door is equipped with two locks to ensure secure latching. The maximum opening angle of the partial doors is 130°, providing sufficient accessibility. The delivery includes the partial door itself, a partition strip, hinges, locking components, and the necessary mounting hardware.

Technology Explained Simply

The construction of the partial door from sheet steel offers high mechanical stability and is designed for use in industrial environments. The single-pane safety glass of the viewing window is certified according to applicable safety glass standards and provides clear visibility without compromising safety. The textured paint coating protects the material from corrosion and wear and ensures a uniform surface finish. The protection class IP 54 according to IEC 60 529 means that the partial door is dust-tight and protected against splashing water from all directions, making it suitable for use in humid or dusty environments.

Compatibility and Accessories

The partial door is specifically designed for VX enclosure systems with a width of 800 mm. It can be combined freely with other partial doors, with a front trim panel required at the top and bottom ends. Various front trim panels are available as accessories, for example, in IP 54 and IP 2X versions, in different heights (100 mm, 300 mm) and widths (800 mm). Additionally, lock inserts made of zinc die-cast and mini comfort handles for padlocks are available, enabling adaptation of the locking function. The partial door is supplied with a standard double-bar lock insert, which can be exchanged for lock inserts of type A.

Installation and Mounting

Installation is carried out using the hinges and mounting hardware included in the delivery. The door can be hinged on the right or left side, allowing flexible adaptation to the specific enclosure configuration. Mounting is done at the designated points inside the enclosure. The maximum opening angle of 130° ensures sufficient accessibility.

t
Operational Advantages

The partial door provides a modular solution for separating enclosure areas, simplifying the organization and maintenance of devices inside the enclosure. The viewing window allows visual inspection without fully opening the door, enhancing operational safety. The IP 54 protection class protects against dust and splashing water, increasing reliability in industrial environments. The robust construction from sheet steel and the textured paint coating ensure a long service life and low maintenance requirements. The ability to combine the partial door with various front trim panels and lock inserts offers flexibility in adapting to specific requirements.

General
Modelwith viewing window
MaterialSteel sheet, 2 mm, sight glass: single-pane safety glass, 3 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryPartition door, partition web, hinges, locking parts, including fastening material
NoteMaximum opening angle of partition doors 130°
LockNumber of locks: 2
Width800 mm
Height600 mm
Suitable forWidth: = 800 mm
Degree of protection IP according to IEC 60 529IP 54
PCF/VE (Cradle-to-Gate)38.2 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682187, EAN: 4028177928756

Questions & answers

What is the delivery time of Rittal 9682187 SV partial door for VX, W x H: 800x600 mm, with viewing window?

The article Rittal 9682187 SV partial door for VX, W x H: 800x600 mm, with viewing window is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682187 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682187 SV partial door for VX, W x H: 800x600 mm, with viewing window always at the best possible price. We can give you a discount of 2% on Rittal 9682187 SV partial door for VX, W x H: 800x600 mm, with viewing window if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
