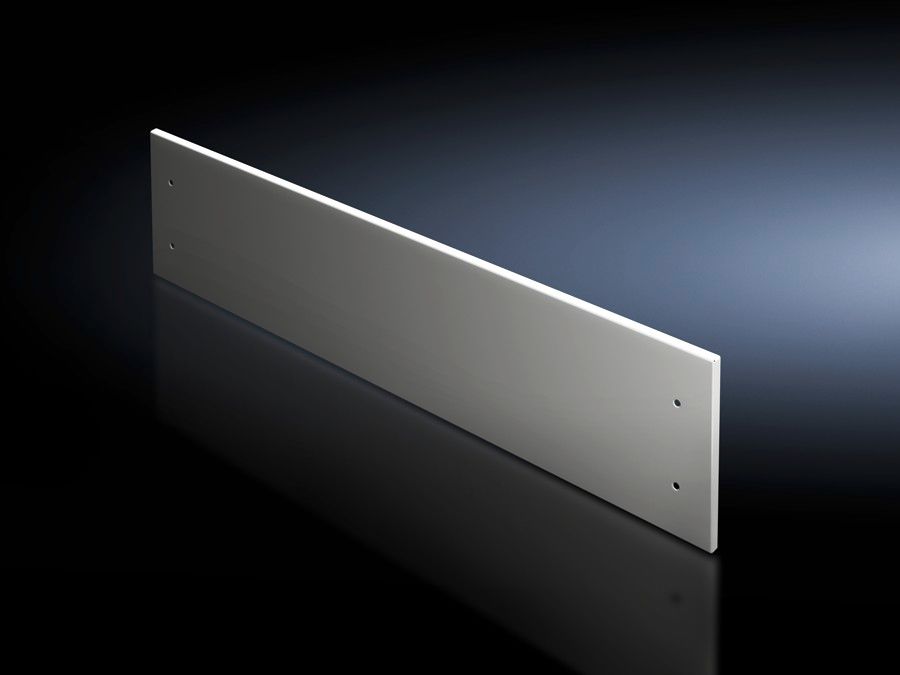

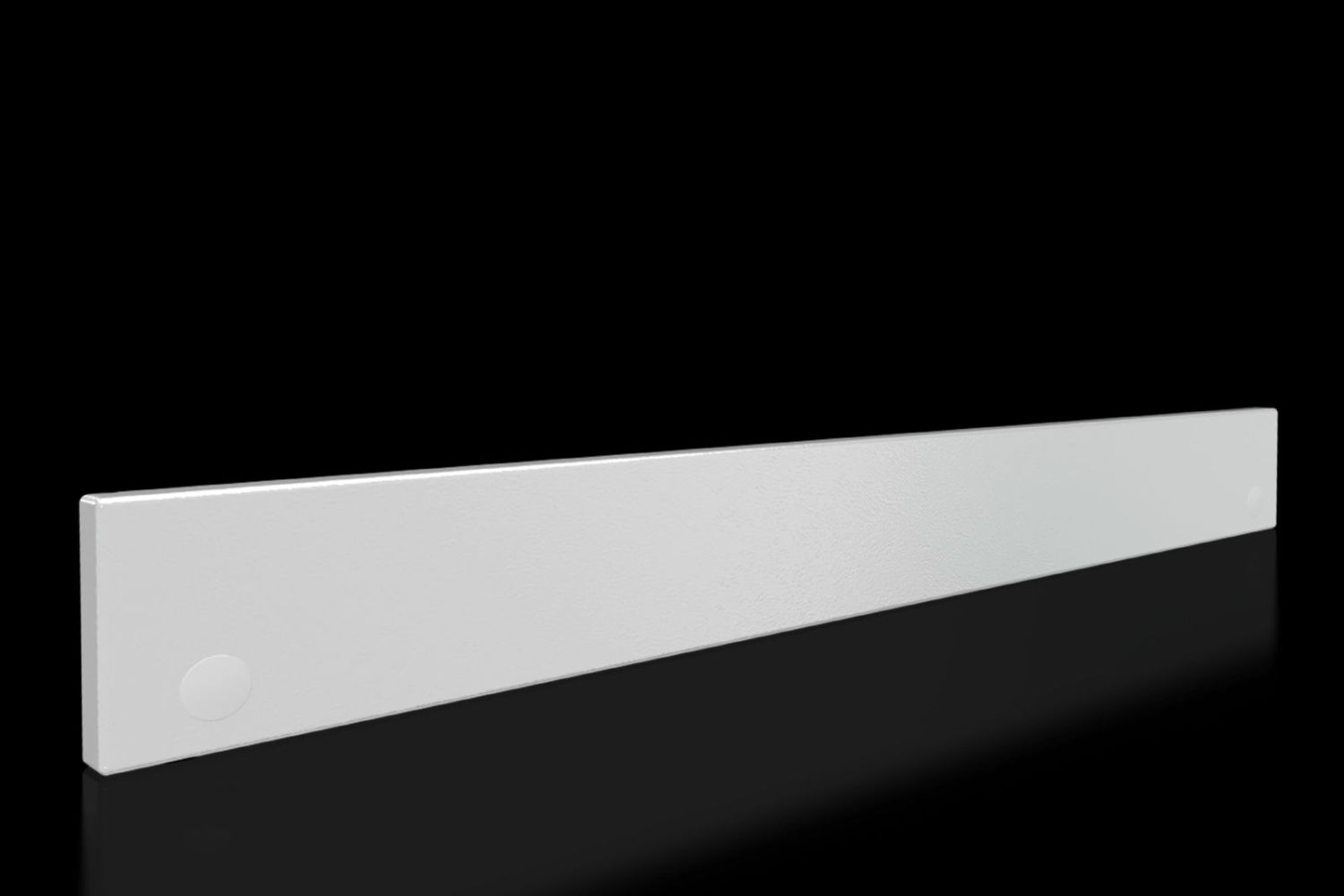

Rittal 9682318 SV front trim panel for VX, top, IP 54, W x H: 800x100 mm

Your rating:
Average rating
product review for Rittal 9682318 SV front trim panel for VX, top, IP 54, W x H: 800x100 mm
( 5 / 5 ) 2 ratings
Rittal 9682318
This image may differ from the desired article.
Rittal 9682318Rittal 9682318Rittal 9682318Rittal 9682318
52,79 EUR
( 62,82 EUR incl. VAT )
≈ £44.19  |  ≈ $58.02
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9682318 SV front trim panel for VX, top, IP 54, W x H: 800x100 mm
Datasheet:file_download Download
Lieske Part No.:1988609
Mfg Part No: 9682318
UPC/EAN: 4028177929654
Weight:1.86 kg
Type:SV 9682318

Product information for Rittal 9682318:

The Rittal SV 9682318 is a front trim panel for enclosures of the VX series, specifically designed as an upper closure when using partial doors. The product serves modular front-side design of enclosures and enables a clean, uniform appearance. The front trim panel is solidly constructed from sheet steel with a thickness of 1.5 mm, ensuring high mechanical stability and durability. The surface is coated with a textured paint, providing a robust, scratch- and abrasion-resistant finish. The color corresponds to RAL 7035, a gray-beige standard shade commonly used in industrial environments. Dimensions are a height of 100 mm and a width of 800 mm, making it precisely matched to enclosures with a width of 800 mm. The front trim panel is equipped with a protection rating of IP 54, meaning it is dust-tight and protected against splashing water – a feature that makes it suitable for use in industrial environments where certain environmental stresses are expected.

Applications
The front trim panel is primarily used as an upper closure when installing partial doors in enclosures of the VX series. It serves optical and functional closure of the front side, creating a closed and professional appearance. Its use is particularly beneficial when partial doors cover only part of the front surface and a visually uniform closure is required. The front trim panel is suitable for use in industrial plants, such as in manufacturing automation, power supply, or process control, where a robust and maintenance-friendly front design is required.

Functions and Equipment in Detail
The front trim panel can be removed from the outside by loosening the fastening screws, enabling easy maintenance and replaceability. Installation is carried out using the included fastening material, which is part of the delivery scope. The front trim panel is therefore not designed as a standalone mounting system, but complements existing partial door systems. The use of sheet steel with a thickness of 1.5 mm ensures sufficient strength to withstand mechanical loads during operation.

Technology Explained Simply
The front trim panel is made of sheet steel with a thickness of 1.5 mm. This material provides sufficient mechanical strength to protect the front trim panel against damage from mechanical impacts. The surface is coated with textured paint, offering high abrasion resistance and durability against environmental influences. The color RAL 7035 is a neutral gray tone that integrates well in industrial environments. The protection rating IP 54 means the front trim panel is dust-tight and protected against splashing water – making it suitable for use in environments where moisture or dust exposure may occur. Dimensions of 800 mm width and 100 mm height are precisely matched to enclosures of the VX series with a width of 800 mm.

Compatibility and Accessories
The front trim panel is specifically developed for enclosures of the VX series and fits exactly on enclosures with a width of 800 mm. It is intended as an upper closure when using partial doors. Installation is carried out using the included fastening material. The front trim panel is thus a supplementary component, used in combination with partial doors to achieve a closed front design.

Installation and Mounting
Installation of the front trim panel is performed using the included fastening material, intended for attachment to the enclosure front. The front trim panel is fastened to the upper edge of the front side from the outside, with screws accessible from the outside. Removal is also done from the outside by loosening the screws, enabling easy maintenance and replaceability. Installation is possible without special tools, although the use of a screwdriver is required. The front trim panel is not intended for standalone mounting without partial doors.

Operational Advantages
The front trim panel provides a clean, uniform appearance for enclosures equipped with partial doors. The ability to remove the front trim panel from the outside facilitates maintenance and inspection of components behind it. The use of sheet steel with 1.5 mm thickness and textured paint ensures high mechanical and chemical resistance. The IP 54 protection rating ensures reliable operation even in environments with moisture or dust exposure. The exact fit for enclosures with 800 mm width ensures precise installation without additional adjustments.

General
ModelClosed
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Height100 mm
Suitable forWidth: = 800 mm
PCF/VE (Cradle-to-Gate)7.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682318, EAN: 4028177929654

Questions & answers

What is the delivery time of Rittal 9682318 SV front trim panel for VX, top, IP 54, W x H: 800x100 mm?

The article Rittal 9682318 SV front trim panel for VX, top, IP 54, W x H: 800x100 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682318 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682318 SV front trim panel for VX, top, IP 54, W x H: 800x100 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682318 SV front trim panel for VX, top, IP 54, W x H: 800x100 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
