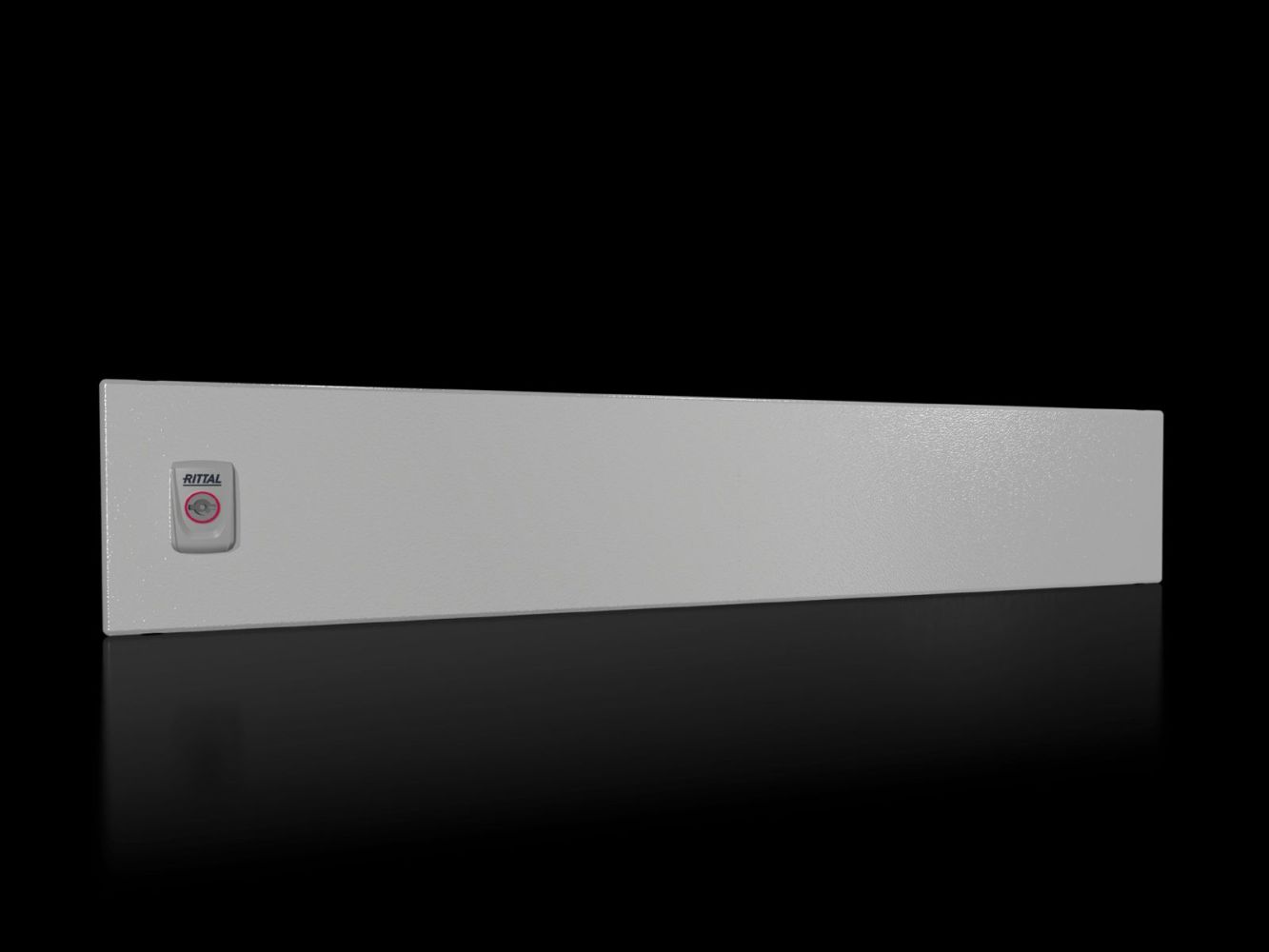

Rittal 9682181 SV partial door for VX, W x H: 800x150 mm
|
-11% 47,96 EUR 53,94 EUR |
|
|
( 57,07 EUR incl. VAT ) ≈ £40.14 | ≈ $52.71 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 591454 |
| Mfg Part No: | 9682181 |
| UPC/EAN: | 4028177928817 |
| Weight: | 3.78 kg |
| Type: | SV 9682181 |
Product information for Rittal 9682181:
Applications
The partial door is used in enclosures of the VX system where a full door is not required, for example, in partially occupied enclosure fronts. It can be combined freely with other partial doors to create individual front configurations. A front trim panel is required at the top and bottom of the front to ensure a clean appearance. The door is intended for use in place of a rear panel or a complete door, allowing flexible integration into existing enclosure constructions.
Functions and Equipment in Detail
The partial door is supplied with a double-bar lock insert, which is pre-installed as standard. This lock is interchangeable with lock inserts of type A, enabling adaptation to specific security requirements. The door can be hinged on the right or left side, allowing flexible installation at various positions within the enclosure. The delivery includes the partial door itself, a partition strip, hinges, lock components, and the required mounting materials. Installation is carried out using the provided mounting elements included in the delivery.
Technology Explained Simply
The use of sheet steel with a thickness of 2 mm ensures high mechanical stability and resistance to mechanical stress. The structured paint in RAL 7035 provides a uniform, abrasion-resistant surface that fits well in industrial environments. The protection rating IP 54 means the door is protected against dust and splashing water, making it suitable for use in production halls, workshops, or other industrial facilities. The maximum opening of 130° allows sufficient access to components behind the door without requiring the door to be fully opened.
Compatibility and Accessories
The partial door is specifically designed for VX enclosures with a width of 800 mm. As accessories, various front trim panels are available, including models with dimensions 800x300 mm and 800x100 mm, each in protection ratings IP 54 and IP 2X. Additionally, lock inserts made of zinc die-cast with a length of 27 mm are available as replacements for the standard double-bar lock insert. A punched mounting rail with a length of 598 mm and mini comfort handles for AX and KX systems complement the accessory range. The combination with other partial doors enables modular design of the enclosure front.
Installation and Mounting
The partial door is mounted at the designated mounting points in the enclosure. The hinges and mounting materials included in the delivery enable simple and secure installation. The door can be hinged on the right or left side, allowing flexible arrangement within the enclosure.
Operational Advantages
The partial door offers a flexible and modular solution for designing enclosure fronts. The ability to combine partial doors freely allows individual adaptation to specific applications. The protection rating IP 54 ensures reliable protection against dust and splashing water, increasing operational safety. The robust construction from sheet steel and easy installation reduce maintenance effort and increase the product’s service life. The interchangeability of the lock insert allows adaptation to specific security requirements without replacing the entire door.
| General | |
| Material | Sheet steel, 2 mm |
| Surface protection | Structured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | Partition door, partition web, hinges, locking parts, including fastening material |
| Note | Maximum opening angle of partition doors 130° |
| Lock | Number of locks: 1 |
| Width | 800 mm |
| Height | 150 mm |
| Suitable for | Width: = 800 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 |
| PCF/VE (Cradle-to-Gate) | 14.4 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
