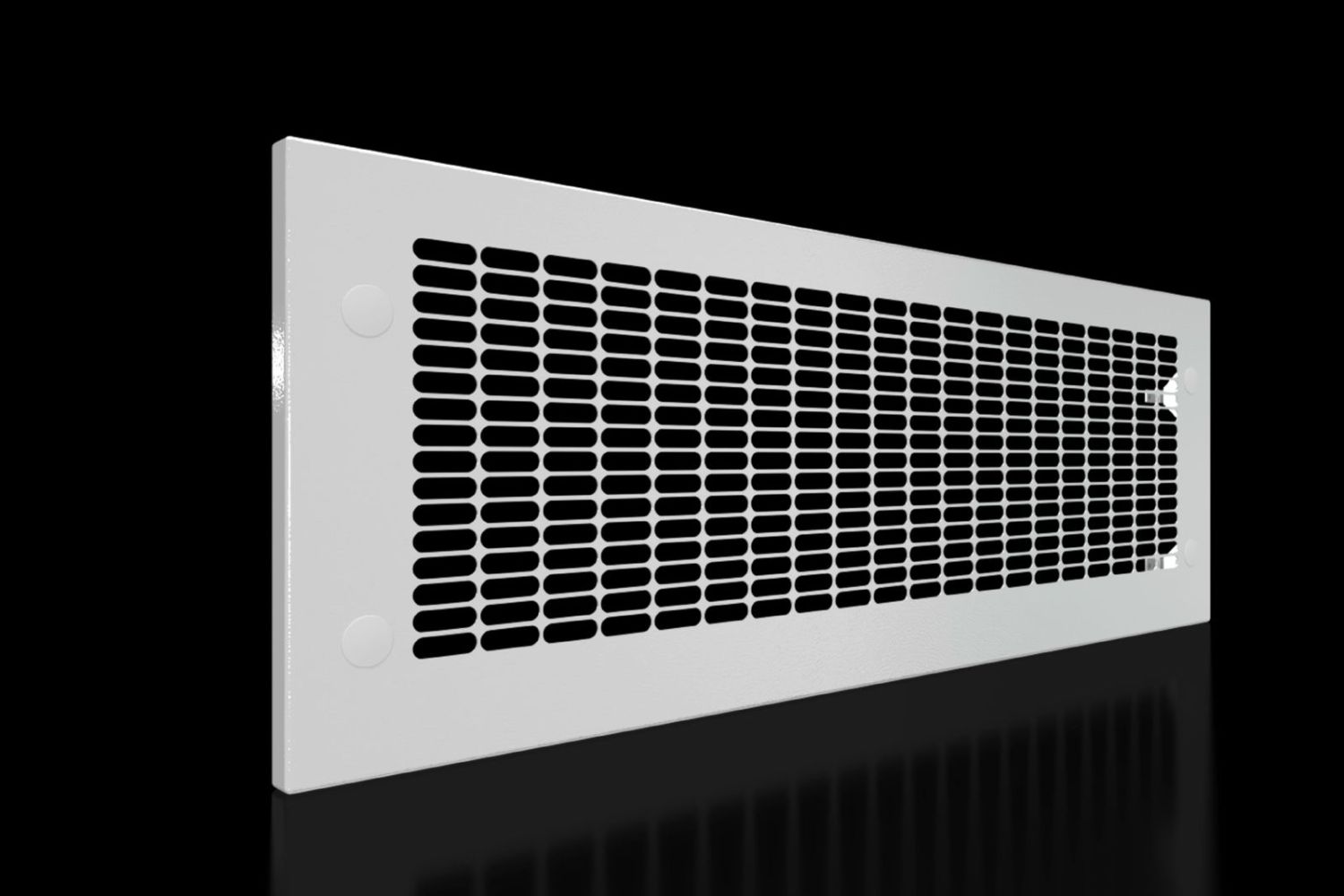

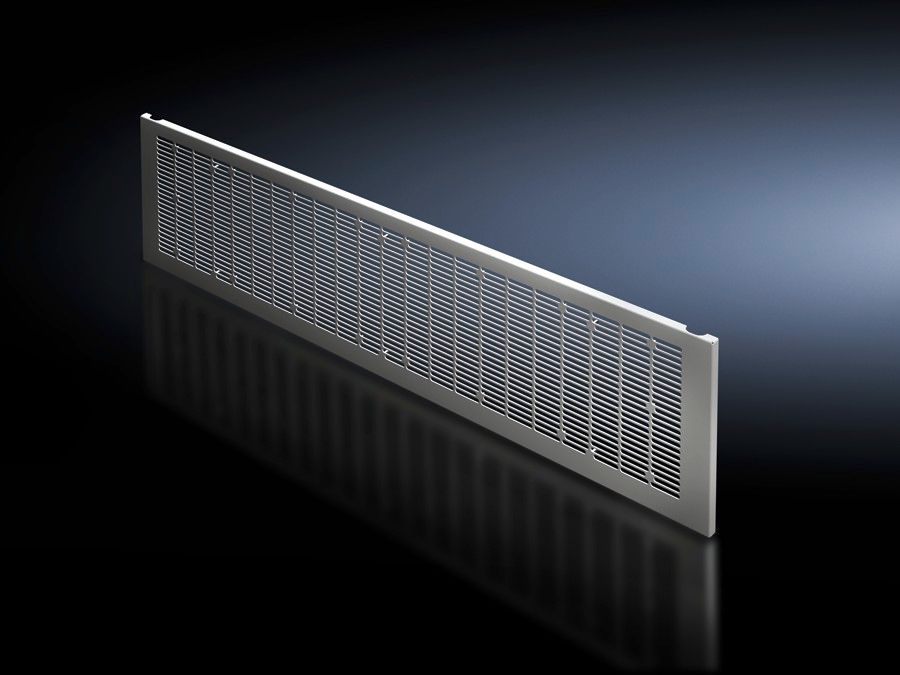

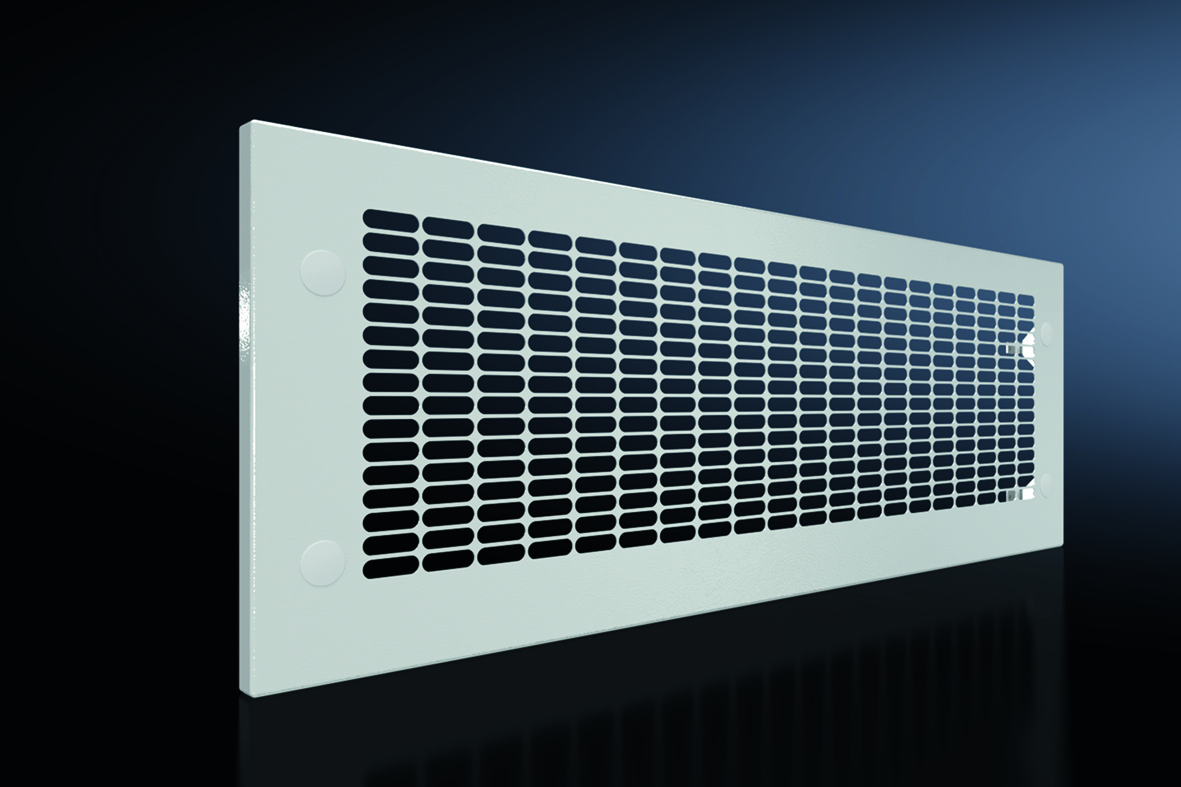

Rittal 9682358 SV front trim panel for VX, bottom, IP 2X, W x H: 800x300 mm

Your rating:
Average rating
product review for Rittal 9682358 SV front trim panel for VX, bottom, IP 2X, W x H: 800x300 mm
( 4 / 5 ) 1 ratings
Rittal 9682358
This image may differ from the desired article.
Rittal 9682358Rittal 9682358Rittal 9682358
86,71 EUR
( 103,18 EUR incl. VAT )
≈ £72.58  |  ≈ $95.29
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 9682358 SV front trim panel for VX, bottom, IP 2X, W x H: 800x300 mm
Datasheet:file_download Download
Lieske Part No.:1285208
Mfg Part No: 9682358
UPC/EAN: 4028177929807
Weight:3.66 kg
Type:VX 9682358

Product information for Rittal 9682358:

Rittal SV front trim panel for VX, bottom, IP 2X, is a system accessory for modular front design of enclosures. It serves as a lower closure, particularly when used with partial doors, and enables a uniform and professional appearance of the enclosure front. The front trim panel is made of steel sheet with a thickness of 1.5 mm and features a surface finish of structured paint in the colour RAL 7035. The version with ventilation opening ensures sufficient air circulation in the lower area of the enclosure, supporting cooling of installed components. Dimensions are a height of 300 mm and a width of 800 mm, making it specifically designed for enclosures with a width of 800 mm.

Applications

The front trim panel is designed for use in industrial environments where structured and secure front design of enclosures is required. It is frequently used in combination with partial doors to complete the external appearance of the enclosure. The protection rating IP 2X ensures protection against contact with fingers and larger objects, making it suitable for areas where limited mechanical stress is expected and no direct contact with water or dust is anticipated.

Functions and Equipment in Detail

The front trim panel can be removed from the outside by loosening the screws, enabling easy maintenance and inspection of components below. The delivery includes the front trim panel itself, a partition strip, and the required mounting hardware. Mounting is done using the supplied screws, ensuring secure installation. The ventilation opening is designed to allow sufficient air circulation without compromising the IP 2X protection rating.

Technology Explained Simply

The use of steel sheet with a thickness of 1.5 mm ensures sufficient mechanical stability to protect the front trim panel against deformation. The structured paint finish in RAL 7035 provides a robust surface resistant to mechanical stress and contamination. The protection rating IP 2X means the front trim panel is protected against contact with fingers and larger objects, but not against water or dust. The ventilation opening is dimensioned to allow sufficient air circulation without impairing the protective function.

Compatibility and Accessories

The front trim panel is specifically designed for enclosures with a width of 800 mm. To maintain consistent protection rating throughout the enclosure, when using this front trim panel with IP 2X, a matching roof plate with IP 2X protection rating should be selected for upper ventilation. Compatible accessories include, for example, the SV roof plate for VX with width 800 mm and depth 600 mm, as well as the SV roof plate for VX in size 800x800 mm, both also in protection rating IP 2X.

Mounting and Installation

Installation is done by securing the front trim panel to the lower edge of the enclosure front, using the partition strip and the supplied mounting hardware. The screws allow for secure and stable anchoring. The front trim panel can be removed from the outside if needed, facilitating maintenance and inspection of components below.

Advantages in Operation

The front trim panel provides a professional and uniform appearance of the enclosure front, especially when used with partial doors. The ventilation opening supports cooling of installed components, increasing operational safety. The ability to remove the front trim panel from the outside simplifies maintenance and inspection. The use of steel sheet and structured paint ensures high mechanical stability and durability. The protection rating IP 2X provides sufficient protection against contact, making the front trim panel suitable for many industrial applications.

General
Modelwith ventilation opening
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryFront panel, partition, including mounting hardware
NoteWhen using front panels IP 2X, a roof sheet with protection rating IP 2X must be selected for the upper ventilation
Height300 mm
Suitable forWidth: = 800 mm
PCF/VE (Cradle-to-Gate)13.9 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682358, EAN: 4028177929807

Questions & answers

What is the delivery time of Rittal 9682358 SV front trim panel for VX, bottom, IP 2X, W x H: 800x300 mm?

The article Rittal 9682358 SV front trim panel for VX, bottom, IP 2X, W x H: 800x300 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682358 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682358 SV front trim panel for VX, bottom, IP 2X, W x H: 800x300 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682358 SV front trim panel for VX, bottom, IP 2X, W x H: 800x300 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
