Rittal 9681886 SV roof plate for VX, width: 800 mm, depth: 600 mm, IP 2X

Your rating:
Average rating
product review for Rittal 9681886 SV roof plate for VX, width: 800 mm, depth: 600 mm, IP 2X
( 4 / 5 ) 1 ratings

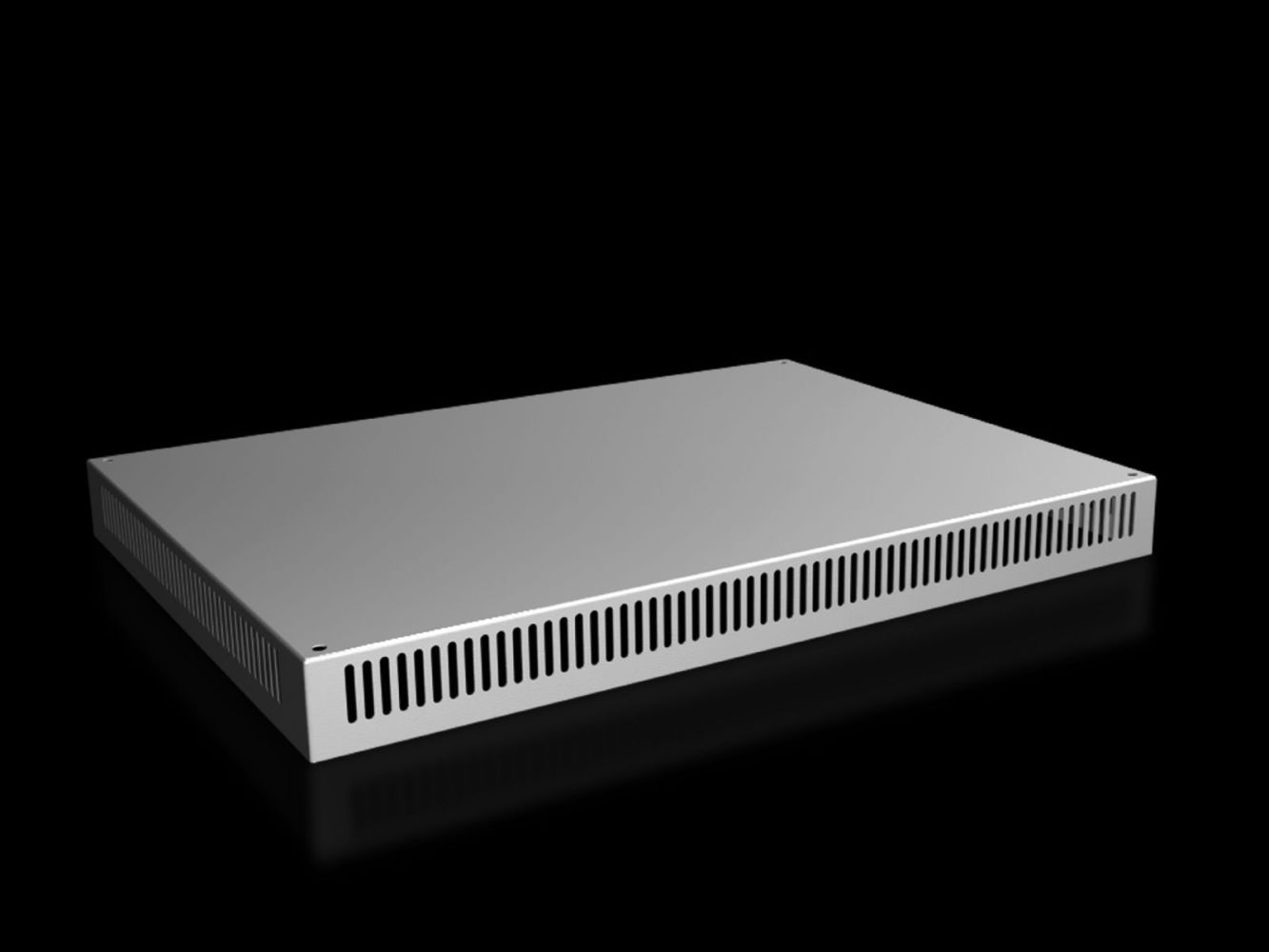

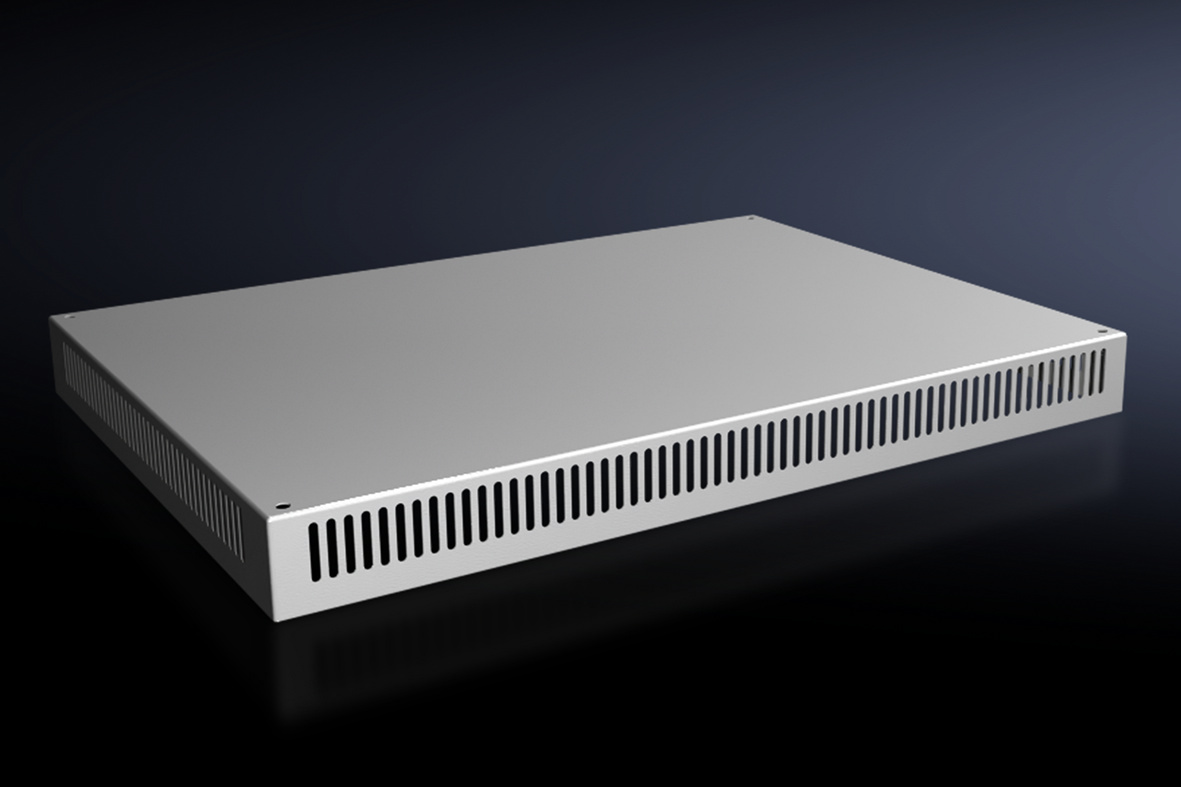

Rittal 9681886
This image may differ from the desired article.
Rittal 9681886Rittal 9681886Rittal 9681886
74,75 EUR
( 88,95 EUR incl. VAT )
≈ £62.57  |  ≈ $82.15
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 9681886 SV roof plate for VX, width: 800 mm, depth: 600 mm, IP 2X
Datasheet:file_download Download
Lieske Part No.:1903714
Mfg Part No: 9681886
UPC/EAN: 4028177926714
Weight:8.62 kg
Type:SV 9681886

Product information for Rittal 9681886:

The Rittal SV 9681886 is a roof plate for enclosures of the VX series, specifically designed for enclosures with a width of 800 mm and a depth of 600 mm. It serves as a replacement for the standard roof or as an addition for enclosures originally delivered without a roof plate. The product is equipped with a ventilation opening to ensure sufficient air circulation inside the enclosure, which is important for cooling electronic components. The mounting height is 72 mm, enabling installation in existing enclosure constructions without disproportionately increasing the overall height.

Applications

The roof plate is intended for use in industrial environments, particularly in enclosures of the VX and VX IT series. It is suitable for applications where mechanical shielding of the top part of the enclosure is required without impairing the ventilation function. The IP 2X protection rating ensures protection against contact with fingers and larger solid objects, but does not provide protection against water or dust. It is therefore suitable for indoor use where no special environmental conditions such as humidity or dust exposure are present.

Functions and Equipment in Detail

The roof plate is made of steel sheet with a thickness of 1.5 mm, ensuring sufficient mechanical stability and durability. The surface is coated with a textured paint, forming a robust and scratch-resistant layer. The colour corresponds to RAL 7035, a grey tone commonly used in industrial facilities to enable uniform visual design. The ventilation opening in the roof plate supports natural convection cooling inside the enclosure, allowing the temperature of installed components to be regulated.

Technology Explained Simply

The steel sheet thickness of 1.5 mm provides sufficient strength to protect the roof plate against mechanical loads such as impacts or pressure. The textured paint coating prevents corrosion and provides a uniform surface finish that is easy to clean. The IP 2X protection rating means the roof plate is protected against contact with fingers and larger solid objects, but does not offer protection against water or dust. The ventilation opening is dimensioned to allow sufficient air circulation without compromising the mechanical stability of the roof plate.

Compatibility and Accessories

The roof plate is specifically designed for enclosures with a width of 800 mm and a depth of 600 mm. It is compatible with VX and VX IT enclosure models from Rittal. Installation is carried out using the included mounting hardware, which is part of the delivery. It is not suitable for enclosures with other dimensions, as the fit would not be guaranteed.

Mounting and Installation

The roof plate is mounted by securing it to the existing mounting points of the enclosure. The included mounting hardware enables a secure and stable fixation. Installation requires no additional tools or components, as the roof plate is simply placed on top of the enclosure and fastened. The ventilation opening must remain unobstructed to ensure cooling inside the enclosure.

Operational Advantages

The roof plate offers a simple and cost-efficient solution for mechanical shielding of the top part of the enclosure. The ventilation opening ensures sufficient air circulation, which can extend the service life of installed electronic components. The use of steel sheet with textured paint ensures high mechanical stability and corrosion resistance. The RAL 7035 colour enables uniform visual design in industrial facilities.

Scope of Delivery

The product is delivered with mounting hardware required for installation on the enclosure. It is a single-pack unit containing one piece of the roof plate.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Mounting height72 mm
Suitable forWidth: = 800 mm, Depth: = 600 mm


Product data sheet
Datasheet for Rittal 9681886, EAN: 4028177926714

Questions & answers

What is the delivery time of Rittal 9681886 SV roof plate for VX, width: 800 mm, depth: 600 mm, IP 2X?

The article Rittal 9681886 SV roof plate for VX, width: 800 mm, depth: 600 mm, IP 2X is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9681886 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9681886 SV roof plate for VX, width: 800 mm, depth: 600 mm, IP 2X always at the best possible price. We can give you a discount of 2% on Rittal 9681886 SV roof plate for VX, width: 800 mm, depth: 600 mm, IP 2X if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
