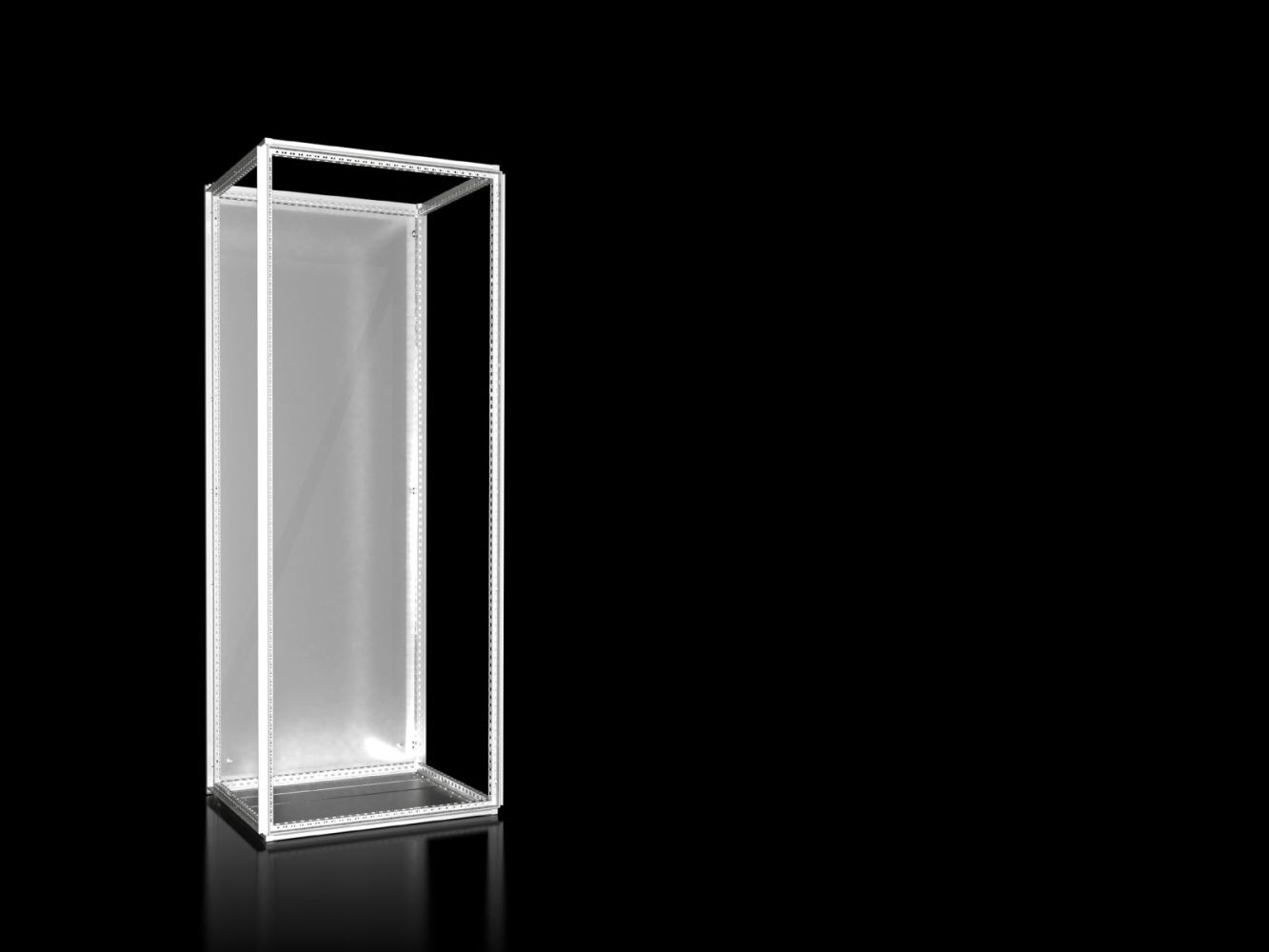

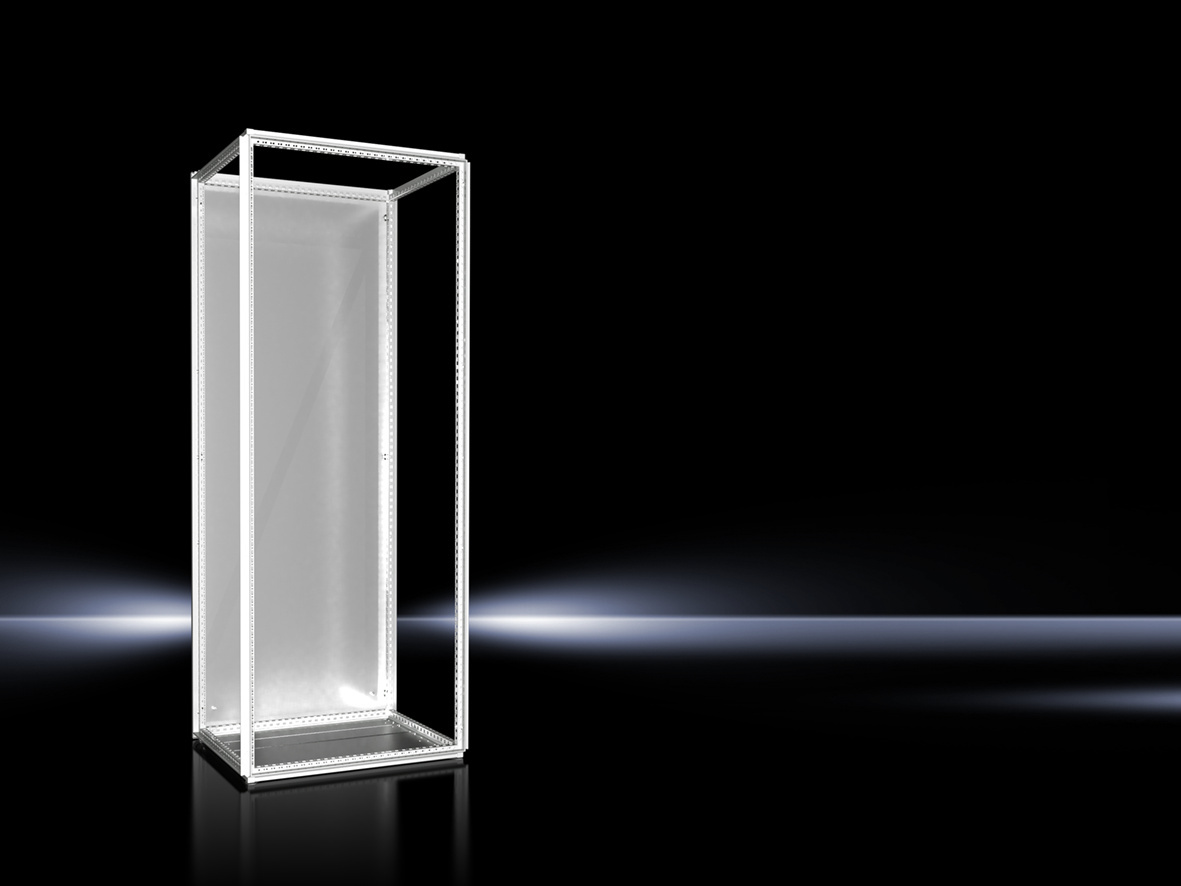

Rittal 9680806 VX modular enclosure, W x H x D: 800x2000x600 mm
|
381,80 EUR |
|
|
( 454,34 EUR incl. VAT ) ≈ £319.57 | ≈ $419.60 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441216 |
| Mfg Part No: | 9680806 |
| UPC/EAN: | 4028177929708 |
| Weight: | 53.8 kg |
| Type: | VX 9680.806 |
Product information for Rittal 9680806:
Applications
The enclosure is designed for use in industrial plants where a robust and modular enclosure solution is required. It is particularly suitable for applications requiring flexible arrangements of partial doors, internal partitions, or additional modules. The construction allows for easy integration into existing enclosure systems, especially in combination with other VX modules. The protection rating IP 54, achieved depending on the cladding, makes it suitable for environments where dust and splashing water may occur, although not for permanent moisture or immersion conditions.
Functions and Equipment in Detail
The enclosure frame forms the load-bearing structure and is designed for mounting internal components, such as partial doors or front trim panels. The rear panel is also dip-primed and provides a stable base for mounting electrical components. The base plates are galvanized, ensuring high corrosion resistance, especially in humid or aggressive environments. The use of steel sheet with a thickness of 1.5 mm ensures sufficient mechanical stability and resistance to external influences.
Technology Explained Simply
The surface treatment of the enclosure frame and rear panel is done by dip priming, providing an even primer and corrosion protection layer. The external powder coating with textured lacquer ensures a robust, abrasion-resistant, and visually appealing surface. The galvanized base plates offer additional protection against corrosion, especially in the lower, often stressed areas of the enclosure. The protection rating IP 54 means the enclosure is protected against dust and splashing water, making it suitable for many industrial environments. The test basis IEC 61 439-1/-2 and IEC 61 641 ensures compliance with international standards for enclosures and electrical equipment.
Compatibility and Accessories
The VX 9680.806 is part of the baying system VX25 and can be combined with various accessories to extend functionality and protection level. These include, for example, SV partial doors in various heights (e.g. 150 mm, 200 mm, 1600 mm, 1800 mm) and SV front trim panels in various versions (e.g. IP 54, IP 2X). Additionally, plinth corner pieces with trim panels, levelling feet (M12, adjustment height 18–43 mm), side panels (screwed, 2000×600 mm), and baying connectors (external, 1200 mm) are available. These elements allow individual adaptation to specific requirements, such as device mounting, increased protection level, or integration into larger enclosure systems.
Mounting and Installation
Mounting is done via the enclosure frame, which already provides the necessary attachment points for the rear panel and base plates. The connection of individual modules is achieved using baying lugs and baying blocks, ensuring a stable and secure connection. The use of levelling feet allows for level and stable positioning of the enclosure on uneven surfaces. The installation of partial doors, front trim panels, or other accessories is done via designated mounting points and fastening elements offered in the accessories.
Advantages in Operation
The enclosure offers high mechanical stability due to the use of steel sheet with 1.5 mm thickness and a durable surface treatment that minimizes corrosion and wear. The modular design allows flexible adaptation to different requirements without having to replace the entire enclosure. The protection rating IP 54 protects the installed components from dust and splashing water, increasing operational safety. Compliance with standards IEC 61 439-1/-2 and IEC 61 641 ensures reliability and safety in industrial use. The PCF value (Cradle-to-Gate) of 150.3 kg CO2 eq (Category B) provides an overview of the ecological footprint of the product up to completion.
| General | |
| Material | Sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, rear panel: dip-primed, externally powder-coated, textured lacquer, base plates: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Cabinet frame, rear panel, base plates |
| Degree of protection IP according to EN 60 529 | Up to IP 54 (depending on cladding) |
| Test basis | IEC 61 439-1/-2, IEC 61 641 |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 600 mm |
| PCF/VE (Cradle-to-Gate) | 150.3 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 9680806 VX modular enclosure, W x H x D: 800x2000x600 mm?
The article Rittal 9680806 VX modular enclosure, W x H x D: 800x2000x600 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9680806 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9680806 VX modular enclosure, W x H x D: 800x2000x600 mm always at the best possible price. We can give you a discount of 2% on Rittal 9680806 VX modular enclosure, W x H x D: 800x2000x600 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
