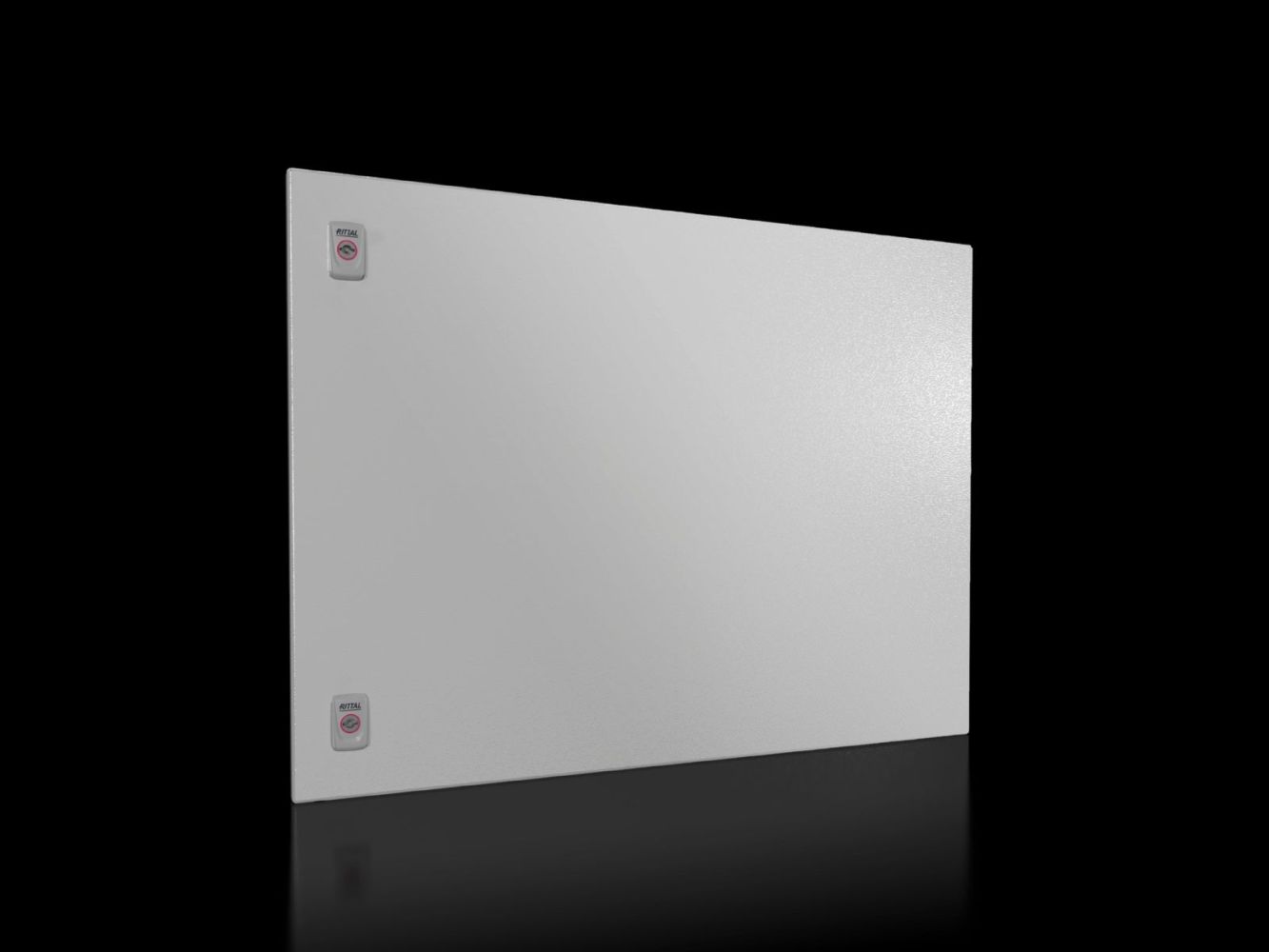

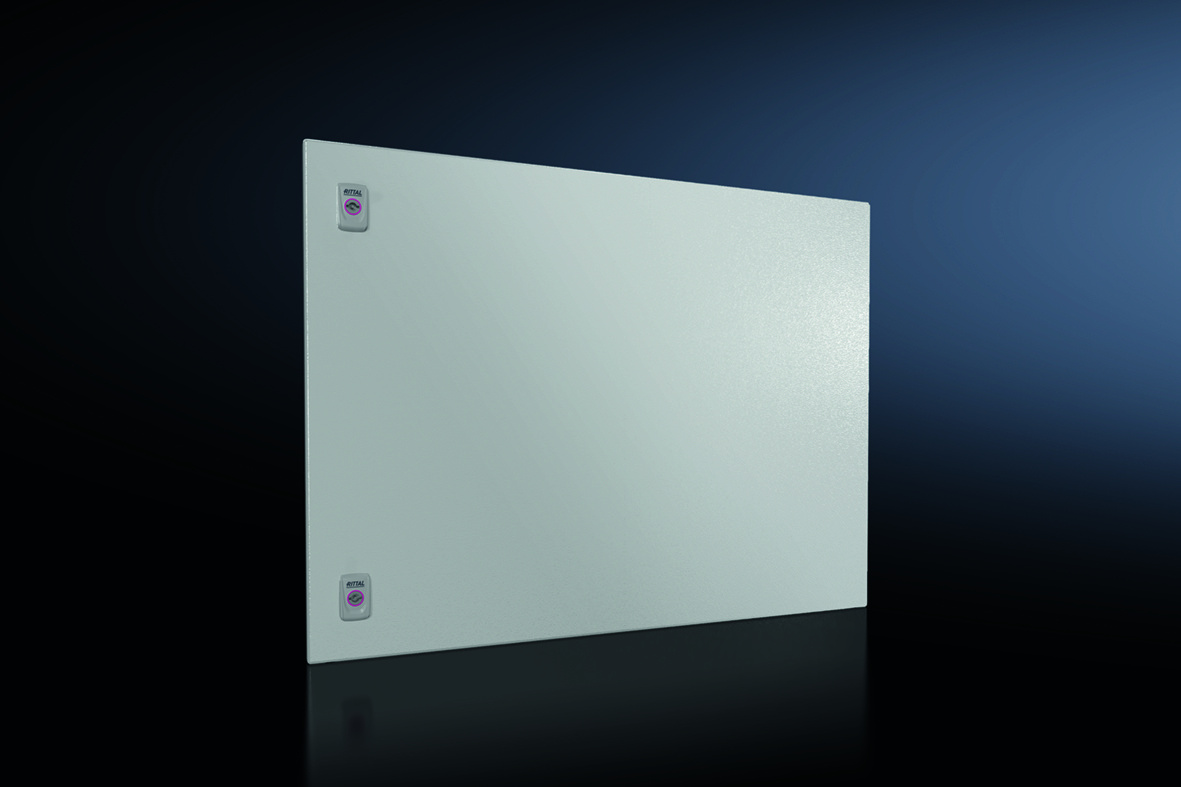

Rittal 9682186 SV partial door for VX, W x H: 800x600 mm

Your rating:
Average rating
product review for Rittal 9682186 SV partial door for VX, W x H: 800x600 mm
( 4.6 / 5 ) 5 ratings
Rittal 9682186
This image may differ from the desired article.
Rittal 9682186Rittal 9682186Rittal 9682186
87,17 EUR
( 103,73 EUR incl. VAT )
≈ £72.96  |  ≈ $95.80
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9682186 SV partial door for VX, W x H: 800x600 mm
Datasheet:file_download Download
Lieske Part No.:1597398
Mfg Part No: 9682186
UPC/EAN: 4028177928930
Weight:10.3 kg
Type:VX 9682186

Product information for Rittal 9682186:

The SV partial door for VX, type 9682186, from Rittal is a system accessory for enclosures of the VX series. It serves as a replacement for a complete door or rear panel and enables a flexible, modular division of the enclosure interior. The partial door has a width of 800 mm and a height of 600 mm and is specifically designed for enclosures with a width of 800 mm. The product is made of sheet steel with a thickness of 2 mm and is coated with a textured paint in the colour RAL 7035, ensuring a robust and uniform surface. The protection class IP 54 according to IEC 60 529 protects against dust and splashing water, making it suitable for use in industrial environments.

Applications
The partial door is used in enclosures of the VX series where a modular separation of the interior space is required. It can be combined freely with other partial doors to define different sections within the enclosure. A front trim panel is required at the top and bottom of the partial door to ensure a clean appearance. The door can be mounted on the right or left side, enabling flexible installation. For doors without a viewing window with a height of 600 to 1000 mm, the installation of the monitor frame 2305.000 is possible to integrate an operating interface.

Functions and Equipment in Detail
The partial door is equipped with a standard double-bar lock insert, providing two locks. This is interchangeable with lock inserts of type A, allowing adaptation to specific security requirements. The door opens to a maximum angle of 130°, ensuring good access to the enclosure interior. The delivery includes the partial door itself, a partition strip, hinges, lock components, and the necessary mounting materials. Installation is carried out using the included mounting elements, ensuring secure anchoring in the enclosure.

Technology Explained Simply
The sheet steel material with a thickness of 2 mm provides sufficient stability for use in industrial installations. The textured coating ensures high corrosion resistance and a uniform surface finish. The protection class IP 54 means the partial door is protected against dust and splashing water, making it suitable for use in production environments. The maximum opening angle of 130° allows sufficient accessibility without having to remove the door completely. The optional hinge direction (right or left) increases flexibility in planning the enclosure layout.

Compatibility and Accessories
The partial door is specifically designed for VX enclosures with a width of 800 mm. As accessories, various front trim panels are available, including models with dimensions 800x300 mm, 800x100 mm, and 800x300 mm, each in protection classes IP 54 and IP 2X. Additionally, lock inserts made of zinc die-cast with a length of 27 mm are available, as well as mini comfort handles for padlocks, enabling ergonomic operation. The SV punched mounting rail with a length of 598 mm supports the installation of additional components.

Installation and Mounting
The installation of the partial door is carried out using the hinges and mounting materials included in the delivery. The door is fixed at the desired position within the enclosure, taking into account the optional hinge direction (right or left). Front trim panels must be installed at the top and bottom of the partial door to ensure a closed front. The lock components are installed according to the desired security level, with the standard double-bar lock insert included by default.

Advantages in Operation
The modular design of the partial door enables flexible use of the enclosure interior, allowing different functions or devices to be clearly separated. The IP 54 protection class ensures high reliability in industrial environments. The optional hinge direction and the interchangeability of lock inserts increase adaptability to specific requirements. The included mounting elements and partition strip simplify installation and ensure stable mounting. The partial door is thus a reliable and flexible component for the modular design of VX control systems.

General
MaterialSheet steel, 2 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryPartition door, partition web, hinges, locking parts, including fastening material
NoteMaximum opening angle of partition doors 130°
LockNumber of locks: 2
Width800 mm
Height600 mm
Suitable forWidth: = 800 mm
Degree of protection IP according to IEC 60 529IP 54
PCF/VE (Cradle-to-Gate)39.2 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682186, EAN: 4028177928930

Questions & answers

What is the delivery time of Rittal 9682186 SV partial door for VX, W x H: 800x600 mm?

The article Rittal 9682186 SV partial door for VX, W x H: 800x600 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682186 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682186 SV partial door for VX, W x H: 800x600 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682186 SV partial door for VX, W x H: 800x600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
