Rittal 9680828 VX modular enclosure, W x H x D: 800x2200x800 mm
|
438,15 EUR |
|
|
( 521,40 EUR incl. VAT ) ≈ £366.73 | ≈ $481.53 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441041 |
| Mfg Part No: | 9680828 |
| UPC/EAN: | 4028177929586 |
| Weight: | 63.5 kg |
| Type: | VX 9680.828 |
Product information for Rittal 9680828:
Applications
The enclosure is suitable for use in industrial plants, such as in manufacturing, automation technology or power supply. It serves as a housing for electrical switchgear, controls, distributors or other electronic components. The modular design enables flexible adaptation to different requirements, for example by installing partial doors, front trim panels or baying connectors. The protection rating IP 54, which is achieved depending on the cladding, makes it suitable for indoor use where a certain level of protection against dust and splashing water is required.
Functions and Equipment in Detail

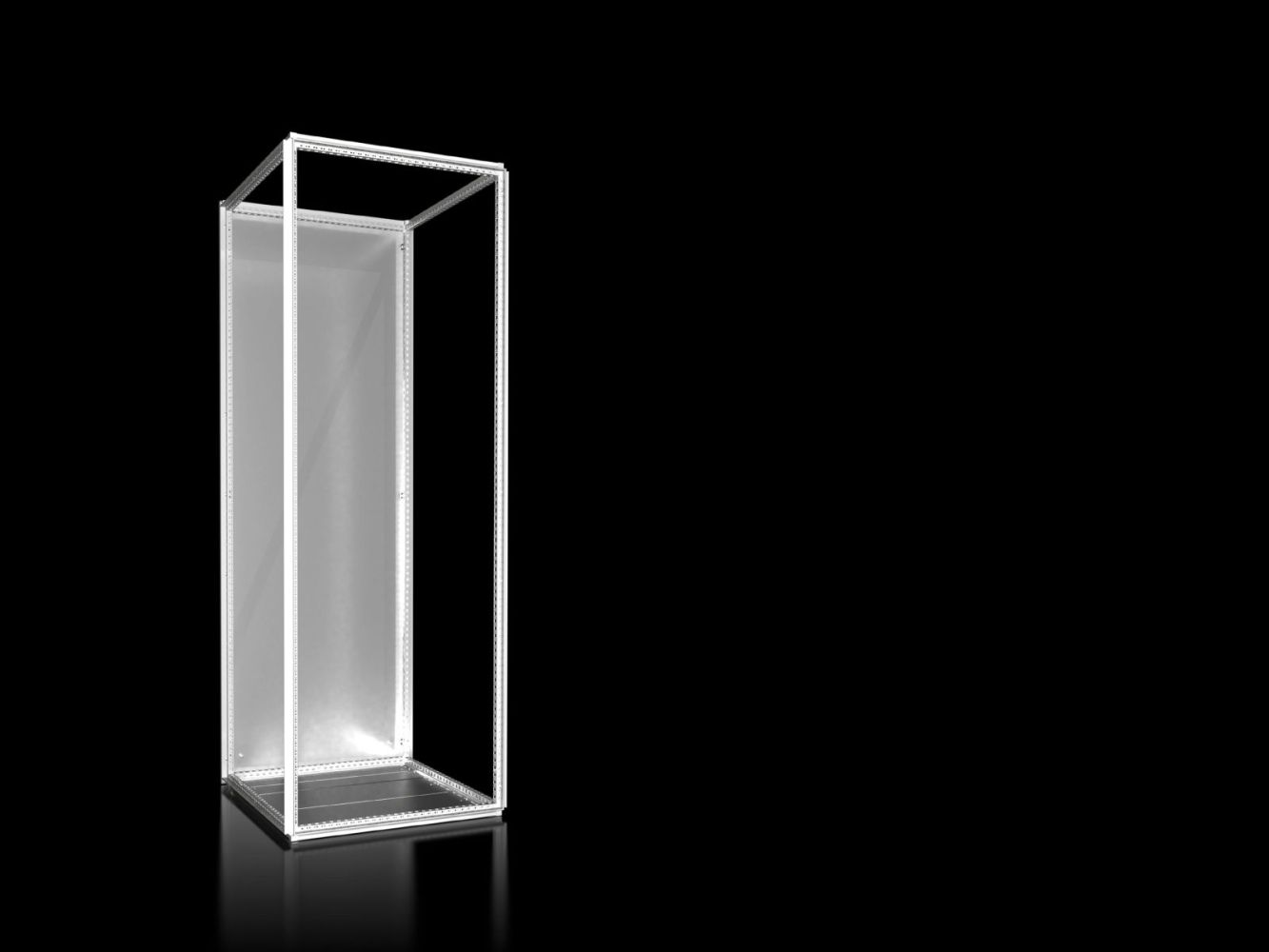

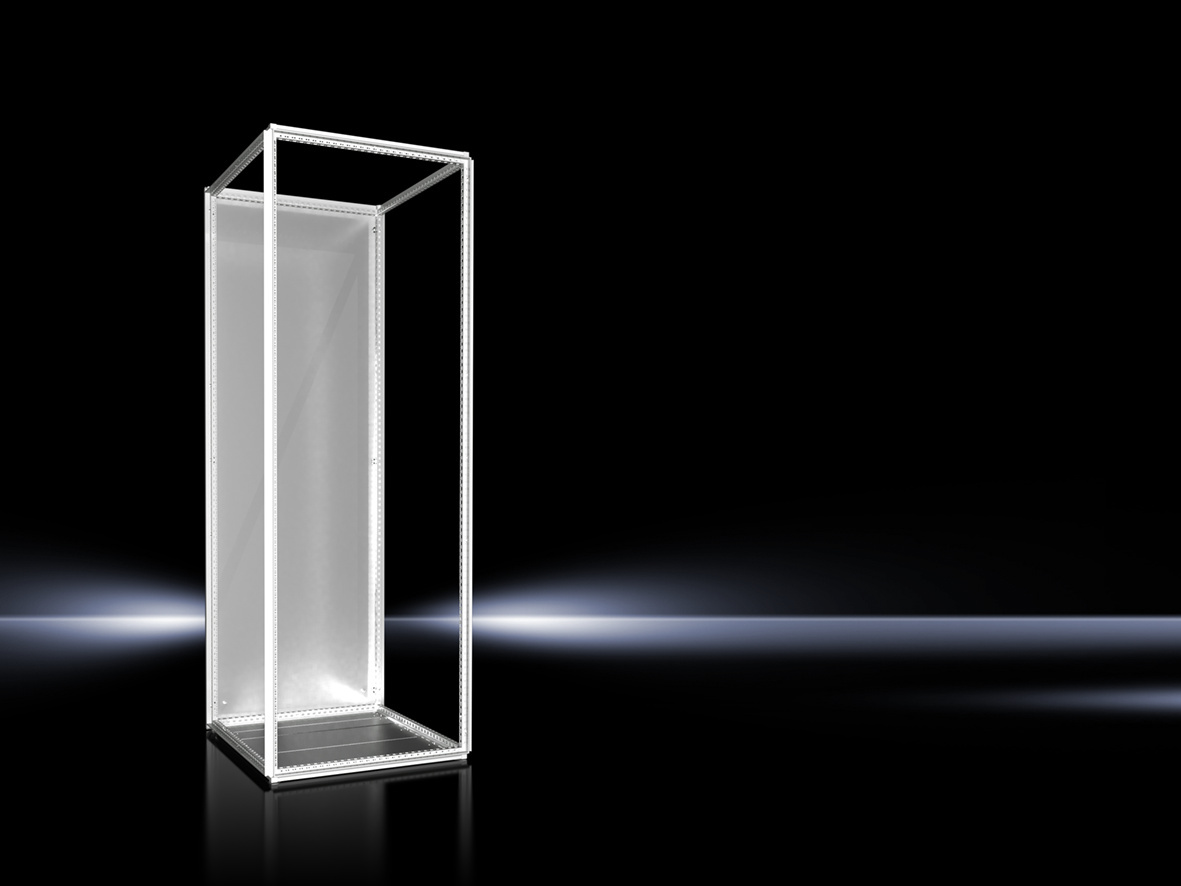

The delivery includes the enclosure frame, rear panel and base plates. These components form the basic structure of the enclosure. The processing from sheet steel with a thickness of 1.5 mm ensures high mechanical stability. The surface treatment – dip-primed frame, powder-coated rear panel and galvanized base plates – provides corrosion protection and durability. The colour RAL 7035 is standard and offers good visibility and coordination in industrial environments.
Technology Explained Simply
The protection rating IP 54 means that the enclosure is protected against dust (dust-tight) and against splashing water (in any direction). This is sufficient for many industrial applications, especially if the enclosure is not operated outdoors or in damp environments. The test basis IEC 61 439-1/-2 and IEC 61 641 refers to the standards for low-voltage switchgear and controlgear enclosures, confirming compliance with European safety and quality requirements. The indication Cradle-to-Gate for the PCF value (162.6 kg CO2 eq) refers to the climate impact of production up to the completion of the product, with the value being classified as approximately calculated and self-declared in category B.
Compatibility and Accessories
The enclosure is compatible with various accessories that allow individual adaptation. These include, for example, plinth corner pieces with plinth trim panels, levelling feet with an adjustment height of 18 to 43 mm, SV partial doors in various heights (e.g. 150 mm, 600 mm, 1800 mm), SV front trim panels for the front (e.g. IP 54, W x H: 800x300 mm) as well as baying connectors and baying brackets for connecting multiple enclosures. Side panels and baying panels are also available to enable a closed or modular arrangement. The partial doors and front trim panels allow targeted access to specific areas of the enclosure without having to open the entire enclosure.
Mounting and Installation
Mounting is done by screwing together the individual components. The base plates are included in the delivery and enable stable fixation to the floor. The use of levelling feet can improve the alignment of the enclosure, especially on uneven floors. Baying connectors and baying brackets facilitate the connection of multiple enclosures into a single unit. The modular design allows for step-by-step expansion or adaptation of the enclosure configuration.
Advantages in Operation
The enclosure offers high mechanical stability due to the 1.5 mm thick sheet steel and a durable surface treatment. The modular construction enables flexible use and expansion. The protection rating IP 54 provides sufficient protection for many industrial applications. Compatibility with various accessories allows customized adaptation to specific requirements. Compliance with standards IEC 61 439-1/-2 and IEC 61 641 ensures safety and reliability of the enclosure during operation.
| General | |
| Material | Sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, rear panel: dip-primed, externally powder-coated, textured lacquer, base plates: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Cabinet frame, rear panel, base plates |
| Degree of protection IP according to EN 60 529 | Up to IP 54 (depending on cladding) |
| Test basis | IEC 61 439-1/-2, IEC 61 641 |
| Width | 800 mm |
| Height | 2.200 mm |
| Depth | 800 mm |
| PCF/VE (Cradle-to-Gate) | 162.6 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 9680828 VX modular enclosure, W x H x D: 800x2200x800 mm?
The article Rittal 9680828 VX modular enclosure, W x H x D: 800x2200x800 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9680828 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9680828 VX modular enclosure, W x H x D: 800x2200x800 mm always at the best possible price. We can give you a discount of 2% on Rittal 9680828 VX modular enclosure, W x H x D: 800x2200x800 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
