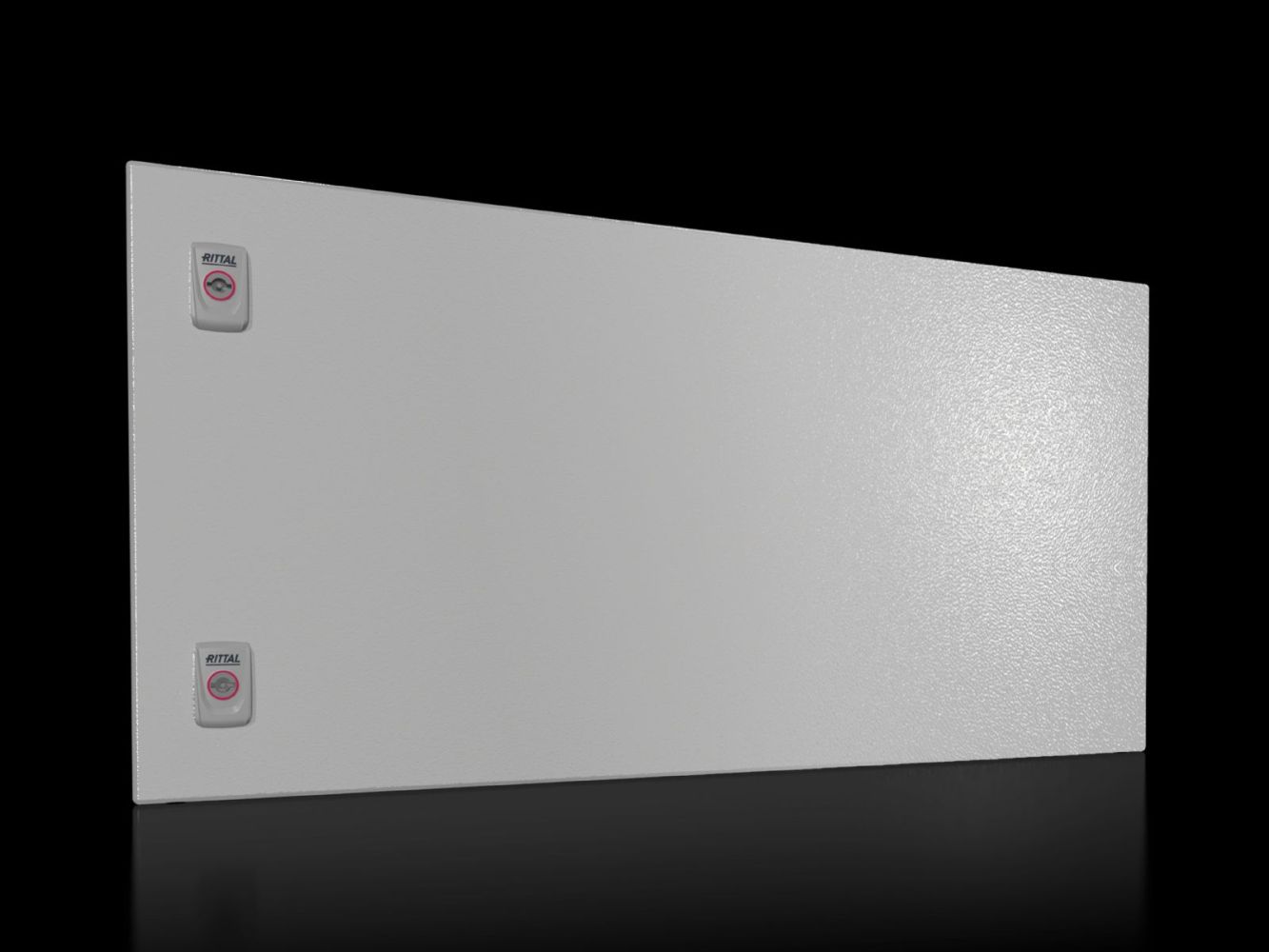

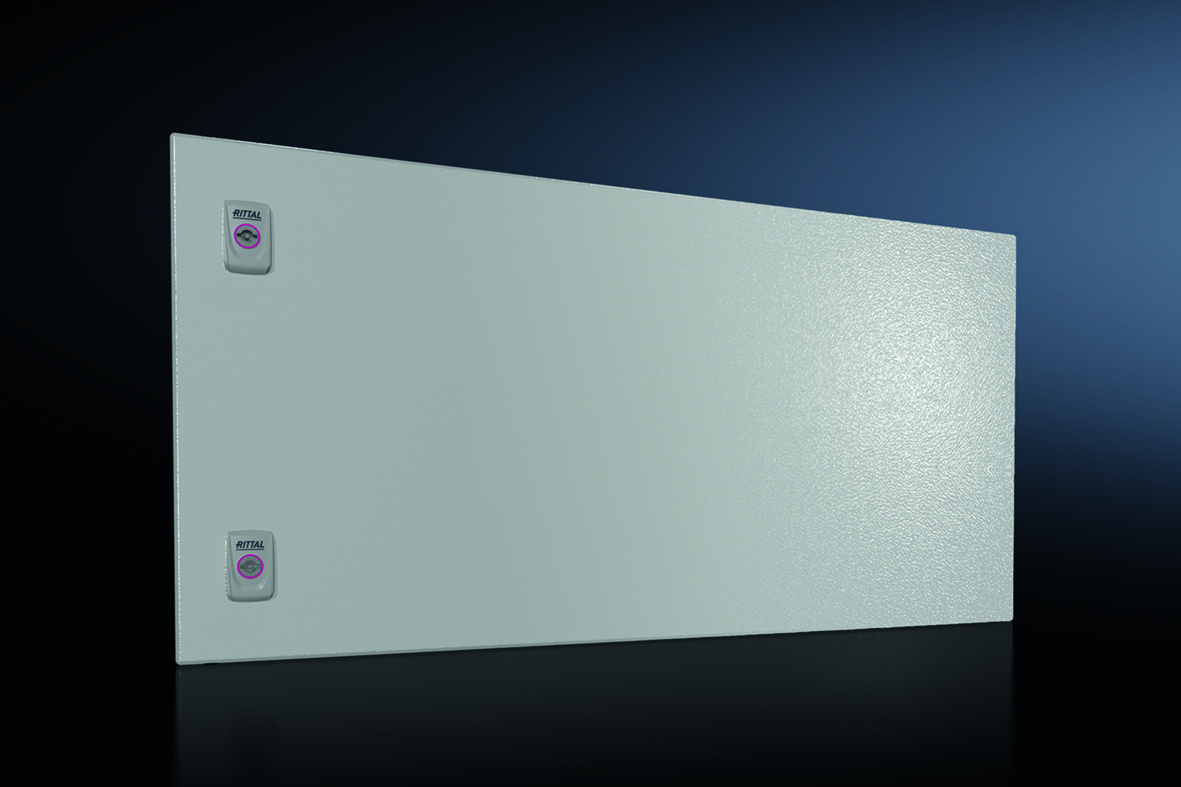

Rittal 9682184 SV partial door for VX, W x H: 800x400 mm
|
68,77 EUR |
|
|
( 81,84 EUR incl. VAT ) ≈ £57.56 | ≈ $75.58 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1988605 |
| Mfg Part No: | 9682184 |
| UPC/EAN: | 4028177929036 |
| Weight: | 7.56 kg |
| Type: | SV 9682184 |
Product information for Rittal 9682184:
Applications
The partial door is typically used in combination with other partial doors or front trim panels in VX enclosures to enable a modular and flexible covering of the enclosure front. It can be combined freely with other partial doors, with a front trim panel required at the top and bottom ends. The door is intended for use in enclosures where full coverage is not necessary, for example in areas where only specific modules or assemblies need to be accessible. The door hinge direction can be chosen either right or left, allowing for flexible installation at various positions within the enclosure.
Functions and Equipment in Detail
The partial door is standard-equipped with a double-bar lock insert, which includes two locks. This lock can be replaced with other lock inserts, particularly type A, to adapt security or access to the enclosure front. The maximum opening angle of the door is 130°, providing sufficient access for maintenance and installation work.
Technology Explained Simply
The use of steel sheet with 2 mm thickness ensures high mechanical stability and resistance to mechanical stress. The structured paint surface offers additional protection against corrosion and contamination, thereby extending the door’s service life. The IP 54 protection rating means the door is protected against dust and splashing water, making it suitable for use in production halls, workshops, or other industrial environments. The door is not intended for outdoor use or in highly humid environments, as IP 54 does not provide protection against ingress of water or high air humidity.
Compatibility and Accessories
The partial door is specifically designed for VX enclosures with a width of 800 mm. As accessories, various front trim panels are available, including front trim panels for the upper and lower positions in dimensions 800x300 mm and 800x100 mm, respectively, in protection ratings IP 54 and IP 2X. Additionally, lock inserts made of zinc die-cast in various types are available, which can replace the standard double-bar lock insert. A punched mounting rail with a length of 598 mm as well as mini comfort handles for padlocks are also available as suitable accessories to optimise installation and access.
Installation and Mounting
Installation is carried out using the hinges, partition strip, and fastening materials included in the delivery scope. The door can be hinged on either the right or left side, allowing flexible adaptation to the respective enclosure configuration. The maximum opening angle of 130° ensures sufficient access for maintenance work.
Operational Advantages
The modular design of the partial door enables a flexible and adaptable covering of the enclosure front, allowing only the necessary areas to be accessible. The use of front trim panels at the top and bottom ends ensures a clean and closed appearance. The IP 54 protection rating provides sufficient protection against dust and splashing water, increasing the reliability of the control system. The replaceable lock insert allows adaptation to different security requirements or access concepts.
| General | |
| Material | Sheet steel, 2 mm |
| Surface protection | Structured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | Partition door, partition web, hinges, locking parts, including fastening material |
| Note | Maximum opening angle of partition doors 130° |
| Lock | Number of locks: 2 |
| Width | 800 mm |
| Height | 400 mm |
| Suitable for | Width: = 800 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 |
| PCF/VE (Cradle-to-Gate) | 27.9 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 9682184 SV partial door for VX, W x H: 800x400 mm?
The article Rittal 9682184 SV partial door for VX, W x H: 800x400 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682184 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9682184 SV partial door for VX, W x H: 800x400 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682184 SV partial door for VX, W x H: 800x400 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
