Rittal 9680808 VX modular enclosure, W x H x D: 800x2000x800 mm
|
396,75 EUR |
|
|
( 472,13 EUR incl. VAT ) ≈ £332.08 | ≈ $436.03 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441043 |
| Mfg Part No: | 9680808 |
| UPC/EAN: | 4028177929555 |
| Weight: | 63.6 kg |
| Type: | VX 9680.808 |
Product information for Rittal 9680808:
Applications
The enclosure is intended for use in industrial environments, particularly in plants requiring a modular structure, such as in manufacturing automation, power supply, or process control. The modular design allows for flexible adaptation to different requirements, for example by installing partial doors or internal partitioning. The protection rating IP 54, which is achieved depending on the cladding, makes the enclosure suitable for areas where dust and splashing water may occur, although not for permanent moisture or submersion. The test basis IEC 61 439-1/-2 and IEC 61 641 ensures compliance with relevant standards for switchgear and electrical equipment.
Functions and Equipment in Detail

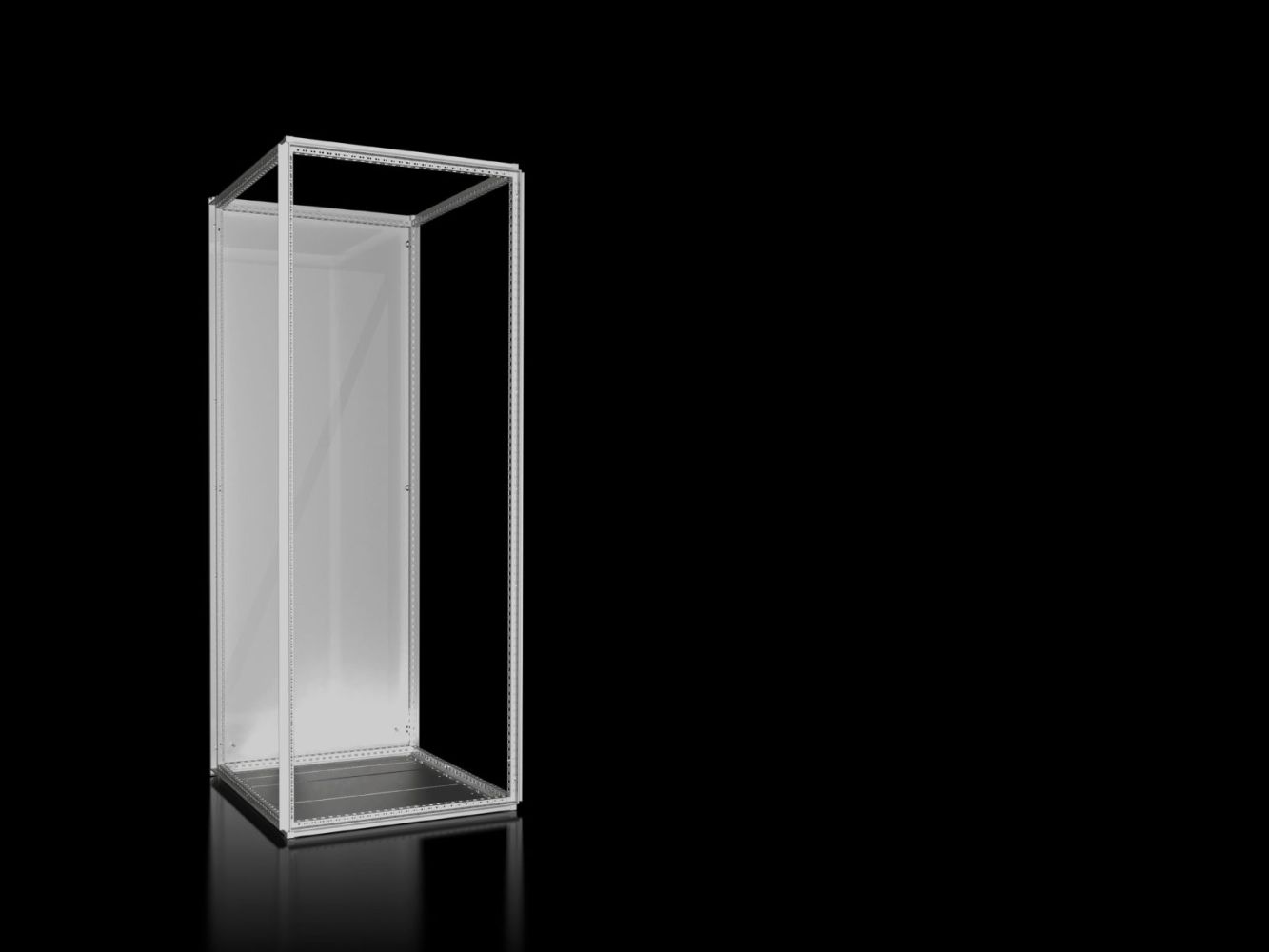

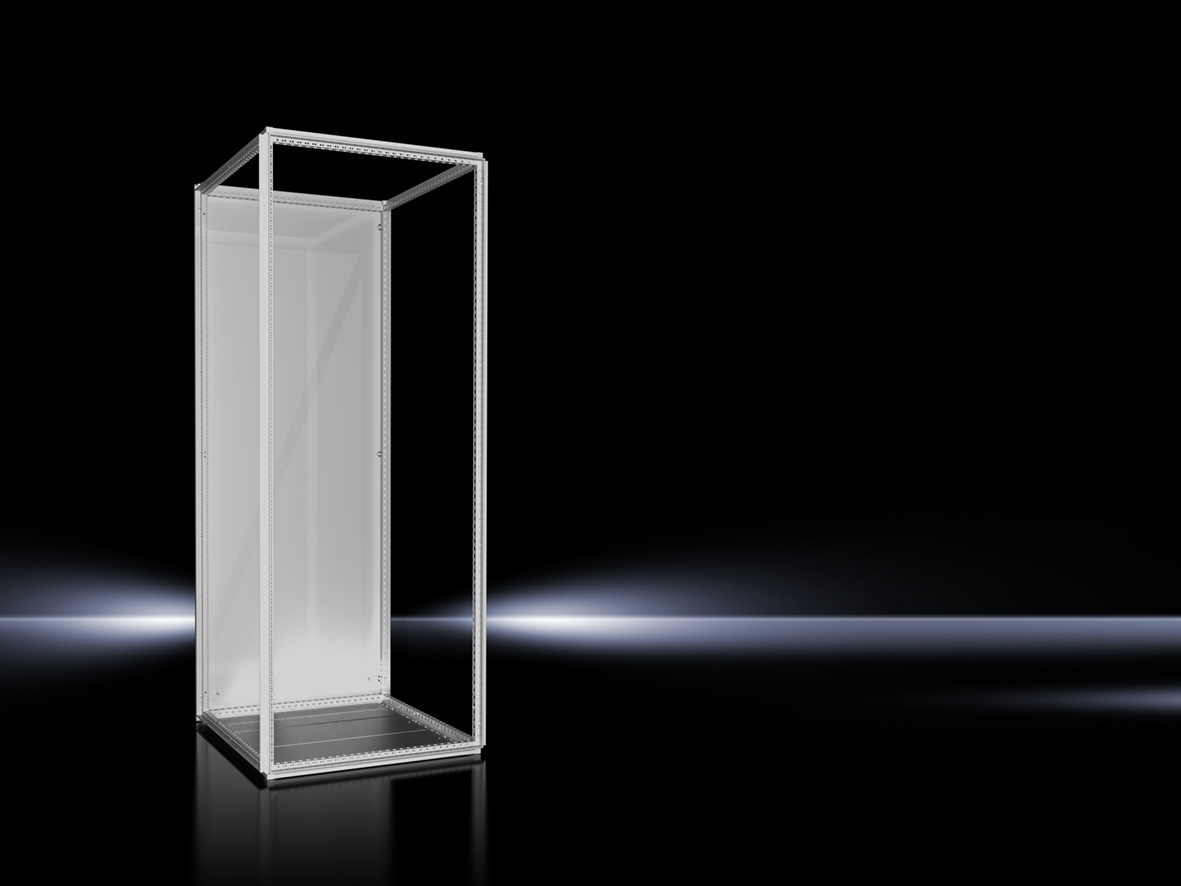

The delivery scope includes the enclosure frame, rear panel, and base sheets. These components form the basic structure of the enclosure and enable the construction of a stable and secure housing for electrical assemblies. The use of steel sheet with a thickness of 1.5 mm ensures sufficient mechanical stability and protective function. The dip-primed surface of the frame and rear panel provides a good base for subsequent coating and increases corrosion resistance. The powder-coated and textured outer surface of the rear panel ensures an attractive appearance and improved abrasion resistance.
Technology Explained Simply
The protection rating IP 54 means that the enclosure is protected against dust and splashing water. This is particularly important in production halls or other environments where fine particles or water mist may occur. The exact protection class depends on the type of cladding, i.e. which doors, front trim panels or other covers are used. The test basis IEC 61 439-1/-2 refers to safety requirements for switchgear, while IEC 61 641 defines requirements for electrical safety and functionality of switching devices and installations. The use of galvanized base sheets increases corrosion resistance in the lower area, where moisture or chemical influences occur more frequently.
Compatibility and Accessories
The enclosure is part of the VX25 bayed system and can be extended with various accessories to meet specific requirements. These include, for example, SV partial doors in various heights (e.g. 150 mm, 200 mm, 600 mm, 1800 mm), SV front trim panels for the lower or upper front side (e.g. 800x300 mm, 800x100 mm), as well as plinth corner pieces with plinth trim panels in various heights (e.g. 100 mm, 200 mm). Additionally, baying connectors, baying brackets and baying blocks are available to connect multiple enclosures together. The side panels can be screwed together to create a stable connection with adjacent enclosures. The use of partial doors enables targeted access to specific areas of the enclosure interior without having to open the entire enclosure.
Mounting and Installation
Mounting is carried out by screwing together the individual components. The enclosure frame forms the load-bearing frame to which the rear panel and base sheets are attached. The use of levelling feet (e.g. M12, adjustment height 18–43 mm) allows precise alignment of the enclosure on uneven floors. The baying connectors and brackets facilitate the connection of multiple enclosures into a single unit, with the screwing of the side panels ensuring a stable connection. The modular design allows flexible adaptation to the respective plant, with the exact mounting instructions being adapted to the specific application.
Advantages in Operation
The enclosure offers high mechanical stability due to the 1.5 mm thick steel sheet and good corrosion resistance due to the surface treatment. The modular design allows flexible adaptation to different requirements, thereby simplifying maintenance and servicing. The protection rating IP 54 protects against dust and splashing water, increasing reliability in industrial environments. The use of standardized components from the VX25 system simplifies planning and replacement of parts. The PCF value of 158.2 kg CO2 eq (Cat B) provides an indication of the product’s environmental impact, with the value being approximately calculated based on product weight and self-declared.
| General | |
| Material | Sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, rear panel: dip-primed, externally powder-coated, textured lacquer, base plates: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Cabinet frame, rear panel, base plates |
| Degree of protection IP according to EN 60 529 | Up to IP 54 (depending on cladding) |
| Test basis | IEC 61 439-1/-2, IEC 61 641 |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 800 mm |
| PCF/VE (Cradle-to-Gate) | 158.2 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
