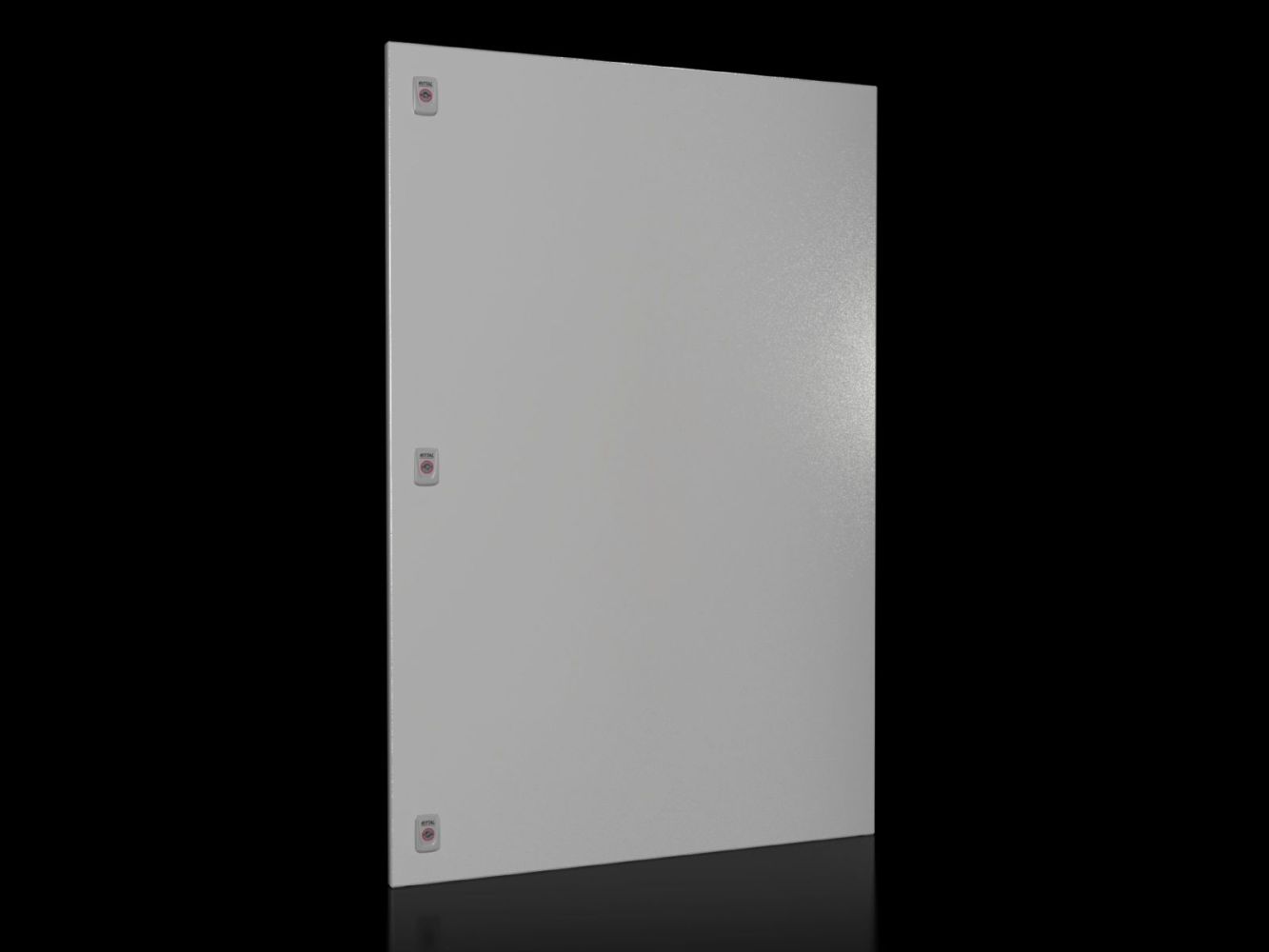

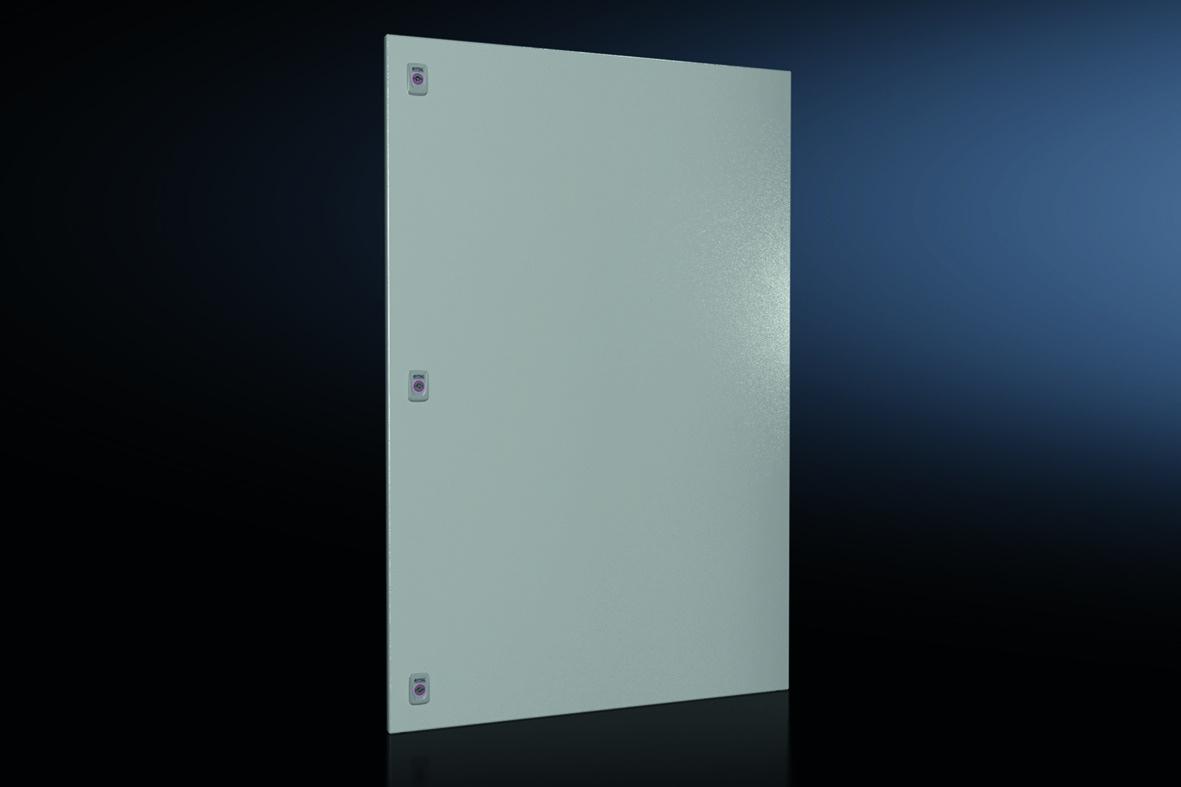

Rittal 9682192 SV partial door for VX, W x H: 800x1200 mm

Your rating:
Average rating
product review for Rittal 9682192 SV partial door for VX, W x H: 800x1200 mm
( 4.5 / 5 ) 2 ratings
Rittal 9682192
This image may differ from the desired article.
Rittal 9682192Rittal 9682192Rittal 9682192
-11% 156,52 EUR 175,84 EUR
( 186,26 EUR incl. VAT )
≈ £131.01  |  ≈ $172.02
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9682192 SV partial door for VX, W x H: 800x1200 mm
Datasheet:file_download Download
Lieske Part No.:1988607
Mfg Part No: 9682192
UPC/EAN: 4028177929135
Weight:21.4 kg
Type:SV 9682192

Product information for Rittal 9682192:

The Rittal SV 9682192 is a partial door for VX enclosures, which can be used as a replacement for a complete door or a rear panel. It is specifically designed for enclosures with a width of 800 mm and offers a flexible design option for the front side of enclosures. The door has dimensions of 800 mm width and 1,200 mm height and is manufactured from sheet steel with a thickness of 2 mm. The surface is coated with a structured lacquer, providing a robust and uniform appearance, and the colour corresponds to the standard RAL 7035. The protection rating IP 54 according to IEC 60 529 ensures protection against dust and splashing water, making the door suitable for use in industrial environments.

Applications
The partial door is intended for use in VX enclosures where a modular and adaptable front design is required. It can be combined freely with other partial doors to create different openings and access options. A front trim panel is required at the top and bottom of the door to ensure a clean appearance. The door is suitable for applications where partial accessibility of the enclosure front is needed, for example for maintenance or access to specific components without opening the entire enclosure door.

Functions and equipment in detail
The SV 9682192 features a double-bar lock insert, which is mounted as standard and can be exchanged for lock inserts of type A. The door is equipped with three locks, ensuring secure latching. The hinges allow a maximum opening angle of 130°, providing sufficient access to the interior of the enclosure. The door hinge can be mounted on the right or left side, enabling flexible installation on various enclosure configurations.

Technology explained simply
The use of sheet steel with a thickness of 2 mm ensures high mechanical stability and resistance to mechanical stress. The structured lacquer coating not only provides an aesthetically pleasing surface but also offers additional protection against corrosion and wear. The IP 54 protection rating means the door is protected against dust and splashing water, making it suitable for use in production halls, workshops or other industrial environments. The maximum opening of 130° allows good access without having to remove the door completely.

Compatibility and accessories
The partial door is specifically designed for VX enclosures with a width of 800 mm. It can be combined with various accessories, including front trim panels in different sizes and protection ratings (e.g. IP 54 or IP 2X), as well as lock inserts made of zinc die-cast. For doors without a viewing window with a height of 600 to 1000 mm, the installation of monitor frame 2305.000 is possible. Additionally, mini comfort handles for padlocks can be used to facilitate operation.

Installation and mounting
Mounting is carried out on VX enclosures with a width of 800 mm. The door is mounted using the hinges, partition strip, locking components and fastening materials included in the delivery scope. The door can be hinged on the right or left side, allowing flexible adaptation to the respective enclosure configuration.

Advantages in operation
The modular design of the partial door enables a flexible and adaptable front design that can be tailored to the specific requirements of the respective application. The IP 54 protection rating ensures high reliability in industrial environments. The integrated locks and the robust construction from sheet steel ensure safe and long-lasting use. The possibility to combine the door with various accessories expands the range of applications and enables a customised solution for different requirements.

General
MaterialSheet steel, 2 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryPartition door, partition web, hinges, locking parts, including fastening material
NoteMaximum opening angle of partition doors 130°
LockNumber of locks: 3
Width800 mm
Height1.200 mm
Suitable forWidth: = 800 mm
Degree of protection IP according to IEC 60 529IP 54
PCF/VE (Cradle-to-Gate)81.5 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682192, EAN: 4028177929135
