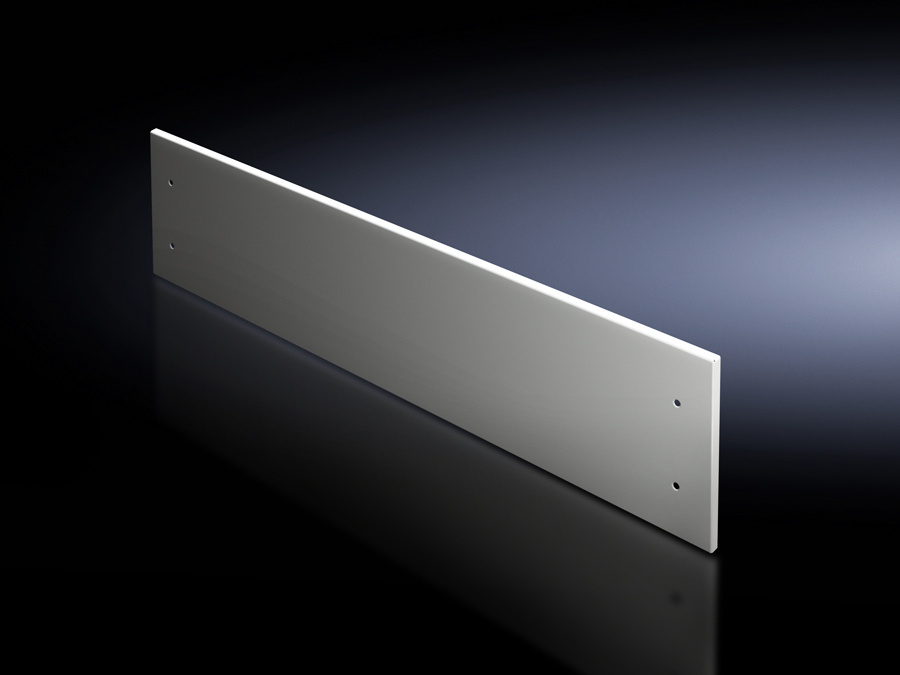

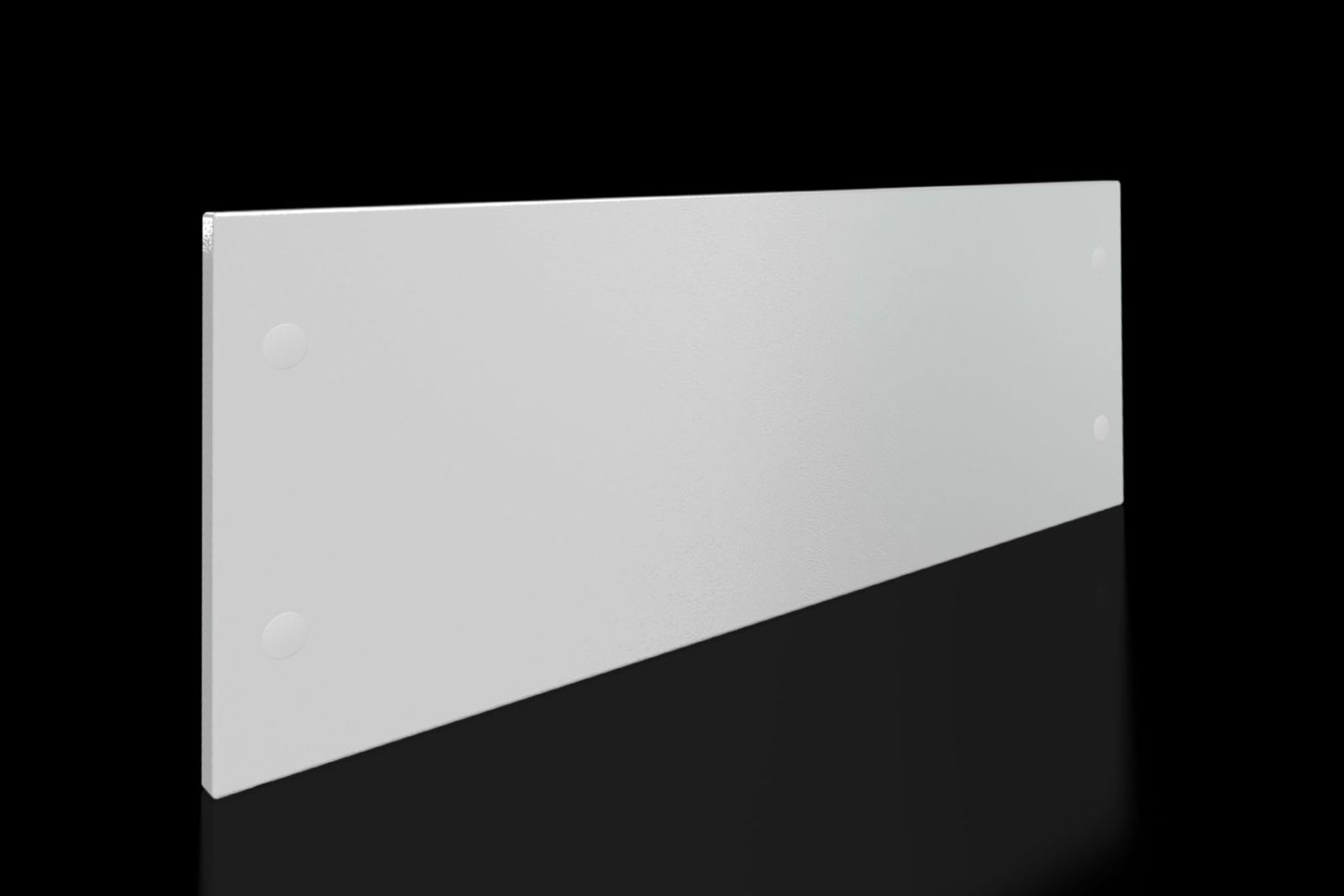

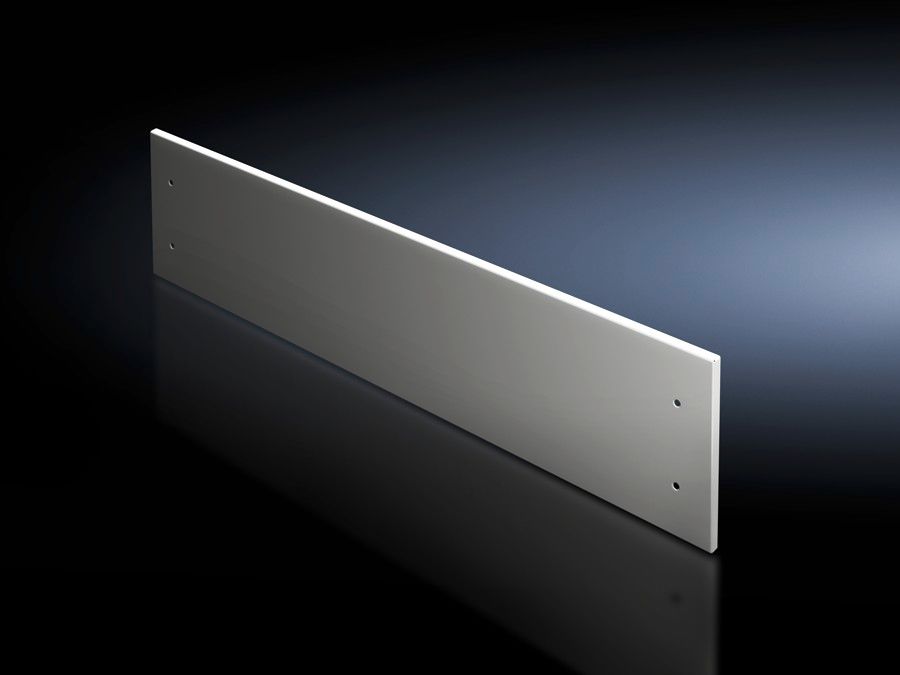

Rittal 9682328 SV front trim panel for VX, top, IP 54, W x H: 800x300 mm

Your rating:
Average rating
product review for Rittal 9682328 SV front trim panel for VX, top, IP 54, W x H: 800x300 mm
( 4.5 / 5 ) 4 ratings
Rittal 9682328
This image may differ from the desired article.
Rittal 9682328Rittal 9682328Rittal 9682328Rittal 9682328
60,84 EUR
( 72,40 EUR incl. VAT )
≈ £50.92  |  ≈ $66.86
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9682328 SV front trim panel for VX, top, IP 54, W x H: 800x300 mm
Datasheet:file_download Download
Lieske Part No.:1597395
Mfg Part No: 9682328
UPC/EAN: 4028177929661
Weight:4.08 kg
Type:VX 9682328

Product information for Rittal 9682328:

The Rittal SV front trim panel for VX, top, type 9682328, is a closed front element for finishing the upper edge of enclosures when partial doors are used. The product serves as a visual and functional closure of the front side and enables modular design of the enclosure front. The front trim panel is made of sheet steel with a thickness of 1.5 mm and features a surface coated with structured paint in the colour RAL 7035, ensuring a robust and uniform coating. The dimensions are a height of 300 mm and a width of 800 mm, making it specifically designed for enclosures with a width of 800 mm. The front trim panel is equipped with a protection rating of IP 54, meaning it is dust-tight and protected against splashing water from all directions – a feature that makes it suitable for use in industrial environments where certain environmental stresses are expected.

Applications
The front trim panel is primarily used as an upper closure when partial doors are employed in modular enclosure constructions. It serves to visually complete the front side and simultaneously create a closed, protective surface. Installation takes place at the top edge of the enclosure, and the front trim panel can be removed from the outside by loosening the screws. This allows for easy maintenance and replaceability without the need to open the entire enclosure. The front trim panel is suitable for use in industrial plants, such as in manufacturing automation, process control, or power supply technology, where a clean and functional front design is required.

Functions and Equipment in Detail
The front trim panel is designed as a closed element with no openings or cutouts. It is supplied with mounting hardware required for installation on the enclosure front. Installation is carried out using screws accessible from the outside, allowing the front trim panel to be easily removed if necessary. The structured paint surface offers high resistance to mechanical stress and environmental influences, ensuring the front trim panel maintains its function even in demanding operating environments.

Technology Explained Simply
The use of sheet steel with a thickness of 1.5 mm ensures sufficient mechanical stability and resistance to deformation. The structured paint coating not only provides an aesthetically pleasing surface but also offers additional protection against corrosion and contamination. The IP 54 protection rating ensures the front trim panel is protected against dust and splashing water, making it suitable for use in indoor areas with increased humidity or in production halls. The colour RAL 7035 is a grey tone that integrates well into industrial environments and offers a neutral, professional appearance.

Compatibility and Accessories
The front trim panel is specifically designed for enclosures with a width of 800 mm and thus matches the standard dimensions of the VX series. It is used in combination with partial doors, with installation carried out via the partition strip components included in the partial door delivery. The front trim panel is not intended for use without partial doors and serves exclusively as an upper closure. Compatibility is limited to the specified width; deviations in width are not provided for.

Mounting and Installation
Installation is performed by securing the front trim panel to the top edge of the enclosure using the screws included in the delivery. The front trim panel is screwed from the outside, allowing it to be easily removed if needed without having to open the entire enclosure. Positioning is horizontal at the top edge, with the front trim panel covering the full width of 800 mm.

Operational Advantages
The front trim panel provides a simple and clean solution for designing the enclosure front, especially when partial doors are used. The ability to remove the front trim panel from the outside facilitates maintenance and inspection of components behind it. The robust construction from sheet steel and the protective structured paint coating ensure a long service life and low maintenance requirements. The IP 54 protection class provides sufficient protection against environmental influences, increasing reliability in industrial operation. The front trim panel is thus a functional and aesthetic component of modular enclosure design.

General
ModelClosed
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Height300 mm
Suitable forWidth: = 800 mm
PCF/VE (Cradle-to-Gate)15.5 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682328, EAN: 4028177929661

Questions & answers

What is the delivery time of Rittal 9682328 SV front trim panel for VX, top, IP 54, W x H: 800x300 mm?

The article Rittal 9682328 SV front trim panel for VX, top, IP 54, W x H: 800x300 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682328 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682328 SV front trim panel for VX, top, IP 54, W x H: 800x300 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682328 SV front trim panel for VX, top, IP 54, W x H: 800x300 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
