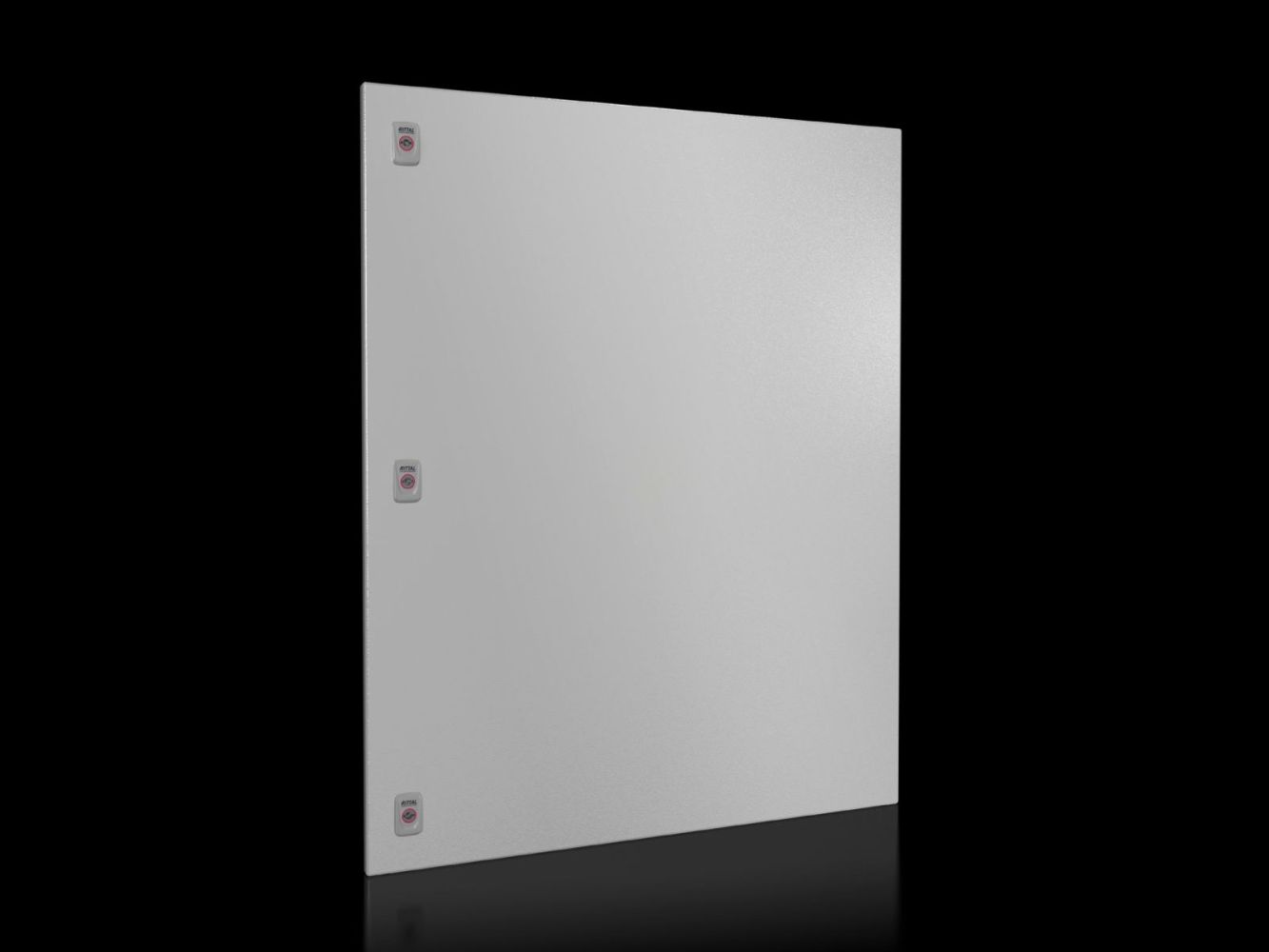

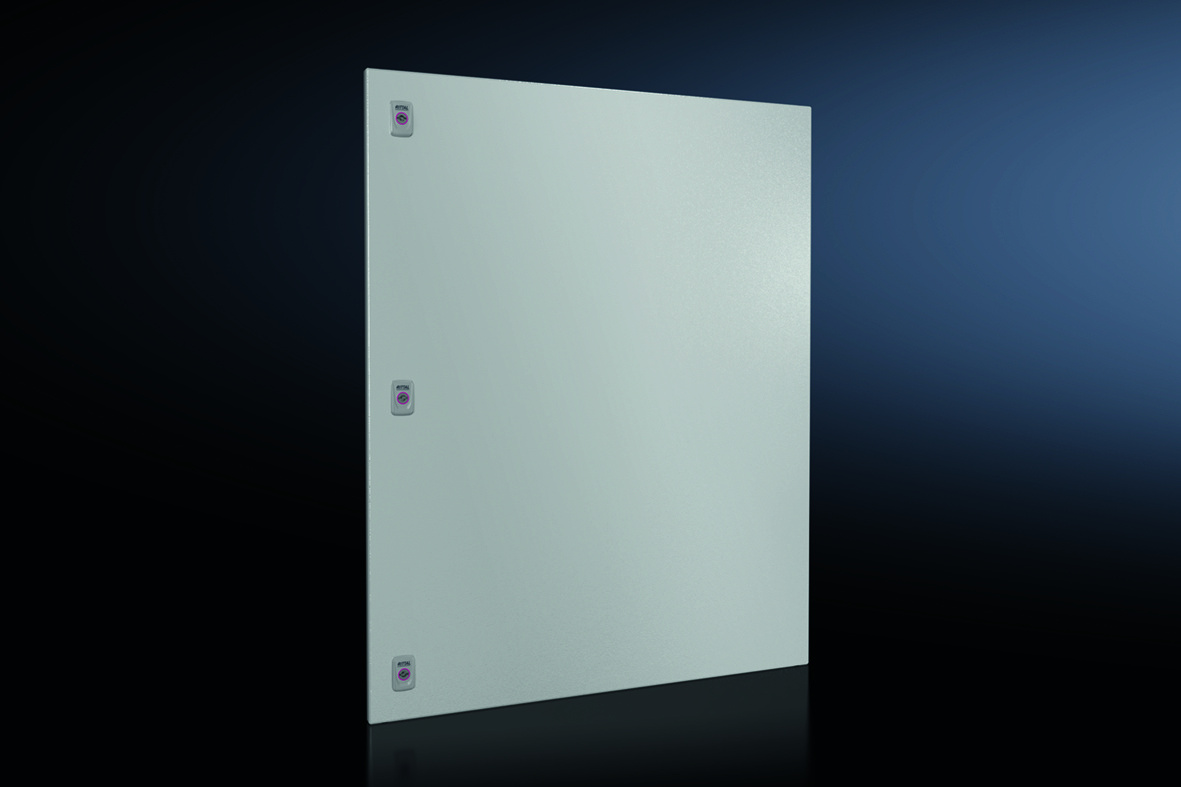

Rittal 9682180 SV partial door for VX, W x H: 800x1000 mm

Your rating:
Average rating
product review for Rittal 9682180 SV partial door for VX, W x H: 800x1000 mm
( 4.3 / 5 ) 4 ratings
Rittal 9682180
This image may differ from the desired article.
Rittal 9682180Rittal 9682180Rittal 9682180
-12% 146,17 EUR 166,41 EUR
( 173,94 EUR incl. VAT )
≈ £122.34  |  ≈ $160.64
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9682180 SV partial door for VX, W x H: 800x1000 mm
Datasheet:file_download Download
Lieske Part No.:1597415
Mfg Part No: 9682180
UPC/EAN: 4028177928909
Weight:18.5 kg
Type:VX 9682180

Product information for Rittal 9682180:

Rittal SV partial door for VX, type 9682180, is a system accessory for enclosures of the VX series. It serves as a replacement for a complete door or rear panel and enables a flexible, modular division of the enclosure interior. The partial door has a width of 800 mm and a height of 1,000 mm and is specifically designed for enclosures with a width of 800 mm. The product is made of sheet steel with a thickness of 2 mm and is coated with a textured lacquer in the colour RAL 7035, providing a robust surface with good resistance to mechanical stress and environmental influences.

Applications
The partial door is designed for use in industrial enclosures, particularly in systems where modular division of the interior space is required. It is suitable for applications where a full door is not necessary, but a closed partition with protective function is desired. Partial doors can be combined freely with each other, enabling individual configurations for different requirements. At the top and bottom ends of the partial door, a front trim panel is required to ensure a clean appearance and complete coverage.

Functions and equipment in detail
The partial door is supplied with a partition rib, hinges, locking components, and mounting materials. The hinges allow a maximum opening angle of 130°, ensuring sufficient accessibility to the enclosure interior. The door can be hinged on the right or left side, enabling flexible installation at various positions within the enclosure. The locking system consists of three locks, which are standardly equipped with a double-bar lock insert. These can be replaced with lock inserts of type A, allowing adaptation to specific security requirements or existing locking systems.

Technology explained simply
The partial door offers a protection rating of IP 54 according to IEC 60 529, meaning it is protected against dust and splashing water. This makes it suitable for use in industrial environments where some contamination or moisture exposure is expected. The use of 2 mm thick sheet steel ensures high mechanical stability and resistance to damage. The textured lacquer surface provides additional protection against corrosion and mechanical stress. The maximum opening angle of 130° ensures sufficient accessibility without the door opening excessively, which could compromise stability.

Compatibility and accessories
The partial door is specifically designed for VX enclosure systems with a width of 800 mm. For complete installation, front trim panels are required at the top and bottom ends, with various variants available such as SV front trim panels for VX in different heights and protection ratings (e.g. IP 54 or IP 2X). Additionally, lock inserts made of zinc die-cast in various lengths and types can be used to adapt the locking function. For doors without a viewing window and heights from 600 to 1,000 mm, the monitor frame 2305.000 can be installed, enabling integration of control or display units. Mini comfort handles AX can also be combined to facilitate operation.

Mounting and installation
Mounting is carried out using the mounting materials included in the delivery. The partial door is attached at the designated mounting points within the enclosure, with hinges and locking components already pre-mounted. The optional right- or left-hand hinge option allows flexible adaptation to the specific enclosure configuration. Installation requires no special tools beyond standard mounting aids such as screwdrivers.

Advantages in operation
The modular design of the partial door enables flexible use of the enclosure interior, allowing different components or modules to be separated and arranged systematically. The IP 54 protection rating ensures sufficient protection against dust and splashing water, increasing the reliability of installed devices. The replaceable lock inserts offer flexibility in adapting to specific security requirements. The robust construction from sheet steel and textured lacquer ensures long service life and low maintenance requirements. The optional hinge direction and the ability to combine partial doors increase planning freedom in enclosure design.

General
MaterialSheet steel, 2 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryPartition door, partition web, hinges, locking parts, including fastening material
NoteMaximum opening angle of partition doors 130°
LockNumber of locks: 3
Width800 mm
Height1.000 mm
Suitable forWidth: = 800 mm
Degree of protection IP according to IEC 60 529IP 54
PCF/VE (Cradle-to-Gate)69.7 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682180, EAN: 4028177928909

Questions & answers

What is the delivery time of Rittal 9682180 SV partial door for VX, W x H: 800x1000 mm?

The article Rittal 9682180 SV partial door for VX, W x H: 800x1000 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682180 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682180 SV partial door for VX, W x H: 800x1000 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682180 SV partial door for VX, W x H: 800x1000 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
