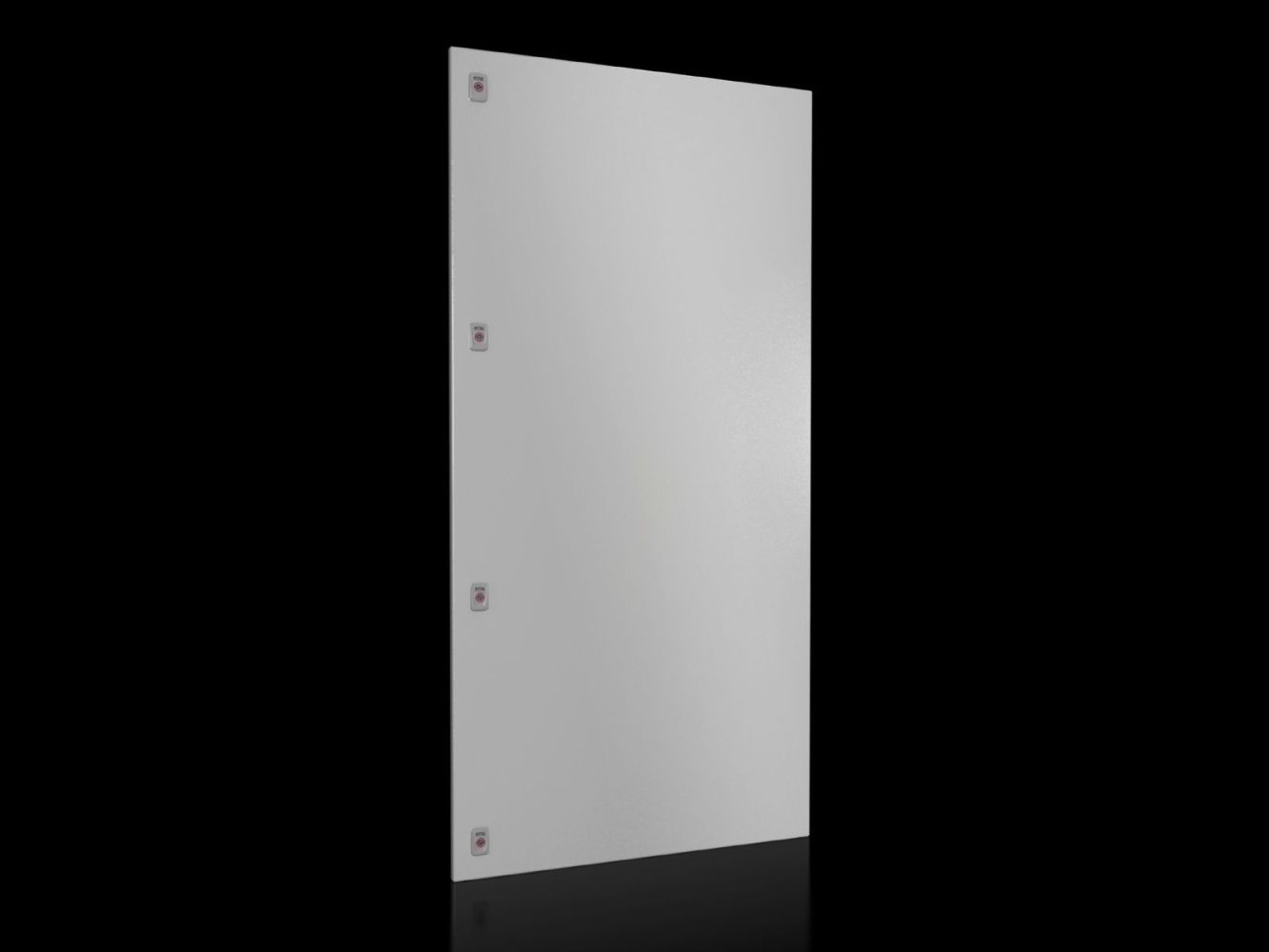

Rittal 9682196 SV partial door for VX, W x H: 800x1600 mm
|
184,46 EUR |
|
|
( 219,51 EUR incl. VAT ) ≈ £154.39 | ≈ $202.72 plus delivery charges: 235,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 468953 |
| Mfg Part No: | 9682196 |
| UPC/EAN: | 4028177929050 |
| Weight: | 28 kg |
| Type: | SV 9682196 |
Product information for Rittal 9682196:
Applications
The partial door is intended for use in VX enclosures where a flexible division of the front side is required. It can be combined freely with other partial doors to create individual arrangements. A front trim panel is required at the top and bottom of the partial door to ensure a closed appearance. The door is suitable for applications where partial access to the interior of the enclosure is required without opening the entire front.
Functions and Equipment in Detail
The SV 9682196 features an optional door hinge, which can be mounted on the right or left side. This allows for flexible integration into existing enclosure configurations. The door opens to a maximum angle of 130°, ensuring sufficient access to the interior components. The locking system consists of four double-barrel lock inserts, which are mounted as standard and can be exchanged for lock inserts of type A. The delivery includes the partial door, a partition, hinges, locking components, and the necessary mounting materials.
Technology Explained Simply
The use of sheet steel with a thickness of 2 mm ensures high mechanical stability and durability. The textured paint in RAL 7035 provides an even surface coating that is both aesthetically pleasing and resistant to corrosion and mechanical stress. The protection class IP 54 means that the door is dust-tight and protected against splashing water from all directions, making it suitable for use in production halls, workshops, or other industrial environments. The maximum opening angle of 130° allows good access to the interior of the enclosure without having to remove the door completely.
Compatibility and Accessories
The partial door is specifically designed for VX enclosures with a width of 800 mm. As accessories, front trim panels for VX enclosures are available, which must be mounted at the top and bottom of the partial door. Front trim panels are available in various sizes and protection classes, including IP 54 and IP 2X, as well as in different heights such as 300 mm or 100 mm. Additionally, lock inserts made of zinc die-cast with a length of 27 mm are available as replacements for the standard double-barrel locks. Mini comfort handles for AX and KX systems are also available as supplements to facilitate operation of the locks.
Mounting and Installation
The partial door is mounted at the designated attachment points in the enclosure. The door can be hinged on the right or left side, allowing flexible adaptation to the specific enclosure configuration. Mounting is done using the materials included in the delivery, ensuring a secure and stable installation.
Advantages in Operation
The SV 9682196 offers a flexible solution for dividing enclosure fronts, improving access to specific areas within the enclosure. The combinability with other partial doors enables a customised arrangement that meets the specific requirements of the user. The robust construction from sheet steel and the protection class IP 54 ensure a long service life and reliability in industrial environments. The standard locks provide secure access, which can be adapted as needed by replacing them with other lock inserts.
| General | |
| Material | Sheet steel, 2 mm |
| Surface protection | Structured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | Partition door, partition web, hinges, locking parts, including fastening material |
| Note | Maximum opening angle of partition doors 130° |
| Lock | Number of locks: 4 |
| Height | 1.600 mm |
| Suitable for | Width: = 800 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 |
| PCF/VE (Cradle-to-Gate) | 106.7 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
