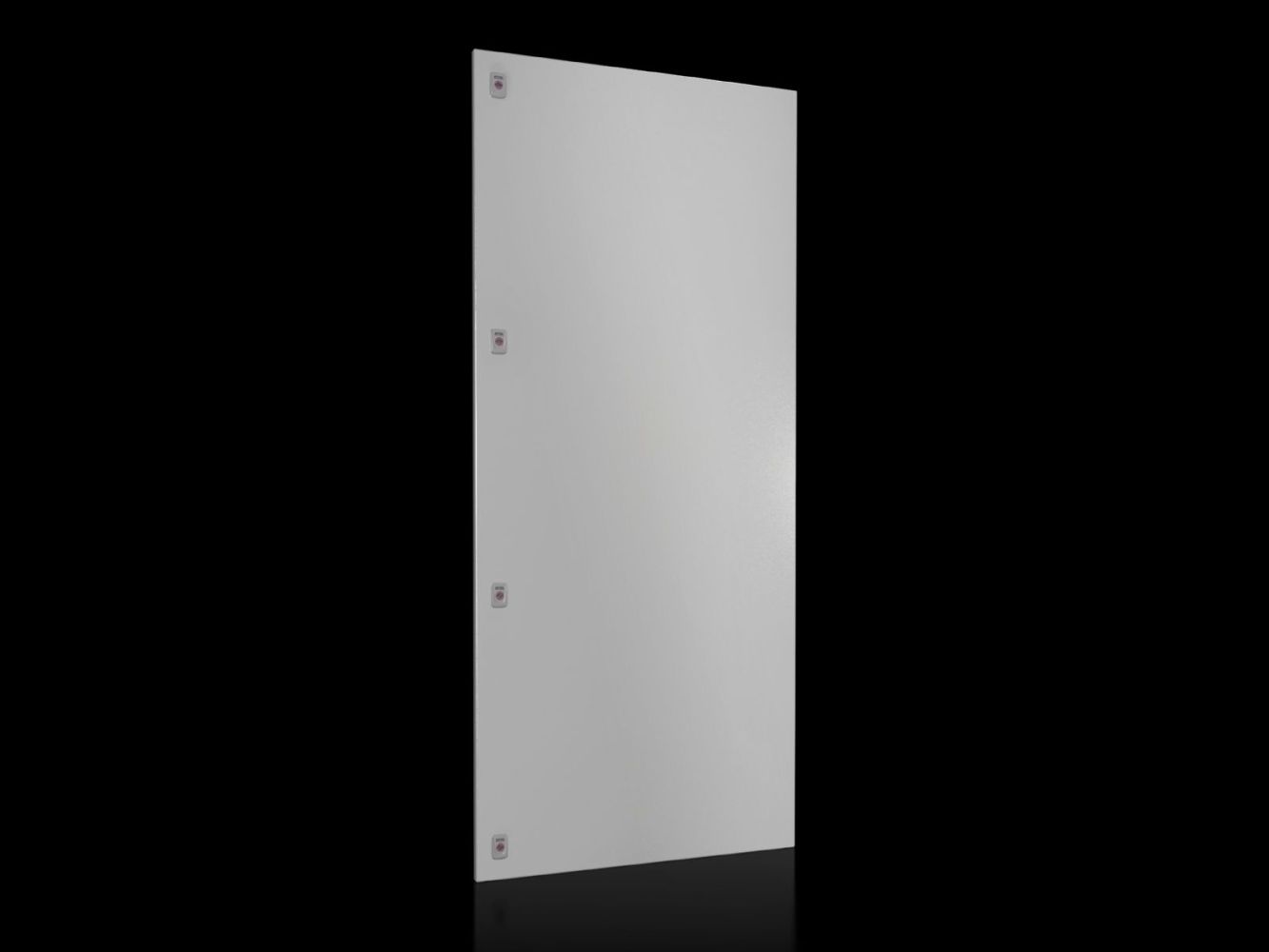

Rittal 9682198 SV partial door for VX, W x H: 800x1800 mm

Your rating:
Average rating
product review for Rittal 9682198 SV partial door for VX, W x H: 800x1800 mm
( 5 / 5 ) 2 ratings
Rittal 9682198
This image may differ from the desired article.
Rittal 9682198Rittal 9682198Rittal 9682198
-12% 199,87 EUR 227,55 EUR
( 237,85 EUR incl. VAT )
≈ £167.29  |  ≈ $219.66
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 9682198 SV partial door for VX, W x H: 800x1800 mm
Datasheet:file_download Download
Lieske Part No.:468955
Mfg Part No: 9682198
UPC/EAN: 4028177928763
Weight:31 kg
Type:SV 9682198

Product information for Rittal 9682198:

The Rittal SV 9682198 is a partial door for VX enclosures, which can be used as a replacement for a complete door or a rear panel. With a height of 1,800 mm and a width of 800 mm, it is specifically designed for enclosures of these dimensions. The door is made of steel sheet with a thickness of 2 mm and is coated with a structured paint in the colour RAL 7035, providing a robust surface with good resistance to mechanical stress and environmental influences. The protection rating IP 54 according to IEC 60 529 ensures protection against dust and splashing water, making the partial door suitable for use in industrial environments where some contamination and moisture exposure are expected.

Applications include modular fitting of VX enclosures, particularly in systems where a full door is not required, but a secure and structured separation of components or devices is desired. The partial door can be combined freely with other partial doors to create individual coverings. At the top and bottom ends of the partial door, a front trim panel is required to ensure a clean visual appearance and to cover the edges.

Functions and equipment in detail include a standard double-bar lock insert, which is interchangeable with lock inserts of type A. The door features four locks, ensuring secure latching. The hinges allow a maximum opening angle of 130°, providing sufficient access to the interior of the enclosure. The door swing can be chosen on the right or left side, allowing flexible installation at various positions within the enclosure. The delivery includes the partial door itself, a partition strip, hinges, locking parts, and the necessary mounting materials.

Technology explained simply shows that the partial door is made of robust steel sheet designed for industrial applications. The structured paint finish not only provides an aesthetic surface but also offers additional protection against corrosion and mechanical damage. The IP 54 protection rating means the door is protected against dust and splashing water, making it suitable for use in production environments, workshops, or other industrial spaces. The use of four locks ensures a stable and secure latching mechanism, even with frequent operation.

Compatibility and accessories include use with other partial doors from the SV series, enabling individual configurations. Matching front trim panels for VX enclosures in various sizes and protection ratings IP 54, IP 2X) are available, as well as lock inserts made of zinc die-cast and mini comfort handles for padlocks. For doors without a viewing window with a height of 600 to 1,000 mm, the installation of monitor frame 2305.000 is possible, enabling integration of control or display units.

Mounting and installation is carried out using the mounting materials included in the delivery. The partial door is attached at the designated mounting points within the enclosure, with hinges and locks already installed. The mounting is designed to be performed without additional tools or special skills. The optional right- or left-hand swing allows flexible adaptation to the specific enclosure configuration.

Operational advantages lie in modular flexibility, enabling only the necessary areas of an enclosure to be covered without installing a complete door. This reduces weight and material costs while maintaining safety and order within the enclosure. The IP 54 protection rating ensures reliable operation even in damp or dusty environments. The interchangeable lock inserts allow adaptation to different security requirements or access controls.

The partial door is designed for VX enclosures with a width of 800 mm and can be flexibly used in combination with other SV partial doors and accessories such as front trim panels and lock inserts. The use of steel sheet and structured paint ensures long service life and high durability in industrial applications. Delivery includes all necessary mounting components, enabling immediate installation.

General
MaterialSheet steel, 2 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryPartition door, partition web, hinges, locking parts, including fastening material
NoteMaximum opening angle of partition doors 130°
LockNumber of locks: 4
Height1.800 mm
Suitable forWidth: = 800 mm
Degree of protection IP according to IEC 60 529IP 54
PCF/VE (Cradle-to-Gate)118.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682198, EAN: 4028177928763
