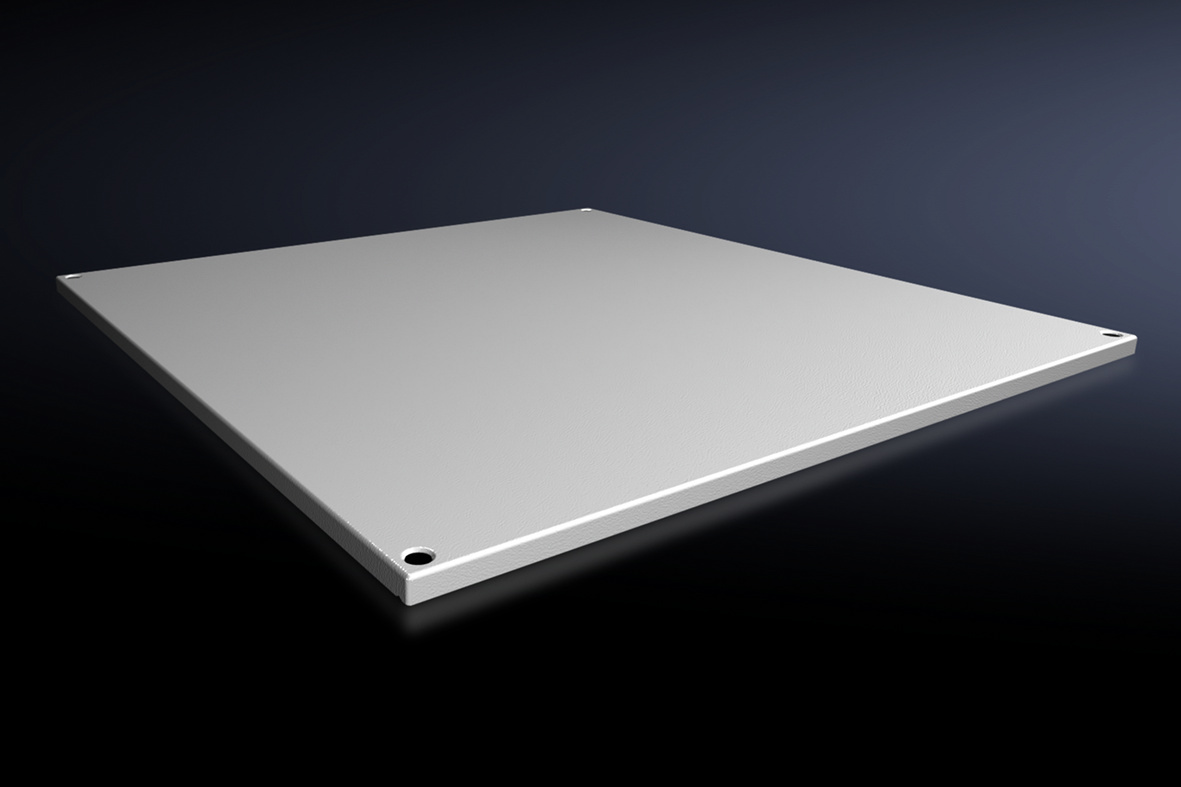

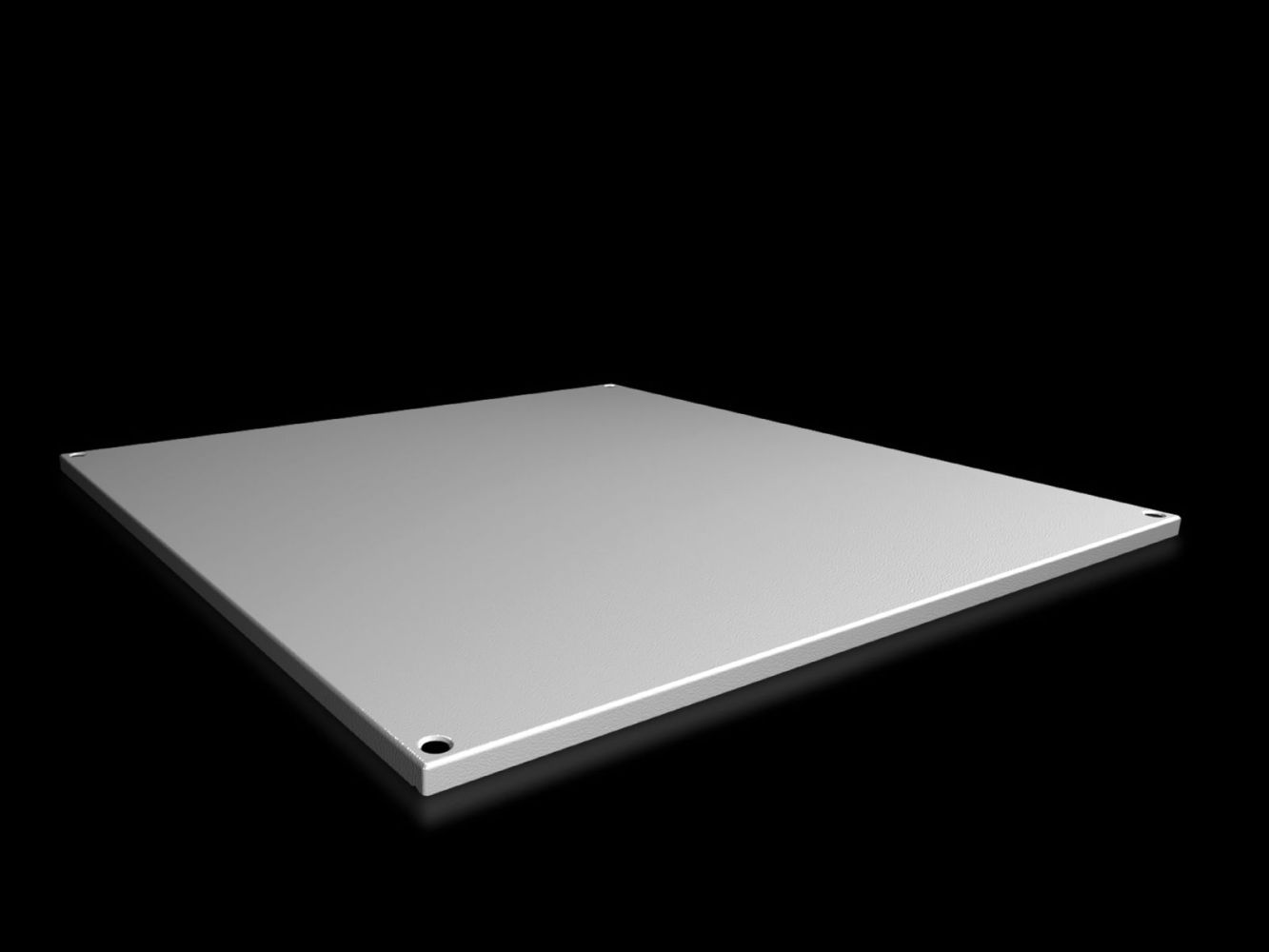

Rittal 9681688 SV roof plate for VX, width: 800x800 mm, IP 55

Your rating:
Average rating
product review for Rittal 9681688 SV roof plate for VX, width: 800x800 mm, IP 55
( 5 / 5 ) 2 ratings
Rittal 9681688
This image may differ from the desired article.
Rittal 9681688Rittal 9681688Rittal 9681688
72,34 EUR
( 86,08 EUR incl. VAT )
≈ £60.55  |  ≈ $79.50
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9681688 SV roof plate for VX, width: 800x800 mm, IP 55
Datasheet:file_download Download
Lieske Part No.:1903706
Mfg Part No: 9681688
UPC/EAN: 4028177926752
Weight:9.94 kg
Type:SV 9681688

Product information for Rittal 9681688:

The Rittal SV 9681688 is a roof plate for enclosures of the VX series, designed for a cabinet width and depth of 800 mm each. It serves as a replacement for the standard roof or as an addition for cabinets originally delivered without a roof plate. The product is specifically designed for use in industrial environments where a protection rating IP 55 is required to protect against dust and splashing water. The IP 55 protection rating ensures that the roof plate remains functional even in light rain or splashing water during operation, making it suitable for outdoor use or in humid indoor areas.

Applications

The roof plate is primarily used in industrial electrical engineering, particularly with enclosures from the VX series. It is suitable for installations in production halls, factories, or technical rooms where mechanical and weather-related stress on the cabinet roof must be considered. Using it as a replacement roof allows for modernizing existing cabinets to achieve IP 55 protection or to adapt the design to specific requirements.

Features and Equipment in Detail

The roof plate is made of sheet steel with a thickness of 1.5 mm, providing sufficient mechanical stability and resistance to external influences. The surface is coated with structured paint, forming a robust, scratch- and abrasion-resistant layer. The color corresponds to the standard RAL 7035, a gray shade commonly used in industry for enclosures to enable uniform visual design. The delivery includes mounting hardware required for installation on the cabinet. This material is already included in the delivery and enables secure and durable fixation of the roof plate.

Technical Explanation

The protection rating IP 55 means that the roof plate is protected against dust (protection class 5) and against splashing water from any direction (protection class 5). This is particularly important when the cabinet is installed in areas where water or fine particles may enter the environment, for example in the food industry, chemical production, or outdoor applications. The 1.5 mm sheet steel material provides sufficient strength to withstand mechanical loads such as wind pressure or light impacts. The structured paint coating ensures long service life and prevents corrosion, even under prolonged moisture exposure.

Compatibility and Accessories

The roof plate is specifically designed for enclosures of the VX series with a width and depth of 800 mm. It is compatible with the standard dimensions of this series and can be directly installed into the existing mounting holes. Suitable accessories include transport lugs for VX, TS, SE, which are helpful during shipping and installation, as well as pressure plugs for roof plates IP 55, which serve to relieve pressure and ensure even loading during installation or operation.

Installation and Mounting

Installation is carried out using the mounting hardware included in the delivery. The holes in the roof plate are arranged to match the mounting points of the VX cabinet series. Installation requires no special tools other than a screwdriver or appropriate wrench. Fixation is achieved using screws included in the delivery, securing the roof plate firmly to the cabinet body.

Operational Advantages

The roof plate provides reliable protection against external influences, safeguarding the internal components of the enclosure from moisture and dust. The use of 1.5 mm sheet steel ensures high mechanical stability, extending the service life of the cabinet roof. The structured paint coating prevents corrosion and maintains a uniform surface finish that does not wear quickly even with prolonged use. Compatibility with the VX series and easy installation simplify replacement or addition to existing cabinets without additional effort.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forWidth: = 800 mm, Depth: = 800 mm


Product data sheet
Datasheet for Rittal 9681688, EAN: 4028177926752
