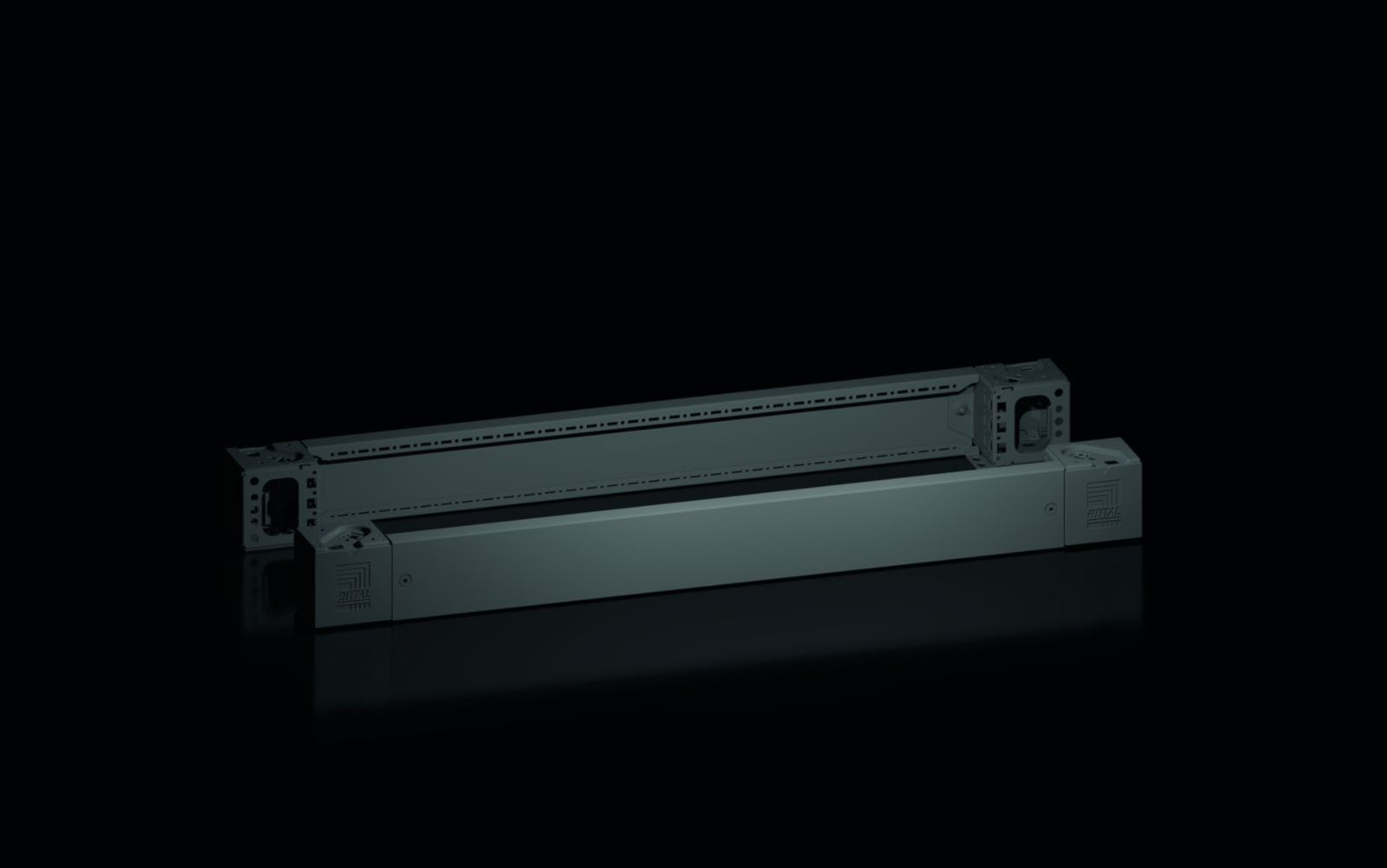

Rittal 8660005 plinth trim panel front and rear 100 mm for width 1000 mm
|
49,34 EUR 49,99 EUR |
|
|
( 58,71 EUR incl. VAT ) ≈ £41.30 | ≈ $54.22 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1103900 |
| Mfg Part No: | 8660005 |
| UPC/EAN: | 4028177978089 |
| Weight: | 6.188 kg |
| Type: | VX 8660005 |
Product information for Rittal 8660005:
Applications
This product is suitable for a wide range of enclosure systems, including housing types VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX, provided the width is exactly 1000 mm. It is particularly used in industrial environments where high stability of the plinth structure is required to securely fix enclosures to the floor and protect against shifting. The plinth trim panels serve not only as an aesthetic finish but also provide additional stabilization between plinths or as a base for internal expansion options.
Functions and Equipment in Detail
The plinth corner pieces are made of sheet metal, ensuring high mechanical strength and durability. The integrated front and rear trim panels allow for flexible cable entry and support internal plinth expansion. The delivery includes 4 plastic corner covers, 4 plinth corner pieces (100 mm high), 2 plinth trim panels front/rear (100 mm), and the necessary mounting hardware. The corner covers ensure a clean, rounded finish at the corners and prevent injury hazards.
Technology Explained Simply
The sheet metal construction provides high load-bearing capacity and resistance to mechanical stress. The RAL 9005 color is a dark gray standard tone used in many industrial facilities. The height of 100 mm is a standard dimension compatible with many enclosure systems. The plastic corner and baying covers are lightweight and resistant to external influences. Mounting is done via designated mounting points, with the included mounting hardware providing the necessary security.
Compatibility and Accessories
The plinth corner piece is compatible with the mentioned enclosure systems and can be combined with various accessories to extend functionality. These include, for example, levelling feet M12, C-profile rails, cable strain relief rails, VX castors, plinth baying brackets, VX plinth expansion angles, double swivel castors M12, optional trim panel fasteners, floor mounting brackets, levelling elements for plinths H100 mm, VX system chassis, and cable strain relief rails in angle profile. These components allow individual adaptation of the plinth structure to specific requirements.
Mounting and Installation
Mounting is performed at the lower corners of the enclosures, with the plinth corner pieces fastened at the designated mounting points. The trim panels are installed at the front and rear to ensure a closed, stable structure. The corner covers are placed over the corners to achieve a clean finish. The included mounting hardware facilitates installation and ensures secure anchoring.
Operational Advantages
The high stability of the plinth ensures secure standability of the enclosures, which is particularly important in environments with vibrations or frequent movement. The flexible internal expansion option allows individual adaptation to specific requirements. The flush termination between baying points ensures a professional appearance and facilitates maintenance. The use of sheet metal and plastic ensures long service life and resistance to mechanical and chemical stresses.
Type rating according to UL 50E
The product complies with Type ratings Type 1 and Type 12 according to UL 50E, indicating a protection class for indoor use with limited protection against dust and splashing water. This certification makes the product suitable for use in industrial indoor environments where some protection against external influences is required.
Material and Color
The plinth corner pieces and trim panels are made of sheet metal, ensuring high strength and durability. The corner and baying covers are made of plastic, providing a lightweight and durable cover. The RAL 9005 color is a dark gray standard tone used in many industrial facilities and integrates well into the environment.
Scope of Delivery
The scope of delivery includes 4 corner covers, 4 plinth corner pieces (100 mm high), 2 plinth trim panels front/rear (100 mm), and the necessary mounting hardware. These components are designed for mounting on enclosures with a width of 1000 mm and enable a stable and aesthetically pleasing installation.
Accessories and Alternatives
In addition to this item, various accessories are available that extend the functionality of the plinth. These include levelling feet M12, C-profile rails, cable strain relief rails, VX castors, plinth baying brackets, VX plinth expansion angles, double swivel castors M12, optional trim panel fasteners, floor mounting brackets, levelling elements for plinths H100 mm, VX system chassis, and cable strain relief rails in angle profile. These components can be combined according to requirements to create an optimal solution.
Weight and Environmental Impact
The product weighs 6.19 kg per packaging unit (2 pieces). The environmental impact (PCF) is 21.81 kg CO2 eq (Cat B) per packaging unit, with the value being approximately calculated and self-declared based on product weight. This information provides transparency regarding the environmental impact of the product over its lifecycle from raw material extraction to manufacturing (Cradle-to-Gate).
| General | |
| Material | Socket corner piece: sheet steel, socket front/rear cover: sheet steel, corner and gang cover: plastic |
| Colour | RAL 9005 |
| Scope of delivery | 4 corner covers, incl. fastening material, 4 socket corner pieces, 100 mm high, 2 socket front/rear panels, 100 mm |
| Note | Socket inserts, side-mounted, serve to terminate a socket unit or for additional stabilization between sockets or for internal fitting of sockets |
| Height | 100 mm |
| Suitable for | Housing type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX; Width: = 1,000 mm |
| Type rating according to UL 50E | Type 1, Type 12 |
| Weight/PU | 6,19 kg |
| PCF/VE (Cradle-to-Gate) | 21.81 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 8660005 plinth trim panel front and rear 100 mm for width 1000 mm?
The article Rittal 8660005 plinth trim panel front and rear 100 mm for width 1000 mm is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660005 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8660005 plinth trim panel front and rear 100 mm for width 1000 mm always at the best possible price. We can give you a discount of 2% on Rittal 8660005 plinth trim panel front and rear 100 mm for width 1000 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
