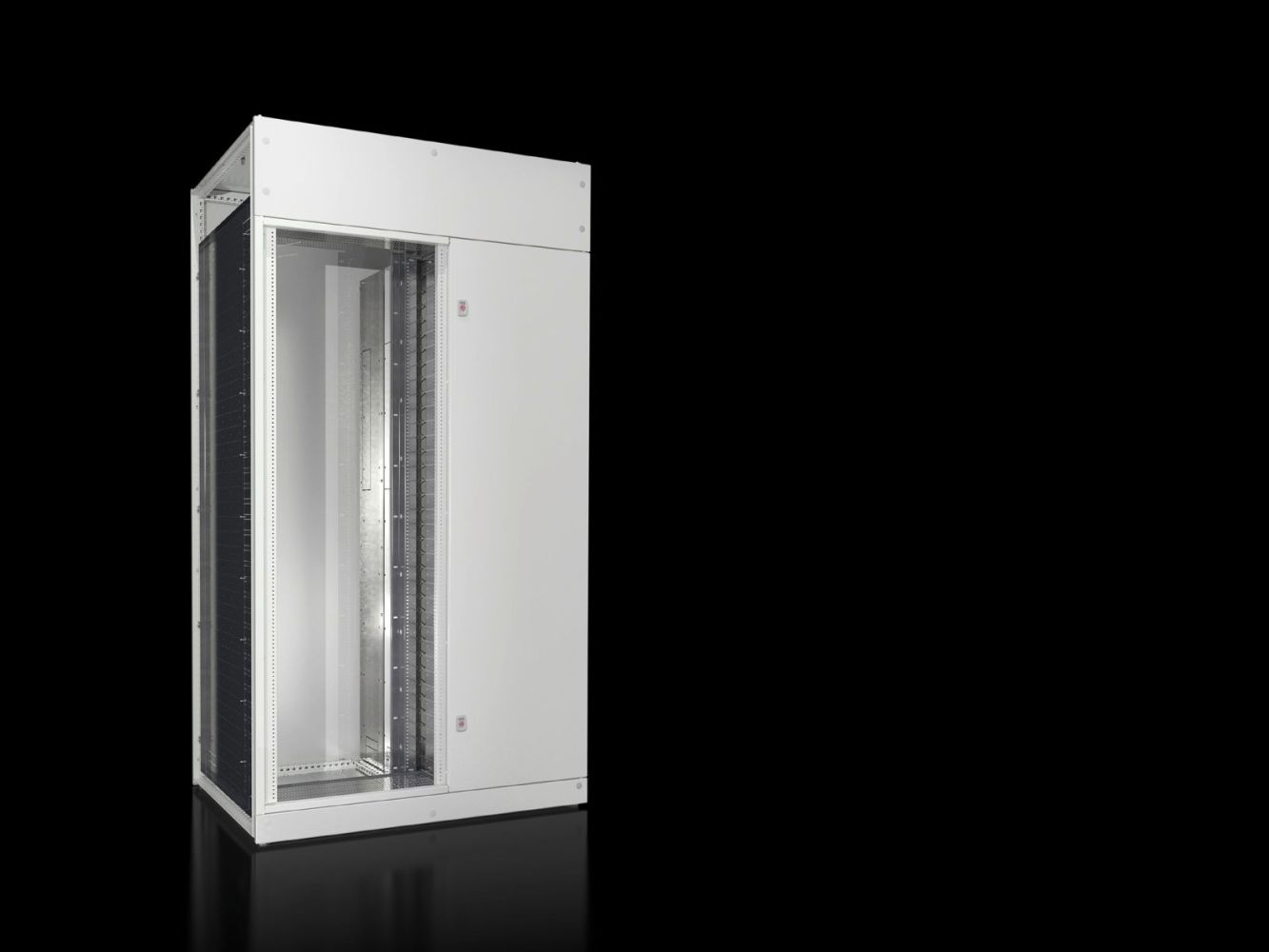

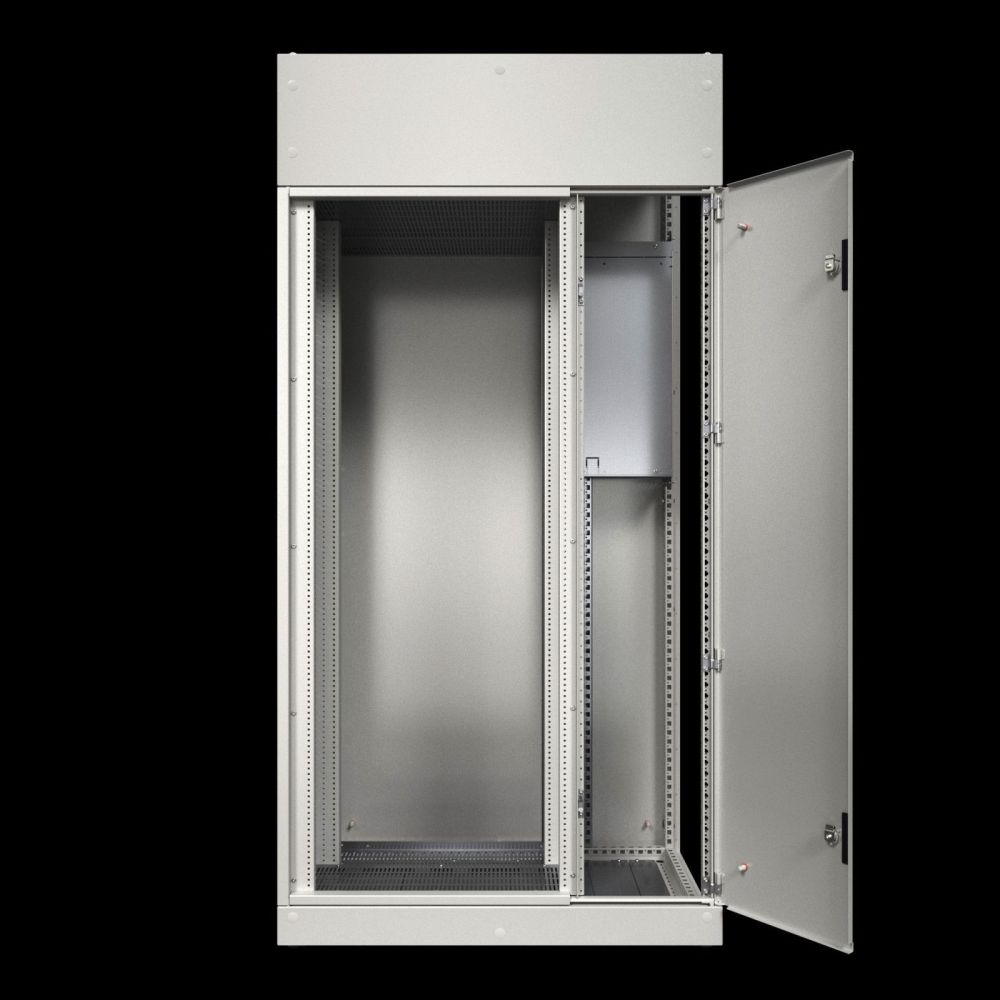

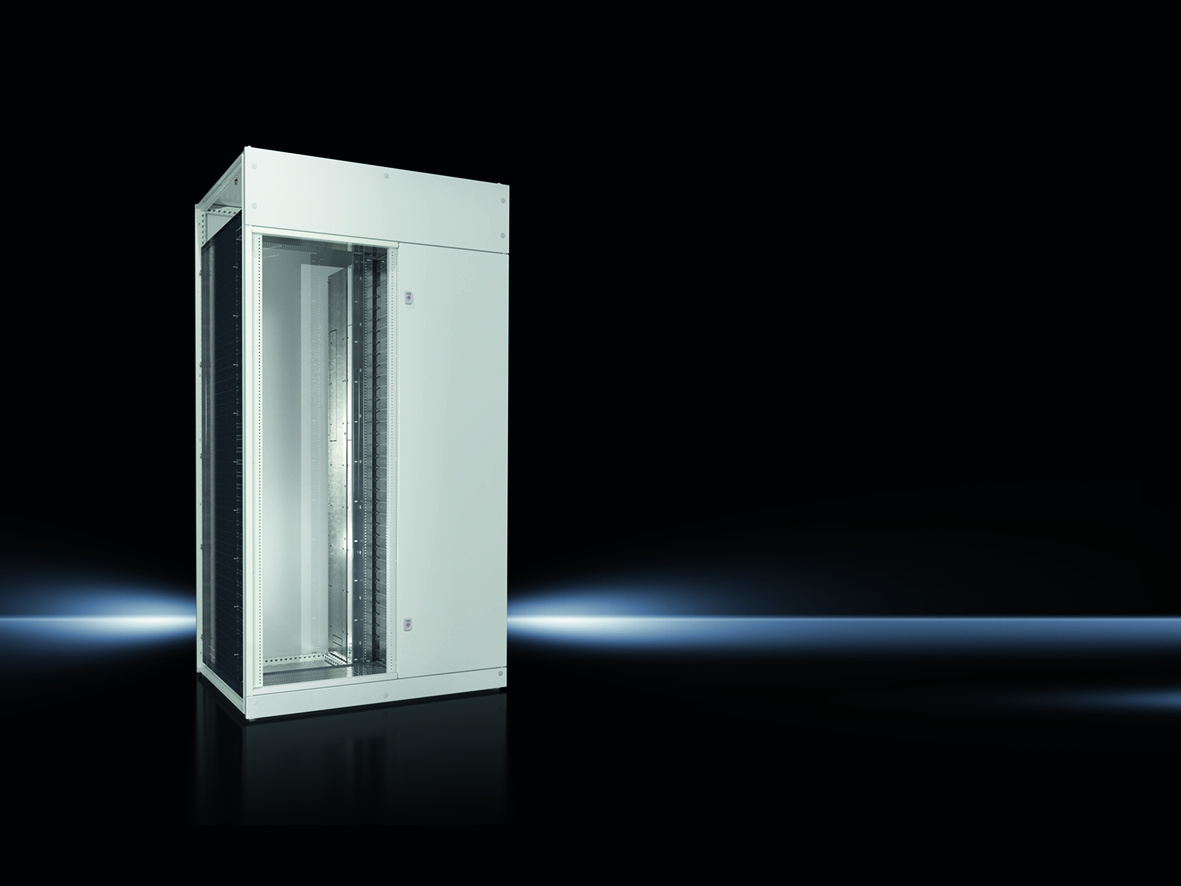

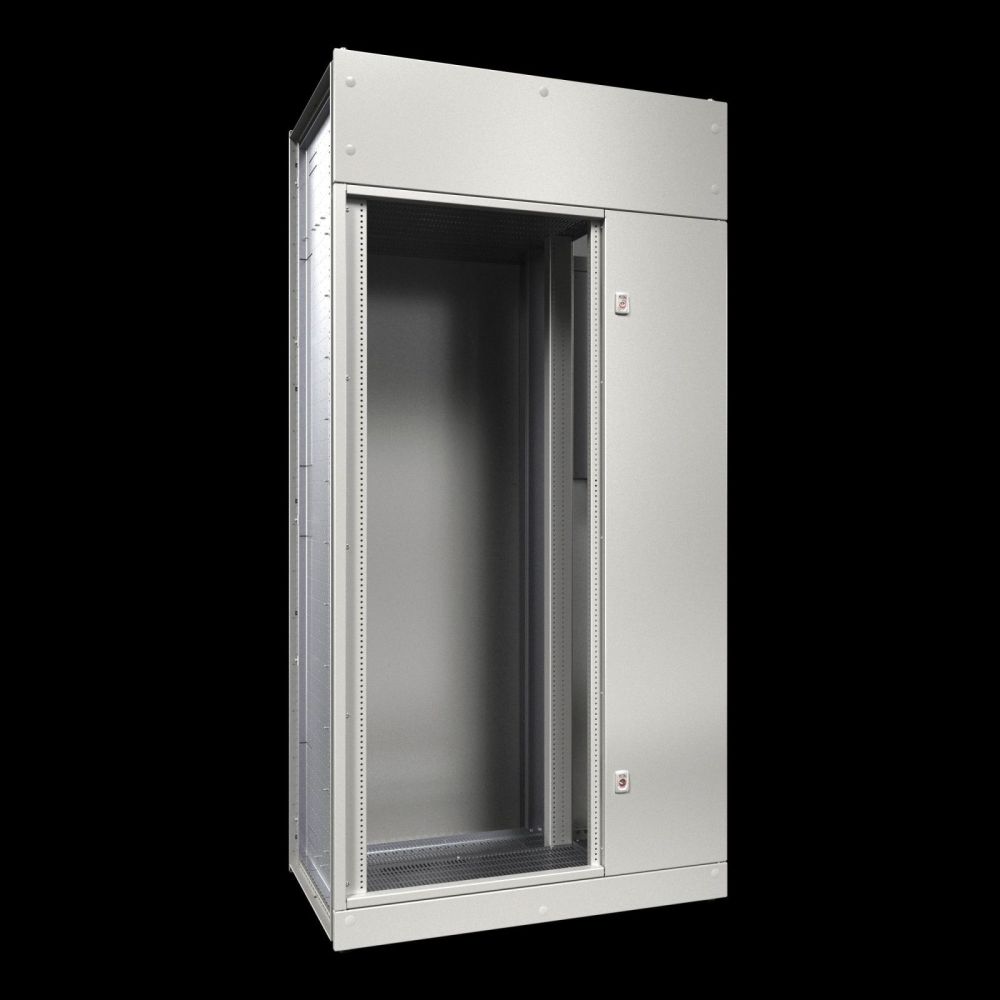

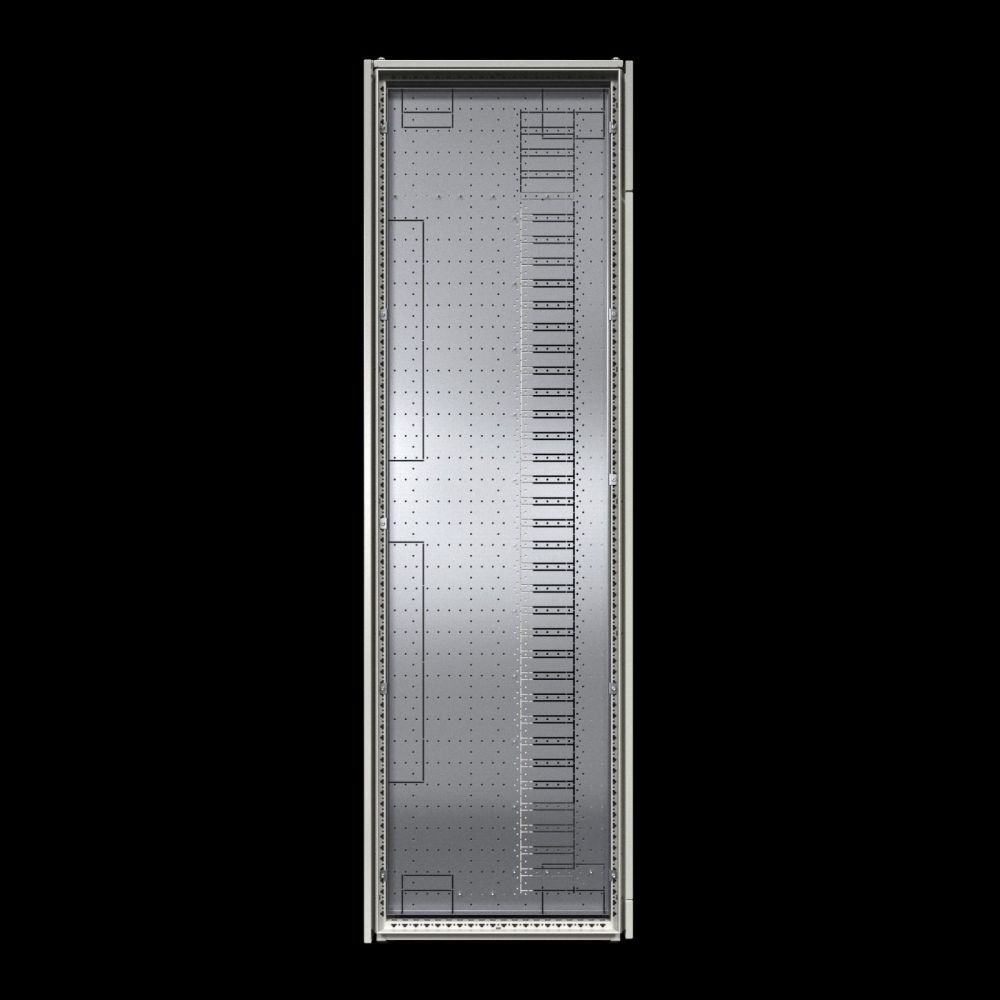

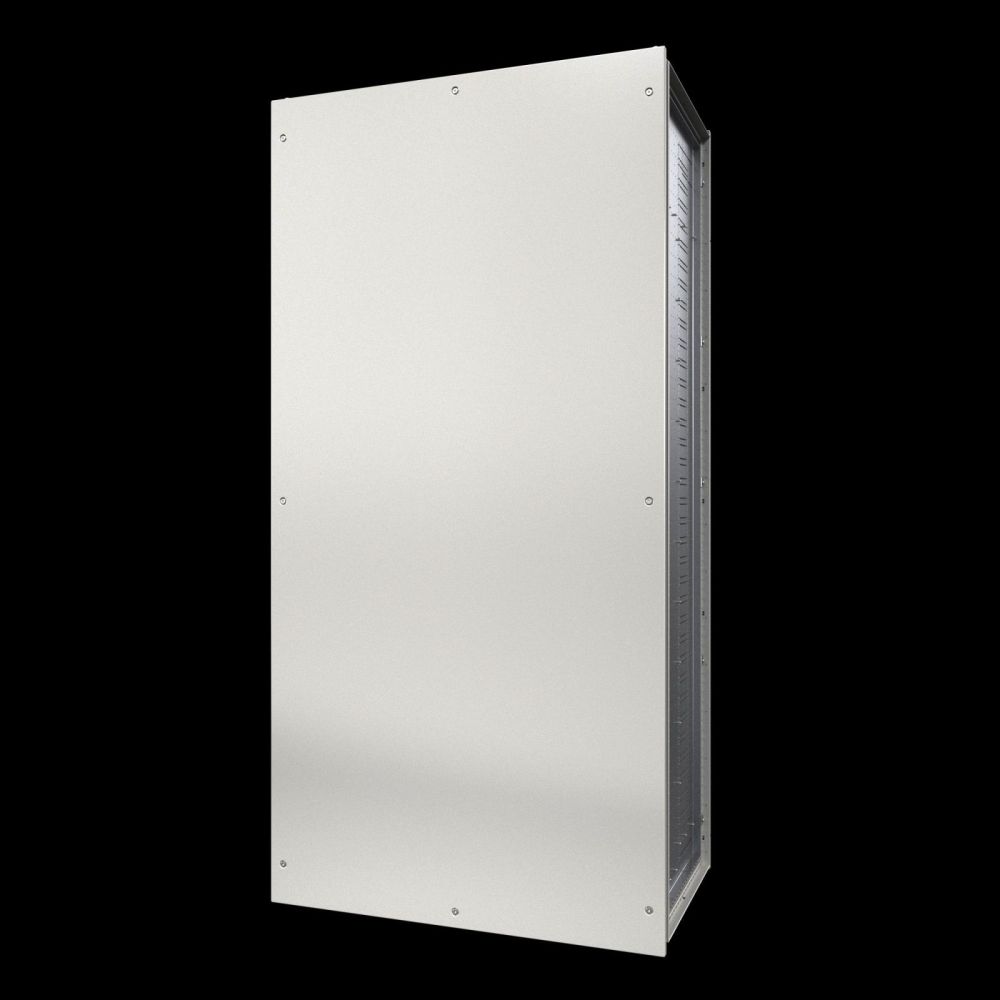

Rittal 9680025 VX enclosure, W x H x D: 1000x2200x600 mm

Your rating:
Average rating
product review for Rittal 9680025 VX enclosure, W x H x D: 1000x2200x600 mm
( 5 / 5 ) 2 ratings
Rittal 9680025
This image may differ from the desired article.
Rittal 9680025Rittal 9680025Rittal 9680025Rittal 9680025Rittal 9680025Rittal 9680025Rittal 9680025
-8% 2.070,00 EUR 2.241,86 EUR
( 2.463,30 EUR incl. VAT )
≈ £1,732.59  |  ≈ $2,274.93
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9680025 VX enclosure, W x H x D: 1000x2200x600 mm
Datasheet:file_download Download
Lieske Part No.:2035963
Mfg Part No: 9680025
UPC/EAN: 4028177937048
Weight:146.4 kg
Type:VX 9680025

Product information for Rittal 9680025:

The Rittal VX 9680025 is a switchgear enclosure from the baying system VX25, specifically designed for the distribution of electrical power using fuse switch disconnectors. The enclosure is made of steel sheet with a thickness of 1.5 mm and is powder-coated in the colour RAL 7035, featuring a structured paint finish. The construction includes an enclosure frame, a door, a roof plate, a rear panel, base sheets, front trim panels, function compartment side panels, and a mounting frame for switchgear strips from the manufacturers ABB SlimLine and Jean Müller SASIL. The closure is achieved via a 3 mm double bar. The dimensions are 1,000 mm width, 2,200 mm height, and 600 mm depth. The degree of protection IP according to EN 60 529 is up to IP 2X, with the exact protection class depending on the cladding. The test basis includes the standards IEC 61 439-1/-2 and IEC 61 641.

Applications
This switchgear enclosure is intended for use in industrial and commercial installations, particularly in areas where safe and structured distribution of electrical power is required. It is suitable for installations with fuse switch disconnectors used in power distribution and control. The robust construction made of steel sheet and the powder-coated surface ensure high mechanical stability and corrosion resistance. The dimensions allow for flexible integration into existing enclosure systems.

Functions and Equipment in Detail
The enclosure is equipped with an integrated mounting frame for switchgear strips, specifically designed for mounting fuse switch disconnectors from the manufacturers ABB SlimLine and Jean Müller SASIL. The front trim panels and function compartment side panels ensure proper covering and separation of electrical components. The closure with a 3 mm double bar ensures secure and reliable locking. The base sheets are galvanized, providing additional corrosion protection. The surface of the enclosure frame is dip-primed, while the door, roof, and rear panel are additionally powder-coated, enhancing durability and resistance to environmental influences.

Technology Explained Simply
The IP 2X protection rating means the enclosure is protected against contact with fingers and against solid foreign objects up to 12 mm in diameter. However, the exact IP class depends on the type of cladding, as additional covers or fastenings can affect the protective function. The materials used – steel sheet with a thickness of 1.5 mm and galvanized base sheets – ensure high mechanical strength and long-term durability. The powder-coated surface in RAL 7035 provides an even, weather-resistant protection suitable for indoor and outdoor use, provided the IP class is appropriately increased by the cladding.

Compatibility and Accessories
The switchgear enclosure is part of the baying system VX25 and can be combined with various accessories to enhance functionality and adaptability. Compatible accessories include VX plinth trim panels, plinth corner pieces, side panels, baying connectors, as well as baying brackets and blocks. These elements allow for flexible arrangement and connection of multiple enclosures in a row. Additionally, an SV roof plate for VX is available, which complements the enclosure roof covering. Compatibility with the mentioned accessories ensures modular expandability and adaptation to specific requirements.

Mounting and Installation
Assembly is done by screwing together the individual components, with the enclosure frame serving as the base. The door, roof plate, rear panel, and base sheets are fastened according to the installation instructions. The front trim panels and function compartment side panels are also screwed in place to ensure a stable and secure construction. The mounting frame for switchgear strips is already integrated, allowing direct installation of fuse switch disconnectors. Installation requires no additional tools beyond standard screwdrivers and wrenches.

Advantages in Operation
The switchgear enclosure offers high mechanical stability and longevity due to the use of steel sheet and galvanized base sheets. The powder-coated surface in RAL 7035 ensures an even, weather-resistant coating that protects the enclosure from corrosion. The integrated mounting for fuse switch disconnectors from ABB and Jean Müller enables quick and secure installation of electrical components. The modular construction and compatibility with various accessories allow flexible adaptation to different operational requirements. The test basis according to IEC 61 439-1/-2 and IEC 61 641 ensures compliance with relevant safety and quality standards.

General
MaterialSheet steel, 1.5 mm
Surface protectionCabinet frame: dip primed, door, roof and rear panel: dip primed, externally powder coated, textured lacquer, base plates: galvanized
ColourRAL 7035
Scope of deliverycabinet frame, door, roof sheet, rear panel, floor sheets, front panels, lock: 3 mm double bar, functional space side walls, mounting frame for switchgear strips with fuses (manufacturer ABB SlimLine/Jean Müller SASIL)
Degree of protection IP according to EN 60 529up to IP 2X (depending on paneling)
Test basisIEC 61 439-1/-2, IEC 61 641
Width1.000 mm
Height2.200 mm
Depth600 mm
PCF/VE (Cradle-to-Gate)333.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 9680025, EAN: 4028177937048
