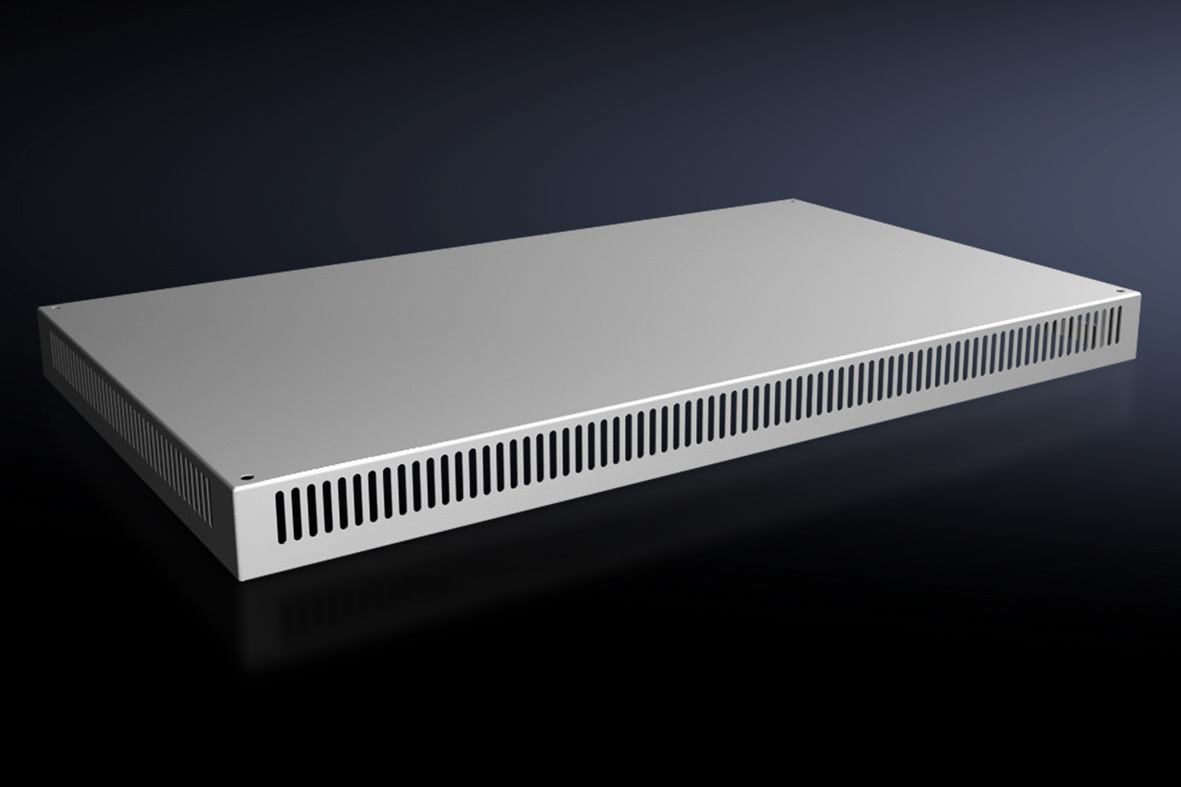

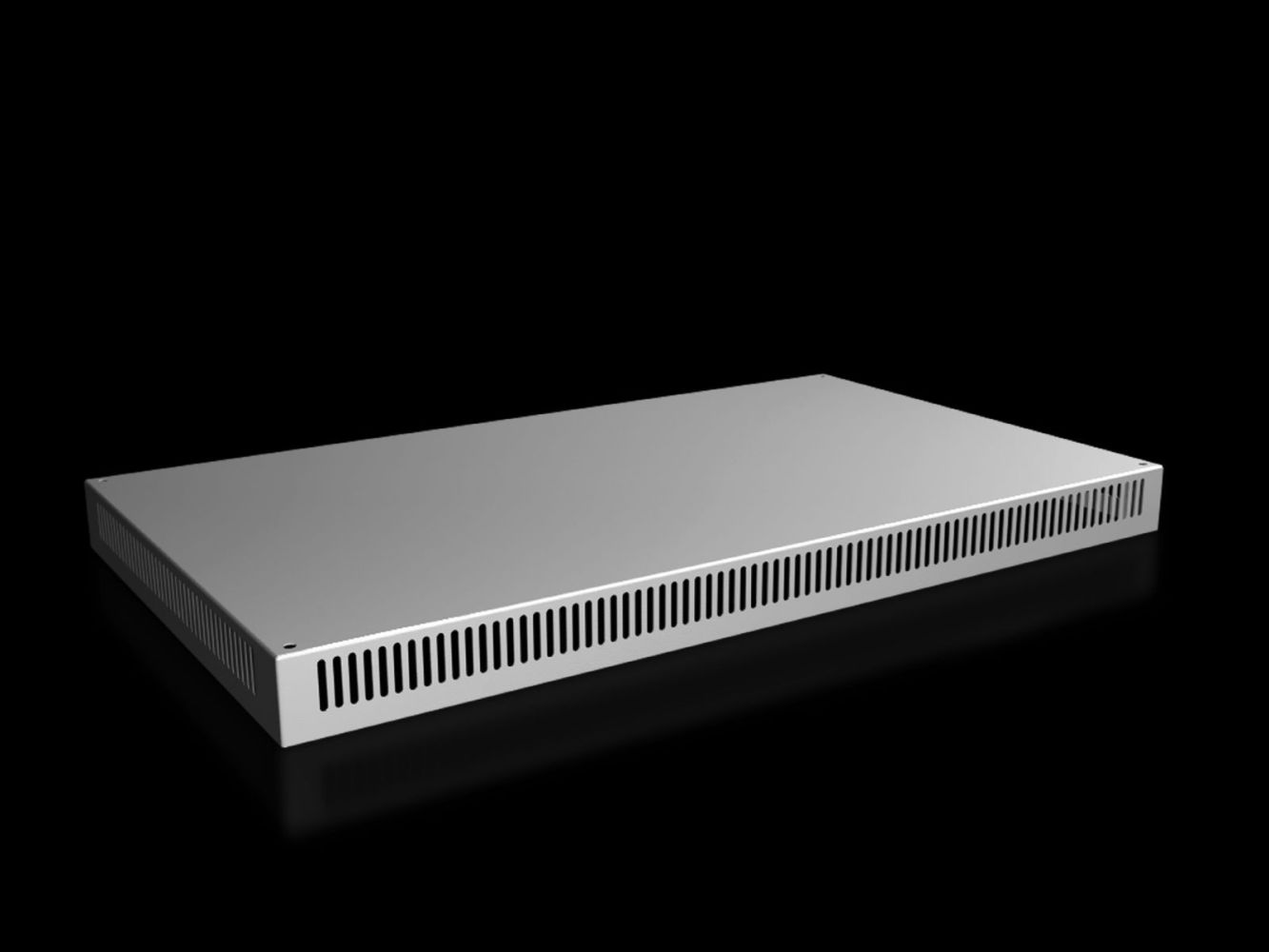

Rittal 9681806 SV roof plate for VX, width: 1000 mm, depth: 600 mm, IP 2X

Your rating:
Average rating
product review for Rittal 9681806 SV roof plate for VX, width: 1000 mm, depth: 600 mm, IP 2X
( 5 / 5 ) 2 ratings
Rittal 9681806
This image may differ from the desired article.
Rittal 9681806Rittal 9681806Rittal 9681806
84,76 EUR
( 100,86 EUR incl. VAT )
≈ £70.94  |  ≈ $93.15
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 9681806 SV roof plate for VX, width: 1000 mm, depth: 600 mm, IP 2X
Datasheet:file_download Download
Lieske Part No.:1903707
Mfg Part No: 9681806
UPC/EAN: 4028177926707
Weight:10.6 kg
Type:SV 9681806

Product information for Rittal 9681806:

The Rittal SV 9681806 is a roof plate for enclosures of the VX series, specifically designed for enclosures with a width of 1,000 mm and a depth of 600 mm. It serves as a replacement for the standard roof or as an addition for enclosures originally delivered without a roof plate. The product is equipped with a ventilation opening to ensure sufficient air circulation within the enclosure, which is particularly important for dissipating heat from electronic components. The mounting height is 72 mm, enabling a compact installation without disproportionately increasing the overall height of the enclosure.

Applications

The roof plate is intended for use in industrial environments, particularly in enclosures of the VX series. It is suitable for installations requiring a mechanical protection class of IP 2X, which provides protection against contact with fingers and against solid foreign objects larger than 12.5 mm. The ventilation opening supports cooling of electronic assemblies and prevents overheating, thereby extending the service life of installed components. The product is not designed for outdoor use or in damp environments, as the IP 2X classification does not guarantee water tightness.

Features and Equipment in Detail

The roof plate is made of sheet steel with a wall thickness of 1.5 mm, ensuring high mechanical stability and durability. The surface is coated with a textured paint, forming a robust and abrasion-resistant layer. The color corresponds to RAL 7035, a gray tone commonly used in industry for enclosures to enable uniform visual design.

Technology Explained Simply

The ventilation opening in the roof plate enables controlled air exchange, improving heat dissipation within the enclosure. This is particularly important when installing high-performance electronic devices that generate heat during operation. The IP 2X protection class means the roof plate protects against contact with fingers and against ingress of solid foreign objects with a diameter greater than 12.5 mm. However, it is not waterproof, making it unsuitable for wet environments. The use of sheet steel with a thickness of 1.5 mm ensures sufficient strength to withstand mechanical loads during operation.

Compatibility and Accessories

The roof plate is specifically designed for enclosures of the VX series with a width of 1,000 mm and a depth of 600 mm. It is compatible with enclosures originally delivered without a roof plate, as well as for replacing the standard roof of other enclosures. Installation is carried out using the mounting materials included in the delivery scope, ensuring secure and durable fastening.

Mounting and Installation

The roof plate is mounted by securing it to the upper edge of the enclosure. The mounting materials included in the delivery scope allow for easy and secure installation. The mounting height of 72 mm is dimensioned to minimally increase the overall height of the enclosure without affecting space conditions in the application area. The ventilation opening does not require additional adjustment during installation, as it is already integrated in the designated position.

Operational Advantages

The roof plate provides reliable mechanical coverage for the upper part of the enclosure, protecting against mechanical damage. The ventilation opening ensures improved cooling, increasing the operational safety of installed electronic components. The use of sheet steel with a thickness of 1.5 mm and textured paint ensures long service life and resistance to wear. The color RAL 7035 enables uniform visual design in industrial installations.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Mounting height72 mm
Suitable forWidth: = 1,000 mm, Depth: = 600 mm


Product data sheet
Datasheet for Rittal 9681806, EAN: 4028177926707
