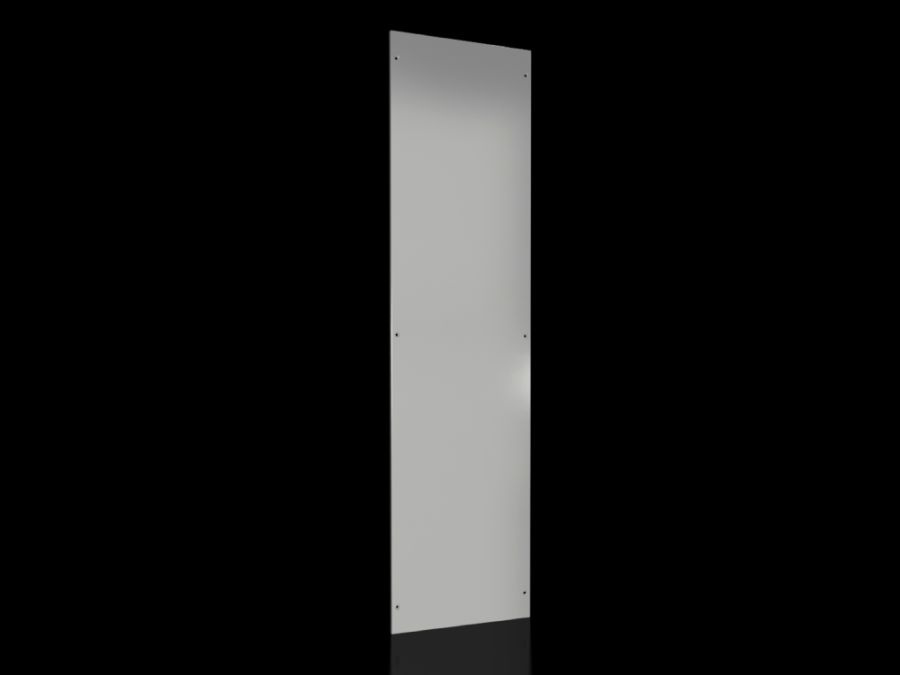

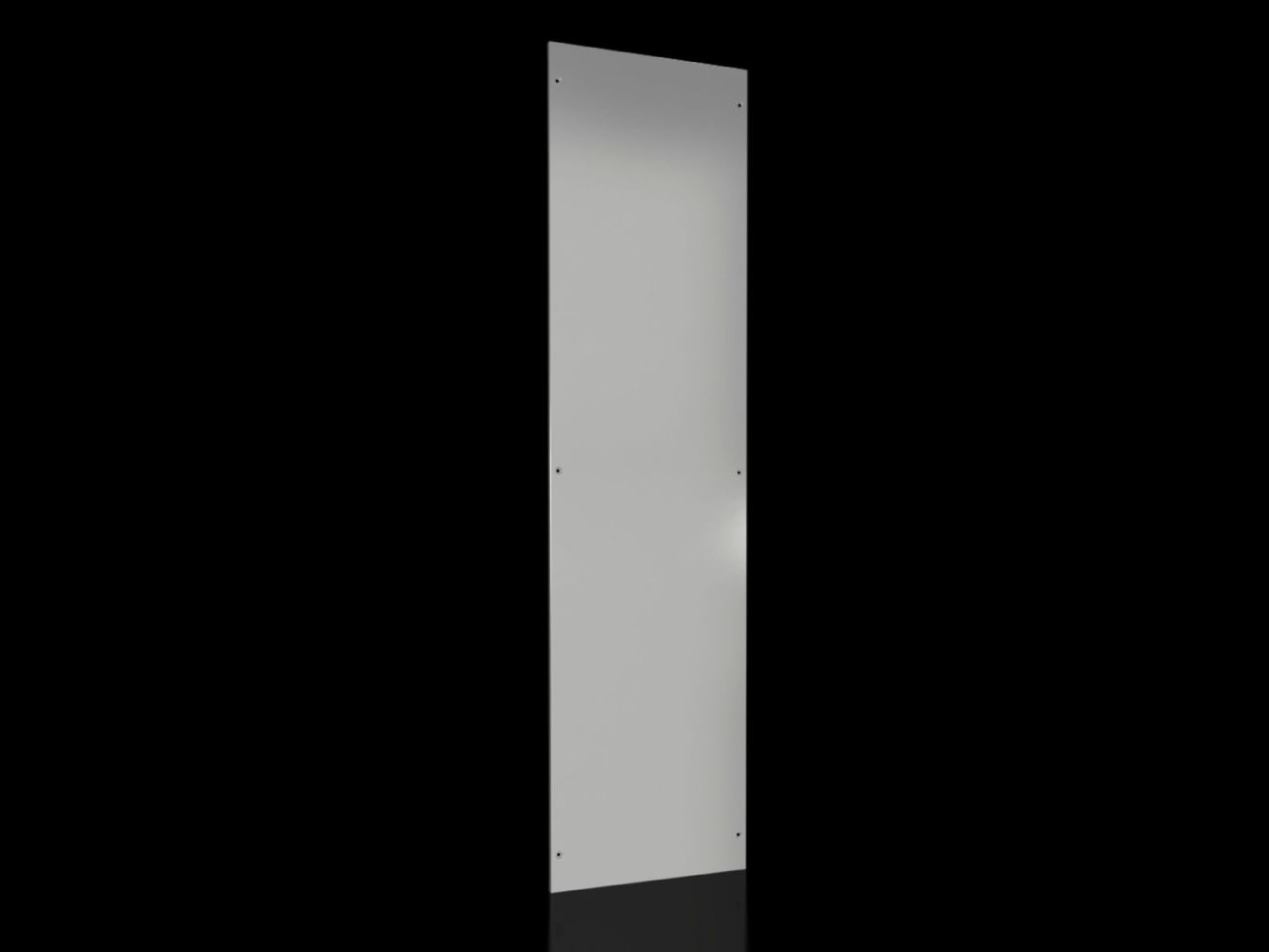

Rittal 8126245 VX side panel, screwable, for HT: 2200x600 mm

Your rating:
Average rating
product review for Rittal 8126245 VX side panel, screwable, for HT: 2200x600 mm
( 4.5 / 5 ) 33 ratings
Rittal 8126245
This image may differ from the desired article.
Rittal 8126245Rittal 8126245
159,43 EUR 159,46 EUR
( 189,72 EUR incl. VAT )
≈ £133.44  |  ≈ $175.21
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8126245 VX side panel, screwable, for HT: 2200x600 mm
Datasheet:file_download Download
Lieske Part No.:1440657
Mfg Part No: 8126245
UPC/EAN: 4028177827547
Weight:32.6 kg
Type:VX 8126.245

Product information for Rittal 8126245:

The Rittal VX 8126.245 is a screw-mounted side panel for enclosures of the VX system, designed for enclosures with a height of 2,200 mm and a depth of 600 mm. The product is made of steel sheet with a thickness of 1.5 mm and is designed for use in industrial environments. The surface is dip-primed and externally powder-coated, resulting in a robust and durable coating. The color corresponds to RAL 7035, a gray tone commonly used in industrial electrical engineering. The side panel is delivered in a packaging unit of two pieces and includes the required mounting material, so installation can be carried out without additional purchases.

Applications
The side panel is specifically developed for enclosures of the VX system used in industrial electrical engineering, automation technology, and machine building. It fits enclosures with the specified dimensions and serves as a stable side cladding, protecting the contents of the enclosure from mechanical impacts and environmental influences. The protection rating IP 55 according to IEC 60 529 ensures high protection against dust and splashing water, enabling use in humid or dusty environments. The type rating according to UL 50E (Type 1 and Type 12) confirms suitability for indoor use and environments with limited splashing water, which is particularly relevant in North American industry.

Functions and Equipment in Detail
Mounting of the side panel is done by screwing, with clipsable side panel holders enabling time-saving fastening. The flat part holders with internal contact elements ensure automatic equipotential bonding and enhance EMC protection, improving the electromagnetic compatibility of the enclosure. A hanging aid facilitates precise positioning in height and depth, enabling accurate installation without additional personnel. The earthing bolts feature a large, paint-free contact surface, ensuring optimal electrical connection and enhancing earthing safety. The construction allows for single-person installation, making the installation process more efficient.

Technology Explained Simply
The use of steel sheet with a thickness of 1.5 mm ensures sufficient mechanical stability to hold the side panel even under load. The dip priming and external powder coating provide corrosion protection and increase the service life of the component. The protection rating IP 55 means the side panel is dust-tight and protected against splashing water, making it suitable for use in industrial plants. The UL type ratings Type 1 and Type 12 refer to protection categories for indoor use and against splashing water, enabling use in specific regions and applications.

Compatibility and Accessories
The side panel is specifically designed for VX enclosures with a height of 2,200 mm and a depth of 600 mm. Compatible accessories include hinges for side panels, which are screw-mounted, and a VX internal locking mechanism for side panels, which is galvanized. These components can be used to extend the functionality of the enclosure, for example, to improve accessibility or to provide additional securing of the side panel.

Mounting and Installation
Mounting is done by screwing the side panel onto the designated holders inside the enclosure. The clipsable holders facilitate fastening, and the hanging aid enables precise positioning. The earthing bolts must be correctly connected to ensure earthing safety. Single-person installation is possible, as the construction is designed so that no additional tools or personnel are required.

Advantages in Operation
The side panel provides reliable mechanical stability and high protection against environmental influences. Integrated features such as automatic equipotential bonding and EMC protection improve electrical safety and the functionality of the enclosure. Easy mounting and single-person installation reduce installation time and labor costs. The use of steel sheet and robust coating protection ensure a long service life and low maintenance requirements.

General
MaterialSheet steel, 1.5 mm
Surface protectionDip-coated, powder-coated exterior
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forEnclosure type: VX, height: = 2.200 mm, depth: = 600 mm
Degree of protection IP according to IEC 60 529IP 55
Type rating according to UL 50EType 1, Type 12
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)94.47 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8126245, EAN: 4028177827547

Questions & answers

What is the delivery time of Rittal 8126245 VX side panel, screwable, for HT: 2200x600 mm?

The article Rittal 8126245 VX side panel, screwable, for HT: 2200x600 mm is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8126245 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8126245 VX side panel, screwable, for HT: 2200x600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8126245 VX side panel, screwable, for HT: 2200x600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
