Rittal 6740000 CX stand console W x H x D: 1000x970x400 mm sheet metal

Your rating:
Average rating
product review for Rittal 6740000 CX stand console W x H x D: 1000x970x400 mm sheet metal
( 5 / 5 ) 1 ratings
Rittal 6740000
This image may differ from the desired article.
Rittal 6740000Rittal 6740000Rittal 6740000Rittal 6740000Rittal 6740000Rittal 6740000Rittal 6740000Rittal 6740000Rittal 6740000
617,55 EUR 642,25 EUR
( 734,88 EUR incl. VAT )
≈ £516.89  |  ≈ $678.69
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 6740000 CX stand console W x H x D: 1000x970x400 mm sheet metal
Datasheet:file_download Download
Lieske Part No.:2145735
Mfg Part No: 6740000
UPC/EAN: 4028177983632
Weight:75.25 kg
Type:CX 6740000

Product information for Rittal 6740000:

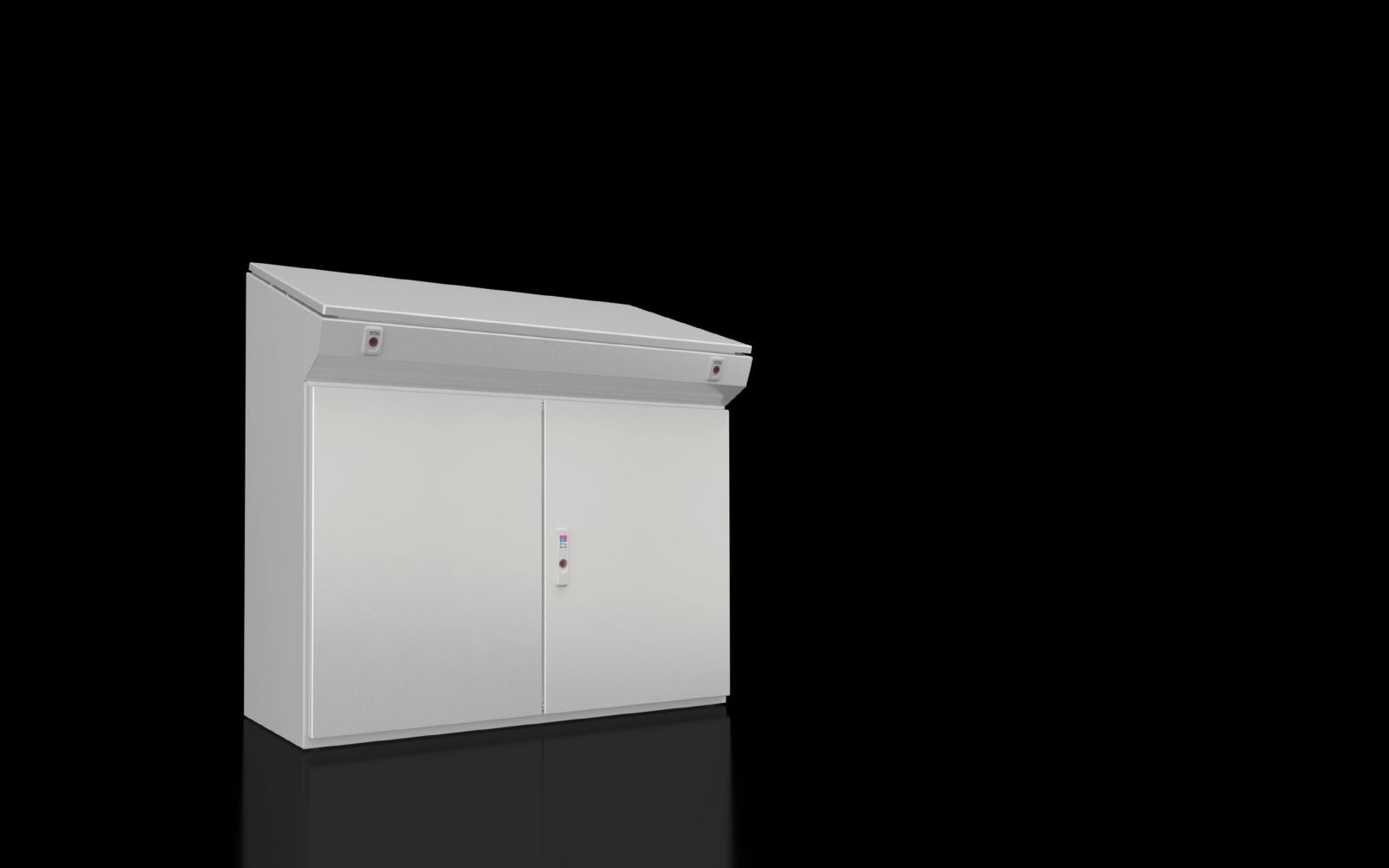

The Rittal CX 6740000 is a ready-to-install steel sheet stand console, designed for use in industrial environments where a robust and user-friendly control and monitoring unit is required. The housing has dimensions of 1000 mm width, 970 mm height, and 400 mm depth and is supplied as a complete single unit. It features a large mounting plate measuring 920 mm × 900 mm, suitable for installing control elements, displays, or operator panels. The front side is equipped with a double door secured by a 3-point locking system, providing high mechanical protection. The door and console lid are made of 2.0 mm thick steel sheet and are fitted with a continuous foamed PU seal, ensuring a tight seal. The housing itself is made of 1.5 mm thick steel sheet, and the mounting plate is made of 2.5 mm thick steel sheet. The surface of the housing, lid, and doors is dip-primed and externally powder-coated with a textured lacquer in the color RAL 7035. The mounting plate is galvanized, providing additional corrosion protection.

Applications
This stand console is intended for use in industrial plants, such as machine controls, process monitoring systems, or manufacturing technology. The high protection rating IP 55 according to IEC 60 529 protects against dust and splashing water, making it suitable for outdoor areas or damp indoor environments. The protection ratings NEMA 1 and NEMA 12 further enhance suitability for indoor environments with low to moderate contamination risk. The IK code IK10 ensures high mechanical protection against mechanical impacts, such as shocks or vibrations, that may occur in industrial operations.

Functions and Equipment in Detail

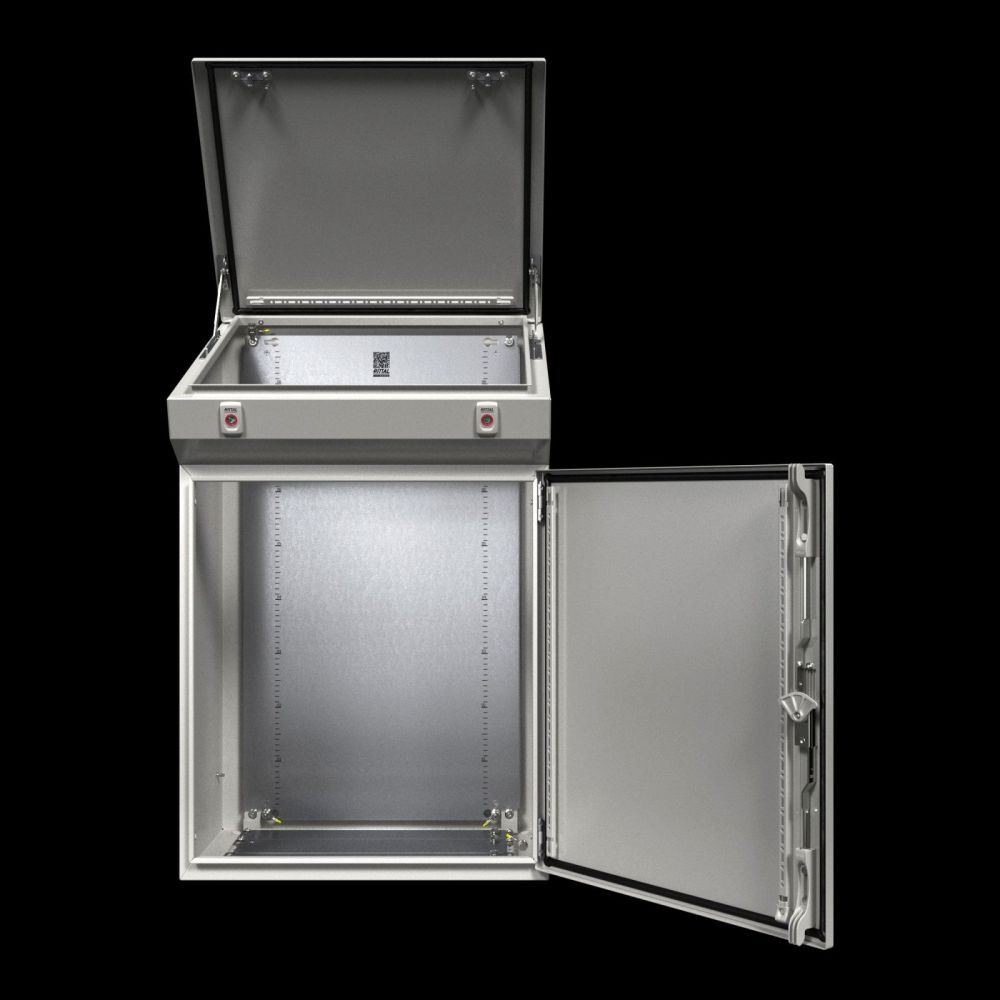

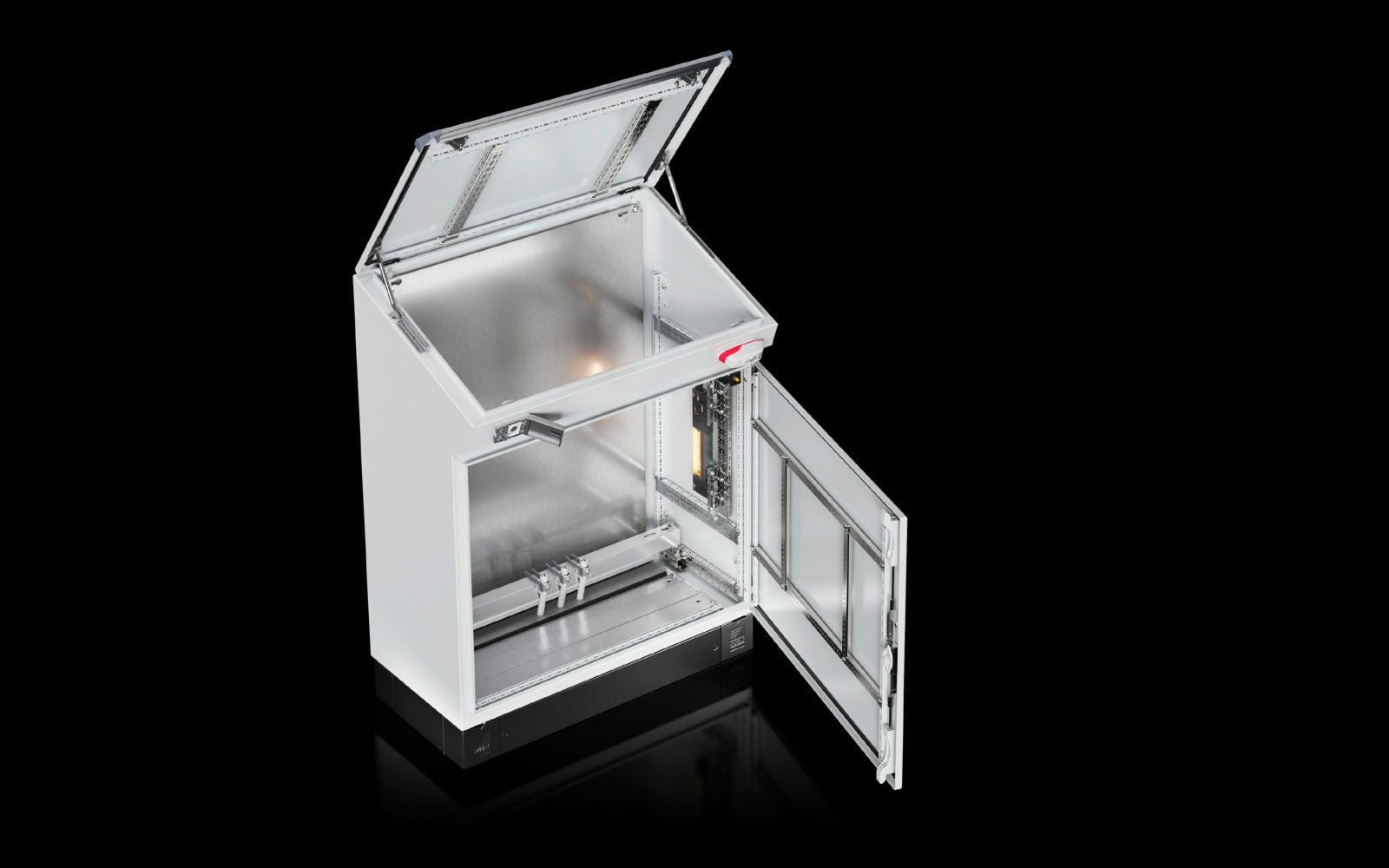

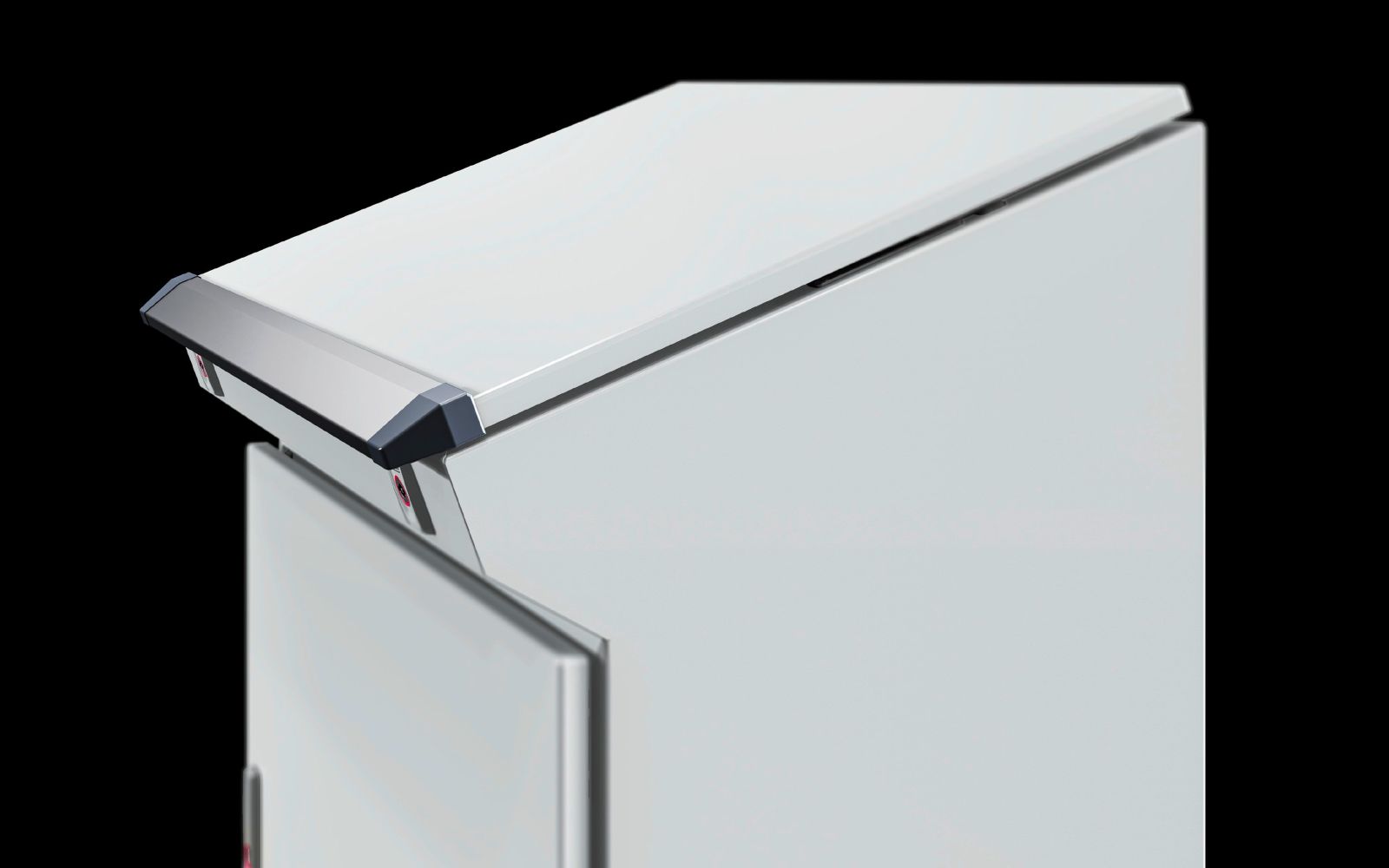

The console is closed at the rear and sides, providing high protection against environmental contamination. The lid is hinged at the rear and equipped with latching locks that ensure secure locking. Two stands with automatic locking provide stable positioning. Unlocking is automatic on the left and manual on the right. A base plate is also included, providing additional stability and secure standing. The locking mechanism is a 3 mm double bar, enabling secure and reliable locking.

Technology Explained Simply
The use of steel sheet in various thicknesses (1.5 mm for the housing, 2.0 mm for the door and lid, 2.5 mm for the mounting plate) ensures high mechanical stability and longevity. The PU seal provides a tight seal, effectively preventing dust and moisture ingress. The powder-coated surface in RAL 7035 offers uniform, durable protection against corrosion and mechanical stress. The galvanized steel sheet mounting plate is particularly resistant to corrosion and suitable for mounting electrical or electronic components.

Compatibility and Accessories
Various accessories are available for this stand console to extend its functionality. These include zinc die-cast lock box covers, adjustable cross-braces for depths of 400/500 mm, plinth trim panels in different heights (100 mm and 200 mm), and plinth corner pieces with trim panels. Additional options include support rails, cable entry plates, system chassis in various sizes, and cable strain relief rails. These components allow for individual customization of the stand console to meet specific requirements, such as integrating cable management systems or expanding the mounting area.

Mounting and Installation
The stand console is pre-assembled and ready for use. The mounting plate is already integrated, enabling direct mounting of devices. The stands ensure stable positioning on the floor. The provided locks and seals simplify installation and ensure a secure, tight seal. The dimensions of the mounting plate (920 mm × 900 mm) provide sufficient space for installing control elements and operator panels.

Advantages in Operation
The Rittal CX 6740000 offers high mechanical and electrical stability required for industrial use. The protection ratings IP 55 and IK10 ensure long service life even under demanding conditions. The integrated mounting plate and pre-installed stands reduce installation time. The use of high-quality materials such as steel sheet and PU seal ensures reliable performance throughout the device's lifetime. The color RAL 7035 is a neutral gray tone that blends well in industrial environments.

General
ModelConsole
MaterialEnclosure: steel sheet 1.5 mm, door and panel cover: steel sheet 2.0 mm, continuous foamed PU seal, mounting plate: steel sheet, 2.5 mm
Surface protectionHousing, cover and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized
ColourRAL 7035
Scope of deliveryEnclosure, rear and side closed, door or double door front, with 3-point locking system, mounting plate, lid with pre-press locks, hinged at rear, 2 stands with automatic locking. Unlocking left automatic, right manual., base sheet, lock: 3 mm double bar
Width1.000 mm
Height970 mm
Depth400 mm
Mounting plate dimensions (W x H)920 mm x 900 mm
Depth top495 mm
Depth bottom400 mm
Number of doors2
IK codeIK10
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 1, NEMA 12
Base materialsteel sheet


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 6740000, EAN: 4028177983632

Questions & answers

What is the delivery time of Rittal 6740000 CX stand console W x H x D: 1000x970x400 mm sheet metal?

The article Rittal 6740000 CX stand console W x H x D: 1000x970x400 mm sheet metal is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 6740000 to our sales team for an exact delivery time.
