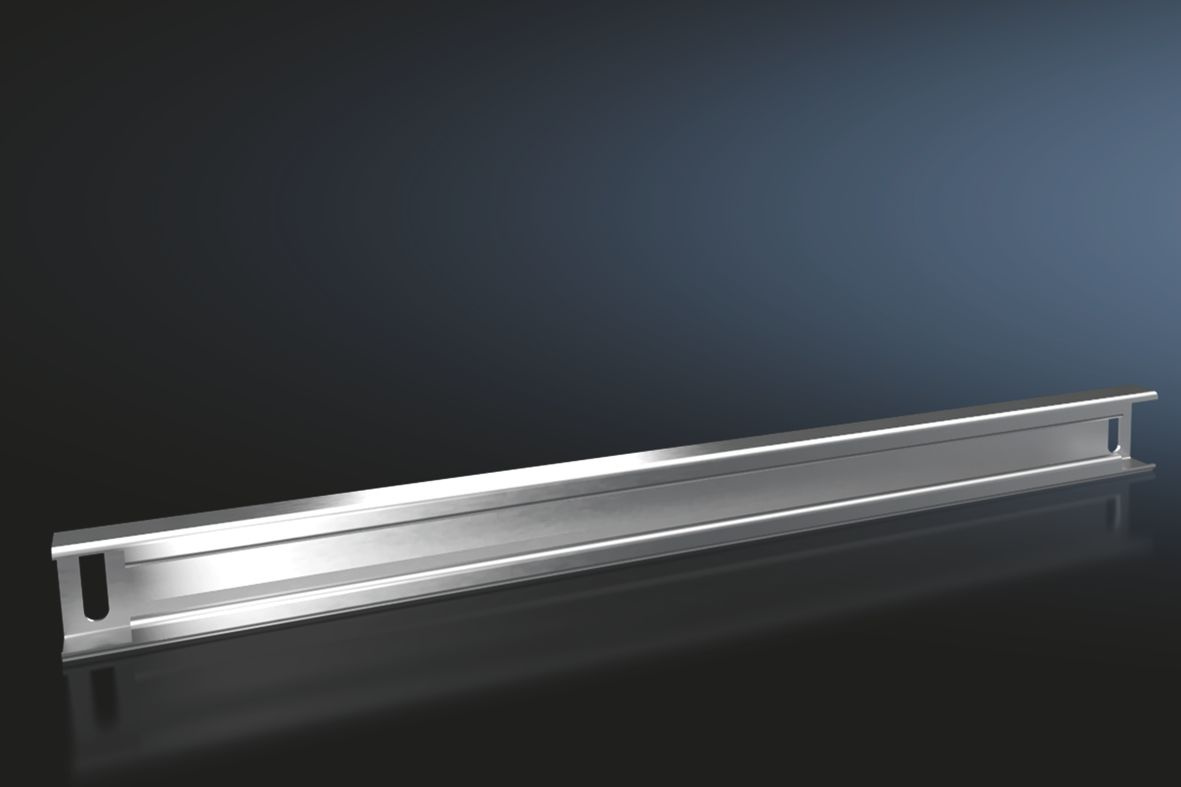

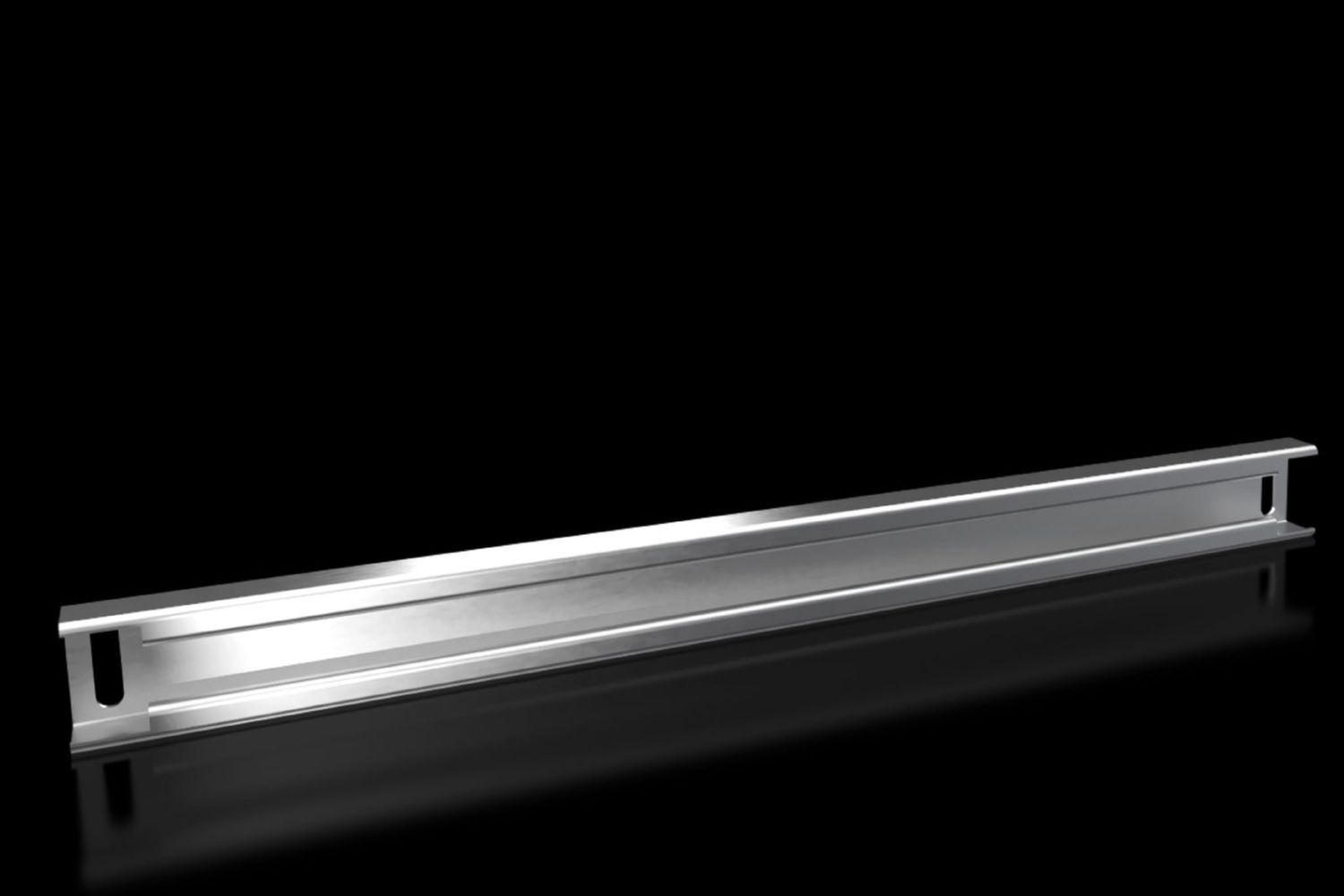

Rittal 8617800 VX support rail 48 x 26 mm, W: 600 mm
|
47,50 EUR |
|
|
( 56,53 EUR incl. VAT ) ≈ £39.76 | ≈ $52.20 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440920 |
| Mfg Part No: | 8617800 |
| UPC/EAN: | 4028177919518 |
| Weight: | 3.166 kg |
| Type: | VX 8617.800 |
Product information for Rittal 8617800:
Applications
The support rail is suitable for various housing types, including VX, VX SE, PC, IW, AX, stand console CX, and console base CX, each with a width of 600 mm. It can be mounted in different positions within the enclosure: on the inner mounting plane as well as in the base area. For housings of type VX SE, PC, IW, and AX, mounting on the inner mounting plane requires the use of an adapter rail for VX compatibility. For AX housings, additionally, the inner installation rail for AX and the base installation rail for AX are required to correctly install the support rail.
Functions and Equipment in Detail
The rail features elongated holes and a hook-head screw, enabling mounting at various positions and thus covering any required mounting dimension. This design ensures flexible and precise installation, even with different spacing between the components to be mounted. The use of zinc-coated sheet steel ensures high corrosion resistance and long service life, especially in industrial environments with increased stress.
Technology Explained Simply
The support rail is designed as a static load carrier that safely supports the weight of heavy electrical components. The material choice of sheet steel with a zinc-coated surface provides sufficient strength and resistance to environmental influences such as moisture or minor corrosion risks. The elongated holes in the rail allow for variable positioning of the mounting screws, facilitating installation on different devices and in various enclosure configurations.
Compatibility and Accessories
The support rail is compatible with housing types VX, VX SE, PC, IW, AX, stand console CX, and console base CX, each with a width of 600 mm. For mounting in VX SE, PC, IW, and AX housings, the use of an adapter rail for VX compatibility is required. For AX housings, additionally, the inner installation rail for AX and the base installation rail for AX are necessary. As suitable accessories, the VX system partitioning 600 mm is offered, which serves for structured partitioning of the enclosure interior.

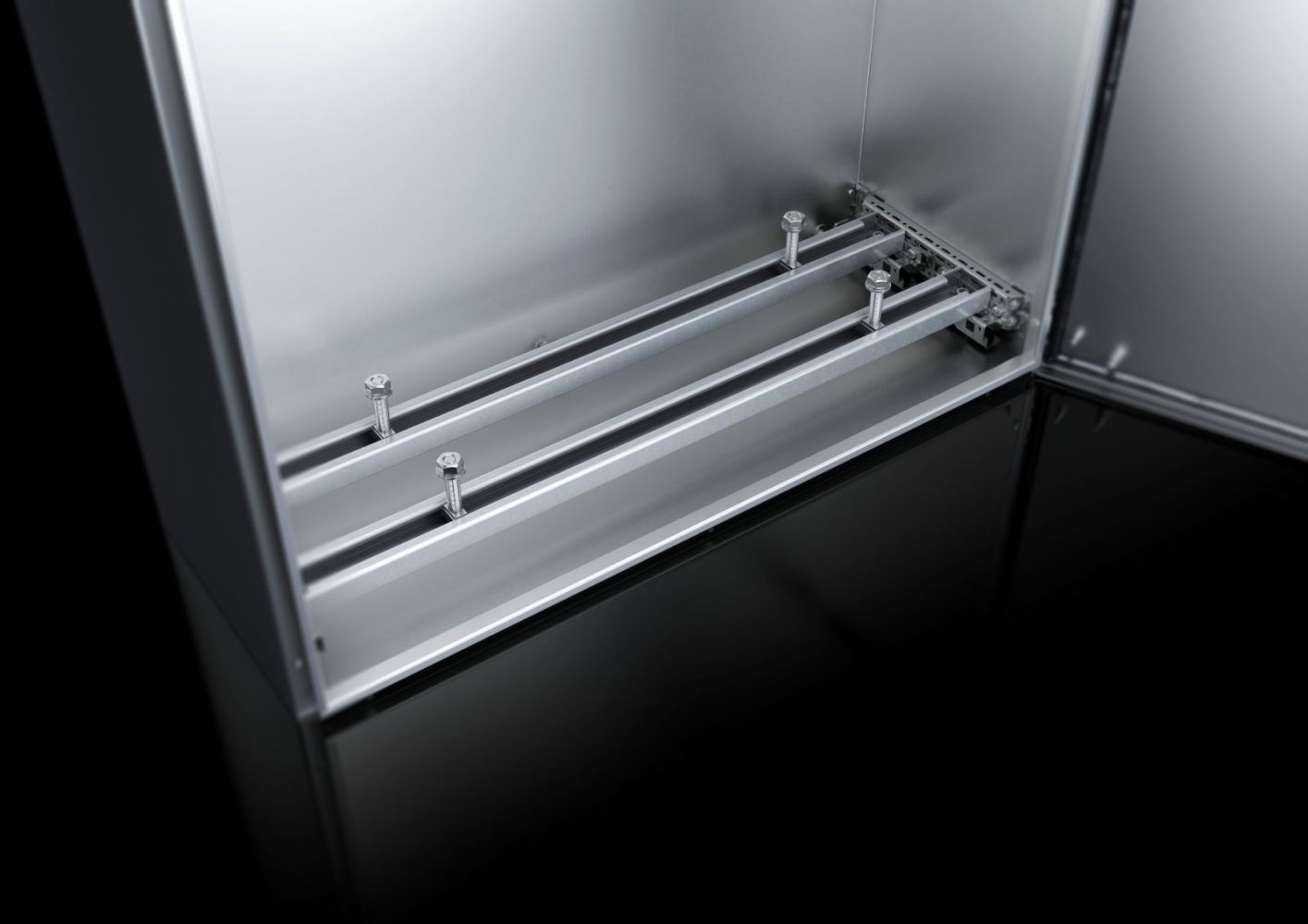

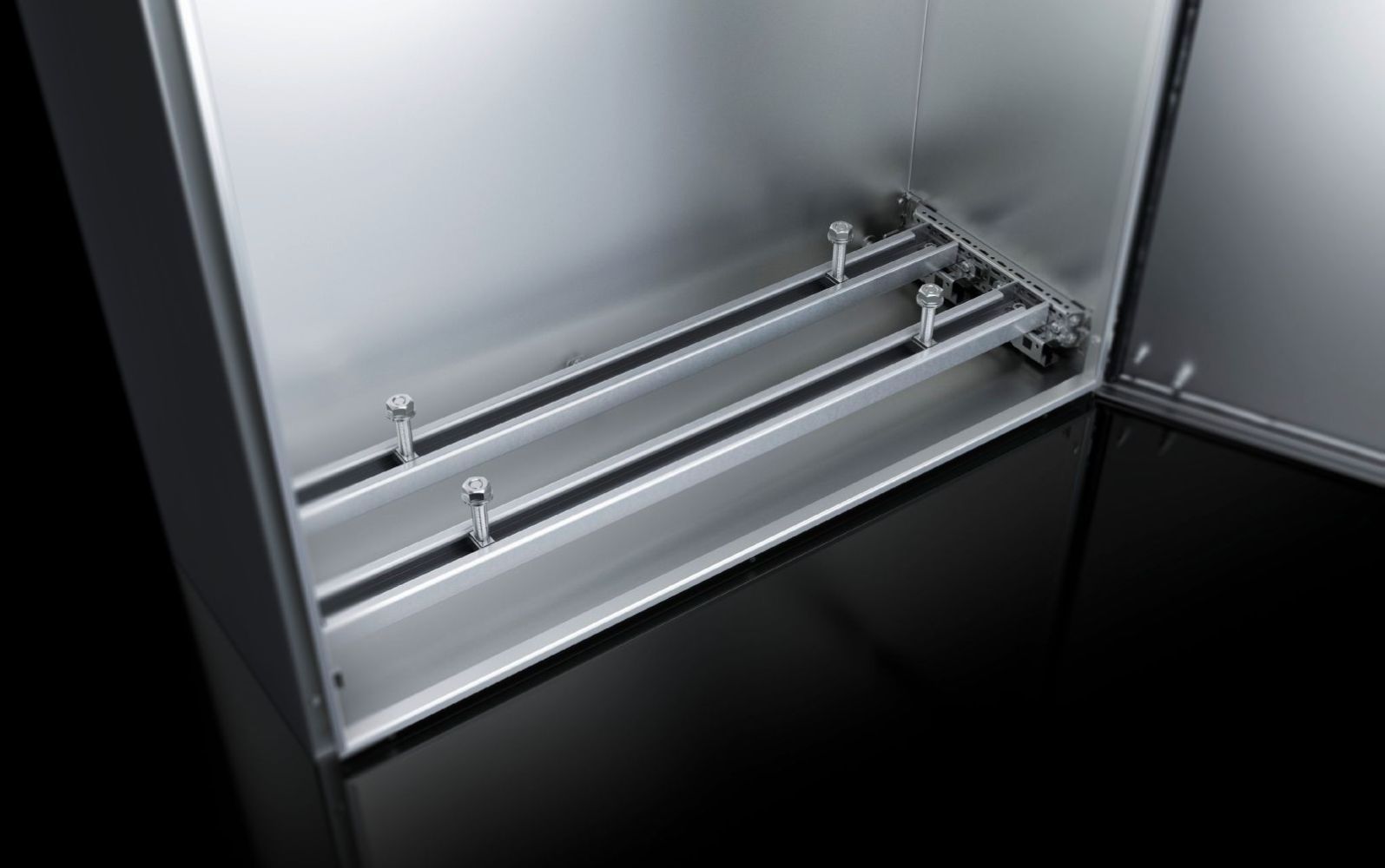

Mounting and Installation
Mounting is typically done on the inner mounting plane or in the base area of the enclosure. The fastening is done using the mounting material included in the delivery. For housing types VX SE, PC, IW, and AX, the use of an adapter rail for VX compatibility is required to correctly install the support rail. For AX housings, additionally, the inner installation rail for AX and the base installation rail for AX are necessary. The hook-head screw and elongated holes allow flexible adjustment of the mounting position according to specific requirements.
Advantages in Operation
The support rail provides a stable and load-bearing mounting base for heavy electrical components. The zinc-coated surface ensures high corrosion resistance, extending the service life of the rail in industrial environments. The flexible mounting via elongated holes and hook-head screws enables precise and adaptable installation, even with different devices and enclosure configurations. Compatibility with various housing types increases versatility and reduces the need for special mounting components.
| General | |
| Material | steel sheet |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Mounting options VX | In cabinet width 600 mm, on the internal mounting plane and on the floor |
| Mounting options VX SE | In cabinet width 600 mm, on the inner mounting plane, in combination with the adapter rail for VX compatibility and on the floor |
| Mounting options AX | In enclosure width 600 mm, in combination with the AX internal mounting rail and AX floor mounting rail |
| PC mounting options | In cabinet width 600 mm, on the inner mounting plane, in combination with the adapter rail for VX compatibility and on the floor |
| Installation options IW | In cabinet width 600 mm, on the inner mounting plane, in combination with the adapter rail for VX compatibility and on the floor |
| Suitable for | Cabinet type: VX, VX SE, PC, IW, AX, stand console CX, console base CX, width: = 600 mm |
| PCF/VE (Cradle-to-Gate) | 12,39 |
Questions & answers
What is the delivery time of Rittal 8617800 VX support rail 48 x 26 mm, W: 600 mm?
The article Rittal 8617800 VX support rail 48 x 26 mm, W: 600 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617800 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8617800 VX support rail 48 x 26 mm, W: 600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617800 VX support rail 48 x 26 mm, W: 600 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
