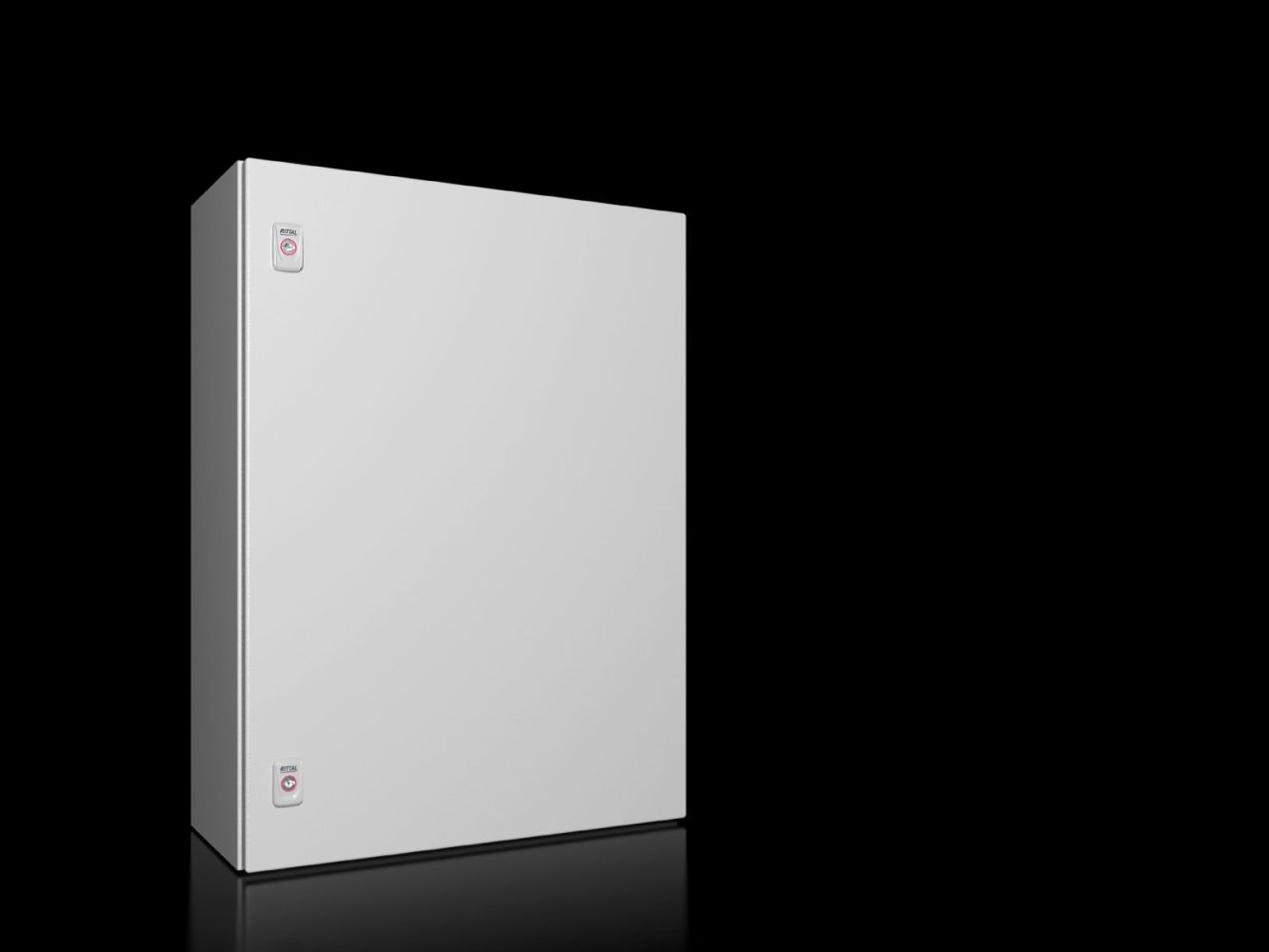

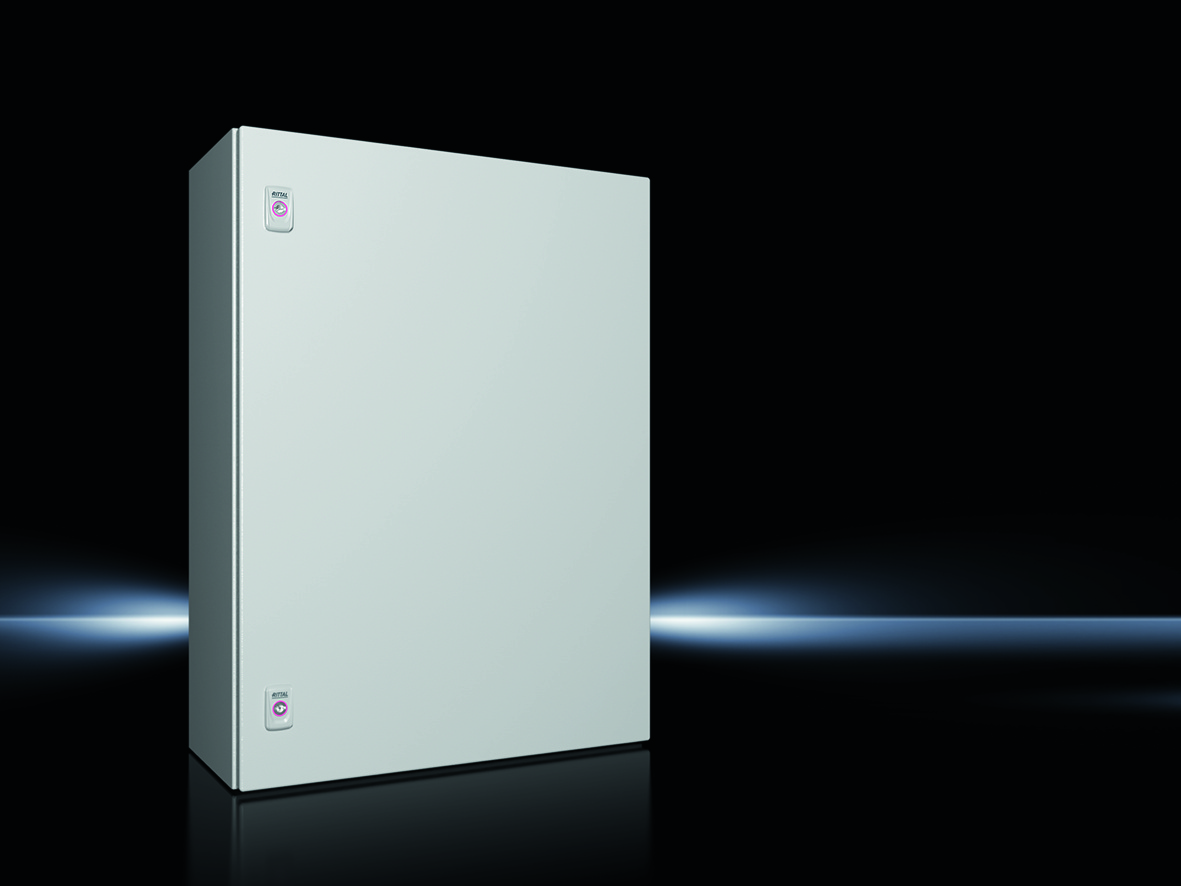

Rittal 1058000 Compact enclosure AX, 1-door, W x H x D: 600x800x250 mm (freight shipping)
|
173,49 EUR |
|
|
( 206,45 EUR incl. VAT ) ≈ £145.21 | ≈ $190.67 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598213 |
| Mfg Part No: | 1058000 |
| UPC/EAN: | 4028177813311 |
| Weight: | 32 kg |
| Type: | AX 1058000 |
Product information for Rittal 1058000:
Applications
The enclosure is suitable for use in indoor and outdoor environments, particularly in areas with increased requirements for protection against dust, water, and mechanical impacts. The protection rating IP 66 according to EN 60 529 guarantees high protection against dust and splashing water, even under direct spray. The protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), allow use in various industrial environments, including humid or dusty areas. The IK code IK10 indicates high mechanical resistance against impact and shock.
Functions and Equipment in Detail

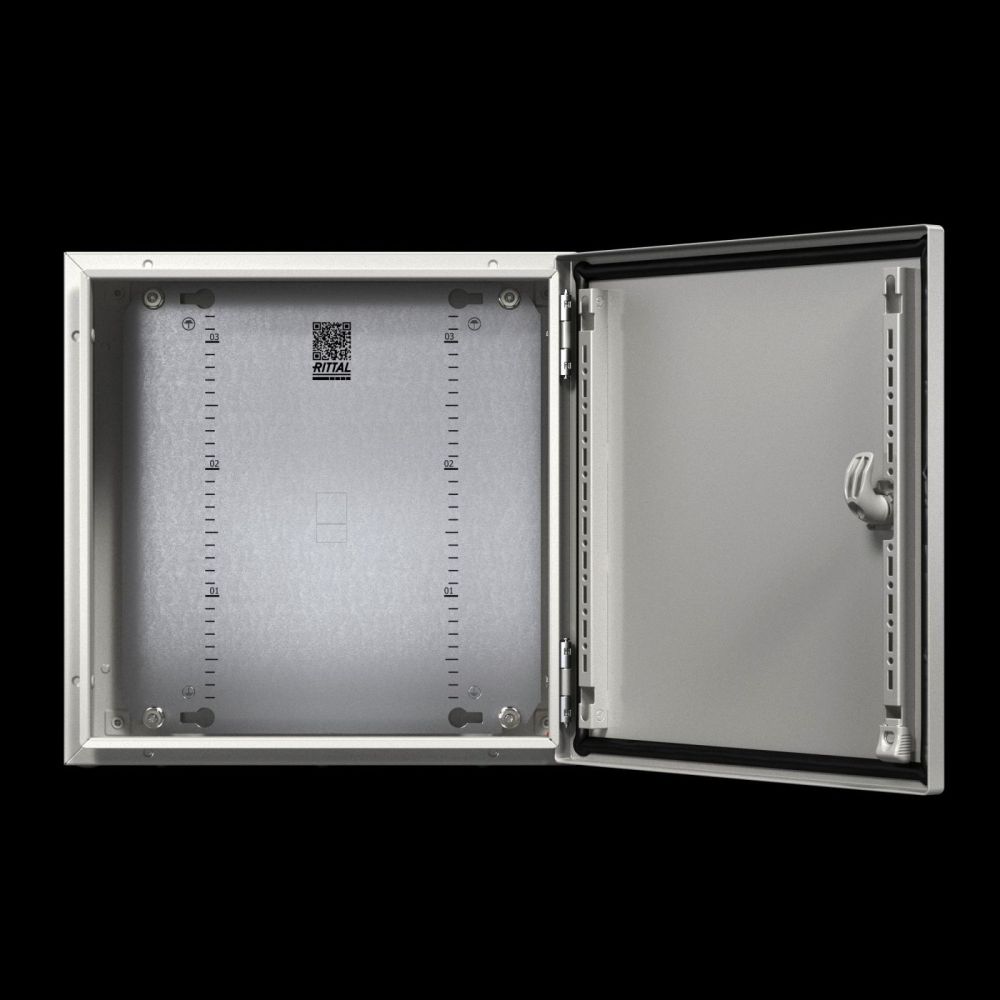

The enclosure features a single-door construction with a reversible door hinge, allowing the door to be mounted to open on the right or left. The door opens up to 130° according to VDI, with an option to retrofit to 180°. The door is equipped with two latch locks operating with a 3 mm double-barrel lock insert according to DIN 43668. The locks are designed for secure and reliable locking. An integrated gland plate of size 4 is located in the enclosure base, which can be used for securing cable entry plates or other components. The door is fitted with vertical door hole strips on both sides, enabling flexible mounting of accessories.
Technology Explained Simply
A central feature of the AX enclosure is the integrated 25 mm system grid, realised through embossed enclosure lugs in the roof, base, and sides. This patented system enables easy, drill-free mounting of internal mounting rails and other accessories, preserving the protection rating (UL approval). The base mounting rail provides an additional mounting level and increases load capacity. Planning and configuration is easily done via the Rittal configurator RiPanel. A QR code is printed on the enclosure body, door, and type plate, enabling quick access to relevant product information and documentation, and ensuring unique traceability of parts.
Compatibility and Accessories
The enclosure is compatible with a wide range of accessories, enabling individual adaptation to specific requirements. Compatible components include lock inserts made of zinc die-cast, lock box covers, wall mounting brackets, VX system chassis, dust protection strips, baying sets, knob handles, handles with security cylinder, mounting brackets, TS mounting brackets, metal gland plates, and the AS Multitool AX/VX. These elements can be used to extend functionality, improve accessibility, or integrate into existing systems.
Mounting and Installation
Mounting is done via the integrated gland plate in the enclosure base, designed for securing to walls or other substrates. The internal mounting plate enables secure fixation of electrical components. The door can be reversed without tools, simplifying installation in different environments. Drill-free mounting of internal mounting rails reduces installation time and enhances the reliability of the protection rating.
Advantages in Operation
The enclosure offers high operational safety due to its robust steel sheet construction, high protection rating, and mechanical resistance. The integrated enclosure lugs and drill-free mounting of accessories reduce installation time and increase flexibility for modifications or expansions. Uniform surface treatment and use of high-quality materials ensure long service life and low maintenance. The integrated mounting plate and gland plate facilitate integration into existing systems and secure component mounting.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door(s), flange plate(s) in enclosure base, mounting plate, door hole strip, locking: 3 mm double bar |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Degree of protection IP according to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Width | 600 mm |
| Height | 800 mm |
| Depth | 250 mm |
| Door material thickness | 2 mm |
| Plate thickness cabinet | 1,5 mm |
| Mounting plate material thickness | 2,5 mm |
| Mounting plate dimensions (W x H) | 545 mm x 775 mm |
| Number of doors | 1 |
| Number of locks | 2 |
| Lock | Closure type: latch, number of closures: 2, closure insert: 3 mm double barb |
| Flange plate | Size: 4, Quantity: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 116.31 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
| Reversible door hinge | |
