Rittal 8619760 VX system chassis 14 x 39 mm, for height: 700 mm

Your rating:
Average rating
product review for Rittal 8619760 VX system chassis 14 x 39 mm, for height: 700 mm
( 4.7 / 5 ) 3 ratings
Rittal 8619760
This image may differ from the desired article.
Rittal 8619760Rittal 8619760Rittal 8619760Rittal 8619760Rittal 8619760Rittal 8619760Rittal 8619760Rittal 8619760
47,84 EUR
( 56,93 EUR incl. VAT )
≈ £40.04  |  ≈ $52.58
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8619760 VX system chassis 14 x 39 mm, for height: 700 mm
Datasheet:file_download Download
Lieske Part No.:469331
Mfg Part No: 8619760
UPC/EAN: 4028177926851
Weight:1.374 kg
Type:VX 8619760

Product information for Rittal 8619760:

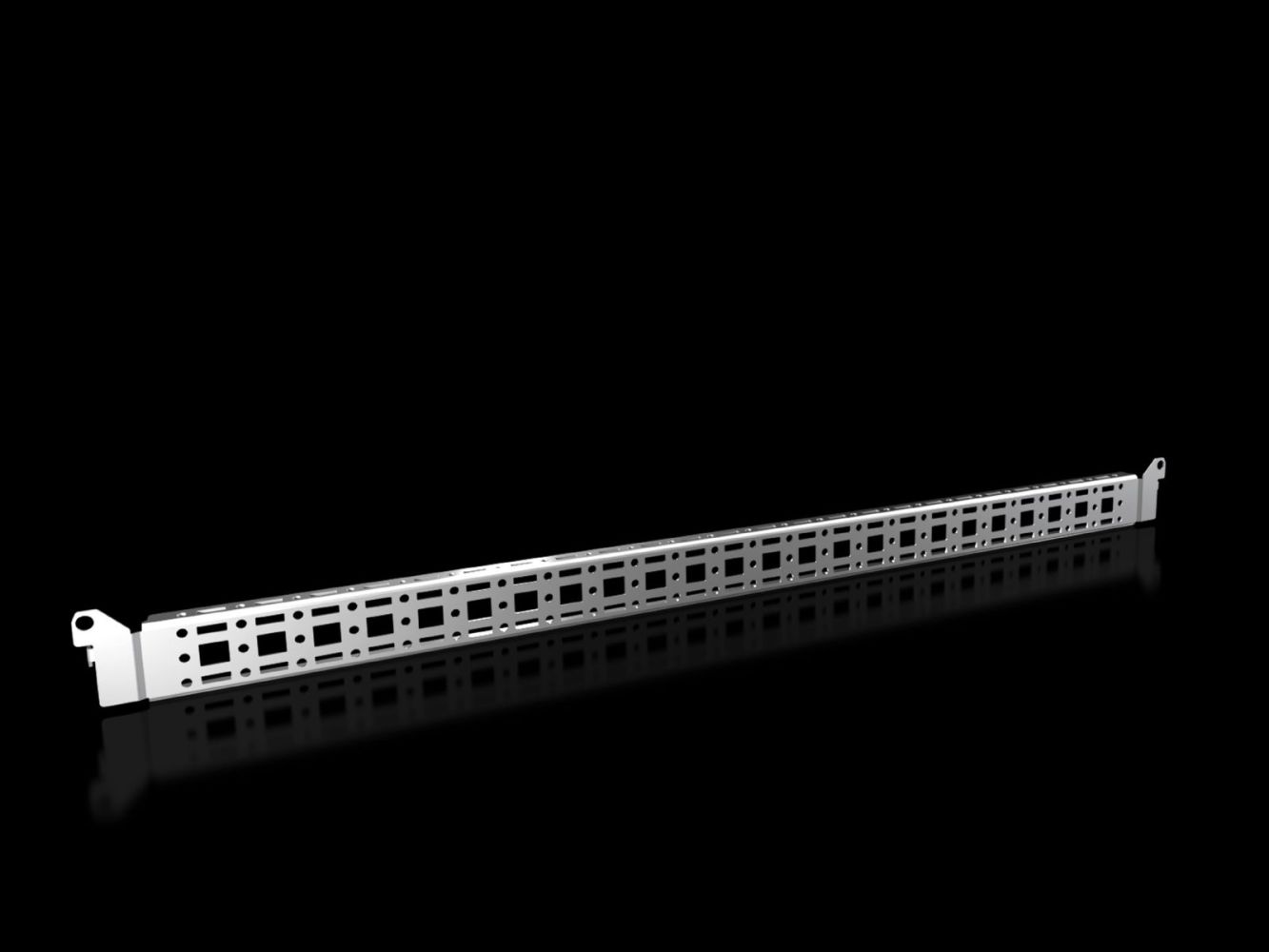

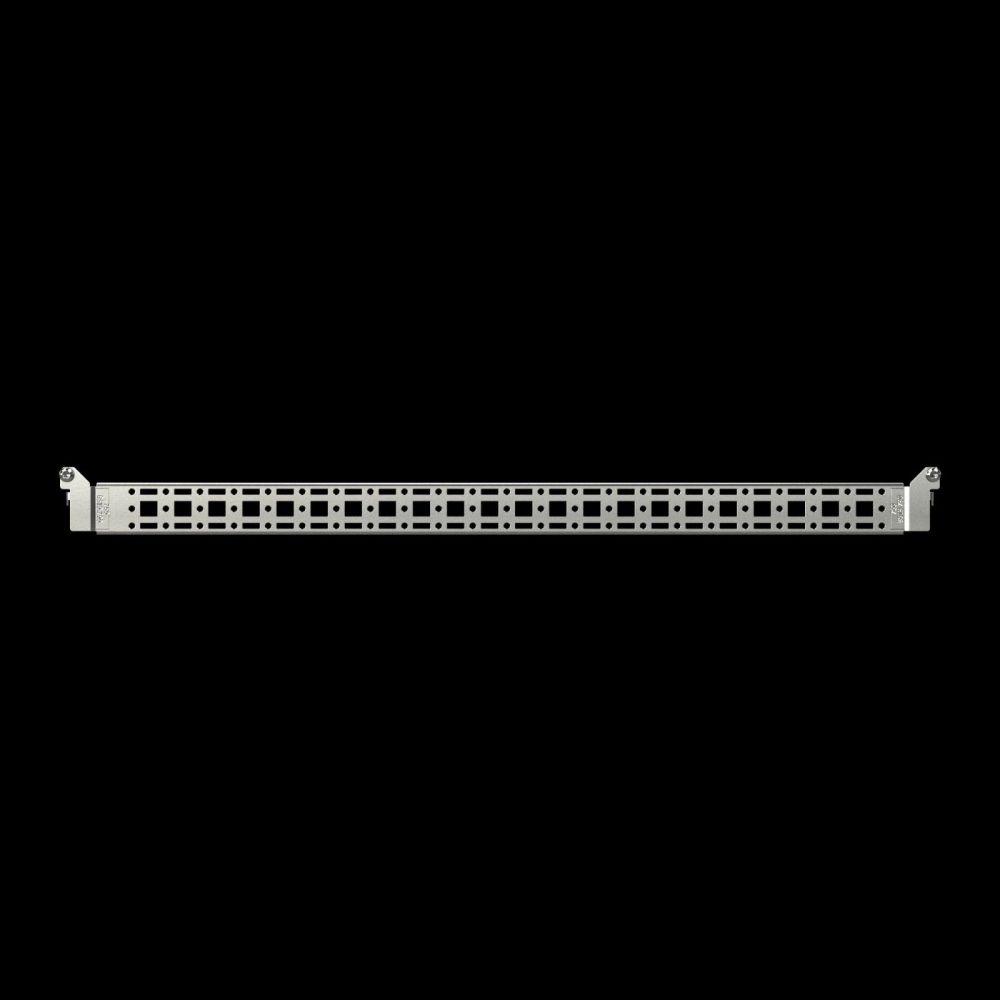

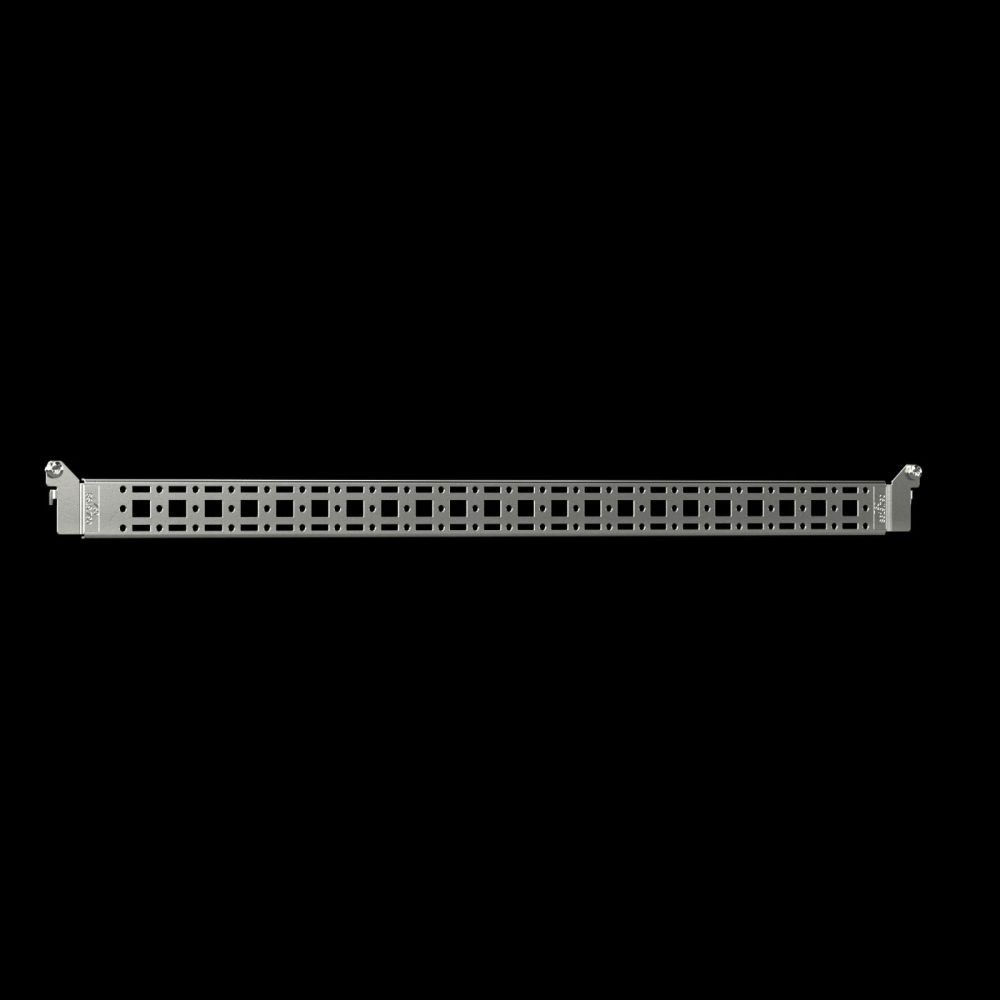

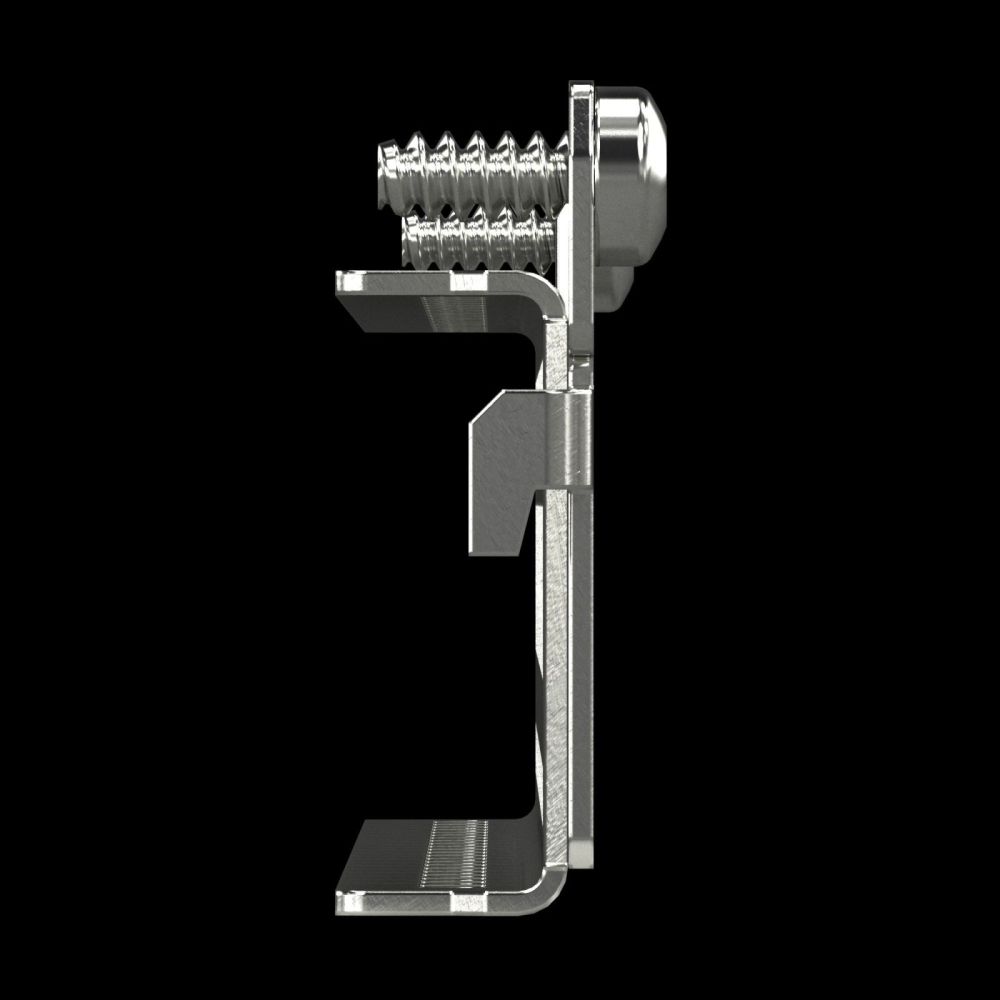

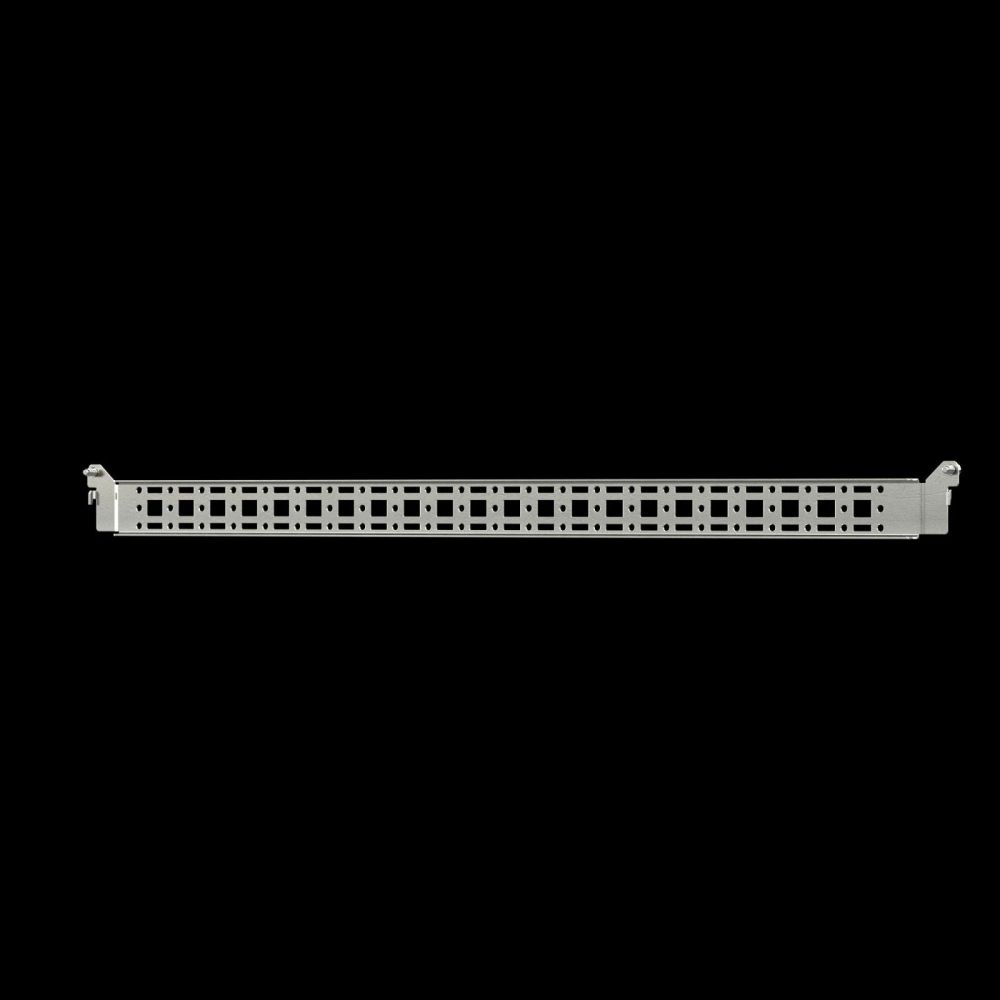

The Rittal System-Chassis VX 8619760 is a metallic mounting component made of sheet steel, specifically developed for use in enclosures of the AX system. It is designed for the secure mounting of cable ducts, cable conduit holders, door inserts, and other components within the enclosure. The chassis has a cross-sectional dimension of 14 x 39 mm and is designed for a mounting height of 700 mm. The surface is zinc-coated, enabling corrosion-resistant and long-lasting use in industrial environments.

System-Chassis

The System-Chassis is a modular component installed in the internal mounting rail of the AX enclosure. It is mounted in conjunction with the internal mounting rail AX to ensure stable fixation within the enclosure. Installation is carried out in enclosure widths of 600 mm and an enclosure height of 700 mm. The mounting points are spaced at 575 mm intervals, enabling even load distribution and secure fixation of mounted components.

Functions and Equipment in Detail

The chassis is designed for use in industrial enclosures, where a firm and durable fixation of cable management elements and other inserts is required. It is supplied with mounting hardware needed for installation on the internal mounting rail. For installation in AX sheet steel enclosures, the use of the internal mounting rail AX is mandatory. When mounting custom components to the chassis, sheet metal screws or thread-forming screws M5 are required to ensure a secure connection.

Technology Explained Simply

The System-Chassis is made of sheet steel, protected against corrosion by zinc coating. The zinc coating increases the service life of the component, especially in humid or aggressive environments. The dimensions of 14 x 39 mm allow for compact mounting, minimizing space requirements within the enclosure. The predefined mounting points spaced at 575 mm ensure even load distribution and prevent displacement of mounted elements under load.

Compatibility and Accessories

The chassis is specifically designed for enclosures of the AX system and fits enclosures with a height of 700 mm. It is compatible with internal mounting rails of the AX system and can be used in combination with other Rittal products such as cable ducts, cable conduit holders, or door inserts.

Mounting and Installation

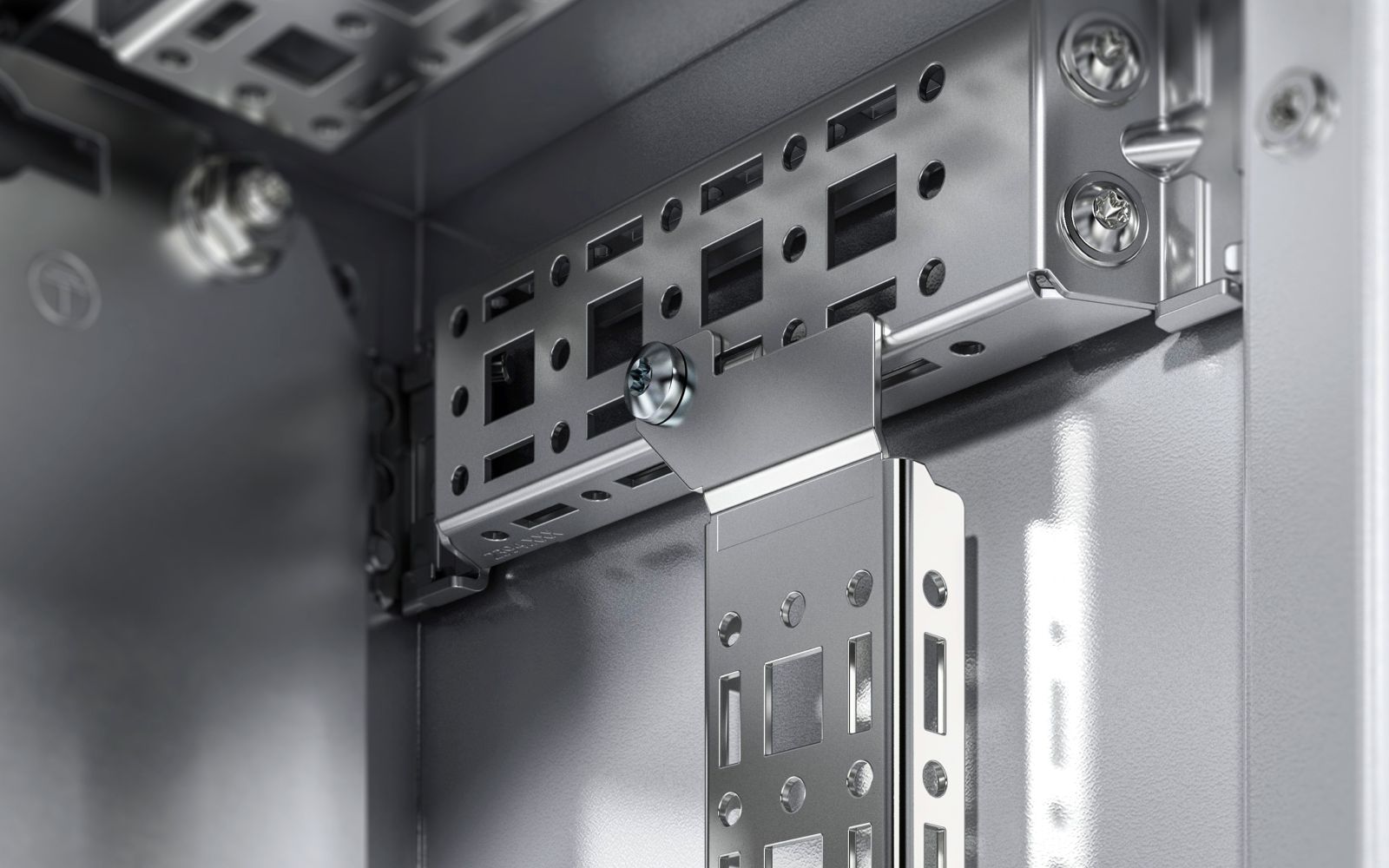

Installation is carried out in conjunction with the internal mounting rail AX, which is installed in the AX enclosure. The chassis is fastened to the rail using the included mounting hardware. For installation in sheet steel enclosures, the rail is mandatory. When mounting custom components to the chassis, M5 sheet metal or thread-forming screws are required to ensure a secure connection.

Advantages in Operation

The System-Chassis provides a stable and reliable mounting solution for various components within the enclosure. The zinc-coated surface ensures high corrosion resistance, extending the service life of the component. The modular design allows flexible adaptation to different mounting conditions within the AX system. The predefined mounting points ensure even load distribution and prevent displacement of mounted elements under load.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Distance between mounting points575 mm
Mounting options AXIn enclosure width 600 mm and enclosure height 700 mm, in combination with the AX internal mounting rail
Mounting noteFor installation in AX sheet metal only in conjunction with mounting rail for indoor installation AX
NoteFor expansion with own components on the system chassis, sheet metal screws or thread-forming screws M5 are required
Suitable forEnclosure type: AX, suitable for width or height or depth: 700 mm
PCF/VE (Cradle-to-Gate)8,98


Product data sheet
Datasheet for Rittal 8619760, EAN: 4028177926851

Questions & answers

What is the delivery time of Rittal 8619760 VX system chassis 14 x 39 mm, for height: 700 mm?

The article Rittal 8619760 VX system chassis 14 x 39 mm, for height: 700 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619760 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8619760 VX system chassis 14 x 39 mm, for height: 700 mm always at the best possible price. We can give you a discount of 2% on Rittal 8619760 VX system chassis 14 x 39 mm, for height: 700 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
