Rittal 6320650 AX command panel housing with grip strips, 600x600x210 mm, S,

Your rating:
Average rating
product review for Rittal 6320650 AX command panel housing with grip strips, 600x600x210 mm, S,
( 4.7 / 5 ) 6 ratings
Rittal 6320650
This image may differ from the desired article.
Rittal 6320650Rittal 6320650Rittal 6320650Rittal 6320650Rittal 6320650Rittal 6320650Rittal 6320650
-6% 278,07 EUR 294,76 EUR
( 330,90 EUR incl. VAT )
≈ £232.74  |  ≈ $305.60
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 6320650 AX command panel housing with grip strips, 600x600x210 mm, S,
Datasheet:file_download Download
Lieske Part No.:1598238
Mfg Part No: 6320650
UPC/EAN: 4028177923225
Weight:17.3 kg
Type:AX 6320650

Product information for Rittal 6320650:

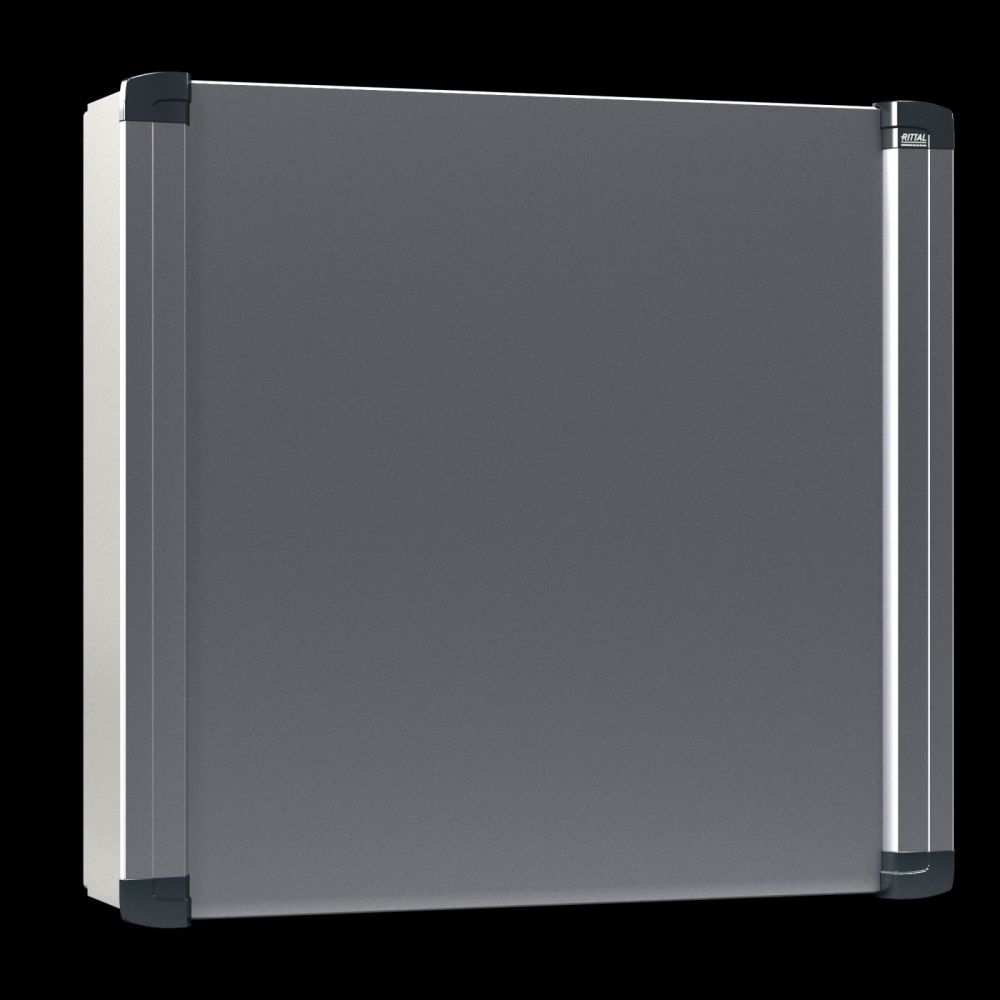

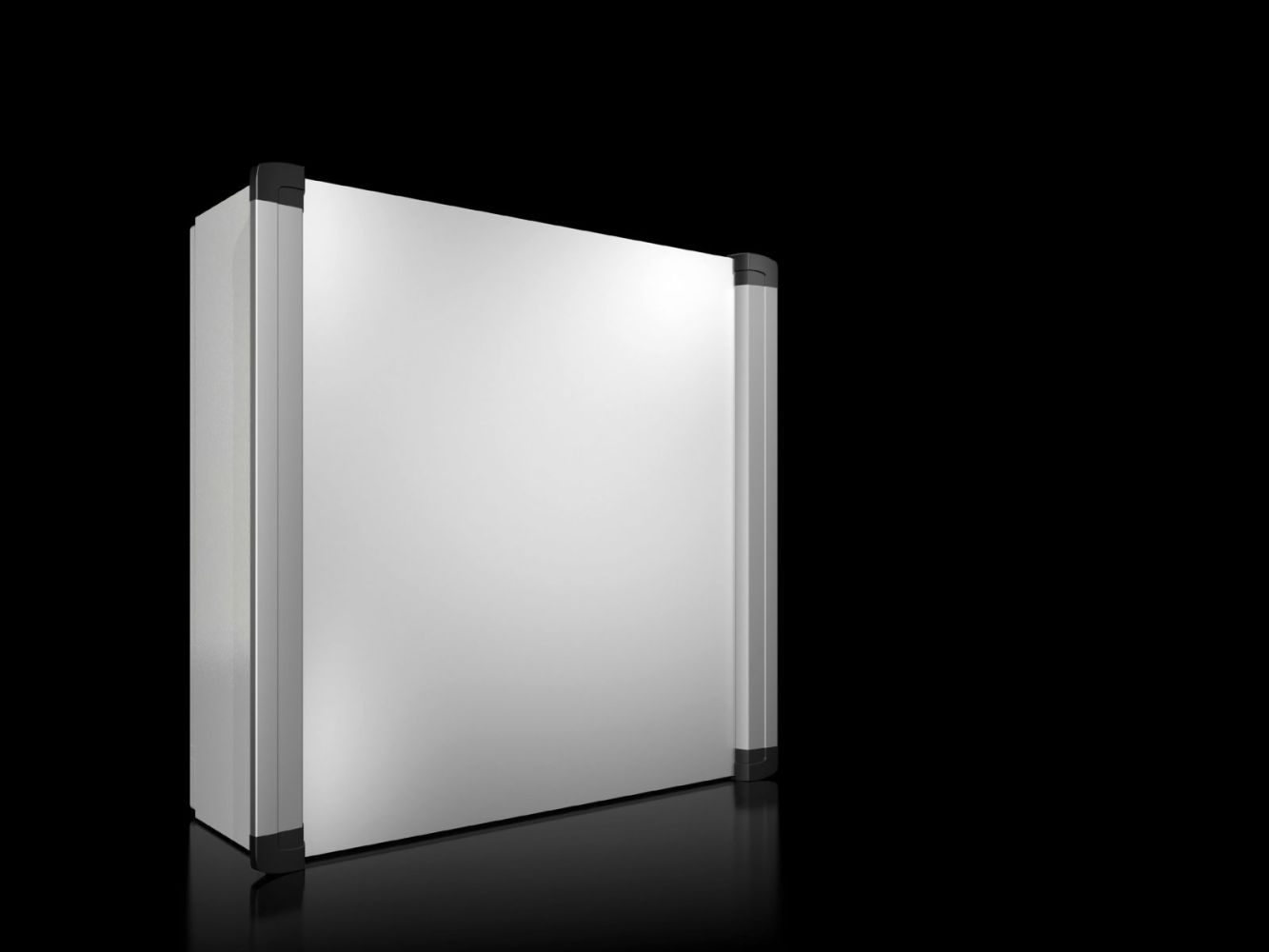

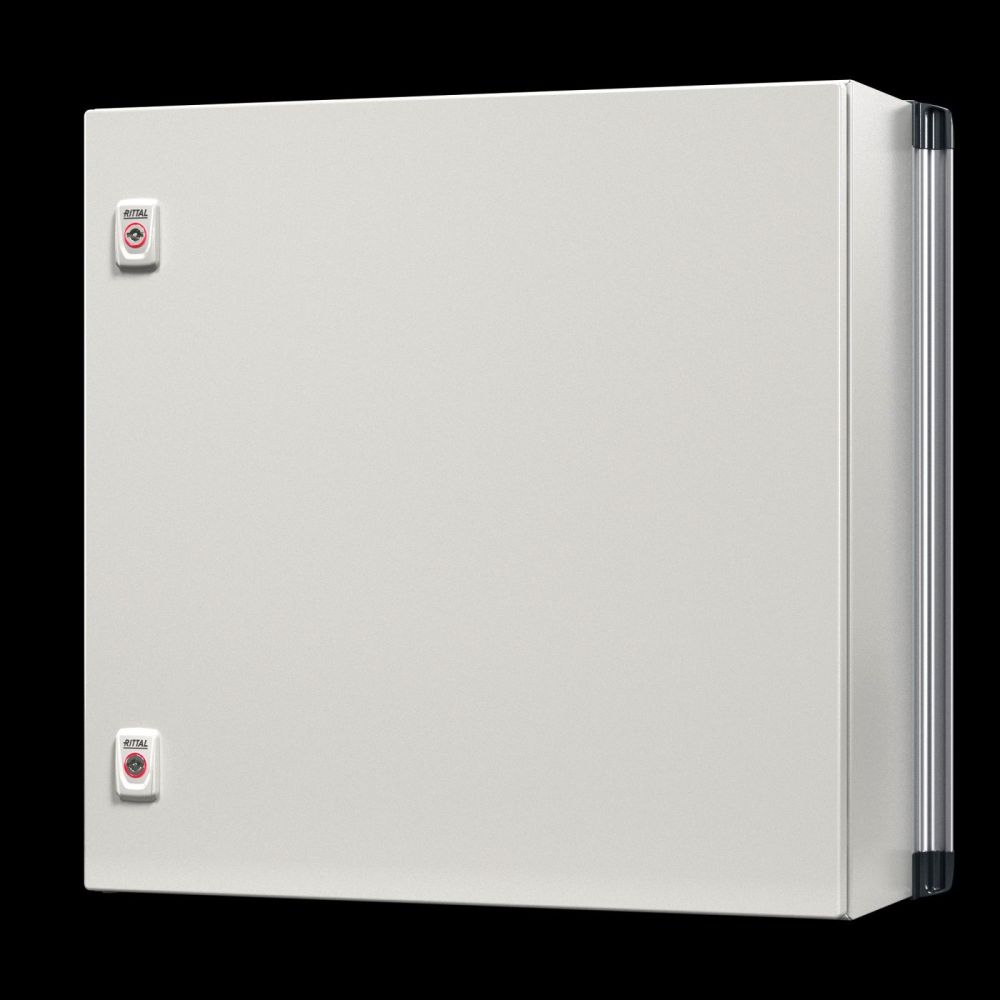

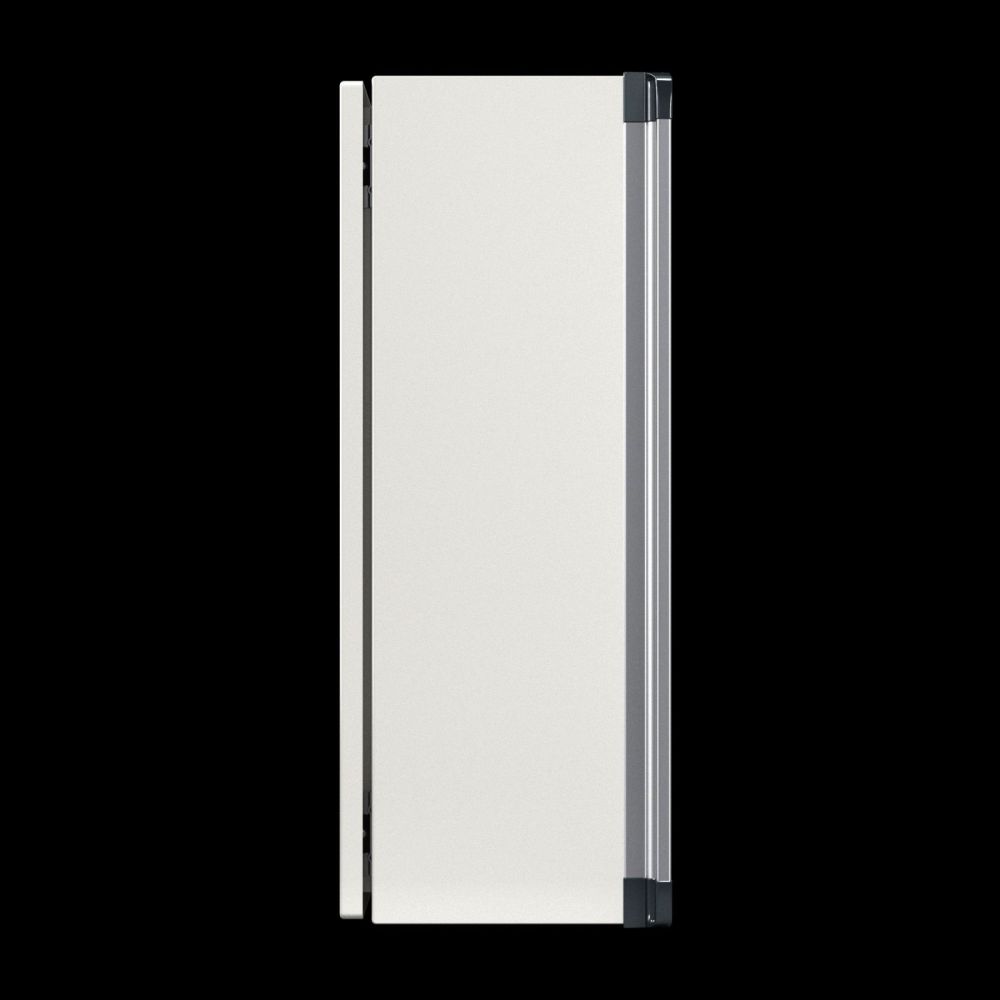

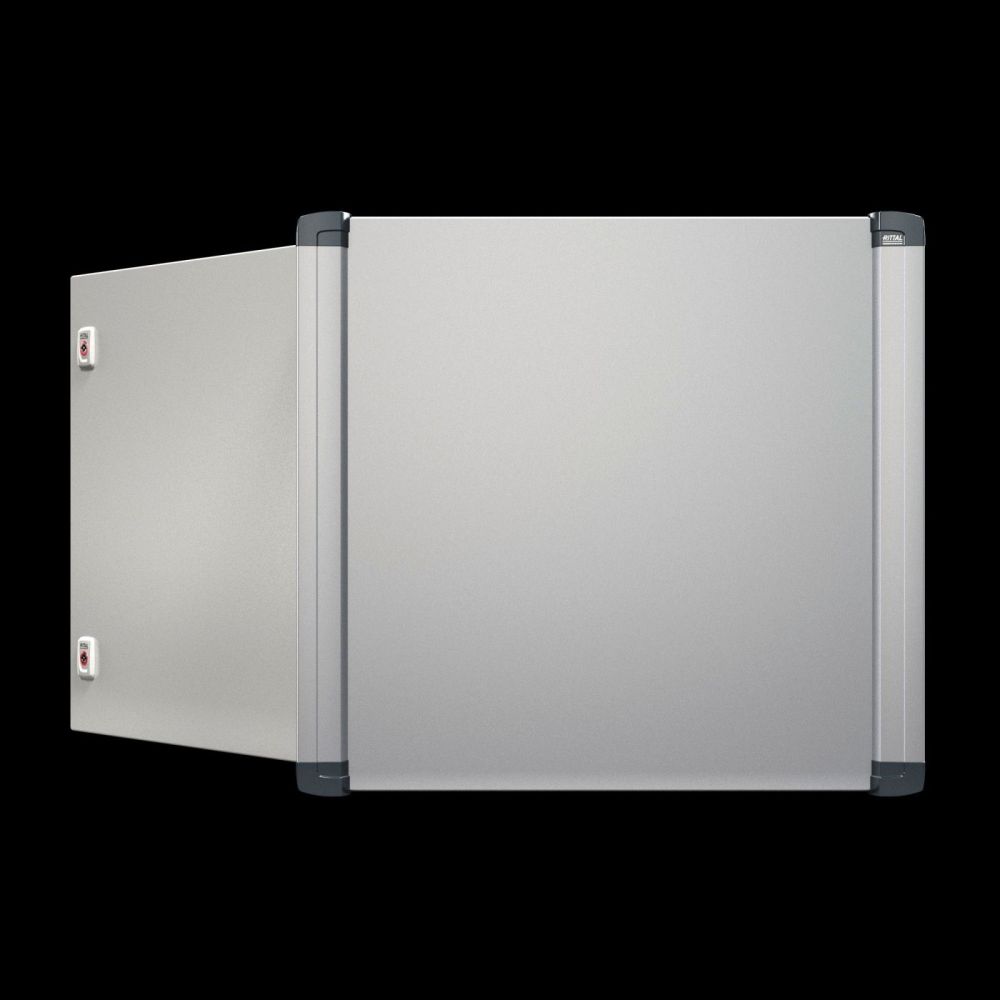

The Rittal AX 6320650 is a command panel housing made of sheet steel, designed for use in industrial plants where secure and accessible mounting of control elements is required. The housing has dimensions of 600 mm width, 600 mm height, and 210 mm depth, and is equipped with an aluminium front plate that is easy to work with and intended for the integration of control elements such as keyboards or displays. Service access is from the rear, ensuring efficient accessibility during maintenance and component installation. The aluminium grip strips are arranged on the sides and fitted with end caps, giving the housing a closed appearance.

Applications
This housing is suitable for use in industrial environments, particularly in plants requiring a robust yet easy-to-maintain control console. It is commonly used in manufacturing automation, process control, or the machine-building industry, where integration of control elements into enclosures or control consoles is necessary. The protection rating IP 55 ensures high protection against dust and splashing water, making it suitable for use in damp or dusty environments. The protection rating NEMA 1 and NEMA 12 as well as the type rating according to UL 50E: Type 1 and Type 12 confirm suitability for indoor and lightly contaminated industrial environments.

Functions and equipment in detail
The housing features a carrier arm connection Ø 130 mm, enabling mounting on carrier arm systems such as CP 60/120/180. Reinforcement in the breakout area ensures stable fastening. The front plate made of 3 mm aluminium is easy to work with and can be opened for mounting control elements. The perimeter-foamed PU seal ensures a tight seal of the door and supports the IP 55 protection rating. The latch lock with 3 mm double bar insert enables a secure closure, which can be replaced as needed with other locking systems such as lock inserts 27 mm, type A or a Mini comfort handle AX.

Technology explained clearly
The surface of the housing and door is dip-primed and externally powder-coated, using a structured lacquer that provides high mechanical resistance and good corrosion protection. The grip strips and front plate are naturally anodized, ensuring high resistance to corrosion and mechanical stress. The colour of the housing and door corresponds to RAL 7035, while the cover caps have a colour similar to RAL 7024. The IK code IK08 indicates the mechanical strength of the housing against mechanical impacts, such as blows or shocks.

Compatibility and accessories
The housing is compatible with various accessory parts that enable use in different application scenarios. These include lock inserts 27 mm, type A, suitable for replacing the standard lock, and the Mini comfort handle AX, which allows for more convenient operation. Additional compatible components include keyboard trays, which are adjustable in depth, mounting brackets for internal installation, and VX system chassis, which can be used for mounting control components. The system perforation in the shaped internal mounting bracket enables flexible mounting of assemblies and modules.

Mounting and installation
Mounting is done via the carrier arm connection Ø 130 mm, designed for the carrier arm system CP 60/120/180. The carrier arm connection may be pre-formed off-centre in the reinforcement plate and can be easily enlarged if required. The door hinge can be changed by rotating the housing, enabling flexible installation at different locations. The internal mounting brackets with system perforation facilitate the mounting of assemblies and allow for modular arrangement within the housing.

Advantages in operation
The housing offers high mechanical stability and reliable protection for installed components. The easy-to-work-with aluminium front plate allows flexible adaptation to individual control concepts. The rear service access reduces maintenance time, as components are accessible without removing the front plate. The interchangeable locking systems offer flexibility in selecting access security according to the safety requirements of the application environment. The IP 55 protection rating and IK08 rating ensure high reliability in demanding industrial environments.

General
ModelBracket connection Ø 130 mm
MaterialHousing: sheet steel, door: sheet steel, continuous foamed PU seal, front plate: aluminium, cover caps: plastic
Surface protectionEnclosure and door: dip primed, externally powder coated, textured lacquer, handle strip: natural anodized, front plate: natural anodized
Basic colourRAL 7035
ColourHousing and door: RAL 7035, handle strip: natural anodized, front plate: natural anodized, cover caps: similar to RAL 7024
Scope of deliveryHousing with cutout and reinforcement for mounting arm connection Ø 130 mm, front with max. cutout, covered by easily machinable 3 mm aluminium front plate, side grip rails with end caps, shaped internal mounting angle with system perforation, pre-ribbed latch with 3 mm double-barrel insert
Width600 mm
Height600 mm
Depth210 mm
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK08
NoteChange of mounting arm connection and door hinge possible by rotating the housing; optional: mounting arm connection Ø 130 mm, offset in the reinforcement plate, pre-formed, can be easily drilled out; locking systems for service access from rear: locking insert, interchangeable with Mini-Comfort handle AX, locking inserts 27 mm, type A; locking systems for service access from front: locking insert, interchangeable with locking inserts 27 mm, type A
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)78.5 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 6320650, EAN: 4028177923225
